NEW QUESTION # 21
The network architecture for a BIG-IP consists of an external VLAN and an internal VLAN with two interfaces connected to the upstream switch. The design requires fault tolerance in the case that one of the interfaces is down. Which deployment architecture meets these requirements? (Choose one answer)
Answer: D
Explanation:
Comprehensive and Detailed Explanation From BIG-IP Administration Data Plane Concepts documents:
To meet the requirement of fault tolerance when one interface goes down, BIG-IP must use link aggregation so that loss of a single physical link does not isolate the VLAN(s).
How the objects relate (data plane view)
Interfaces = physical links.
Trunk (LACP) = bundles multiple interfaces into one logical link that provides redundancy (and possibly bandwidth aggregation).
VLANs are assigned to interfaces or trunks. If you need multiple VLANs on the same trunk, they must use 802.1Q tagging (because you can only have one untagged VLAN per interface/trunk).
Self IPs are then placed on the VLANs to provide BIG-IP presence and routing/ARP functions, but self IPs are not what provides link resiliency-the trunk does.
Why Option D is correct
You have two physical interfaces and you want resiliency if one fails → put both interfaces into one trunk with LACP enabled.
You need both external and internal VLANs on those same two links → both VLANs should be configured as tagged on that trunk, so they can coexist on the same aggregated link.
If either physical interface fails, the trunk remains up via the remaining interface, keeping both VLANs operational.
Why the other options are incorrect
A: Two VLANs cannot both be untagged on the same trunk/interface. Only one untagged VLAN is possible; additional VLANs must be tagged.
B: Two trunks "each with one VLAN" would typically mean splitting VLANs across separate trunks. With only two interfaces total, that becomes one interface per trunk-if one interface goes down, the VLAN on that interface is down (no redundancy for that VLAN).
C: Same redundancy problem as B, and disabling LACP removes the negotiated aggregation behavior expected when the switch engineer specifically requested LACP.
NEW QUESTION # 22
A BIG-IP Administrator is making adjustments to an iRule and needs to identify which of the 235 Virtual Servers configured on the BIG-IP device will be affected. How should the administrator obtain this information in an efficient way?
Answer: A
Explanation:
When managing a large environment with hundreds of Virtual Servers, the most efficient way to identify the relationship between an iRule and the objects it manages is to view the properties of the iRule itself.
* iRule Properties:Within the BIG-IP Configuration Utility, navigating toLocal Traffic > iRulesand selecting a specific iRule provides a "Statistics" or "Usage" tab (depending on the version). This view explicitly lists all Virtual Servers currently associated with that specific iRule.
* Centralized Management:Instead of manually checking 235 individual Virtual Servers under the
"Virtual Servers" menu, the iRules menu acts as a central point of reference for that specific logic.
* Data Plane Impact:Because iRules can modify traffic flow, headers, and load balancing decisions, seeing the full list of affected Virtual Servers is critical before making adjustments to avoid unintended side effects across the application portfolio.
NEW QUESTION # 23

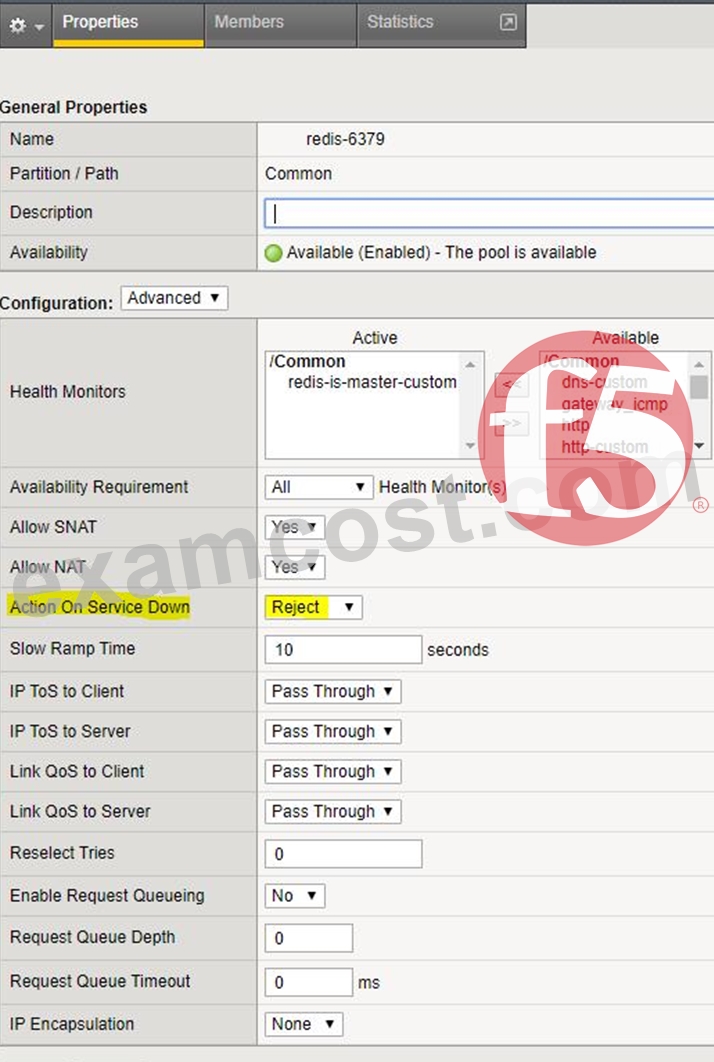

Refer to the exhibit.
The BIG-IP Administrator needs to avoid overloading any of the pool members with connections when they become active. What should the BIG-IP Administrator configure to meet this requirement? (Choose one answer)
Answer: C
Explanation:
Comprehensive and Detailed Explanation From BIG-IP Administration Data Plane Concepts documents:
This question focuses on connection behavior when pool members transition from down to up, which is a classic data plane consideration in BIG-IP environments.
What problem is being solved?
When a pool member:
Recovers from a failure
Is enabled after maintenance
Transitions from inactive to active
...it can suddenly receive a large burst of new connections, especially when using load-balancing methods such as Least Connections. This sudden surge can overload the server.
Why Slow Ramp Time is the correct solution:
Slow Ramp Time is a pool-level setting that:
Gradually increases the number of connections sent to a newly available pool member Prevents sudden spikes in traffic Allows the server to warm up (application cache, JVM, DB connections, etc.) From BIG-IP Administration Data Plane Concepts:
Slow Ramp Time controls the rate at which BIG-IP increases load to a pool member that has just become available During the ramp period, BIG-IP artificially increases the member's connection count, making it appear "busier" and therefore less attractive for new connections This directly satisfies the requirement to avoid overloading pool members when they become active.
Why the Other Options Are Incorrect:
B . Different Ratio for each member
Ratios control relative distribution under normal operation
They do not prevent a sudden surge when a member becomes active
C . Action On Service Down to Reselect
Controls persistence behavior when a member goes down
Has no impact on connection ramp-up when a member comes back online
D . Same Priority Group to each member
Affects failover logic between priority groups
Does not control connection rate or ramp-up behavior
Key Data Plane Concept Reinforced:
To protect backend servers during recovery events, BIG-IP provides Slow Ramp Time, ensuring graceful reintroduction of traffic and preventing connection storms that can occur during high-load scenarios.
NEW QUESTION # 24
Which two statements describe differences between the active and standby systems? (Choose two.)
Answer: B,E
NEW QUESTION # 25
Active connections to pool members are unevenly distributed. The load balancing method is Least Connections (member). Priority Group Activation is disabled.
What is a potential cause of the uneven distribution? (Choose one answer)
Answer: C
Explanation:
Comprehensive and Detailed Explanation (BIG-IP Administration - Data Plane Concepts):
With Least Connections (member), BIG-IP attempts to send new connections to the pool member with the fewest current connections. In a perfectly "stateless" scenario (no affinity), this often trends toward a fairly even distribution over time.
However, persistence overrides load balancing:
When a persistence profile is applied, BIG-IP will continue sending a client (or client group) to the same pool member based on the persistence record (cookie / source address / SSL session ID, etc.).
This means even if another pool member has fewer connections, BIG-IP may still select the persisted member to honor session affinity.
The result can be uneven active connection counts, even though the configured load balancing method is Least Connections.
Why the other options are not the best cause:
A . Priority Group Activation is disabled
Priority Group Activation only affects selection when priority groups are configured; disabling it does not inherently create uneven distribution under Least Connections.
B . SSL Profile Server is applied
A server-side SSL profile affects encryption to pool members, but it does not by itself cause skewed selection across pool members. (Skew could happen indirectly if members have different performance/latency, but that's not the primary, expected exam answer.) D . Incorrect load balancing method Least Connections is a valid method and does not itself explain unevenness unless something is overriding it (like persistence) or pool members are not all eligible.
Conclusion:
A persistence profile is the most common and expected reason that active connections become unevenly distributed, because persistence takes precedence over the Least Connections load-balancing decision.
NEW QUESTION # 26
......
