| Section | Objectives |
|---|---|
| BGP EVPN Control Plane Operations | - Multi-homing scenarios
|
| Data Center Interconnect (DCI) | - Interconnecting data centers with EVPN
|
| EVPN Fundamentals | - VXLAN data plane basics
|
| SR Linux Data Center Architecture | - Fabric design principles
|
KaoGuTi 考題大師的擬真試題覆蓋了真實的考試真題，已經成為考生通過 Nokia 4A0-D03 考试的首選學習資料。4A0-D03 考試主要用於具有較高水準的實施顧問能力，獲取證書，以確保考生有一個堅實的專業基礎知識，有利於他們將此能力企業專業化。準備 Nokia 的 4A0-D03 考試的考生，需要熟練了解我們的擬真試題，快速完成測試，就能順利通過考試。
問題 #49

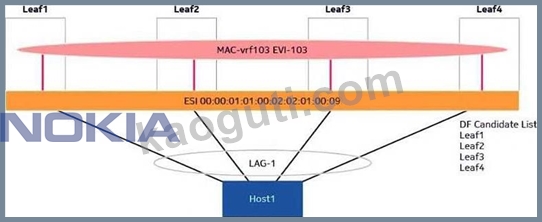

Consider the exhibit.
Leaf1 and Leaf2 have the Ethernet segment configured to use the default election algorithm while Leaf3 and Leaf4 are configured to use the preference-based algorithm with Leaf3 having the higher preference value. The DF candidate list is the same on all leaf routers.
Which of the following leafs is the DF for mac-vrf103?
答案：D
解題說明：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
Designated Forwarder election determines which PE forwards BUM traffic from the EVPN overlay toward a multi-homed Ethernet Segment for a given service. In this scenario, all leaf routers share the same DF candidate list for mac-vrf103, but the election configuration is not identical. Leaf1 and Leaf2 use the default algorithm, while Leaf3 and Leaf4 use the preference-based algorithm. Under preference-based DF election, the candidate with the highest configured preference is selected over lower-preference candidates, assuming the candidate list is valid and consistent. The question states that Leaf3 has the higher preference value compared with Leaf4. Therefore, Leaf3 becomes the DF for mac-vrf103. This is the correct outcome because the preference-based election explicitly overrides simple default behavior by assigning operator-defined priority to a PE. In production designs, this is useful when the operator wants deterministic forwarding placement, maintenance control, or service-specific primary-path selection rather than relying only on the default modulo-based DF selection process. Reference: EVPN DF election, preference-based algorithm, MAC-VRF service forwarding.
問題 #50
Which of the following statements about utilizing asymmetric routing in an L3 EVPN network is FALSE?
答案：A
解題說明：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
Asymmetric routing relies heavily on host MAC/IP information because the ingress PE performs routing into the destination subnet and then sends the frame across the overlay using the destination MAC-VRF/VNI. This means PEs require enough ARP and MAC/IP binding information to forward traffic toward remote hosts correctly. If a host has multiple IP addresses on the same interface, separate EVPN route type 2 advertisements may be needed to communicate each IP-to-MAC binding. The ingress and egress PEs participate in MAC and IP forwarding across the end-to-end service path, but the forwarding responsibilities differ by direction and stage. The false statement is option C. The statement says all MAC-VRFs connected to the L3 EVPN network must exist on each PE, but that is not the correct requirement in this question's verified answer set. In practical EVPN designs, the exact MAC-VRF placement depends on whether the service is implemented as asymmetric, symmetric, interface-less, or interface-ful routing. Here, the course answer marks the universal MAC-VRF requirement as false. Reference: asymmetric L3 EVPN routing, RT-2 MAC/IP advertisements, ARP and MAC forwarding behavior.
問題 #51
Which of the following statements about utilizing asymmetric routing in an L3 EVPN network is FALSE?
答案：C
解題說明：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
In asymmetric L3 EVPN routing, the ingress PE performs the routing decision and then sends traffic across the overlay in the context of the destination MAC-VRF. The egress PE performs Layer 2 MAC forwarding only toward the destination host. This is why options A and B correctly describe asymmetric data-plane behavior. Asymmetric routing relies heavily on EVPN route type 2 MAC/IP Advertisement routes because the ingress PE must know the destination host's MAC/IP binding and the destination bridge domain information. EVPN route type 5, which advertises IP prefixes, is a symmetric L3 EVPN mechanism and is not mandatory for asymmetric routing. Therefore, option C is false. Option D is treated as correct in this asymmetric-routing model because each PE participating in inter-subnet forwarding needs the destination MAC-VRF context to encapsulate traffic toward the correct L2 VNI. This requirement is one reason asymmetric routing scales less efficiently than symmetric routing: MAC-VRF presence and host reachability information must be broadly available. Symmetric routing improves scale by using an IP-VRF routed VXLAN interface and RT-5 prefix routes instead. Reference: asymmetric L3 EVPN routing, ingress IP/MAC forwarding, egress MAC forwarding, RT-2 versus RT-5 usage.
問題 #52

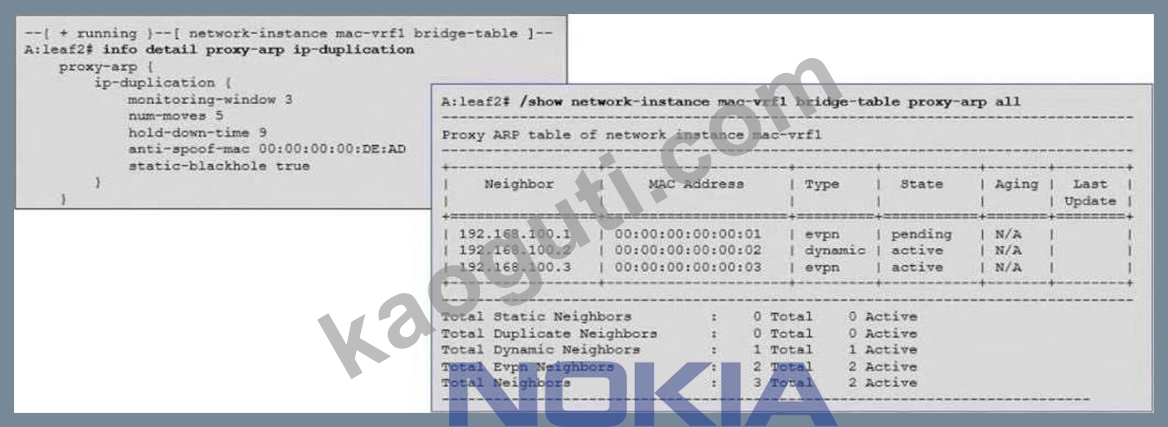

Consider the exhibit.
Which of the following statements about the proxy ARP entry for the neighbor IP 192.168.100.1 is FALSE?
答案：B
解題說明：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
Proxy ARP in a Layer 2 EVPN service allows the leaf to answer ARP requests locally using learned IP/MAC bindings, reducing broadcast flooding across the overlay. SR Linux can also monitor IP duplication and MAC/IP inconsistencies in the proxy ARP table. A pending state indicates that the system has detected suspicious or conflicting information and is monitoring the binding before declaring it duplicate. If the entry becomes duplicate, SR Linux can use a blackhole behavior to prevent forwarding traffic toward a conflicted endpoint, and a special discard MAC such as 00:00:00:00:DE:AD can be associated with the duplicate entry. Option D is false because it incorrectly states that all traffic destined to 192.168.100.1 will be discarded for exactly 9 minutes. The exhibit references monitoring and hold-down behavior, but the answer key rejects the fixed "9 minutes" traffic-discard statement. The key concept is that duplicate handling protects the EVPN service from unstable or conflicting IP/MAC bindings, but the specific discard duration in option D is not correct. Reference: proxy ARP, IP duplication monitoring, duplicate-state blackhole behavior.
問題 #53
A host is connected to multiple PEs through multi-homing.
Which of the following is NOT a function of the EVPN route-type 4 route?
答案：A
解題說明：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
EVPN route type 4 is the Ethernet Segment route. Its core role is to advertise Ethernet Segment membership so that PEs attached to the same multi-homed segment can discover each other. This discovery is essential for multi-homing procedures such as DF election, split-horizon behavior, and redundancy handling. When multiple PEs advertise the same ESI, the EVPN control plane can build the candidate set of PEs that participate in that Ethernet Segment. This enables DF election for BUM forwarding and supports the correct interpretation of the segment's redundancy model. The incorrect statement is option C. The election algorithm itself is not the basic function of the route type 4 advertisement in the way the question frames it. The route type is primarily about Ethernet Segment discovery and participation; the algorithmic decision process is derived from configured DF election behavior and candidate information, not from route type 4 acting as a generic algorithm identifier. Therefore, route type 4 enables DF procedures, but it is not described as the mechanism that identifies the election algorithm type. Reference: EVPN RT-4 Ethernet Segment route, DF election, multi-homing discovery.
問題 #54
......
