NEW QUESTION # 11
Create a Task List
The project team evaluates during the implementation project Task Lists in SAP S/4HANA Asset Management. The following features need to be checked:
* Create a Task List header
* Create Task List operations
* Create a Task List with 3 Task List operations. Maintenance Strategy Z## comprises Maintenance Packages with different hierarchy levels.
Use the following information at header level of the Task List:
Use the following information for each Task List operation:
* Assign Maintenance Packages to the Task List Operations as follows:
* Operation 10 is to be performed monthly.
* Operation 20 is to be performed every 4 months.
* Operation 30 is to be performed every 12 months.
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Since we encountered that error with the Z48 strategy , we must ensure that is fixed before we can finish the Task List. Here is the complete, verified, step-by-step process to finalize Task 7 , including the "hidden" pre- requisite.
Task 7: Create a General Task List
Objective : To create a standardized template of maintenance steps that can be automatically pulled into future work orders based on a schedule.
Step 1: The Pre-requisite (Fixing Strategy Z48)
If you haven't done this yet, SAP will not let you save the Task List.
* Transaction : IP11 (Maintain Maintenance Strategies).
* Action : Click New Entries .
* Strategy : Z48
* Description : Strategy for Group 48
* Strategy Unit : MON (Months).
* Packages : On the left, double-click Packages , then click New Entries :
* Line 1 : Cycle 1 / Unit MON / Text Monthly
* Line 2 : Cycle 4 / Unit MON / Text Every 4 Months
* Line 3 : Cycle 12 / Unit MON / Text Yearly
* Save (Floppy Disk icon).
Explanation : A strategy is the "calendar" that defines how often work happens. Without this, the system doesn't know what "Monthly" or "Yearly" means.
Step 2: Create Task List Header
* Transaction : IA05 .
* Initial Screen : Group TL-48, Group Counter 1. Press Enter .
* Header Fields :
* Description : Regular Maintenance GR48
* Planning Plant : 1010
* Work Center : MK-00 / Plant : 1010
* Usage : 4 (Plant Maintenance)
* Status : 4 (Released)
* Planner Group : P48
* Maint. Strategy : Z48
Explanation : The header defines who is responsible for the work (Planner Group P48) and which scheduling rules (Strategy Z48) apply to the whole list.
Step 3: Create Operations
* Click the Operations button (F6) at the top.
* Enter three rows with this data:
* Op 10 : Work Center MK-00, Plant 1010, Control Key PM01, Work 30, Unit MIN.
* Op 20 : (Same as above).
* Op 30 : (Same as above).
Explanation : Operations are the actual steps the technician follows. Here, we are saying each step takes 30 minutes of mechanical labor.
Step 4: Assign Maintenance Packages (The "Frequencies")
This is the most important part of Task 7. We tell SAP which operation happens when.
* Select Row 10 (click the box at the far left of the row).
* Go to Menu: Goto > Maintenance Packages .
* Check the box for the 1 Month package. Click the Back (Green Arrow) icon.
* Select Row 20 .
* Go to Goto > Maintenance Packages and check the 4 Month package. Click Back .
* Select Row 30 .
* Go to Goto > Maintenance Packages and check the 12 Month package. Click Back .
Explanation : Now, SAP knows that Op 10 happens every month, but Op 30 only happens once a year.
Step 5: Save
* Click the Save icon.
* The message at the bottom should say: "Task list TL-48 saved with group counter 1" .
NEW QUESTION # 12
Create a Maintenance Order with Checklists
The project team evaluates during the implementation project Maintenance Orders with Checklists in SAP S
/4HANA Asset Management. The following features need to be checked:
* Create a Maintenance Order with Checklist
* Display a Maintenance Order with automatically generated Object List and Checklist.
* Create a Maintenance Order using an Order Type which is already configured for the checklist process.
Use the following data:
* Display the previously created Maintenance Order with automatically generated Object List and Checklist.
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 12 Overview
In this task, you will create a maintenance order using a specific order type configured for the checklist process. The system will then automatically generate an object list and a corresponding checklist based on the equipment and task list assigned.
Step 1: Create a Maintenance Order with Checklist
You need to create a new order using a functional location and a specific task list that triggers the checklist functionality.
* Access the Transaction : Use transaction code IW31 (Create Maintenance Order).
* Initial Screen :
* Order Type : Select an order type already configured for the checklist process (typically PM01 or a specific custom type designated for checklists in your training environment).
* Press Enter .
* Enter Header and Location Data :
* Functional Location : Enter 48-01-PRD-01-03-HD .
* Description : Enter a relevant description (e.g., Pump Checklist Maintenance GR48).
* Assign the Task List :
* Go to the Operations tab or find the task list assignment section.
* General Maintenance Task List : Enter A / T-PMCLEN / 1 .
* Press Enter to validate.
* Save : Click the Save (floppy disk) icon.
Explanation : By assigning this specific functional location and general task list, you are triggering the
"Checklist" integration. The system uses the classification data you set up in Task 11 to determine that a checklist (inspection lot) is required for this job.
Step 2: Display and Verify the Checklist
After saving, you must verify that the system correctly generated the technical components of the checklist.
* Display the Order : Use transaction code IW33 and enter the order number you just created.
* Verify the Object List :
* Navigate to the Object List tab.
* You should see the equipment or functional location listed here with a link to the checklist.
* Verify the Checklist :
* Look for a button or tab labeled Checklists or Inspection Lot within the order.
* The system should show that a checklist has been automatically generated for the repair operations.
Explanation : The goal of this step is to confirm that the "Object List" and "Checklist" were created automatically by the system. This proves the background configuration for QM (Quality Management) integration is working correctly with your maintenance order
NEW QUESTION # 13
Task: 5
Configure and create a Maintenance Notification
The project team evaluates during the implementation project the Maintenance Notifications in SAP S
/4HANA Asset Management. The following features need to be checked:
* Configure and create a Maintenance Notification
* Assign catalog specific data to a Maintenance Notification
* Create a Maintenance Notification and save it. Use the following information:
* Assign the following data to the just created notification:
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 5 Overview
The project team is evaluating Maintenance Notifications in SAP S/4HANA Asset Management. This task involves creating a notification and assigning catalog-specific data to it.
Step 1: Create the Maintenance Notification
In this step, you will record a technical problem in the system.
* Access the Transaction : Use transaction code IW21 (Create Maintenance Notification) in the SAP GUI or the corresponding Fiori app.
* Initial Screen :
* Notification Type : Enter Z1 .
* Press Enter .
* Enter General Data :
* Description : Enter Pump is leaking .
* Priority : Select High .
* Equipment : Enter T-PA48 .
* Save : Click the Save (floppy disk) icon to generate a notification number.
Explanation : Creating a notification is the first step in the maintenance process. It documents the "what" (leaking pump), the "how critical" (high priority), and the "where" (Equipment T-PA48).
Step 2: Assign Catalog Specific Data
Now you must assign technical codes to describe the damage precisely for future reporting and analysis.
* Access the Transaction : Use transaction code IW22 (Change Maintenance Notification) to open your recently created notification.
* Navigate to Item Data : Go to the Items tab or the relevant section for damage and causes.
* Enter Damage Details :
* Damage Code Group : PMP-100 .
* Damage Code : 1000 .
* Description : Leaking .
* Enter Object Part Details :
* Object Part Code Group : PMP-Z48 .
* Object Part Code : 1001 .
* Description : Inlet/Outlet .
* Enter Cause Details :
* Cause Code Group : PMP-248 .
* Cause Code : 2000 .
* Description : Material fatigue .
* Save : Click the Save icon to finalize the notification.
Explanation : Assigning catalog data categorizes the issue using standardized codes. This allows the company to run "Bad Actor" reports later to see, for example, how many pumps are failing due to "Material fatigue" versus "Operator error".
NEW QUESTION # 14
Task 4: Configure and create Technical Objects
The project team evaluates during the implementation project Technical Object structures in SAP S/4HANA Asset Management. The following features need to be checked:
* Configure and create Functional Locations
* Create, serialize and install Equipment
* Create Functional Location master record ZZ0##-01 and save it. Use the following information:

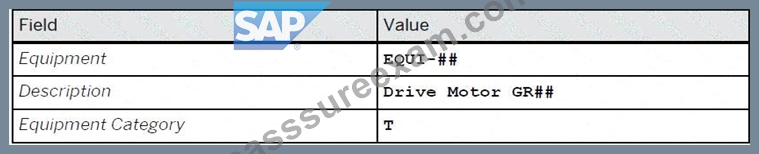

* Create Equipment master record EQUI-## and save it. Use the following information:

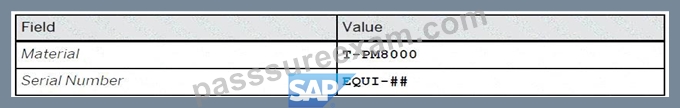

* Serialize the just created Equipment master record EQUI-## . Use the following data:

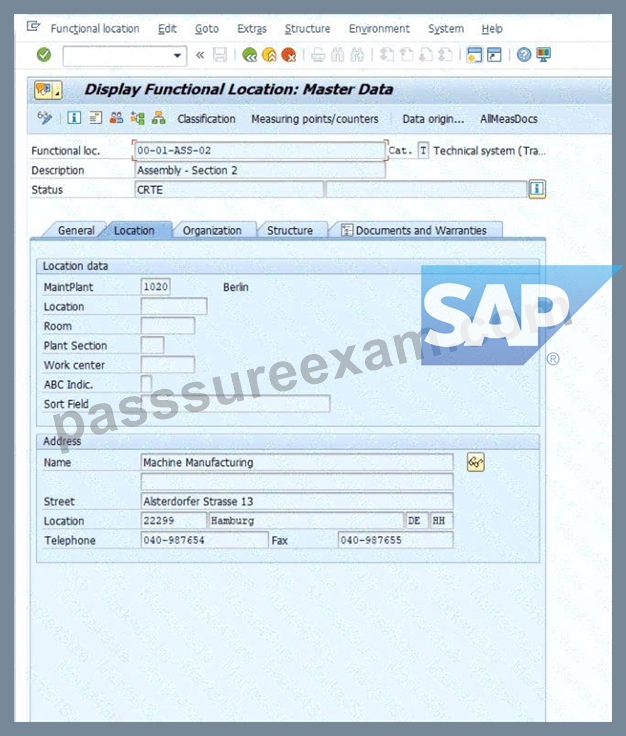

* Install Equipment EQUI-## at the Functional Location 00-01-ASS-02 .
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 4: Configure and create Technical Objects
This task evaluates your ability to structure and manage the physical and functional hierarchy of assets in SAP S/4HANA Asset Management.

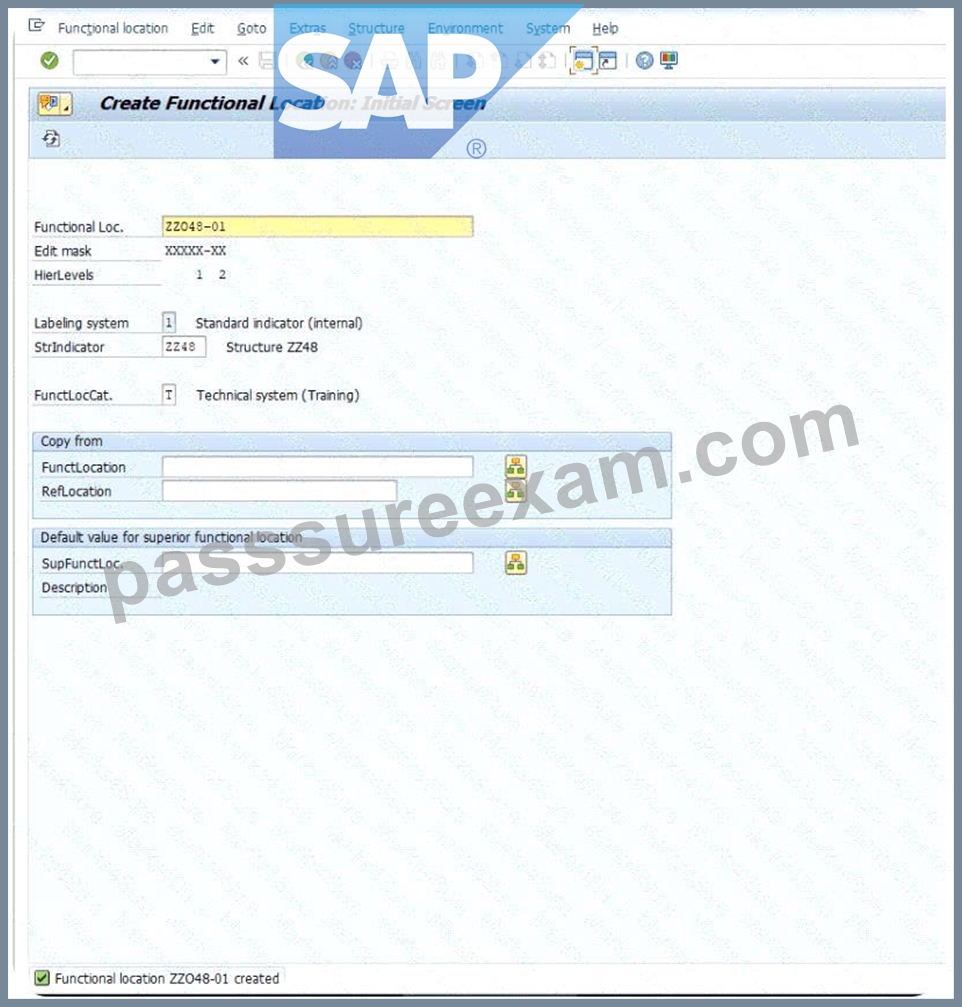

Step 1: Create Functional Location Master Record
A Functional Location represents the area at which a maintenance task is to be performed.
* Access the Transaction : Use transaction code IL01 (Create Functional Location).
* Enter Initial Data :
* Functional Location : ZZ048-01.
* Structure Indicator : ZZ48.
* Functional Location Category : T.
* Press Enter .
* Enter General Data :
* Description : Production Line Z48.

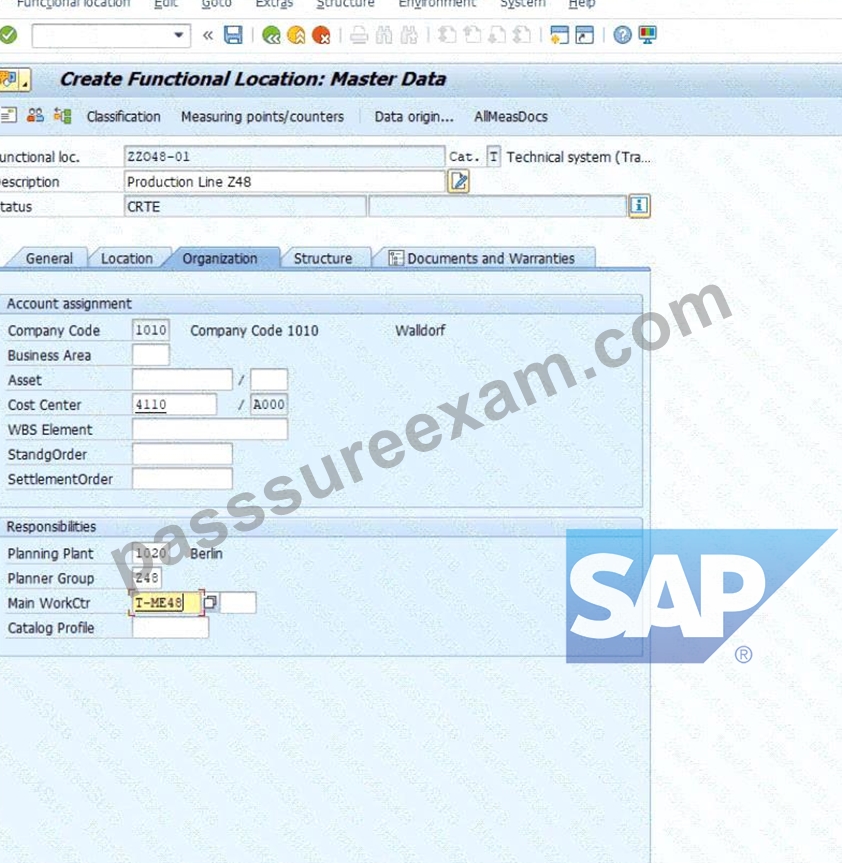

* Enter Location and Organization Data :
* Maintenance Plant : 1020.
* Cost Center : 4110.
* Planning Plant : 1020.
* Planner Group : Z48.
* Main WorkCtr : T-ME48.
* Work Center Plant : 1010.
* Save : Click the Save icon.
Explanation : By creating this record, you define a specific functional area within Plant 1020 where maintenance costs and history will be tracked for all equipment installed there.

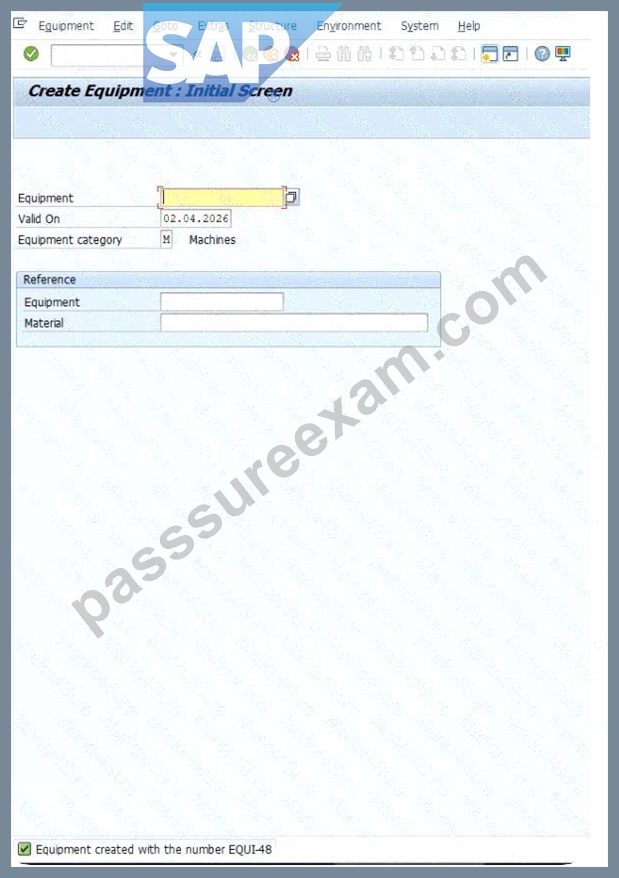

Step 2: Create Equipment Master Record
Equipment represents an individual physical object that is maintained as an autonomous unit.
* Access the Transaction : Use transaction code IE01 (Create Equipment).
* Enter Initial Data :
* Equipment : EQUI-48.
* Equipment Category : T.
* Press Enter .
* Enter General Data :
* Description : Drive Motor GR48.
* Save : Click the Save icon.
Explanation : This step creates a master record for a physical asset-a drive motor-allowing you to track its individual lifecycle, independent of where it is currently installed.
Step 3: Serialize the Equipment
Serialization links a piece of equipment to a specific material and unique serial number for inventory management and tracking.

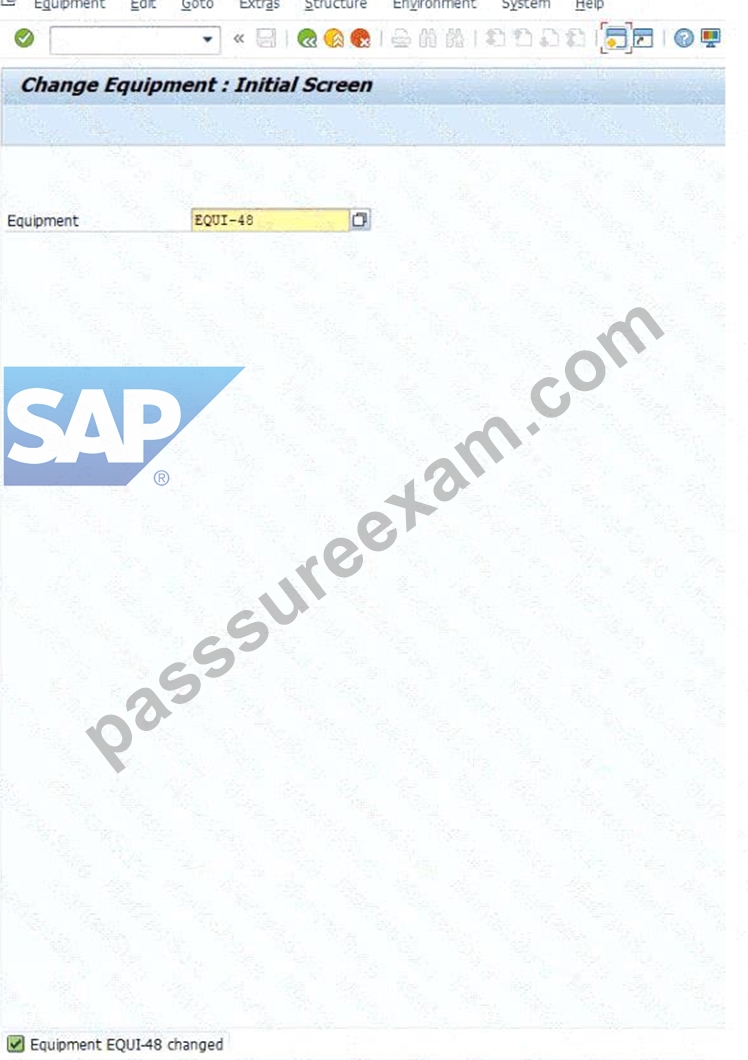

* Access the Transaction : Use transaction code IE02 (Change Equipment) and enter EQUI-48.
* Navigate to Serial Data : Go to the SerData (Serial Data) tab.
* Enter Serialization Data :
* Material : T-PM8000.
* Serial Number : EQUI-48.
* Save : Click the Save icon.
Explanation : Linking the motor to Material T-PM8000 enables the system to track this specific asset as a serialized part, which is essential for warehouse movements and warranty tracking.

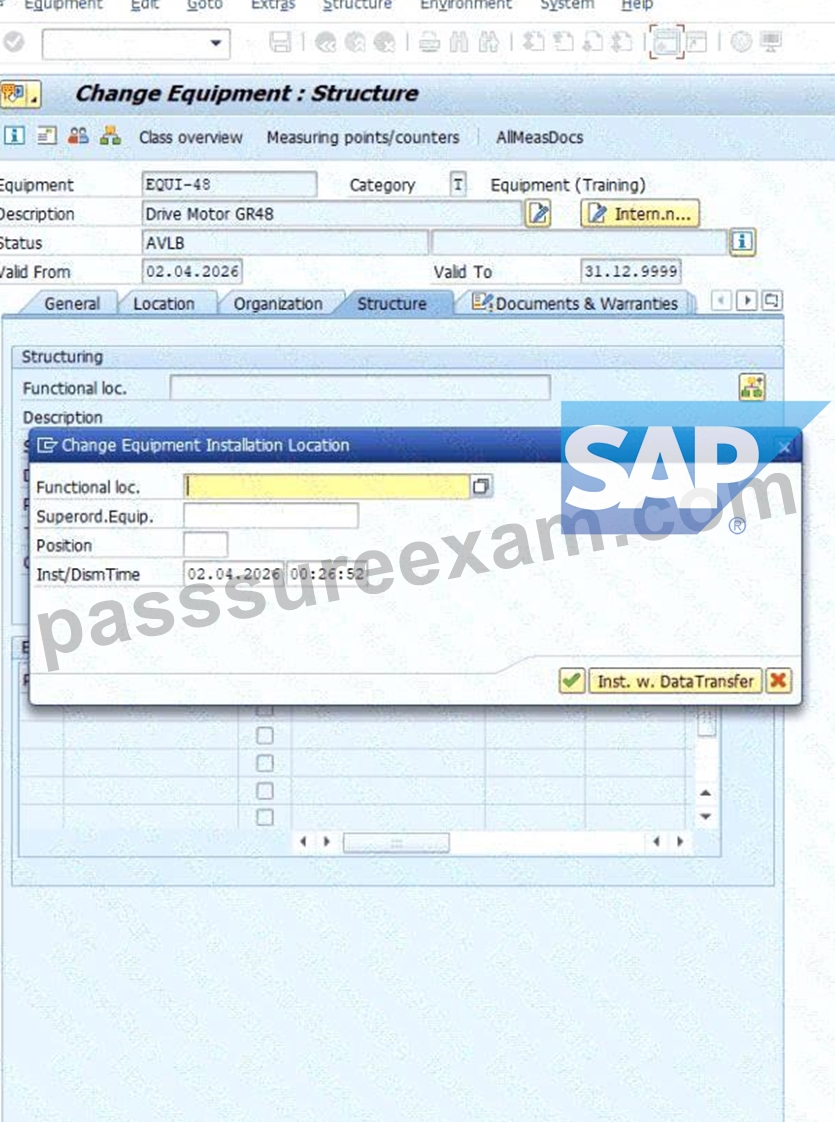

Step 4: Install Equipment at a Functional Location
This establishes the relationship between the physical asset (Equipment) and the functional area where it is operating.
* Access the Transaction : Use transaction code IE02 (Change Equipment) for EQUI-48.
* Modify Installation Location :
* Click on the Structure tab.
* Find the FunctLoc field.
* Enter the location: 00-01-ASS-02.
* Save : Click the Save icon.
Explanation : This installation "plugs" your drive motor into the functional hierarchy at location 00-01-ASS-02. From this point forward, any maintenance performed on this motor will be automatically associated with that location's history.
NEW QUESTION # 15
In the following assessment you will slip into the role of a consultant implementing SAP S/4HANA Asset Management OnPrem/Private Cloud for Machine Manufacturing Inc. . You need to fulfill various system tasks to setup certain business processes and test them.
Note:
In the task descriptions is no information provided if and/or how Asset Management specific customizing settings need to be adapted. This is an implicit part of the exam.
Note:
There is no information provided which UI to use when creating the data in the system e.g. SAP GUI, SAP Fiori Launchpad. This is an implicit part of the exam.
Your performance in each exercise will be evaluated to produce an overall score that determines a pass or fail for the exam. Please read every exercise carefully and enter any data exactly as requested without alteration. Some input data is provided in tables or in the task descriptions, however your input data is not limited to these parameters.

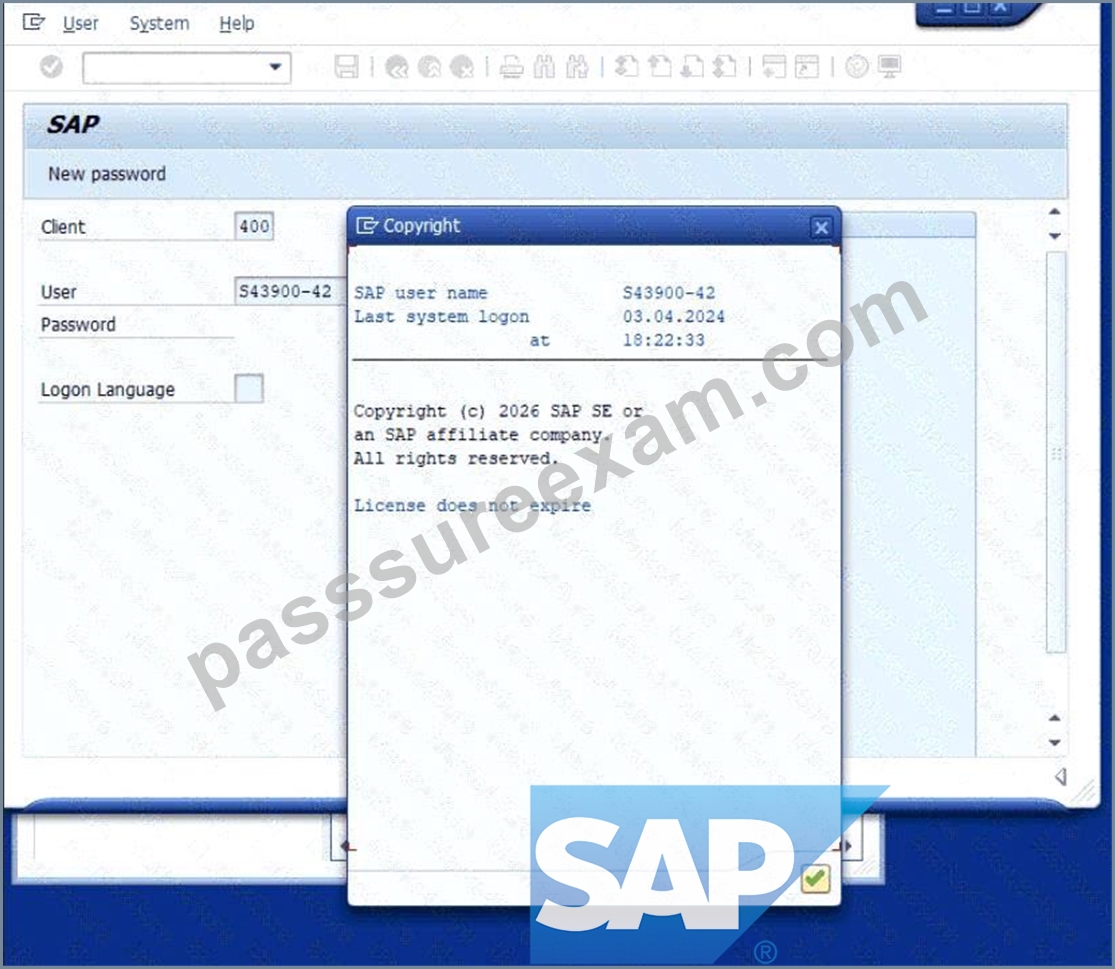

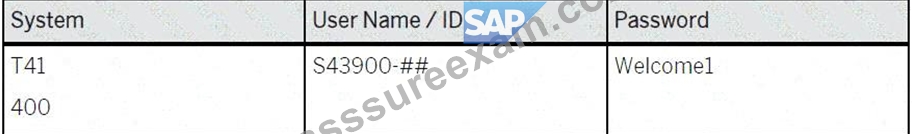

Use the following Logon information for all tasks:
Caution:
Please make sure you are always using your assigned group number (denoted as ## in the following) .
Your results will not be recorded if you are not using your own group number.
For example, if your group number is 10 i.e. (## = 10), your user will be S43900-10.
To find your group number: Click the Access button on the practice system details page. You will find your group number displayed beneath the "Get started" header in the pop-up window. Alternatively, in your Windows Terminal Server, choose the Windows button in the lower left corner. The Start Menu opens. It its upper left corner, choose the Expand icon (three white lines). Find your user name next to the user icon on the left side of the menu - the last two digits of the user name are your group number ##.
Note:
To access your backend system in the Windows Terminal Server, open the SAP Logon application and start the T41 system (Client 400 ). You can access the SAP Fiori Launchpad from the SAP Menu in T41. Always work with user S43900-## in order to have the required roles in place for your tasks.
Caution:
To keep the system running smoothly and avoid unnecessary costs, please follow the assigned exercises carefully when using the SAP Landscape. Avoid going beyond the exercise scope and stay within your allocated resources to help maintain a stable and efficient environment for everyone and to ensure your data is evaluated properly.
Note:
In the following, you will be asked to create new transaction data, among others. If you are asked to create one specific new transaction data object, and - for whatever reason - you create more than one of that kind, SAP will evaluate your newest version only. For example: if you are asked to create a Maintenance Order of a specific Order Type in an exercise and you create three different Maintenance Orders of a specific Order Type, only your order with the highest order number will be evaluated.
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task Objective
In this assessment, you assume the role of a consultant implementing SAP S/4HANA Asset Management for Machine Manufacturing Inc. . Your goal is to set up and test specific business processes through various system tasks.

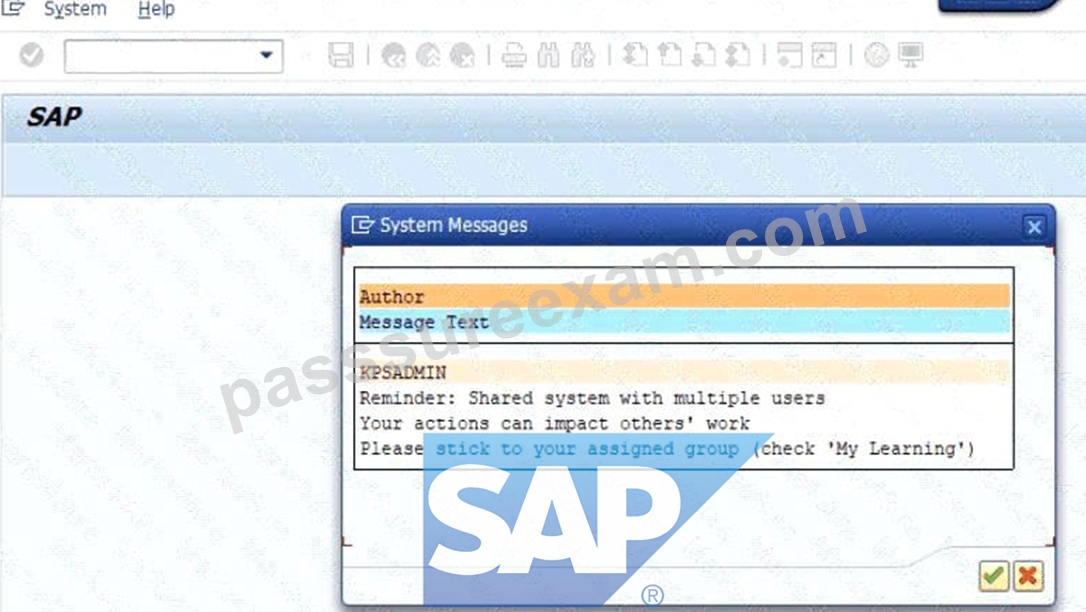

Step 1: Identify Your Assigned Group Number (##)
This is the most critical step, as your results will only be recorded if you use your specific group number, denoted as ## in all instructions.
How to find your number:
* Method A: Click the Access button on the practice system details page; your group number is displayed beneath the "Get started" header.
* Method B: In the Windows Terminal Server, click the Windows button (Start Menu), select the Expand icon (three white lines), and find your user name next to the user icon. The last two digits of that name are your group number.
Step 2: Access the System
You must use the specific credentials provided to ensure you have the required roles for the assessment.
Logon Credentials:
* System : T41
* Client : 400
* User Name/ID : S43900-## (e.g., if your group number is 10, use S43900-10)
* Password : Welcome1
Connection Methods:
* SAP GUI : Open the SAP Logon application in the Windows Terminal Server and start the T41 system (Client 400).
* SAP Fiori Launchpad : This can be accessed directly from the SAP Menu within the T41 system.
Step 3: Understand Implicit Exam Rules
The assessment does not provide exhaustive instructions; certain technical decisions are considered part of the exam.
* Customizing : You must determine if and how specific Asset Management customizing settings need to be adapted.
* User Interface : You are free to choose between the SAP GUI or SAP Fiori Launchpad to create data, as the instructions do not specify which to use.
* Data Accuracy : Enter all data exactly as requested in the tables or descriptions without any alterations.
Step 4: Evaluation of Transaction Data
If you are asked to create a specific transaction object (like a Maintenance Order) and you create multiple versions, the system will only evaluate the newest version (the one with the highest identifying number).
Caution : To ensure your data is evaluated properly and to maintain system stability, stay strictly within the scope of the assigned exercises and your allocated resources.
NEW QUESTION # 16
......
You just need to get PassSureExam's SAP Certification C-S43-2601 Exam exercises and answers to do simulation test, you can pass the SAP certification C-S43-2601 exam successfully. If you have a SAP C-S43-2601 the authentication certificate, your professional level will be higher than many people, and you can get a good opportunity of promoting job. Add PassSureExam's products to cart right now! PassSureExam can provide you with 24 hours online customer service.
C-S43-2601 Test Questions: https://www.passsureexam.com/C-S43-2601-pass4sure-exam-dumps.html
