The VMware 3V0-25.25 certification provides is beneficial to accelerate your career in the tech sector. Today, the VMware 3V0-25.25 certification is a fantastic choice to get high-paying jobs and promotions, and to achieve it, you must crack the challenging 3V0-25.25 Exam. It is critical to prepare with actual Advanced VMware Cloud Foundation 9.0 Networking (3V0-25.25) exam questions if you have less time and want to clear the test in a short time. You will fail and waste time and money if you do not prepare with real and updated 3V0-25.25 Questions.
| Certification Vendor: | VMware |
|---|---|
| Exam Name: | Advanced VMware Cloud Foundation 9.0 Networking |
| Exam Number: | 3V0-25.25 |
| Exam Duration: | 135 minutes |
| Related Certifications: | VMware Certified Advanced Professional - VMware Cloud Foundation Storage VMware Certified Advanced Professional - VMware Cloud Foundation Automation VMware Certified Advanced Professional - VMware Cloud Foundation Operations |
| Available Languages: | English |
| Real Exam Qty: | 60 |
| Certificate Validity Period: | 2 years |
| Exam Price: | $250 USD |
| Passing Score: | 300 (scaled, out of 500) |
| Exam Format: | Multiple Choice, Drag and Drop, Multiple Selection, Sequencing, Build-List, Matching |
| Recommended Training: | NSX-T Data Center: Advanced Networking and Security VMware Cloud Foundation: Networking Design and Implementation |
| Exam Registration: | Pearson VUE Registration Broadcom Certification Portal |
| Sample Questions: | VMware 3V0-25.25 Sample Questions |
| Exam Way: | Online proctored or onsite at authorized test centers |
| Pre Condition: | Recommended: 2โ3 years of hands-on experience with VMware Cloud Foundation, vSphere, NSX and enterprise networking; knowledge of SDDC architecture |
| Official Syllabus URL: | https://www.broadcom.com/support/education/vmware/certification/exam/3V0-25.25 |
>> 3V0-25.25 Interactive EBook <<
PracticeTorrent has made these formats so the students don't face issues while preparing for Advanced VMware Cloud Foundation 9.0 Networking (3V0-25.25) certification exam dumps and get success in a single try. The web-based format is normally accessed through browsers. This format doesn't require any extra plugins so users can also use this format to pass VMware 3V0-25.25 test with pretty good marks.
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
| Topic 5 |
|
NEW QUESTION # 57

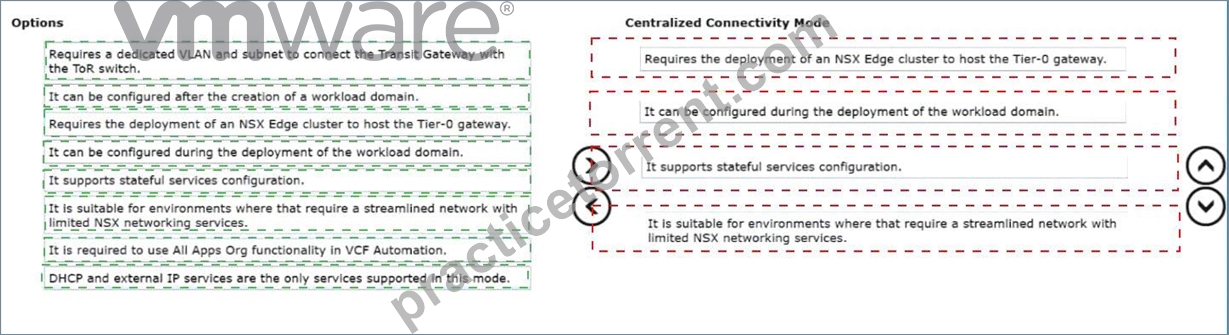

An administrator was asked to explain the characteristic and requirements of Centralized Connectivity Mode which is planned to be configured in one of the workload domains in VMware Cloud Foundation (VCF) environment.
Drag and drop four options from the Options list on the left and place them into the Centralized Connectivity Mode on the right in any order. (Choose four.)
Answer:
Explanation:
Explanation:
* Requires the deployment of an NSX Edge cluster to host the Tier-0 gateway.
* It can be configured during the deployment of the workload domain.
* It supports stateful services configuration.
* It is suitable for environments that require a streamlined network with limited NSX networking services.
InVMware Cloud Foundation (VCF) 9.0, the networking architecture introduces specialized connectivity modes to cater to different organizational needs, withCentralized Connectivity Modebeing a primary option for streamlined deployments. This mode is fundamentally anchored to the physical infrastructure via localized resources rather than distributed components across the entire cluster.
The most critical technical requirement for this mode is that itrequires the deployment of an NSX Edge cluster to host the Tier-0 gateway. Unlike distributed models, centralized connectivity funnels North-South traffic through specific Edge nodes that serve as the demarcation point between the virtual overlay and the physical Top-of-Rack (ToR) switches. This centralization is what enables the next key characteristic: it supports stateful services configuration. Because traffic is anchored to specific Service Routers (SR) on Edge nodes, stateful operations such as NAT, Load Balancing, and stateful firewalls can maintain session persistence, which is not natively possible in a purely distributed Active/Active ECMP environment without specialized configuration.
From a lifecycle perspective, this mode is highly integrated into the SDDC Manager workflows andcan be configured during the deployment of the workload domain. This allows architects to define the networking posture of a new domain at "Day 0," ensuring that the necessary Edge resources and Tier-0/Tier-1 hierarchies are provisioned automatically to meet the domain's specific requirements.
Finally, Centralized Connectivity Modeis suitable for environments that require a streamlined network with limited NSX networking services. It provides a "cloud-lite" approach to networking, offering the necessary isolation and security of NSX without the complexity of managing a full-scale distributed fabric.
This makes it an ideal choice for smaller workload domains, specialized labs, or legacy application environments that do not require the massive scale of a distributed transit gateway but still need robust stateful security and simplified North-South egress.
NEW QUESTION # 58

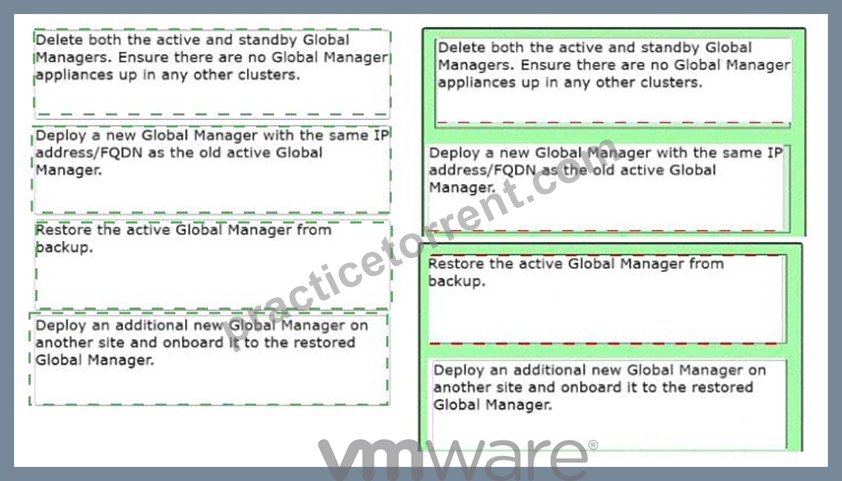

An administrator has noticed that both the active and standby Global Managers have gone offline.
What is the correct sequence of events to restore the Global Managers?
Answer:
Explanation:
Explanation:
* Step 1: Delete both the active and standby Global Managers. Ensure there are no Global Manager appliances up in any other clusters.
* Step 2: Deploy a new Global Manager with the same IP address/FQDN as the old active Global Manager.
* Step 3: Restore the active Global Manager from backup.
* Step 4: Deploy an additional new Global Manager on another site and onboard it to the restored Global Manager.
In aVMware Cloud Foundationmulti-site deployment usingNSX Federation, the Global Manager (GM) manages the global networking configuration across multiple sites. If the entire GM cluster (Active and Standby) fails, the following architectural principles apply:
* Cleanup (Step 1):Before initiating a restore, the environment must be "cleaned." If old, failed VMs remain in the inventory or on the hosts, they can cause IP address conflicts or UUID mismatches during the deployment of the new appliance. You must ensure the management plane is clear of the original failed nodes.
* Identity Consistency (Step 2):When restoring an NSX appliance (Local or Global) from backup, the new appliancemustbe deployed with the exact sameIP address and FQDNas the original active node.
This is critical because the existing Local Managers (LMs) at each site already have established thumbprints and communication channels tied to that specific identity.
* The Restore Operation (Step 3):Once the "seed" appliance is deployed, the restore process is triggered through the NSX Manager UI/API. This process re-populates the database with the global segments, firewall rules, and Tier-0/Tier-1 configurations.
* Restoring Redundancy (Step 4):The backup only contains the configuration of the cluster. It does not
"restore" the standby VM itself. High Availability (HA) must be manually re-established by deploying a second GM appliance at the secondary site and joining it to the newly restored Global Manager cluster to act as the standby.
NEW QUESTION # 59
An administrator has noticed an issue in a freshly deployed VMware Cloud Foundation (VCF) environment where the BGP neighborship between the Tier-0 gateway and a physical router remains in the Idle state. Pings between the uplink IPs are successful. What is the issue?
Answer: D
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In the context ofVMware Cloud Foundation (VCF), particularly versions 5.x and the architectural advancements inVCF 9.0, the establishment of North-South routing via theNSX Tier-0 Gatewayis a critical post-deployment or bring-up task. The Tier-0 gateway usesBorder Gateway Protocol (BGP)to peer with physical Top-of-Rack (ToR) switches to exchange reachability information for the overlay networks.
When a BGP session is reported in the"Idle"state, it indicates that the BGP Finite State Machine (FSM) is at its first stage and is not yet attempting a TCP connection, or it has encountered an error that forced it back to this state. According to VMware VCF documentation and NSX troubleshooting guides, if the administrator can successfully ping between the Tier-0 uplink IP and the physical router interface,Layer 3 reachability is confirmed. This eliminates issues related to physical cabling, VLAN tagging on the trunk ports, or basic IP interface configuration.
The primary reason a BGP session remainsIdledespite successful ICMP reachability is a configuration mismatch. Specifically, anAutonomous System (AS) number mismatchis the most frequent culprit. BGP requires that the "Remote AS" configured on the Tier-0 gateway matches the "Local AS" of the physical peer.
If the SDDC Manager automated workflow or the manual configuration in NSX Manager contains a typo in these values, the protocol handshake will fail immediately.
While aDistributed Firewall (DFW)could technically block port 179, it is not common in a "freshly deployed" environment for the default rules to block the Edge Node's control plane traffic.Geneve tunnelsand MTU issues(Option C and D) typically affect the data plane-causing packet loss for encapsulated guest VM traffic-but they do not prevent the BGP control plane (running over standard TCP) from moving beyond the Idle state. Therefore, verifying the AS numbers in the VCF Planning and Preparation Workbook against the physical switch configuration is the verified resolution path.
NEW QUESTION # 60
An administrator is troubleshooting an issue where workloads connected to a Tier-1 Gateway named T1-App can no longer reach external North/South destinations.
* The Tier-1 is connected to an Active/Standby Tier-0 Gateway named T0-Prod.
Symptoms observed:
* VMs on segments attached to T1-App can ping each other.
* VMs on T1-App cannot reach any external IP outside T0-Prod.
* From a VM on the segment, ping to the T1-App Distributed Router (DR) IP succeeds.
* Ping from the VM to the T1-App Service Router (SR) fails.
* The Edge cluster hosting the T1-App SR shows both Edge nodes Up and Healthy.
* No failover has occurred - the same Edge node is still shown as Active for T1-App.
What is the most likely cause of this issue?
Answer: C
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In theNSXmulti-tier routing architecture used by VCF, aTier-1 Gatewayis composed of two primary components: theDistributed Router (DR)and theService Router (SR). The DR runs as a kernel module on every ESXi host in the transport zone, facilitating East-West traffic. The SR resides on the NSX Edge nodes and provides centralized services like North-South connectivity and stateful services.
Communication between the DR (on the ESXi host) and the SR (on the Edge node) occurs over a hidden internal segment known as theRouter Link. This link is encapsulated inGenevejust like VM-to-VM traffic.
When a VM attempts to reach an external destination, the packet is first routed by the DR on the local host.
The DR then encapsulates the packet and sends it across the overlay to the TEP (Tunnel Endpoint) of the Edge node hosting the SR.
If theMTU (Maximum Transmission Unit)is misconfigured on the physical network or the virtual switches, large encapsulated packets will be dropped. However, small packets (like pings between VMs on the same host) might still succeed. In this scenario, the fact that the VM can ping the local DR butcannot reach the SR
-and therefore cannot reach external networks-points to a failure in the transport between the host and the Edge.
If the Geneve-encapsulated packet containing the ping request to the SR's internal interface exceeds the physical network's MTU, it will fail. Since VCF 5.x/9.0 requires a minimum MTU of1600(ideally9000) for the overlay to account for the Geneve overhead, a mismatch anywhere in the fabric will break the DR-to-SR
"backplane" communication. This prevents the Tier-1 from passing any traffic to its Tier-0 uplink, effectively isolating the workloads from North-South traffic.
NEW QUESTION # 61
An administrator is configuring Border Gateway Protocol (BGP) routing on a Tier-0 Gateway to optimize north-south traffic flow between the NSX environment and multiple upstream physical routers. The environment includes two external connections that advertise overlapping routes to the same destination networks. To ensure predictable and efficient routing behavior, the administrator decides to manipulate specific BGP attributes on outbound advertisements and inbound route updates. What are two valid BGP Attributes that can be used to influence the route path traffic will take? (Choose two.)
Answer: A,C
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In aVMware Cloud Foundation (VCF)architecture, theTier-0 Gatewayis the primary point of integration between the virtualized network and the physical world. When dealing with multiple upstream routers (multi- homing), administrators must influence the BGP path selection process to ensure traffic follows the desired path and avoids suboptimal routing or asymmetric flows.
AS-Path Prependis a common technique used to influenceinbound traffic(traffic coming from the physical network into the NSX environment). By repeating its own Autonomous System (AS) number multiple times in the BGP advertisement, the Tier-0 Gateway makes a specific path look "longer" and therefore less desirable to the upstream physical routers. Since BGP prefers the shortest AS-Path, the routers will favor the alternate link that does not have the prepended AS numbers. This is a critical tool in VCF designs to ensure that a primary link is utilized unless a failure occurs.
MED (Multi-Exit Discriminator)is an attribute that suggests to an adjacent external AS which path to take among multiple entry points to the same AS. Like AS-Path Prepend, it influences inbound traffic. A lower MED value is preferred over a higher one. In a VCF environment with multiple Edge Nodes or multiple Tier-
0 uplinks, setting different MED values allows the administrator to prioritize specific entry points for traffic entering the SDDC.
BFD (Bidirectional Forwarding Detection)is not a BGP attribute; it is a detection protocol used to provide fast failure detection of the link between BGP neighbors. While it triggers faster convergence, it does not influence path selection based on attributes.Costis an OSPF attribute, not a native BGP attribute. Therefore, in the context of NSX Tier-0 BGP configuration, AS-Path Prepend and MED are the verified methods for path manipulation.
NEW QUESTION # 62
......
