질문 # 50
Refer to the exhibit.
The sniffer log on two FortiGate devices are shown. Based on the information in the log, which two factors explain the output on FortiGate FGT-02? (Choose two answers)
정답：A,C
설명：

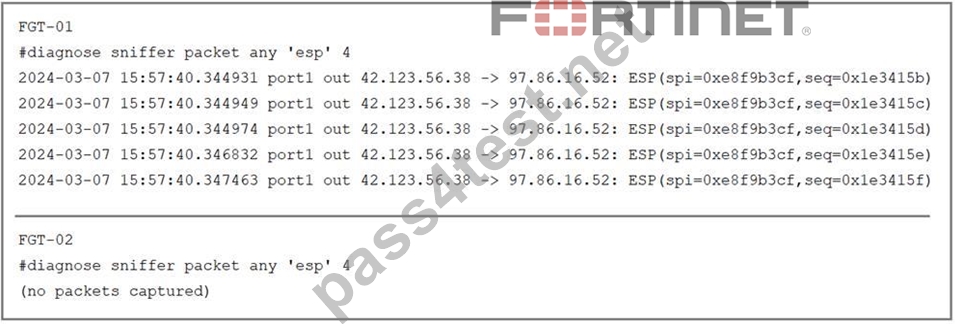

The output on FGT-01 confirms that the device is actively encapsulating traffic and sending it as ESP packets (Protocol 50) out of port1 towards the IP address 97.86.16.52. The logs show outgoing packets, which confirms FGT-01 is attempting to initiate or maintain the tunnel and that NAT-Traversal is not being used (as it uses raw ESP).
The output on FGT-02, however, displays (no packets captured). This is significant because the sniffer command diagnose sniffer packet any 'esp' captures traffic at the network interface level (ingress), regardless of whether a matching VPN configuration exists on the receiving unit. The absence of packets proves that the ESP traffic generated by FGT-01 is physically not arriving at FGT-02's interface.
This behavior is explained by two primary factors:
* Option A (Blocking): An intermediate device, such as an ISP router or firewall, is dropping Protocol
50 traffic. Unlike UDP 500/4500, raw ESP is often blocked by default on many networks or legacy devices.
* Option C (Routing/Misconfiguration): If the administrator configured the wrong remote peer IP on FGT-01, the packets are being routed to a different destination entirely. Consequently, they never arrive at FGT-02 to be captured.
Option B is incorrect because even without a configured VPN tunnel, the sniffer would still display the incoming ESP packets if they were reaching the interface. Option D is incorrect because FGT-01 is sending ESP, making 'esp' the correct filter.
질문 # 51

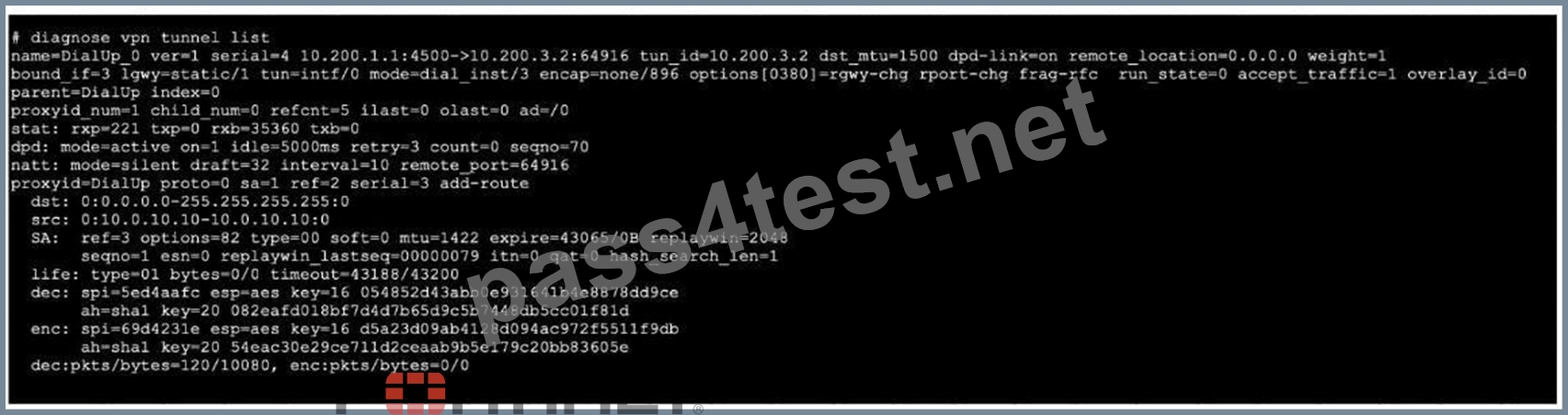

Refer to the exhibit, which contains the output of diagnose vpn tunnel list.
Which command will capture ESP traffic for the VPN named DialUp_0?
정답：D
질문 # 52
Refer to the exhibit.
Which route will traffic take to get to the 100.65.0.0/24 network considering the routes are all configured with the same distance?
정답：D
설명：
To determine the path the traffic will take, we must look at the FortiGate Route Lookup Precedence (Packet Processing Flow) and the specific configurations shown in the exhibit
* Analyze the Routing Precedence:
* In FortiOS, when a packet arrives (and is not part of an existing session), the FortiGate performs route lookups in a specific order:
* Policy Routes: Configured under config router policy (or diagnose firewall proute list).
These are checked first. If a packet matches the criteria (Source, Destination, Protocol, Incoming Interface), the Policy Route is used immediately, bypassing the standard routing table.
* FIB (Forwarding Information Base): If no Policy Route matches, the device looks at the standard routing table (Static, Connected, Dynamic).
* Analyze the Exhibit:

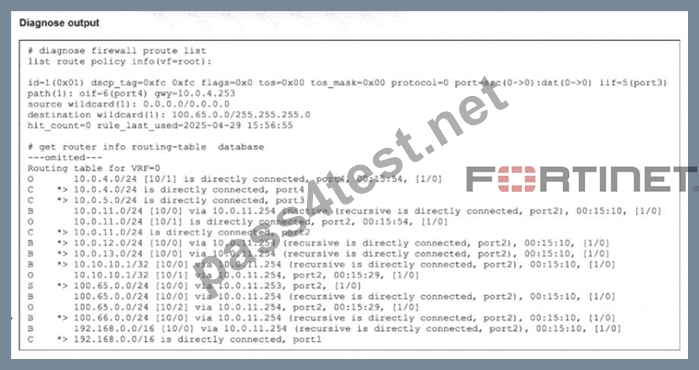

* Policy Route Section: The output of diagnose firewall proute list shows an active policy route ( id=1).
* Destination: 100.65.0.0/255.255.255.0 (Matches the network in the question).
* Action: It directs traffic to gateway 10.0.4.253 via oif=6(port4).
* Routing Table Section: The output of get router info routing-table database shows multiple routes for 100.65.0.0/24 (Static, OSPF, BGP) all with distance 10. The Static route (S) is currently selected (*>) in the FIB.
* Conclusion:
* Because Policy Routes take precedence over the standard routing table (FIB), the FortiGate will forward the traffic using the instructions in Policy Route ID 1. It will not use the Static, BGP, or OSPF routes visible in the routing table for any traffic that matches the policy route's criteria (ingress port 3).
Reference:
FortiGate Security 7.6 Study Guide (Routing): "Policy routes take precedence over entries in the routing table. If a packet matches a policy route, the FortiGate routes the packet according to the specified interface and gateway."
질문 # 53

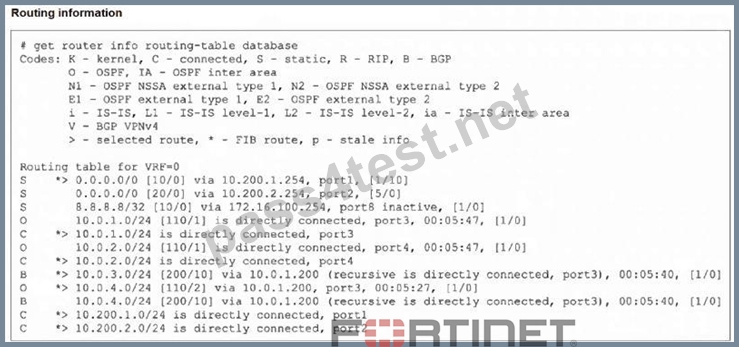

Refer to the exhibit, which shows the modified output of the routing kernel.
Which statement is true?
정답：B
질문 # 54
Refer to the exhibit.
The output of the command diagnose vpn tunnels liar is shown.
Which two statements accurately describe the status of the tunnel? (Choose two.)
정답：A,C
설명：
Based on the Fortinet FCSS - Network Security 7.6 documents and the analysis of the VPN tunnel exhibit, here is the verified answer.
Questions no: 91
Verified Answer: A, C
Comprehensive and Detailed Explanation with all FCSS - Network Security 7.6 documents:

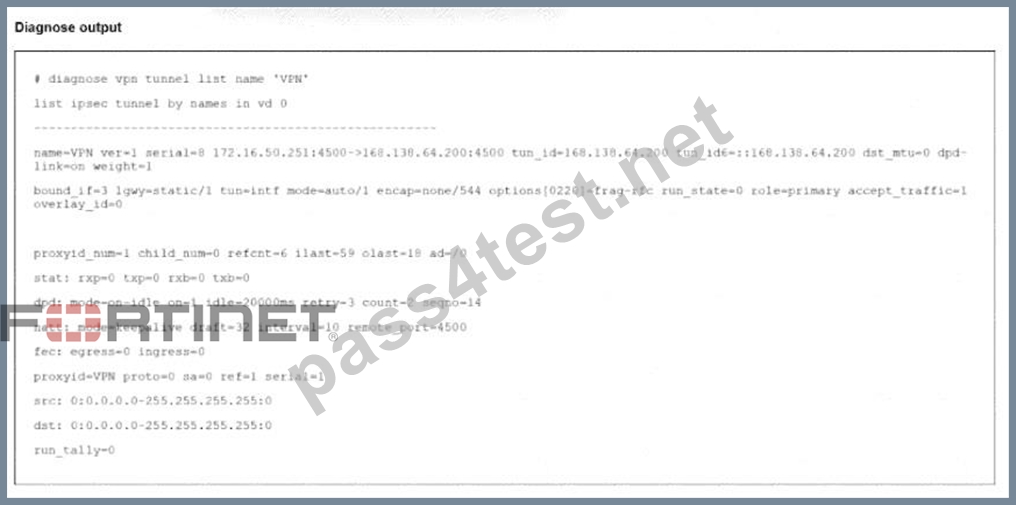

To determine the status of the VPN tunnel, we must examine the specific counters and fields in the diagnose vpn tunnel list output provided in the exhibit.
* Analyze Phase 2 Status (Option A):
* The output displays child_num=0.
* In IKEv2 (and IKEv1 implementations in FortiOS), "Child SAs" refer to the Phase 2 (IPsec) Security Associations that carry the actual data traffic.
* A value of 0 indicates that no Phase 2 tunnels are established. If Phase 2 were up, child_num would be at least 1.
* Additionally, under the proxyid section, the field sa=0 confirms there is no active Security Association for that traffic selector.
* Analyze Traffic Status (Option C):
* The stat line shows: rxp=0 txp=0 rxb=0 txb=0.
* rxp (Received Packets) and txp (Transmitted Packets) are both zero. This definitively confirms that no traffic is traversing the tunnel currently. This is expected since Phase 2 is down.
* Analyze Phase 1 Status (Why B is incorrect):
* The tunnel entry exists in the list with a valid tun_id, and NAT-Traversal is active (natt:
mode=keepalive).
* The presence of the tunnel in this command output, along with active Keepalive mechanisms, typically indicates that Phase 1 (IKE SA) is established and the peers are communicating on port 4500 (NAT-T), even though the data tunnels (Phase 2) failed to negotiate. If Phase 1 were down, the tunnel would often not appear in this "list" view or would show different status flags indicating a complete connection failure.
Conclusion: The exhibit shows a scenario where the Phase 1 control channel is likely up (evidenced by the entry existence and NATT keepalives), but the Phase 2 data channel is down (child_num=0), resulting in zero traffic flow (rxp=0/txp=0).
질문 # 55
......
