NEW QUESTION # 26

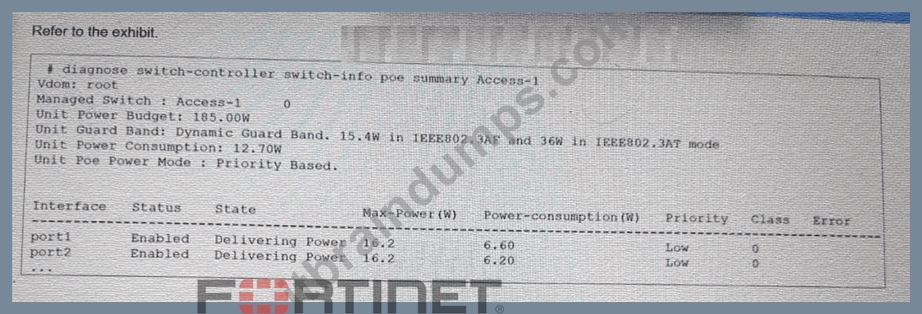

Refer to the exhibit.
The FortiSwitch CLI output of the diagnose switch-controller switch-info poe summary command for the switch Access-1 is shown. It shows that two ports have Power over Ethernet (PoE) enabled and are already in use. What is the most important consideration if you want to connect additional PoE devices to FortiSwitch?
(Choose one answer)
Answer: C
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the primary physical constraint when deploying PoE devices is the total power capacity of the switch's internal power supply unit (PSU). The provided exhibit shows the PoE status forAccess-1, highlighting three critical metrics: theUnit Power Budget (185.00W), the currentUnit Power Consumption (12.70W), and theUnit Guard Band.
TheUnit Power Budgetrepresents the maximum amount of power the switch can provide to all connected Powered Devices (PDs) simultaneously. As more devices (such as access points, VoIP phones, or cameras) are connected, the cumulative power draw increases. The most important consideration is ensuring that the total PoE consumption does not exceed this budget. If the budget is exceeded, the switch will stop providing power to new devices or, depending on the configuration, may shut down lower-priority ports to protect the system hardware.
In this specific exhibit, theUnit Poe Power Modeis set toPriority Based. This means that if the power consumption approaches the budget limit, the switch will use the configured port priorities (seen as "Low" for port1 and port2) to decide which devices to keep powered. TheGuard Band(set to a dynamic value) also plays a role by reserving a small amount of power to handle spikes when devices initialize, further emphasizing that the power budget is a hard limit that must be actively managed by the administrator.
NEW QUESTION # 27

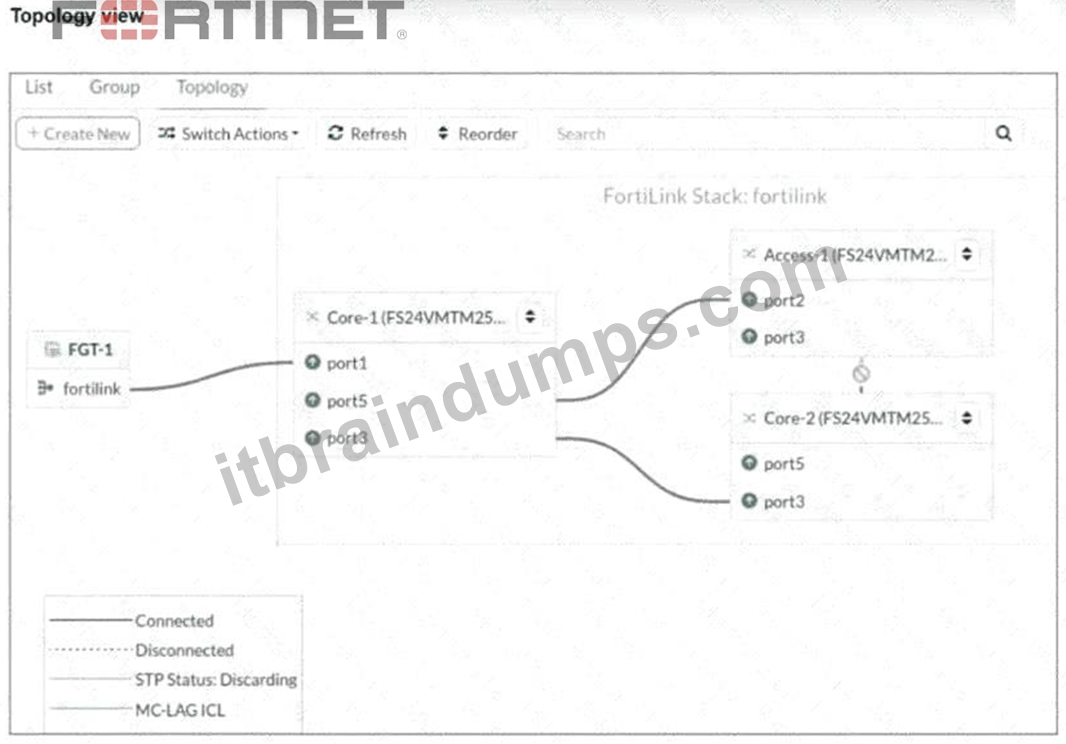

Refer to the exhibit.
You just connected three FortiSwitch devices:Core-1,Core-2, andAccess-1. Core-1 and Core-2 both connect to Access-1 for redundancy. All switches are managed by FortiGate, which uses port4 as the FortiLink interface. After you enable the uplink ports on Core-2, you notice that port3 on Access-1 enters the Discarding STP state. What is the most likely cause of this behavior? (Choose one answer)
Answer: C
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink 7.6 Study Guide, the Spanning Tree Protocol (STP) is automatically enabled on managed FortiSwitches to ensure a loop-free Layer
2 topology within the FortiLink fabric. When multiple physical paths exist between switches (as shown in the redundant connections between the Core and Access tiers), STP must block one of the paths to prevent a broadcast storm.
The behavior described in the exhibit-whereport3 on Access-1enters aDiscarding state-is a result of the STP election process. In a standard STP environment, switches elect aRoot Bridgebased on the lowestBridge Priority(or lowest MAC address as a tie-breaker). Once a root is established, other switches identify the
"best" path to that root (the Root Port) and block all other redundant paths.
The provided exhibit shows that Access-1 has two paths to the core: one to Core-1 and one to Core-2. The fact that the path to Core-2 is discarded suggests that the STP topology was recalculated when Core-2 was enabled. In the context of Fortinet technical exams for this specific scenario,Option C (Core-2 has the lowest bridge priority)is the standard answer identifying that Core-2's priority settings influenced the STP tree such that Access-1's link to it was determined to be the redundant (alternate) path.
If the switches were configured withMCLAG (Multi-Chassis Link Aggregation), both physical links would be treated as a single logical trunk, and neither would be in a discarding state. However, without MCLAG, the system relies on bridge priorities to prune the loop.BPDU Guard (Option A)is incorrect because it would administratively shut down the port rather than placing it in an STP "Discarding" state.Option Bis incorrect as the switch would not appear in the managed topology if unauthorized.
NEW QUESTION # 28
(Full question statement start from here)

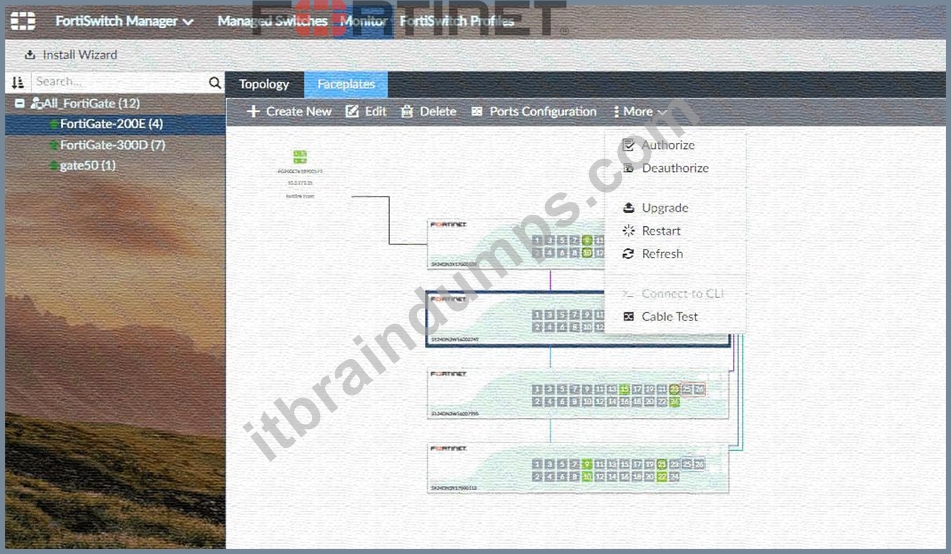

Refer to the exhibit.
Which information does FortiGate use to generate the port details in the FortiSwitch Faceplates view?
(Choose one answer)
Answer: D
Explanation:
In a FortiLink-managed switching architecture, the FortiGate firewall acts as the centralized controller for downstream FortiSwitch devices. TheFortiSwitch Faceplatesview in the FortiGate GUI provides a physical- style representation of switch ports, including port numbers, operational status, link state, speed, duplex, and connected neighbor information. According to FortiOS 7.6 and FortiSwitchOS 7.6 documentation fromFortinet, this port-level intelligence is derived fromLink Layer Discovery Protocol (LLDP) advertisements received from the FortiSwitch.
LLDP is an IEEE 802.1AB standard protocol used for vendor-neutral Layer 2 neighbor discovery.
FortiSwitch periodically sends LLDP frames that include detailed port descriptors such as chassis ID, port ID, port description, system name, system capabilities, and VLAN-related attributes. When FortiGate receives these LLDP advertisements over the FortiLink interface, it correlates the information with the managed FortiSwitch inventory and renders accurate port details in the Faceplates view.
Other options are incorrect for the following reasons. The FortiSwitch model alone is insufficient to populate per-port operational details. Cisco Discovery Protocol (CDP) is a Cisco-proprietary protocol and is not used by FortiGate for Faceplates visualization. FortiLink discovery frames are used to establish and maintain the FortiLink management relationship, but they do not carry the granular per-port metadata required for the Faceplates display.
Therefore, the Faceplates view relies specifically onLLDP advertisements received from the FortiSwitch, making optionCthe correct and fully verified answer based on FortiOS 7.6 and FortiSwitchOS 7.6 behavior.
NEW QUESTION # 29

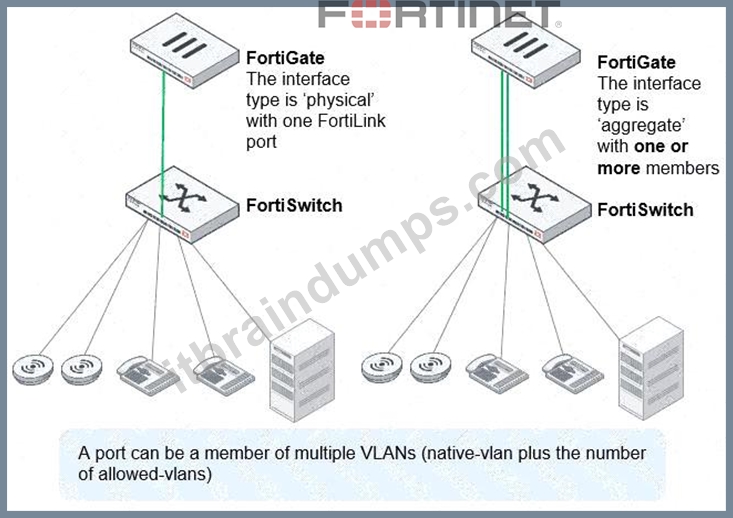

Which two statements about VLAN assignments on FortiSwitch ports are true? (Choose two.)
Answer: B,C
NEW QUESTION # 30
You need to deploy routing on a standalone FortiSwitch and want to maximize routing performance. Which type of routing is best for this deployment? (Choose one answer)
Answer: C
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6.1 Administration Guide- Standalone Mode, FortiSwitch units support two primary methods for processing Layer 3 traffic: software- based routing and hardware-based routing. To maximize performance, the documentation specifies thatHardware-based routing (Option A)is the superior choice for high-speed environments.
The primary technical reason for this performance advantage is the use ofApplication-Specific Integrated Circuits (ASICs). In hardware-based routing, the routing table and forwarding information are programmed directly into the switch ' s specialized hardware silicon. This allows the FortiSwitch to perform packet lookups and forwarding decisions at " wire speed, " which refers to the full throughput capacity of the physical ports.
By offloading these tasks to the ASIC, the switch minimizes latency and prevents the performance bottlenecks associated with general-purpose CPU processing.
In contrast,software-based routing(Options B and D) requires the main system CPU and kernel to process every packet, which is significantly slower and can lead to high CPU utilization during heavy traffic loads.
Option C is factually incorrect because hardware-based routing specifically avoids the kernel ' s software path to increase speed. Therefore, for a deployment focused on maximizing routing performance, especially in a backbone or high-density branch environment, utilizing the ASIC-driven hardware forwarding path is the recommended approach in FortiSwitchOS 7.6.
NEW QUESTION # 31
......
