In compliance with syllabus of the exam, our 3V0-25.25 practice materials are determinant factors giving you assurance of smooth exam. Our 3V0-25.25 practice materials comprise of a number of academic questions for your practice, which are interlinked and helpful for your exam. So, they are specified as one of the most successful 3V0-25.25 practice materials in the line. They can renew your knowledge with high utility with Favorable prices. So, they are reliably rewarding 3V0-25.25 practice materials with high utility value.
| Section | Objectives |
|---|---|
| Cloud Foundation Architecture and Design | - Design principles for scalable SDDC environments - VMware Cloud Foundation (VCF) architecture components |
| VCF Deployment and Operational Networking | - Network pool configuration and workload domain networking - Lifecycle management networking considerations |
| NSX-T Data Center Integration | - Security policies and micro-segmentation - Edge services and gateway configuration - Logical switching and routing constructs |
| Troubleshooting and Optimization | - Performance tuning and monitoring of NSX networks - Common VCF networking issues and resolution methods |
| Networking Architecture in VMware Cloud Foundation | - vSphere Distributed Switch configuration and design - Routing, BGP, and dynamic routing integration - NSX networking fundamentals and overlay architecture |
Adapt to the network society, otherwise, we will take the risk of being obsoleted. Our 3V0-25.25 qualification test help improve your technical skills and more importantly, helping you build up confidence to fight for a bright future in tough working environment. Our professional experts devote plenty of time and energy to developing the 3V0-25.25 Study Tool. You can trust us and let us be your honest cooperator in your future development. Here are several advantages about our 3V0-25.25 exam for your reference.
NEW QUESTION # 34
An administrator is tasked to enable users to configure an individual VPC, but not create subnets. What three NSX roles would the administrator assign to allow access without the ability to create subnets? (Choose three.)
Answer: A,C,D
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
With the introduction of theVirtual Private Cloud (VPC)consumption model inVCF 9.0and late 5.x releases, Role-Based Access Control (RBAC) has become more granular to support true multi-tenancy. A VPC is designed to be a self-contained "container" for a department's or user's networking resources.
To meet the specific requirement where a user can configure aspects of an individual VPC but is restricted from creating new subnets (which involves modifying the underlying network CIDR blocks and IPAM), a combination of specific roles is required.
* VPC Admin:This is the primary role for the user within their assigned VPC. It allows the user to manage the overall VPC environment, including high-level settings and monitoring. However, the VPC Admin's power is often limited by the specific quotas and policies set by the Enterprise Admin.
* Security Operator:This role allows the user to view security configurations and policies without having the permission to modify the network fabric or create new infrastructure components like subnets. It provides the "read-only" visibility into the security posture of the VPC.
* Network Operator:Similar to the Security Operator, the Network Operator role provides visibility into the networking state-such as routing tables, segment status, and connectivity-without granting the
"Write" permissions required to provision new subnets or alter the network topology.
AssigningNetwork Admin(Option B) orSecurity Admin(Option A) would grant too much privilege, as these roles typically include the ability to create, delete, and modify subnets and firewall policies at a structural level. By combining theVPC Adminrole withOperator-level roles, the administrator ensures the user has the necessary context to manage their assigned resources while strictly adhering to the restriction against creating new network subnets.
NEW QUESTION # 35
An administrator must prevent a new VPC from exporting any of its prefixes to the datacenter while still receiving a default route. Where should the routing policy be applied?
Answer: D
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In the advanced networking architecture ofVMware Cloud Foundation (VCF) 9.0and the evolution ofNSX VPCs, the control of route propagation is managed through the relationship between the consumer (the VPC) and the provider (the Tier-0 or Tier-1 Gateway). When a VPC is created, it is logically connected to the provider's infrastructure via aTransit Gateway(or a Provider-side logical router acting as a transit point).
To control the flow of routing information-specifically to prevent the data center's physical network from learning about internal VPC subnets (prefixes) while ensuring the VPC can still reach the outside world via a default route-the routing policy must be applied at the point of intersection. TheTransit Gatewayserves as this demarcation point. By applying a route filter or prefix list on the Transit Gateway, the administrator can explicitly deny the advertisement of internal VPC prefixes "upstream" to the provider's BGP process.
Simultaneously, the provider can still inject or "advertise" a default route ($0.0.0.0/0$) "downstream" into the VPC.
Applying the policy on theVPC Gateway Firewall(Option D) would impact the data plane (blocking traffic) but would not prevent the routing table from being populated. TheBGP peer template(Option C) is too broad, as it would likely affect all VPCs connected to that provider, rather than just the "new VPC" in question. Thedefault route advertiser(Option A) only controls the egress of the default route, not the suppression of internal prefixes. Therefore, the Transit Gateway is the verified location for granular route control in a multi-tenant VCF VPC environment.
NEW QUESTION # 36

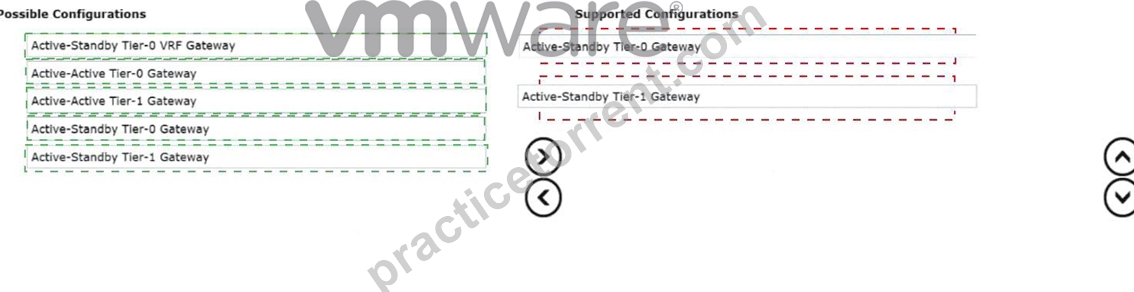

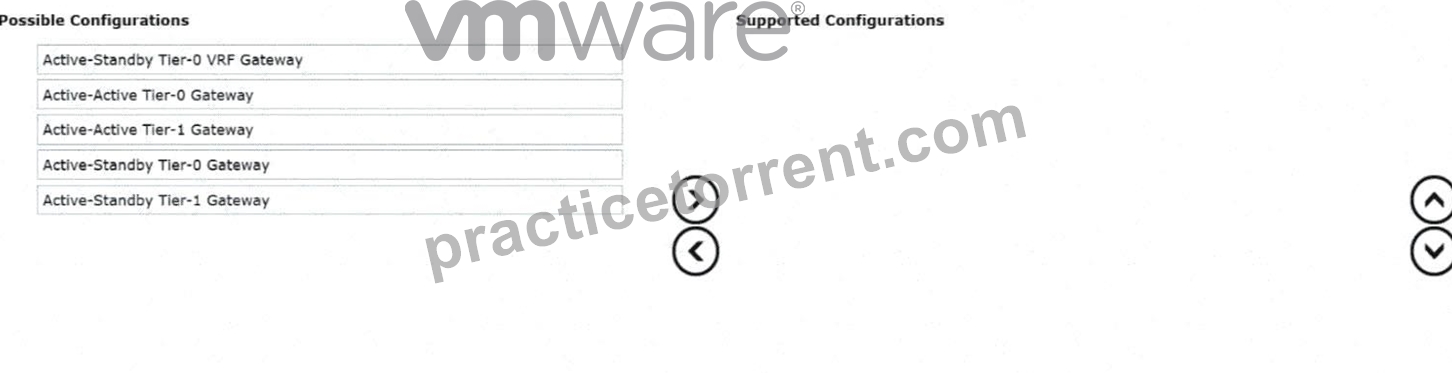

An administrator is responsible for the management of a VMware Cloud Foundation (VCF) Fleet that consists of two VCF instances that are located in different physical locations. The administrator has been tasked with configuring a VPN between the two locations and has been tasked with identifying the two supported NSX Gateway configurations for an IPSec VPN. Drag and drop two items from the list of Possible Configurations into the list of Supported Configurations in any order.(Choose two.)
Answer:
Explanation:
Explanation:
* Active-Standby Tier-0 Gateway
* Active-Standby Tier-1 Gateway
In aVMware Cloud Foundation (VCF)multi-site or multi-instance architecture, established viaNSX Federation, secure connectivity between sites is often achieved throughIPSec VPN. IPSec VPN is considered a stateful service within the NSX networking stack.
Stateful services-which also include NAT and Load Balancing-require a centralized point of processing to maintain the security association (SA) and session state tables. In the NSX gateway architecture, this necessitates the presence of aService Router (SR)component. For stateful consistency and to avoid session disruption that would occur if asymmetric traffic were processed by different nodes, these gateways must operate in anActive-Standbyhigh-availability mode.
According to the "NSX-T Data Center VPN Configuration Guide," IPSec VPN services can be deployed on either the provider tier (Tier-0 Gateway) or the tenant tier (Tier-1 Gateway). When configured on a Tier-0 gateway, the VPN typically provides broad connectivity between the physical infrastructure of two sites.
When configured on a Tier-1 gateway, it often provides targeted connectivity for a specific project or department's workload segments.
Configurations involvingActive-Activegateways (whether Tier-0 or Tier-1) do not support the native NSX IPSec VPN service because the ECMP (Equal Cost Multi-Pathing) nature of Active-Active mode could lead to packets belonging to the same VPN tunnel being processed by different Edge nodes, which cannot share the real-time encryption state. Therefore, for an administrator to successfully implement a cross-location VPN in a VCF Fleet, they must ensure the target gateway-be it Tier-0 or Tier-1-is deployed inActive-Standby mode.
NEW QUESTION # 37
An administrator is troubleshooting an issue where workloads connected to a Tier-1 Gateway named T1-App can no longer reach external North/South destinations.
* The Tier-1 is connected to an Active/Standby Tier-0 Gateway named T0-Prod.
Symptoms observed:
* VMs on segments attached to T1-App can ping each other.
* VMs on T1-App cannot reach any external IP outside T0-Prod.
* From a VM on the segment, ping to the T1-App Distributed Router (DR) IP succeeds.
* Ping from the VM to the T1-App Service Router (SR) fails.
* The Edge cluster hosting the T1-App SR shows both Edge nodes Up and Healthy.
* No failover has occurred - the same Edge node is still shown as Active for T1-App.
What is the most likely cause of this issue?
Answer: A
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In theNSXmulti-tier routing architecture used by VCF, aTier-1 Gatewayis composed of two primary components: theDistributed Router (DR)and theService Router (SR). The DR runs as a kernel module on every ESXi host in the transport zone, facilitating East-West traffic. The SR resides on the NSX Edge nodes and provides centralized services like North-South connectivity and stateful services.
Communication between the DR (on the ESXi host) and the SR (on the Edge node) occurs over a hidden internal segment known as theRouter Link. This link is encapsulated inGenevejust like VM-to-VM traffic.
When a VM attempts to reach an external destination, the packet is first routed by the DR on the local host.
The DR then encapsulates the packet and sends it across the overlay to the TEP (Tunnel Endpoint) of the Edge node hosting the SR.
If theMTU (Maximum Transmission Unit)is misconfigured on the physical network or the virtual switches, large encapsulated packets will be dropped. However, small packets (like pings between VMs on the same host) might still succeed. In this scenario, the fact that the VM can ping the local DR butcannot reach the SR
-and therefore cannot reach external networks-points to a failure in the transport between the host and the Edge.
If the Geneve-encapsulated packet containing the ping request to the SR's internal interface exceeds the physical network's MTU, it will fail. Since VCF 5.x/9.0 requires a minimum MTU of1600(ideally9000) for the overlay to account for the Geneve overhead, a mismatch anywhere in the fabric will break the DR-to-SR
"backplane" communication. This prevents the Tier-1 from passing any traffic to its Tier-0 uplink, effectively isolating the workloads from North-South traffic.
NEW QUESTION # 38
An administrator is investigating packet loss reported by workloads connected to VLAN segments in an NSX environment. Initial checks confirm:
* All VMs are powered on
* VLAN segment IDs are consistent across transport nodes
* Physical switch configurations are correct.
Which two NSX tools can be used to troubleshoot packet loss on VLAN Segments? (Choose two.)
Answer: B,D
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In a VMware Cloud Foundation (VCF) environment, troubleshooting packet loss requires tools that can provide visibility into both the logical and physical paths of a packet. When dealing specifically withVLAN segments(as opposed to Overlay segments), the traffic does not leave the host encapsulated in Geneve; instead, it is tagged with a standard 802.1Q header.
Traceflowis the primary diagnostic tool within NSX for identifying where a packet is being dropped. It allows an administrator to inject a synthetic packet into the data plane from a source (such as a VM vNIC) to a destination. The tool then reports back every "observation point" along the path, including switching, routing, and firewalling. If a packet is dropped by a Distributed Firewall (DFW) rule or a physical misconfiguration that wasn't caught initially, Traceflow will explicitly state at which stage the packet was lost.
Packet Captureis the second essential tool. NSX provides a robust, distributed packet capture utility that can be executed from the NSX Manager CLI or UI. This tool allows administrators to capture traffic at various points, such as the vNIC, the switch port, or the physical uplink (vmnic) of the ESXi Transport Node. By comparing captures from different points, an administrator can determine if a packet is reaching the virtual switch but failing to exit the physical NIC, or if return traffic is reaching the host but not the VM.
Options likeFlow MonitoringandLive Floware excellent for observing traffic patterns and session statistics (IPFIX), but they are less effective for pinpointing the exact cause of "packet loss" compared to the granular, packet-level analysis provided by Traceflow and Packet Capture.Activity Monitoringis typically used for endpoint introspection and user-level activity, which is irrelevant to Layer 2/3 packet loss troubleshooting.
NEW QUESTION # 39
......
