NEW QUESTION # 34

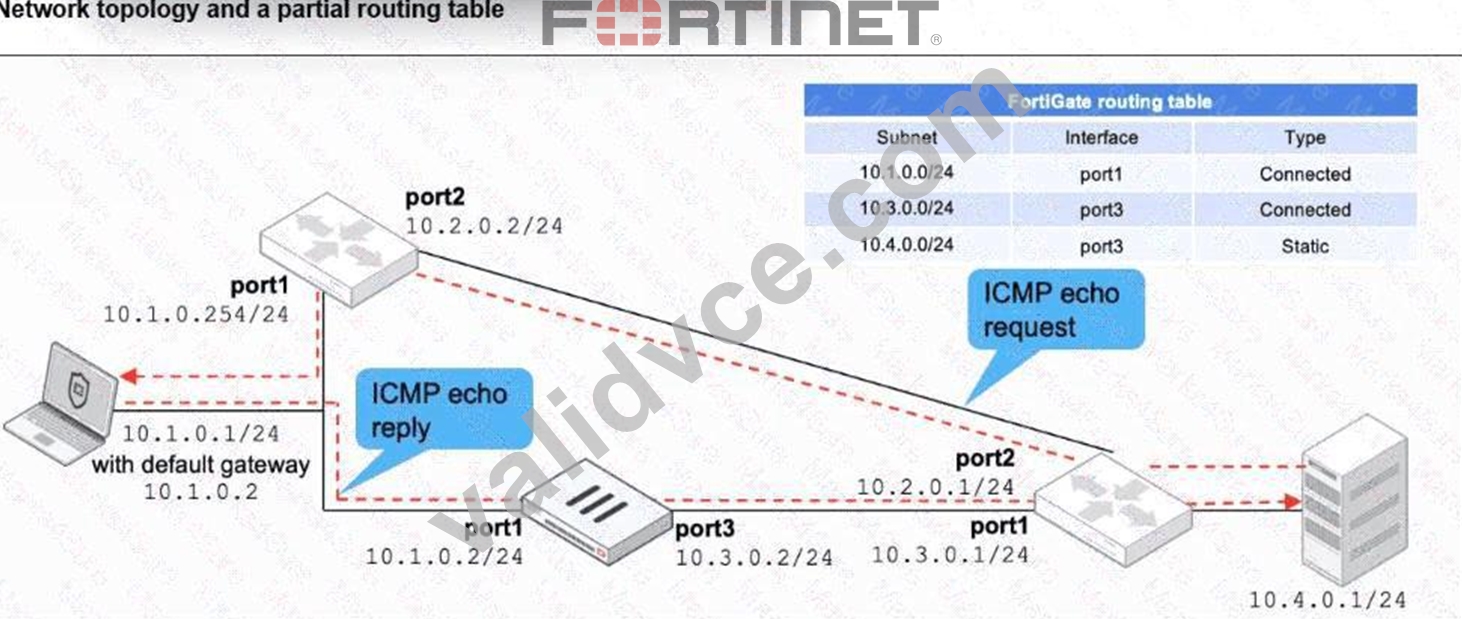

Refer to the exhibit.
A network topology and a partial routing table are shown.
FortiGate has already been configured with a firewall policy that allows all ICMP traffic to flow from port1 to port3.
Which two changes can the administrator perform to ensure the server at 10.4.0.1/24 receives the ICMP echo reply from the laptop at 10.1.0.1/24? (Choose two.)
Answer: C,D
Explanation:
The correct answers are A and C .
The study guide describes this exact asymmetric ICMP scenario. It states:
"The server sends an echo request to the PC through port2 of the local router, effectively bypassing FortiGate. When it receives the echo request, the PC responds with an echo reply through its default gateway, 10.1.0.2, which is port1 on FortiGate. Because there is no existing session, the echo reply is dropped. All subsequent echo replies are blocked." That means the current problem exists because:
* the ICMP request bypasses FortiGate
* the ICMP reply goes through FortiGate
* FortiGate has no matching session , so it drops the reply
The study guide then shows the exact corrective option:
"Allowing asymmetric routing:"
config system settings
set asymroute enable
end
It further explains:
"After the packet passes through the FortiGate CPU, FortiGate forwards the packet using the FIB, even though there are no session matches. FortiGate forwards all subsequent echo replies using the FIB." So A is correct.
The other valid fix is to make the traffic symmetric by changing the laptop's default gateway so the reply no longer goes through FortiGate. In the exhibit, the alternate gateway is 10.1.0.254 , which is the local router on the same subnet. If the laptop uses 10.1.0.254 instead of 10.1.0.2, the ICMP echo reply follows the same bypass path as the echo request, so the server receives it without involving FortiGate session validation. This makes C correct.
Why the other options are wrong:
* B is wrong because this is not an RPF problem. The study guide explains RPF as a reverse path lookup used to validate whether a packet arrived on a legitimate interface, mainly for spoofing protection. The issue in this scenario is a missing session due to asymmetric routing , not a strict-versus-feasible RPF failure
* D is wrong because FortiGate already has the specific route 10.4.0.0/24 through port3 in the routing table shown in the exhibit, so adding a default static route to port3 is unnecessary and not the reason the echo reply is being dropped So the verified answers are: A, C .
NEW QUESTION # 35

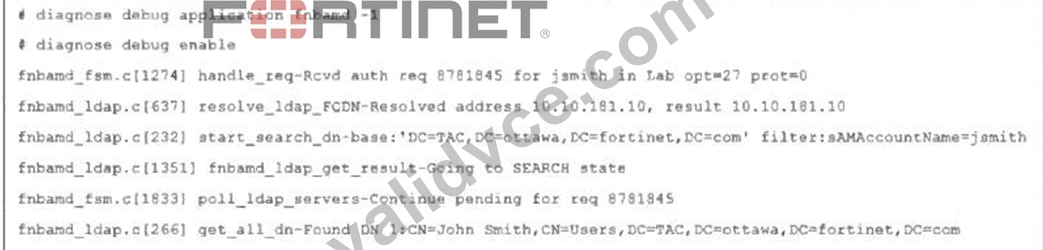

Refer to the exhibit, which shows a partial output of a real-time LDAP debug.
What two conclusions can you draw from the output? (Choose two.)
Answer: A,C
Explanation:
The exhibit includes these key debug lines:
* start_search_dn-base: ' DC=TAC,DC=ottawa,DC=fortinet,DC=com ' filter:sAMAccountName=jsmith
* get_all_dn-Found DN 1:CN=John Smith,CN=Users,DC=TAC,DC=ottawa,DC=fortinet,DC=com The study guide explains that in regular bind , LDAP authentication has four steps , and that during step 2 , FortiGate searches the LDAP tree to find the user's DN:
"During the second step, FortiGate does a search query in the LDAP database to find the user's location-in other words, the user's DN. If the user is found, the server replies with the user's DN." It also states for the real-time debug of step 2:
"An fnbamd_ldap_build_dn_search_req-base message indicates that FortiGate is performing step two:
searching for the user in the LDAP tree. This message includes the base branch (distinguished name setting) and the name of the attribute used to locate the user... If the LDAP server finds the user, the output shows the user's full DN." That directly proves:
* D is correct because the debug is showing step 2: Search Request
* A is correct because the base DN and found DN are under DC=TAC,DC=ottawa,DC=fortinet, DC=com, which corresponds to the LDAP domain/tree root TAC.ottawa.fortinet.com Why the other options are wrong:
* B is wrong because binding with the user's credentials is step 3 , not the step shown here. The study guide says: "Step 3 - Bind user credentials" and shows that this happens later with fnbamd_ldap_build_userbind_req / __ldap_build_bind_req-Binding to ' CN=John Smith... '
* C is wrong because collecting user group information is step 4 , not the step shown in the exhibit.
The study guide says: "The last step is to get the user group information" and shows step 4 with Attr query / memberOf search
NEW QUESTION # 36

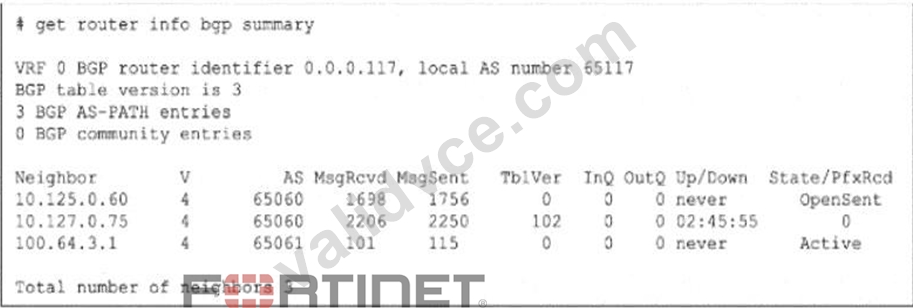

Refer to the exhibit.
The output of a BGO debug command is shown.
What is the most likely reason that the local FortiGate is not receiving any prefixes from its neighbors?
Answer: D
Explanation:
To identify the reason for the lack of prefixes, we must interpret the State/PfxRcd and Up/Down columns in the get router info bgp summary exhibit.
Analyze Neighbor Status:
Neighbor 10.125.0.60: State is OpenSent. This session is not established. It is stuck in the negotiation phase.
Neighbor 100.64.3.1: State is Active. This session is not established. The router is actively trying to initiate a TCP connection.
Neighbor 10.127.0.75:
Up/Down: 02:45:55. This indicates the BGP session has been Up (Established) for almost 3 hours.
State/PfxRcd: 0. This number represents the count of prefixes received. The session is fully established, but the neighbor has sent zero routes.
Determine the Cause:
Since the session with 10.127.0.75 is established, connectivity and handshakes (Options A, B, C) are not the issue for this neighbor.
The fact that it is Up but sending 0 prefixes strongly implies that the neighbor is configured to filter out its routes before sending them to the local FortiGate.
Option D correctly identifies this as a RIB-OUT (Routing Information Base - Outbound) configuration issue on the neighbor (Router 10.127.0.75), which prevents it from advertising its routes.
Reference:
FortiGate Security 7.6 Study Guide (BGP): " In the BGP summary, if the State/PfxRcd shows a number (e.g.,
0), the session is Established. A value of 0 means the peering is up, but no routes have been received, often due to route-map or prefix-list filtering on the remote peer. "
NEW QUESTION # 37
Which statement about IKEv2 is true?
Answer: C
Explanation:
The correct answer is B .
The study guide explicitly states: "IKE version 2 does not interoperate with IKE version 1, but they share enough of the header format that both versions can unambiguously operate over the same UDP port." That directly proves B .
Why the other options are wrong:
* A is wrong because the study guide shows authentication methods as Asymmetric for IKEv2 and Symmetric for IKEv1
* C is wrong because the study guide does not say they use the same TCP port; instead, it specifically says they can operate over the same UDP port
* D is wrong because the study guide states: "IKEv2 does not use the concept of phase 1 or phase 2" , even though FortiOS CLI/GUI still uses those terms for configuration purposes
NEW QUESTION # 38

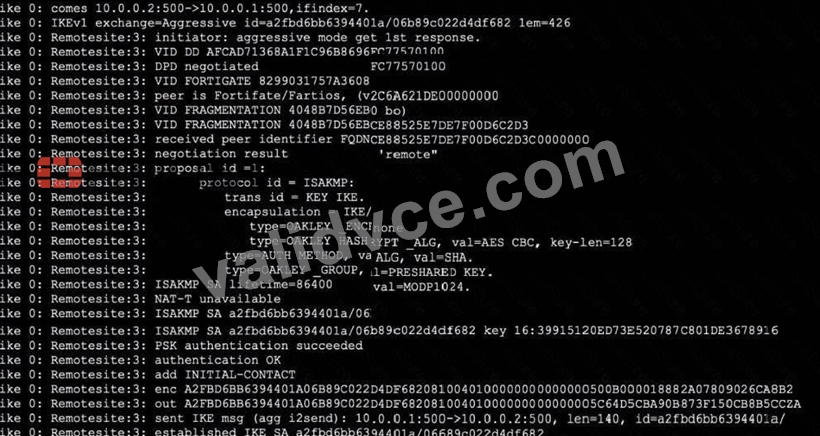

Exhibit.
Refer to the exhibit, which contains partial output from an IKE real-time debug.
Which two statements about this debug output are correct? (Choose two.)
Answer: B,C
Explanation:
From the exhibit, you can observe that the debug output captures an IKEv1 negotiation in aggressive mode.
Let ' s break down the supporting details in line with official Fortinet IPsec VPN troubleshooting resources and debug guides:
For Option B:
The very first line of the debug output shows:
comes 10.0.0.2:500- > 10.0.0.1:500, ifindex=7.
This indicates the traffic direction-from the remote IP (10.0.0.2) with port 500 to the local IP (10.0.0.1) with port 500. According to Fortinet ' s documentation, the right side of the arrow always represents the local FortiGate gateway. Thus, 10.0.0.1 is the local gateway IP address.
For Option D:
You see the statement:
negotiation result " remote "
and
received peer identifier FQDNCE88525E7DE7F00D6C2D3C00000000
Official debug documentation describes that the " peer identifier " or peer ID sent by the initiator is displayed here. In the context of IKE/IPsec negotiation, this value is used as the IPsec peer ID for authentication and identification purposes. The initiator is providing " remote " as the peer ID for its connection.
Why Not A or C:
Perfect Forward Secrecy (PFS): The debug does not show any DH group negotiation in phase 2 (no reference to group2, group5, etc., for phase 2), so you cannot deduce the presence of PFS solely from this output.
Phase 2 negotiation: The log focuses on IKE (phase 1) negotiation and establishment; there's no reference to ESP protocol, Quick Mode, or other identifiers that would show phase 2 SA negotiation and establishment.
This interpretation aligns with the explanation in the FortiOS 7.6.4 Administration Guide ' s VPN section and the official debug command output samples published in Fortinet's documentation. It demonstrates how to distinguish between local and remote addresses and how to identify the use of peer IDs.
References:
FortiOS 7.6.4 Administration Guide: IPsec VPN and Debugging VPNs
Technical Support Resources on interpreting IKE debug output and peer ID roles
NEW QUESTION # 39
......
