| Section | Objectives |
|---|---|
| SD-WAN | - SD-WAN routing - Overlay VPN - Performance SLA - Application steering - SD-WAN architecture - Deployment and troubleshooting |
| Enterprise Firewall | - Troubleshooting - VPN technologies - Advanced firewall deployment - Centralized management and analytics - Authentication and identity - Security Fabric integration - High availability - Routing and advanced networking |
NSE7_FSN_AR-7.6認定資格を取得できれば、その地域で仕事をうまくこなせるので、簡単かつ迅速に昇進できます。最新のNSE7_FSN_AR-7.6クイズトレントは、Fortinetあなたのキャリアの成功に直接導くことができます。当社の資料は、実際の運用試験の雰囲気をシミュレートし、試験をシミュレートできます。ダウンロードとインストールでは、コンピューターとNSE7_FSN_AR-7.6テスト準備を使用するユーザーの量に制限はありません。 NSE7_FSN_AR-7.6試験トレントを習得するのに最適な学習方法を選択できるため、最高のサービスを提供します。私たちを信じて、NSE7_FSN_AR-7.6試験問題を購入してください。
質問 # 18

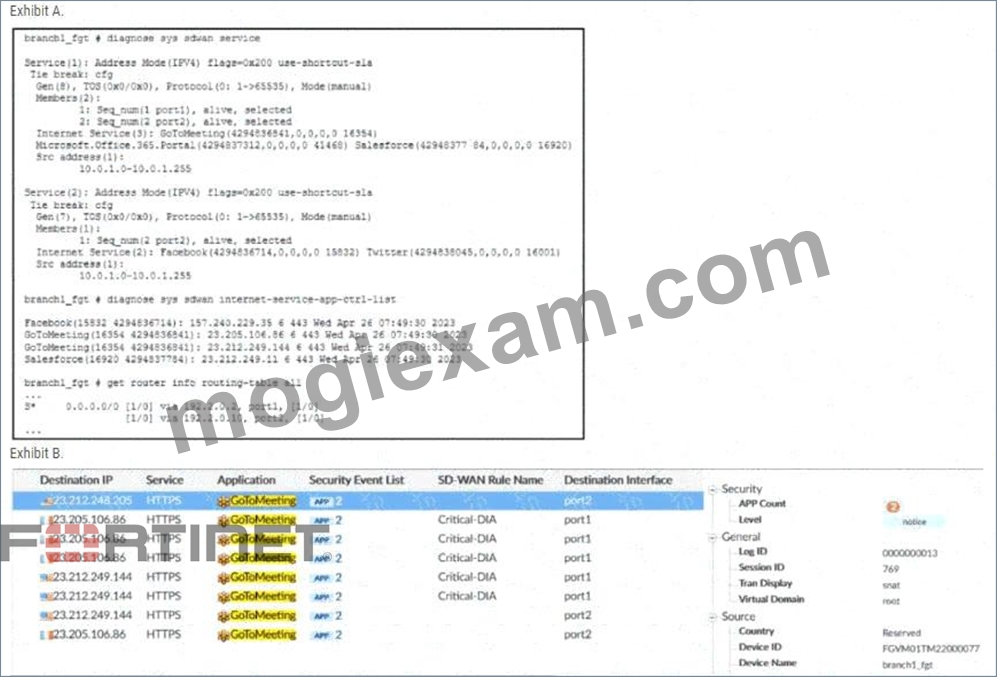

Refer to the exhibits.
An administrator is testing application steering in SD-WAN. Before generating test traffic, the administrator collected the SD-WAN service and ISDB application-cache information shown in the first exhibit. After generating GoToMeeting test traffic, the administrator examined the corresponding traffic logs on FortiAnalyzer.
The administrator noticed that some traffic matched the implicit SD-WAN rule, but expected the traffic to match rule ID 1.
Which two reasons explain why some log messages show that the traffic matched the implicit SD-WAN rule?
(Choose two.)
正解：A、D
解説：
Comprehensive and Detailed 100 to 150 words of Explanation From Secure Networking Architect Study Guides topics:
Application-based SD-WAN steering depends on FortiGate being able to associate the new session with an already identified application. The SD-WAN 7.6 guide explains that the ISDB application cache contains an application ID, ISDB application ID, and 3-tuple, and FortiGate uses these values when matching an SD- WAN rule. If the new session ' s 3-tuple is absent from the cache, FortiGate cannot initially identify it as GoToMeeting for rule 1, so normal processing can select the implicit rule.
Application identification can occur only after traffic has already entered the session. That identification does not retroactively change the initial routing decision for packets already associated with the session.
GoToMeeting belongs to the Collaboration criteria shown for rule 1, so A is false. Full SSL inspection is not intrinsically required for this SD-WAN application-cache mechanism, eliminating D.
質問 # 19

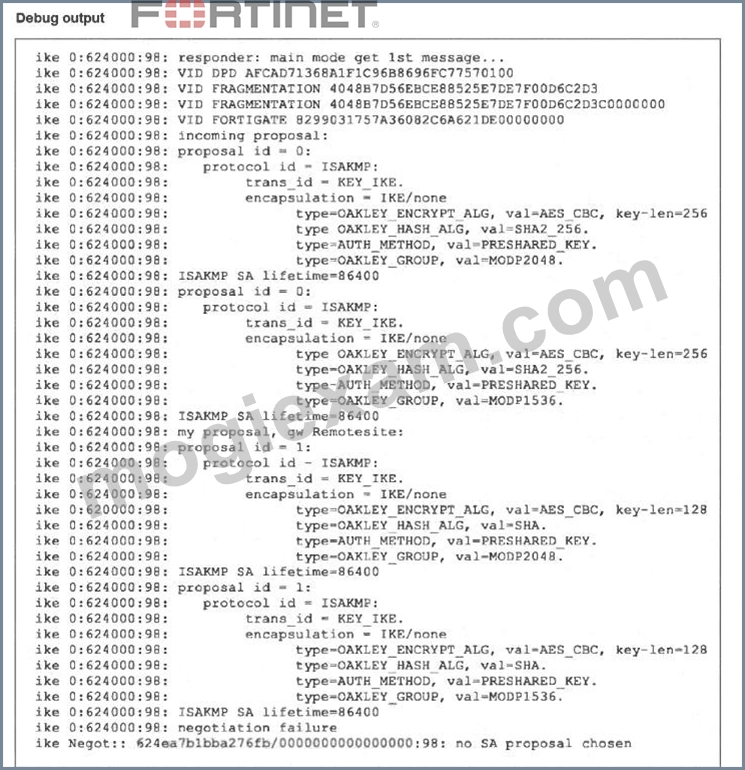

Refer to the exhibit, which contains partial output from an IKE real-time debug.
The administrator does not have access to the remote gateway.
Based on the debug output, which configuration change the administrator make to the local gateway to resolve the phase 1 negotiation error?
正解：A
質問 # 20

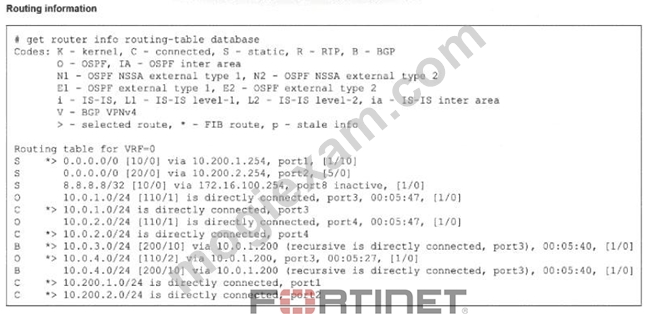

Refer to the exhibit.
The modified output of live routing kemel is shown
Which two statements about the output are (rue? (Choose two.)
正解：A、C
解説：
We must analyze the flags (*, > , S, O, B) and Administrative Distances (AD) shown in the get router info routing-table database exhibit to determine the correct statements.
Analysis for Option A (The BGP route to 10.0.4.0/24 is not in the forwarding information base):
True. Look at the entry for 10.0.4.0/24.
There is an OSPF route: O * > 10.0.4.0/24 [110/2]. The * indicates it is in the FIB, and > indicates it is the selected route.
There is a BGP route: B 10.0.4.0/24 [200/10]. This line lacks the * flag.
Reason: The OSPF route has an Administrative Distance of 110. The BGP route (iBGP) has an AD of 200.
Since 110 is lower than 200, OSPF wins, and the BGP route is not installed in the Forwarding Information Base (FIB).
Analysis for Option B (The default static route through 10.200.1.254 is in the forwarding information base):
True. Look at the 0.0.0.0/0 entries.
The first entry is S * > 0.0.0.0/0 [10/0] via 10.200.1.254.
The * flag confirms this specific route is installed in the FIB.
The second static route (via 10.200.2.254) has a higher distance ([20/0]) and no * flag, so it is inactive.
Why C is False: ECMP (Equal Cost Multi-Path) requires routes to have the same cost/priority. Here, one static route has AD 10 and the other has AD 20. They are not equal, so ECMP is not performed.
Why D is False: The routing table database shows active routes, not the raw Link State Advertisement (LSA) database. You cannot determine the number of LSAs received solely from this output.
Reference:
FortiGate Security 7.6 Study Guide (Routing): " The routing table database displays all known routes... The * indicates the route is in the FIB... Lower Administrative Distance is preferred. "
質問 # 21
Refer to the exhibit, which shows the partial output of command diagnose debug rating.
In this exhibit, which FDS server will the FortiGate algorithm choose?
正解：C
質問 # 22

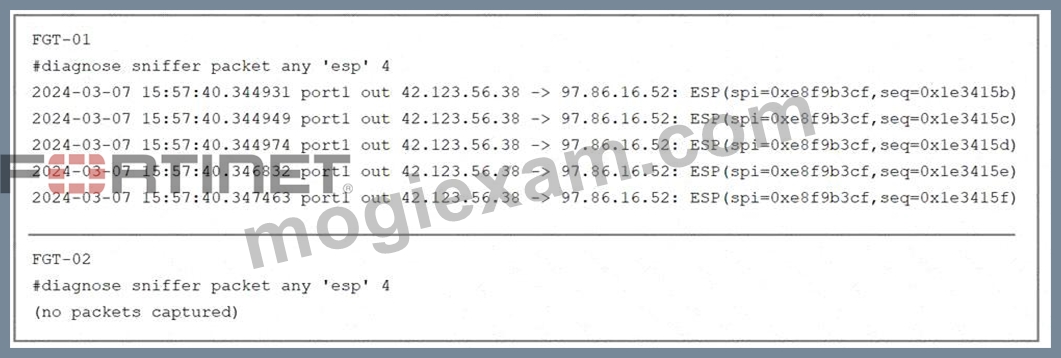

Refer to the exhibit.
The sniffer log on two FortiGate devices are shown. Based on the information in the log, which two factors explain the output on FortiGate FGT-02? (Choose two answers)
正解：A、C
解説：
The output on FGT-01 confirms that the device is actively encapsulating traffic and sending it as ESP packets (Protocol 50) out of port1 towards the IP address 97.86.16.52. The logs show outgoing packets, which confirms FGT-01 is attempting to initiate or maintain the tunnel and that NAT-Traversal is not being used (as it uses raw ESP).
The output on FGT-02 , however, displays (no packets captured). This is significant because the sniffer command diagnose sniffer packet any ' esp ' captures traffic at the network interface level (ingress), regardless of whether a matching VPN configuration exists on the receiving unit. The absence of packets proves that the ESP traffic generated by FGT-01 is physically not arriving at FGT-02 ' s interface.
This behavior is explained by two primary factors:
* Option A (Blocking): An intermediate device, such as an ISP router or firewall, is dropping Protocol
50 traffic. Unlike UDP 500/4500, raw ESP is often blocked by default on many networks or legacy devices.
* Option C (Routing/Misconfiguration): If the administrator configured the wrong remote peer IP on FGT-01 , the packets are being routed to a different destination entirely. Consequently, they never arrive at FGT-02 to be captured.
Option B is incorrect because even without a configured VPN tunnel, the sniffer would still display the incoming ESP packets if they were reaching the interface. Option D is incorrect because FGT-01 is sending ESP, making ' esp ' the correct filter.
質問 # 23
......
