| Section | Objectives |
|---|---|
| Code Compliance and Related Requirements | - Sound transmission requirements - Energy code requirements applicable to mass timber buildings - Documentation and verification of compliance |
| Fire Protection and Fire-Resistance | - Fire protection systems and related provisions - Noncombustible protection and protection of mass timber elements - Fire-resistance requirements |
| Construction Fire Safety | - Construction-phase fire safety requirements - International Fire Code requirements - Protection of mass timber during construction |
| Tall Mass Timber Building Code Provisions | - Mass timber materials and construction requirements - Types IV-A, IV-B and IV-C construction - International Building Code requirements for tall mass timber construction |
| Special Inspection Requirements | - Inspection of connections and protective materials - Inspector duties and responsibilities - Special inspection procedures for tall mass timber buildings |
| Structural Inspection | - Connections and fastening systems - Mass timber structural elements - Structural loads and related code requirements |
>> 93-Tall-Mass-Timber-Buildings赤本勉強 <<
人はそれぞれの夢を持っています。あなたの夢は何でしょうか。昇進ですか。あるいは高給ですか。私の夢はInternational Code Councilの93-Tall-Mass-Timber-Buildings認定試験に受かることです。この認証の証明書を持っていたら、全ての難問は解決できるようになりました。この試験に受かるのは難しいですが、大丈夫です。私はJpexamのInternational Code Councilの93-Tall-Mass-Timber-Buildings試験トレーニング資料を選びましたから。私が自分の夢を実現することを助けられますから。あなたもITに関する夢を持っていたら、速くJpexamのInternational Code Councilの93-Tall-Mass-Timber-Buildings試験トレーニング資料を選んでその夢を実現しましょう。Jpexamは絶対信頼できるサイトです。
質問 # 63
Refer to the figure by clicking on the EXHIBIT button above.
In Type IV-B construction, based on a 900 sq. ft. floor area, a 30 ' room width, and a 12 in. x 18 in. beam as shown in the Figure, the maximum length of the unprotected portion of the mass timber ceiling (dimension X) is _____ feet.
正解：B
解説：
Section 602.4.2.2.2 permits unprotected mass timber ceilings in Type IV-B construction to equal no more than 20 percent of the floor area , and the code expressly states that attached beams are included when determining that exposed ceiling area.
The floor area is 900 square feet:
20% × 900 = 180 sq. ft. maximum exposed area .
The exposed 12-inch × 18-inch beam extends across the 30-foot room. Its three exposed surfaces consist of the 12-inch-wide bottom and two 18-inch-deep sides:
30 ft × (1 ft + 1.5 ft + 1.5 ft) = 120 sq. ft.
Because the attached beam counts against the ceiling exposure allowance, only:
180 # 120 = 60 sq. ft.
remains available for the exposed ceiling itself.
The exposed ceiling extends across the 30-foot room width, so:
30 ft × X = 60 sq. ft.
Therefore:
X = 2 ft .
Option A is correct. Ignoring the beam surfaces would overstate the permitted ceiling exposure and would contradict the explicit IBC requirement that attached beams be included in the exposed ceiling calculation.
References/Topics: 2021 IBC Section 602.4.2.2.2, Exception 1.1; Type IV-B exposed ceiling and attached- beam area calculations.
質問 # 64
Mass timber is allowed in which of the following International Building Code Construction Types?
正解：A
解説：
Mass timber can be incorporated into all five principal IBC construction types, although the extent and permitted application vary substantially. Therefore, option D is the technically complete answer.
Types III, IV and V provide the broadest opportunities for mass timber structural systems. Type III permits combustible interior building elements, Type IV is specifically organized around mass timber or noncombustible structural elements, and Type V permits structural elements of any material allowed by the code. Type IV includes the tall mass timber classifications IV-A, IV-B and IV-C, together with Type IV-HT.
Types I and II are predominantly noncombustible construction, but they are not absolute prohibitions against every wood or mass timber application. IBC Section 603 identifies permitted combustible materials in Types I and II. In addition, Table 601, Note c, permits heavy timber complying with Section 2304.11 for roof construction-including applicable primary structural frame members-where the required fire-resistance rating is one hour or less.
Consequently, the answer does not mean that a Type I or Type II building may be framed entirely with exposed mass timber. It means that code-compliant mass timber elements can be used in defined applications within each construction type.
References/Topics: 2021 IBC Sections 602.1-602.5 and 603.1; Table 601, Note c; Section 2304.11.
質問 # 65
Refer to the exhibit by clicking on the EXHIBIT button above.
Given: The connections between the glulam beam and CLT panels all require a fire-resistance rating of 2 hours, and wood cover is designed per AWC Technical Report 10 to provide the entire 2 hours of protection.
The bearing area between the CLT and glulam is the minimum required.
What are the minimum dimensions, in inches, for the wood block shown in red?
正解：D
解説：
Under the illustrated connection detail, the minimum wood-block dimensions are 3 inches by 3 inches.
Therefore, option C is correct.
The block is part of the sacrificial wood-cover system used to protect the connection for the full two-hour fire- resistance period. It must provide sufficient timber beyond the protected connection region to account for calculated charring and the increased exposure that can develop at the interface between abutting wood members. Because the problem states that the CLT-to-glulam bearing area is already the minimum required, the primary members do not provide surplus material that can be credited as additional protection at that edge.
AWC connection-fire-design guidance requires the protective geometry to remain effective after the calculated char front advances. Char contraction can open a gap at abutting edges and expose material deeper in the connection than would occur on an uninterrupted planar surface. The 3-inch-by-3-inch block maintains the required protective envelope for the stated two-hour condition.
This dimension is specific to the illustrated configuration and assumptions; it is not a universal minimum for every mass timber connection. The inspector must verify the approved detail rather than substitute nominal blocking based solely on field availability.
References/Topics: AWC Technical Report 10; AWC Fire Design Specification provisions for wood-cover protection and char contraction at abutting members.
質問 # 66
Which of the following is true regarding Type IV-B unprotected portions of mass timber ceilings and walls?
正解：C
解説：
Type IV-B construction is fundamentally protected mass timber construction, but the 2021 IBC permits specifically limited areas of interior mass timber to remain exposed. Section 602.4.2.2.2 establishes two independent exposure limits. Unprotected portions of mass timber ceilings, including attached beams, are limited to 20 percent of the floor area of the dwelling unit or fire area. Unprotected portions of mass timber walls, including attached columns, are limited to 40 percent of that floor area . Accordingly, option C correctly states the permitted percentages.
These percentages do not operate in isolation. Exposed areas must also comply with Section 602.4.2.2.4, which establishes separation requirements between unprotected mass timber surfaces. Where both walls and ceilings are exposed within the same dwelling unit or fire area, Section 602.4.2.2.3 requires use of the mixed- unprotected-area equation rather than independently maximizing both percentages.
Option A describes neither Type IV-B nor its controlled-exposure concept. Option B incorrectly characterizes Type IV-B as requiring complete encapsulation. Option D reverses the ceiling and wall percentages.
References/Topics: 2021 IBC Sections 602.4.2.2.2, 602.4.2.2.3 and 602.4.2.2.4; Type IV-B permitted exposed mass timber.
質問 # 67

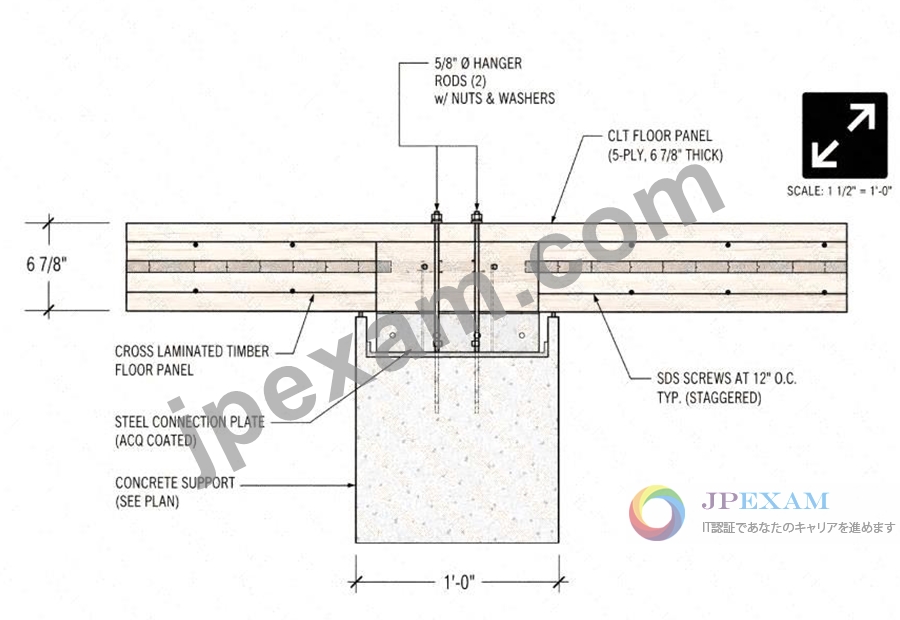

Refer to the exhibit by clicking on the EXHIBIT button above.
In the detail shown and according to AWC Technical Report 10, what is the time assigned in minutes to 5/8 in. Type X gypsum board for connection fire protection thermal separation requirements?
正解：A
解説：
For the illustrated two-layer protection system, the 5/8-inch Type X gypsum-board layer directly adjacent to the connection is assigned 20 minutes, while the second layer is assigned 40 minutes. Therefore, option C is correct.
The standard assigned protection time for one layer of 5/8-inch Type X gypsum board is 40 minutes.
However, the thermal-separation methodology applies a 0.50 reduction factor to the final or base Type X layer located directly against the protected connection. That layer therefore contributes 20 minutes. The outer layer retains its full 40-minute assigned value, producing a combined assigned protection time of 60 minutes for the two-layer configuration.
The layers are not interchangeable for calculation purposes because the reduced contribution applies specifically to the layer adjacent to the protected connection. Options A and B incorrectly assign the same value to both layers, while option D reverses the required allocation.
During inspection, the special inspector should verify layer sequencing, board thickness and type, fastening, joint staggering, edge support, protection at corners, and continuity around the connection. Missing or incorrectly sequenced layers can invalidate the calculated thermal-separation time.
References/Topics: AWC Technical Report 10; AWC 2021 Fire Design Specification Section 3.5.2.1; assigned protection time for Type X gypsum board.
