| Section | Objectives |
|---|---|
| Topic 1: Structural & Connection Inspection | - Framing and Structural Elements - Connection Design and Protection |
| Topic 2: Inspection Duties & Documentation | - Statement of Special Inspections - Inspection Reporting and Compliance Verification |
| Topic 3: Construction Fire Safety | |
| Topic 4: Mass Timber Materials | - CLT, Glulam, NLT, SCL and Engineered Wood Products |
| Topic 5: General & Construction Types | - Construction Classification โ Type IV-A, IV-B, IV-C
|
| Topic 6: Fire-Resistance & Protection | - Fire-Resistance-Rated Assemblies - Concealed Spaces Protection - Noncombustible Protection & Encapsulation |
>> Valid 93-Tall-Mass-Timber-Buildings Torrent <<
So we can say that with the International Code Council 93-Tall-Mass-Timber-Buildings exam questions you will get everything that you need to learn, prepare and pass the difficult International Code Council 93-Tall-Mass-Timber-Buildings exam with good scores. The ITExamDownload 93-Tall-Mass-Timber-Buildings exam questions are designed and verified by experienced and qualified International Code Council 93-Tall-Mass-Timber-Buildings Exam trainers. They work together and share their expertise to maintain the top standard of 93-Tall-Mass-Timber-Buildings exam practice test. So you can get trust on 93-Tall-Mass-Timber-Buildings exam questions and start preparing today.
NEW QUESTION # 43
A proprietary field-glued mass timber beam splice will require which of the following:
Answer: B
Explanation:
A proprietary field-glued mass timber beam splice requires special inspection because the connection relies on a field-applied adhesive process that is not covered as a routine prescriptive mass timber connection in Table
1705.5.3. The controlling mechanism is IBC Section 1705.1.1, which authorizes the building official to require special inspection for unusual materials, systems, or installation procedures, particularly where compliance depends on additional manufacturer installation instructions.
The ICC code-development rationale for the tall mass timber provisions specifically identifies field-glued mass timber beam or panel splices as an example of work for which special inspection can be required.
Inspection must address the approved evaluation report and manufacturer's instructions, including substrate preparation, moisture and temperature limits, adhesive storage and expiration, mixing or proportioning, application quantity, open time, member alignment, clamping or pressure, and curing conditions.
Approval by the permit applicant has no regulatory significance. Verification by the registered design professional may supplement the inspection program but does not replace the approved special inspector. A building official may observe the work, but routine field verification by that official is not the prescribed quality-control procedure.
References/Topics: 2021 IBC Sections 1704.2, 1704.3 and 1705.1.1; special cases; proprietary field-glued mass timber splices.
NEW QUESTION # 44
The fire-resistance of a protected mass timber assembly is equivalent to the fire resistance time of the:
Answer: C
Explanation:
IBC Section 722.7 establishes the governing calculation principle for protected mass timber. The required fire resistance consists of the inherent fire resistance of the unprotected mass timber element plus the protection time contributed by the noncombustible protection . Therefore, option D is correct.
This approach recognizes two sequential protective mechanisms. First, the noncombustible covering delays heating and charring of the timber. After the credited protection period, the remaining mass timber cross section provides structural fire resistance through predictable charring behavior and residual section capacity.
Section 722.7.1 further requires the contribution of the covering material to comply with the prescribed protection times or to be established under Section 703.6.
Option A ignores the contribution of the protective membrane. Option B ignores the inherent structural fire resistance of the timber. Option C incorrectly substitutes a finish rating for the code-recognized protection contribution. A finish rating is a separate temperature-based performance concept and is not automatically additive as the protection time used by Section 722.7.
References/Topics: 2021 IBC Sections 602.4, 703.6, 722.7 and 722.7.1; calculation of protected mass timber fire resistance.
NEW QUESTION # 45

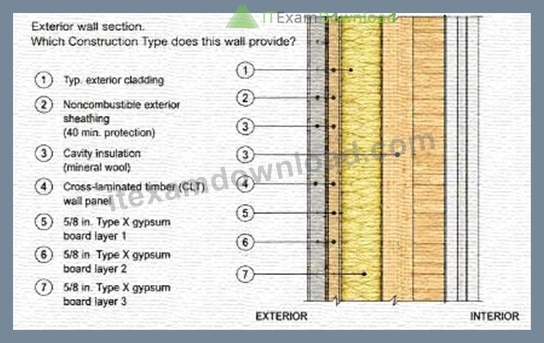

Refer to the figure by clicking on the EXHIBIT button above.
The exterior wall section shown in the Figure provides the prescribed noncombustible protection required by which Construction Type?
Answer: A
Explanation:
The illustrated wall corresponds to Type IV-A construction , making option A correct. The key indicator is the extensive Type X gypsum protection provided on the interior face of the CLT wall. Figure 63 shows multiple layers of 5/8-inch Type X gypsum board protecting the interior mass timber, together with the required exterior-side protection.
Type IV-A is the most comprehensively protected of the three tall mass timber construction classifications.
IBC Section 602.4.1.2 requires the interior faces of all mass timber elements , including the inside face of exterior mass timber walls, to be protected with qualifying noncombustible material. Section 602.4.1.2.1 requires the protection contribution to satisfy Table 722.7.1(1) and never be less than 80 minutes. Type IV-A exterior walls also require at least 40 minutes of noncombustible protection on the outside face.
The three interior layers shown are consistent with a heavily protected Type IV-A rated wall. By contrast, Type IV-B permits limited exposed interior mass timber, while Type IV-C expressly permits mass timber interior elements to remain unprotected. Type IV-HT operates under fundamentally different heavy-timber provisions.
References/Topics: 2021 IBC Sections 602.4.1.1, 602.4.1.2 and 602.4.1.2.1; Tables 601 and 722.7.1(1)-(2).
NEW QUESTION # 46
Which of the following requires periodic special inspection of mass timber elements?
Answer: B
Explanation:
Concealed connections in Type IV-C construction require periodic special inspection under 2021 IBC Table
1705.5.3, making option B correct.
The mass timber special-inspection table specifically applies to mass timber elements in Types IV-A, IV-B, and IV-C . Among the activities listed for periodic inspection are bolted connections, concealed connections, erection of mass timber construction, screw installation, verification of required predrilling, and several other connection-related installation characteristics.
Options A and C are incorrect because they specify Type IV-HT. Table 1705.5.3 is expressly scoped to Types IV-A, IV-B, and IV-C rather than Type IV-HT. Option D involves a listed Type IV-A activity, but its inspection frequency is wrong: adhesive anchors installed horizontally or upwardly inclined to resist sustained tension loads require continuous , not periodic, special inspection.
For concealed connections, inspection must occur while the relevant components remain observable. Once CLT panels, wood cover, gypsum protection, or finishes hide the connection, critical installation details may no longer be verifiable without destructive removal.
References/Topics: 2021 IBC Section 1705.5.3 and Table 1705.5.3, Required Special Inspections of Mass Timber Construction.
NEW QUESTION # 47
Refer to the exhibit by clicking on the EXHIBIT button above.
In the detail shown, the 2x2 block is intended for what purpose according to AWC Technical Report 10?
Answer: C
Explanation:
The 2 ร 2 block is intended to protect the abutting wood edges from the effects of char contraction. Therefore, option D is correct.
During fire exposure, wood chars and the char layer can shrink or contract. At an interface between two abutting timber components, that contraction can create a gap that allows heat and flames to penetrate deeper than predicted for a continuous exposed surface. AWC connection-fire-design methodology therefore requires additional protection at susceptible joints and interfaces. The block shields the abutting edges and maintains the sacrificial wood-cover path around the protected connection.
Its primary function is not decorative, nor is it simply an air-sealing component. Although limiting airflow can be a secondary consequence of closing the interface, the design purpose addressed by the technical guidance is control of premature fire penetration caused by char contraction. The block also should not be interpreted independently as a generic one-hour protective membrane for the steel ledger; the connection's total rating depends on the complete approved protection assembly.
The inspector should confirm the block's dimensions, species or product designation, fastening, continuity, and tight installation before the connection is concealed.
References/Topics: AWC Technical Report 10; AWC Fire Design Specification provisions addressing char contraction and gaps between abutting wood members.
