NEW QUESTION # 154

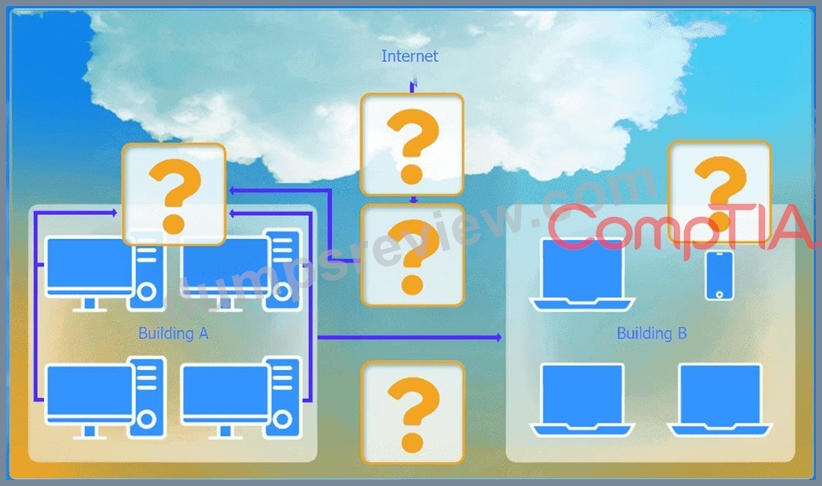

A network administrator has been tasked with configuring a network for a new corporate office. The office consists of two buildings, separated by 50 feet with no physical connectivity. The configuration must meet the following requirements:
. Devices in both buildings should be
able to access the Internet.
. Security insists that all Internet traffic
be inspected before entering the
network.
. Desktops should not see traffic
destined for other devices.
INSTRUCTIONS

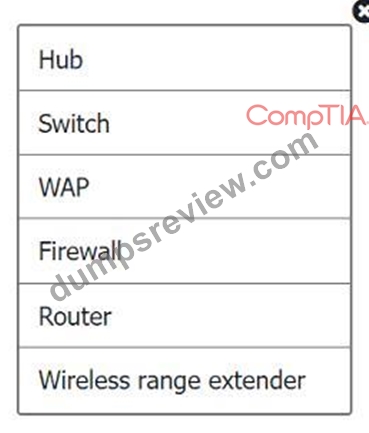

Select the appropriate network device for each location. If applicable, click on the magnifying glass next to any device which may require configuration updates and make any necessary changes.
Not all devices will be used, but all locations should be filled.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
Answer:
Explanation:
See the step by step complete solution below.
Explanation:
Devices in both buildings should be able to access the Internet.
Security insists that all Internet traffic be inspected before entering the network.
Desktops should not see traffic destined for other devices.

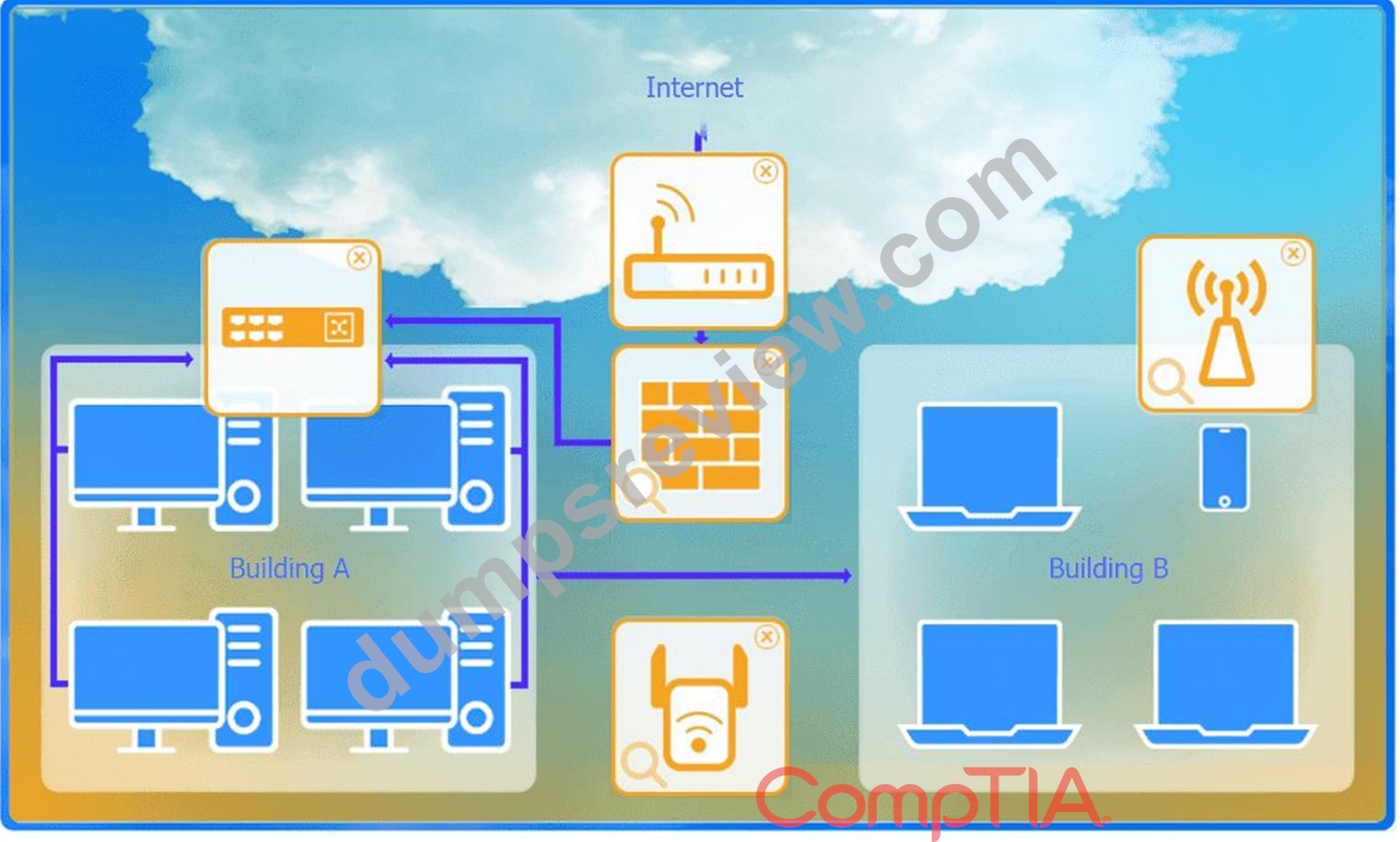

Here is the corrected layout with explanation:
Building A:
Switch: Correctly placed to connect all desktops.
Firewall: Correctly placed to inspect all incoming and outgoing traffic.
Building B:
Switch: Not needed. Instead, place a Wireless Access Point (WAP) to provide wireless connectivity for laptops and mobile devices.
Between Buildings:
Wireless Range Extender: Correctly placed to provide connectivity between the buildings wirelessly.
Connection to the Internet:
Router: Correctly placed to connect to the Internet and route traffic between the buildings and the Internet.
Firewall: The firewall should be placed between the router and the internal network to inspect all traffic before it enters the network.
Corrected Setup:
Top-left (Building A): Switch
Bottom-left (Building A): Firewall (inspect traffic before it enters the network) Top-middle (Internet connection): Router Bottom-middle (between buildings): Wireless Range Extender Top-right (Building B): Wireless Access Point (WAP) In this corrected setup, the WAP in Building B will connect wirelessly to the Wireless Range Extender, which is connected to the Router. The Router is connected to the Firewall to ensure all traffic is inspected before it enters the network.

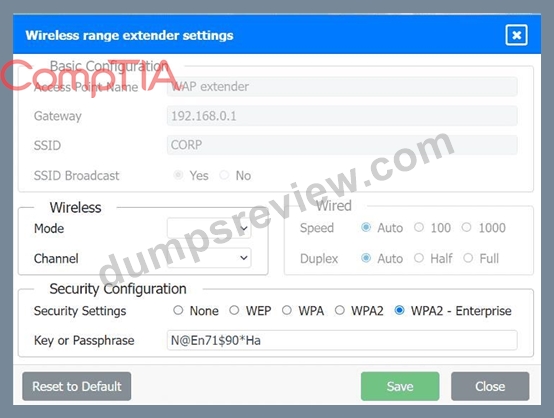

Configuration for Wireless Range Extender:
SSID: CORP
Security Settings: WPA2 or WPA2 - Enterprise
Key or Passphrase: [Enter a strong passphrase]
Mode: [Set based on your network plan]
Channel: [Set based on your network plan]
Speed: Auto
Duplex: Auto
With these settings, both buildings will have secure access to the Internet, and all traffic will be inspected by the firewall before entering the network. Desktops and other devices will not see traffic intended for others, maintaining the required security and privacy.
To configure the wireless range extender for security, follow these steps:
SSID (Service Set Identifier):
Ensure the SSID is set to " CORP " as shown in the exhibit.
Security Settings:
WPA2 or WPA2 - Enterprise: Choose one of these options for stronger security. WPA2-Enterprise provides more robust security with centralized authentication, which is ideal for a corporate environment.
Key or Passphrase:
If you select WPA2, enter a strong passphrase in the " Key or Passphrase " field.
If you select WPA2 - Enterprise, you will need to configure additional settings for authentication servers, such as RADIUS, which is not shown in the exhibit.
Wireless Mode and Channel:
Set the appropriate mode and channel based on your network design and the environment to avoid interference. These settings are not specified in the exhibit, so set them according to your network plan.
Wired Speed and Duplex:
Set the speed to " Auto " unless you have specific requirements for 100 or 1000 Mbps.
Set the duplex to " Auto " unless you need to specify half or full duplex based on your network equipment.
Save Configuration:
After making the necessary changes, click the " Save " button to apply the settings.
Here is how the configuration should look after adjustments:
SSID: CORP
Security Settings: WPA2 or WPA2 - Enterprise
Key or Passphrase: [Enter a strong passphrase]
Mode: [Set based on your network plan]
Channel: [Set based on your network plan]
Speed: Auto
Duplex: Auto
Once these settings are configured, your wireless range extender will provide secure connectivity for devices in both buildings.
Firewall setting to to ensure complete compliance with the requirements and best security practices, consider the following adjustments and additions:
DNS Rule: This rule allows DNS traffic from the internal network to any destination, which is fine.
HTTPS Outbound: This rule allows HTTPS traffic from the internal network (assuming 192.169.0.1/24 is a typo and should be 192.168.0.1/24) to any destination, which is also good for secure web browsing.
Management: This rule allows SSH access to the firewall for management purposes, which is necessary for administrative tasks.
HTTPS Inbound: This rule denies inbound HTTPS traffic to the internal network, which is good unless you have a web server that needs to be accessible from the internet.
HTTP Inbound: This rule denies inbound HTTP traffic to the internal network, which is correct for security purposes.
Suggested Additional Settings:
Permit General Outbound Traffic: Allow general outbound traffic for web access, email, etc.
Block All Other Traffic: Ensure that all other traffic is blocked to prevent unauthorized access.
Firewall Configuration Adjustments:
Correct the Network Typo:
Ensure that the subnet 192.169.0.1/24 is corrected to 192.168.0.1/24.
Permit General Outbound Traffic:
Rule Name: General Outbound
Source: 192.168.0.1/24
Destination: ANY
Service: ANY
Action: PERMIT
Deny All Other Traffic:
Rule Name: Block All
Source: ANY
Destination: ANY
Service: ANY
Action: DENY
Here is how your updated firewall settings should look:
Rule Name
Source
Destination
Service
Action
DNS Rule
192.168.0.1/24
ANY
DNS
PERMIT
HTTPS Outbound
192.168.0.1/24
ANY
HTTPS
PERMIT
Management
ANY
192.168.0.1/24
SSH
PERMIT
HTTPS Inbound
ANY
192.168.0.1/24
HTTPS
DENY
HTTP Inbound
ANY
192.168.0.1/24
HTTP
DENY
General Outbound
192.168.0.1/24
ANY
ANY
PERMIT
Block All
ANY
ANY
ANY
DENY
These settings ensure that:
Internal devices can access DNS and HTTPS services externally.
Management access via SSH is permitted.
Inbound HTTP and HTTPS traffic is denied unless otherwise specified.
General outbound traffic is allowed.
All other traffic is blocked by default, ensuring a secure environment.
Make sure to save the settings after making these adjustments.
NEW QUESTION # 155
An administrator needs to configure an IoT device with a /21 subnet mask, but the device will only accept dotted decimal notation. Which of the following subnet masks should the administrator use?
Answer: B
Explanation:
A /21 mask uses 21 network bits; in dotted decimal that is 255.255.248.0 (the third octet has five
1s: 11111000 = 248).
NEW QUESTION # 156
A network administrator needs to assign IP addresses to a newly installed network. They choose
192.168.1.0/24 as their network address and need to create three subnets with 30 hosts on each subnet. Which of the following is a valid subnet mask that will meet the requirements?
Answer: B
Explanation:
To create three subnets with at least 30 hosts each:
Subnet Calculation: Each subnet must support 32 addresses (30 usable + 2 reserved for network and broadcast).
Bits for Subnets: Subnet mask 255.255.255.192 (/26) provides 64 addresses per subnet (4 subnets total).
Valid Subnets: Each subnet provides sufficient IPs to meet the requirement.
NEW QUESTION # 157
During a security audit, a consulting firm notices inconsistencies between the documentation and the actual environment. Which of the following can keep a record of who made the changes and what the changes are?
Answer: A
Explanation:
Configuration monitoring and management tools (often part of network management systems) maintain version-controlled records of device configurations, track changes, and log who made them. This provides accountability and supports compliance audits.
A). Network access control (NAC) manages endpoint access policies but does not track device config changes.
C). Zero Trust is a security framework requiring strict identity verification, not a configuration tracking tool.
D). Syslog collects system logs, but without a config monitoring system, it does not directly compare documentation to device state.
References (CompTIA Network+ N10-009):
Domain: Network Operations - Change management, configuration management, auditing.
NEW QUESTION # 158
A network analyst is installing a wireless network in a corporate environment. Employees are required to use their domain identities and credentials to authenticate and connect to the WLAN. Which of the following actions should the analyst perform on the AP to fulfill the requirements?
Answer: B
Explanation:
WPA3-Enterprise provides strong security and supports authentication using domain identities through a RADIUS server and 802.1X authentication. This is the best choice for a corporate environment requiring user- based authentication.
WPA3-Enterprise Benefits:
Uses 802.1X with EAP (Extensible Authentication Protocol) to authenticate users via a directory service (e.g., Active Directory).
Eliminates shared passwords (PSK) for authentication.
Provides strong encryption and resistance to brute-force attacks.
Incorrect Options:
A: Enable MAC Security:
MAC filtering is not secure because MAC addresses can be spoofed.
B: Generate a PSK for Each User:
Pre-shared keys (PSK) are used in WPA-Personal, not in an enterprise setting.
Does not scale well in corporate environments.
C: Implement WPS:
Wi-Fi Protected Setup (WPS) is a vulnerable security method meant for home users.
Not suitable for enterprise authentication.
Reference:
CompTIA Network+ N10-009 Official Study Guide - Chapter on Wireless Security and Authentication
