NEW QUESTION # 30
You need to deploy routing on a standalone FortiSwitch and want to maximize routing performance. Which type of routing is best for this deployment? (Choose one answer)
Answer: C
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6.1 Administration Guide-Standalone Mode, FortiSwitch units support two primary methods for processing Layer 3 traffic:
software-based routing and hardware-based routing. To maximize performance, the documentation specifies thatHardware-based routing (Option A)is the superior choice for high-speed environments.
The primary technical reason for this performance advantage is the use ofApplication-Specific Integrated Circuits (ASICs). In hardware-based routing, the routing table and forwarding information are programmed directly into the switch's specialized hardware silicon. This allows the FortiSwitch to perform packet lookups and forwarding decisions at "wire speed," which refers to the full throughput capacity of the physical ports.
By offloading these tasks to the ASIC, the switch minimizes latency and prevents the performance bottlenecks associated with general-purpose CPU processing.
In contrast,software-based routing(Options B and D) requires the main system CPU and kernel to process every packet, which is significantly slower and can lead to high CPU utilization during heavy traffic loads.
Option C is factually incorrect because hardware-based routing specifically avoids the kernel's software path to increase speed. Therefore, for a deployment focused on maximizing routing performance, especially in a backbone or high-density branch environment, utilizing the ASIC-driven hardware forwarding path is the recommended approach in FortiSwitchOS 7.6.
NEW QUESTION # 31

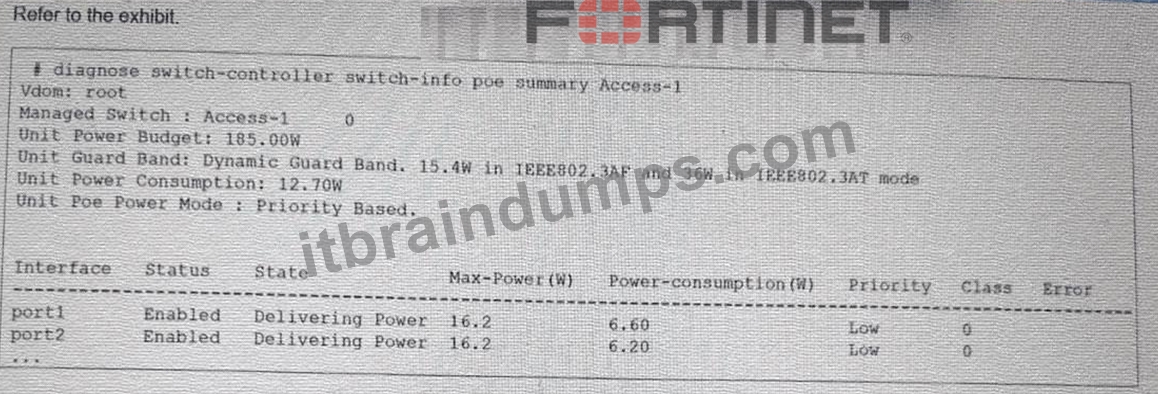

Refer to the exhibit.
The FortiSwitch CLI output of the diagnose switch-controller switch-info poe summary command for the switch Access-1 is shown. It shows that two ports have Power over Ethernet (PoE) enabled and are already in use. What is the most important consideration if you want to connect additional PoE devices to FortiSwitch?
(Choose one answer)
Answer: D
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the primary physical constraint when deploying PoE devices is the total power capacity of the switch ' s internal power supply unit (PSU). The provided exhibit shows the PoE status forAccess-1, highlighting three critical metrics:
theUnit Power Budget (185.00W), the currentUnit Power Consumption (12.70W), and theUnit Guard Band.
TheUnit Power Budgetrepresents the maximum amount of power the switch can provide to all connected Powered Devices (PDs) simultaneously. As more devices (such as access points, VoIP phones, or cameras) are connected, the cumulative power draw increases. The most important consideration is ensuring that thetotal PoE consumption does not exceed this budget. If the budget is exceeded, the switch will stop providing power to new devices or, depending on the configuration, may shut down lower-priority ports to protect the system hardware.
In this specific exhibit, theUnit Poe Power Modeis set toPriority Based. This means that if the power consumption approaches the budget limit, the switch will use the configured port priorities (seen as " Low " for port1 and port2) to decide which devices to keep powered. TheGuard Band(set to a dynamic value) also plays a role by reserving a small amount of power to handle spikes when devices initialize, further emphasizing that the power budget is a hard limit that must be actively managed by the administrator.
NEW QUESTION # 32
Which three are valid actions that a FortiSwitch access control list (ACL) can apply to matching traffic?
(Choose three answers)
Answer: A,B,D
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theNSE 5 FortiSwitch 7.6 Administrator Study Guide, Access Control Lists (ACLs) are used to perform multiple actions on matching traffic as it passes through the switch pipeline. The documentation explicitly categorizes these valid actions into three distinct functional groups:Traffic processing,QoS (Quality of Service), andVLANmodifications.
* Traffic Processing (Option C):This is a primary category of ACL actions. It includes operations that dictate how a frame is physically handled or monitored. Valid specific actions under this category includedrop(discarding the packet),count(incrementing a packet counter for statistics),redirect (sending the packet to a specific interface or CPU queue), andmirror(copying the traffic to a monitor port).
* QoS (Option E):The QoS category allows the switch to manage traffic prioritization and bandwidth.
ACLs can be configured toset the egress queue(assigning a frame to one of the eight priority queues), remark CoS (Class of Service)orDSCP (Differentiated Services Code Point)values in the frame header, and applypolicersfor rate limiting.
* VLAN / Set outer VLAN tags (Option D):Under the VLAN category, the most notable action is the ability toset outer VLAN tagson frames. This is particularly useful in scenarios involving Q-in-Q tunneling or service provider environments where a secondary tag is required for transport across a managed fabric.
It is important to note thatAssign the VLAN ID (Option A)is typically a function ofNAC (Network Access Control)orDynamic VLAN Assignmentrather than a standard ACL action; within an ACL context, vlan-id is primarily used as aclassifier(to match traffic) rather than an action.Quarantine devices (Option B)is a high- level security response triggered by the FortiGate NAC engine and is not a direct action available within the FortiSwitch ACL configuration menu.
NEW QUESTION # 33
Refer to the exhibits. An IP phone is connected to port1 of FortiSwitch Access-1. The IP phone tags its traffic with VLAN ID 20. On FortiGate, VLAN IP_Phone (VLAN ID 20) has been configured, and port1 of Access-
1 is set with VLAN 20 as the native VLAN. However, the IP phone cannot reach the network. The exhibit shows the partial VLAN configuration and the port1 configuration on Access-1.
Which configuration change must you make on FortiSwitch to allow ingress and egress traffic for the IP phone? (Choose one answer)
Answer: B
Explanation:
According to theFortiSwitchOS 7.6 Administration GuideandFortiOS 7.6 FortiLink Guide, the processing of Ethernet frames on a managed FortiSwitch port depends on whether the frame is tagged or untagged upon arrival (ingress) and how the port's VLAN membership is defined.
In the provided exhibit,port1is configured with set vlan "IP_Phone" (VLAN 20) as itsnative VLAN. By definition, the native VLAN handles untagged traffic; any untagged frame arriving at the port is assigned to VLAN 20, and any egress traffic from VLAN 20 is sent out of the port without a tag. However, the scenario specifically states that theIP phone tags its traffic with VLAN ID 20.
When a FortiSwitch receives atagged frame, it checks the VLAN ID against theallowed-vlanslist configured on that port. Although VLAN 20 is the native VLAN, the exhibit shows that the port has been explicitly configured with set allowed-vlans "quarantine". This creates a restrictive filter that permits only tagged frames belonging to the "quarantine" VLAN to enter or exit the port. Because VLAN 20 (IP_Phone) is not present in the allowed-vlans list, the switch drops the tagged frames from the IP phone during ingress processing.
To resolve this, the administrator must modify theFortiSwitch port configurationby adding VLAN 20 to the allowed_vlans list (e.g., set allowed-vlans "quarantine" "IP_Phone" or set allowed-vlans-all enable). This ensures that the switch recognizes and permits tagged traffic for VLAN 20 on that physical interface. Option B is incorrect because l2forward is a Layer 3 interface setting on the FortiGate and does not address the physical port's ingress filtering logic on the switch. Disabling the edge_port (Option D) relates to Spanning Tree Protocol (STP) convergence and would not impact VLAN tag filtering.
NEW QUESTION # 34

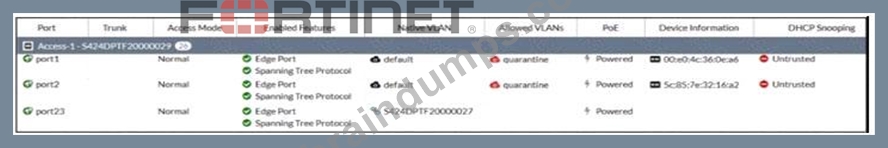

Refer to the exhibit.
The exhibit shows the current status of the ports on the managed FortiSwitch. Access-1.
Why would FortiGate display a serial number in the Native VLAN column associated with the port23 entry?
Answer: C
Explanation:
The information in the " Native VLAN " column for port23 on the FortiSwitch indicates that a standalone switch is connected to it. This is because the column displays " $424MPTF20000027, " which matches the format of a Fortinet device serial number.
Here ' s a breakdown of the evidence in the image:
* Native VLAN:The " Native VLAN " column typically displays the VLAN ID for untagged traffic on a trunk port. However, in this case, it shows a serial number format ( " $424MPTF20000027 " ).
* No Trunk Information:The " Trunk " column is blank for port23, indicating it ' s not configured as a trunk member.
* Other Ports:Port1 and port2 show " default " in the " Native VLAN " column, which is the expected behavior for access ports.
Fortinet FortiSwitch devices typically don ' t display the serial number of adjacent FortiSwitch devices in the " Native VLAN " column. This column is reserved for VLAN information on trunk ports.
