| Section | Objectives |
|---|---|
| Topic 1: Construction Fire Safety | |
| Topic 2: General & Construction Types | - Construction Classification — Type IV-A, IV-B, IV-C
|
| Topic 3: Structural & Connection Inspection | - Connection Design and Protection - Framing and Structural Elements |
| Topic 4: Fire-Resistance & Protection | - Concealed Spaces Protection - Noncombustible Protection & Encapsulation - Fire-Resistance-Rated Assemblies |
| Topic 5: Mass Timber Materials | - CLT, Glulam, NLT, SCL and Engineered Wood Products |
| Topic 6: Inspection Duties & Documentation | - Statement of Special Inspections - Inspection Reporting and Compliance Verification |
>> Real 93-Tall-Mass-Timber-Buildings Dumps Free <<
What is more, we have free demos are freebies for your information. In case you are tentative about their quality, we give these demos form which you could get the brief outline and questions closely related with the 93-Tall-Mass-Timber-Buildings practice materials. Only by practising them on a regular base, you will see clear progress happened on you. Besides, rather than waiting for the gain of our 93-Tall-Mass-Timber-Buildings practice materials, you can download them immediately after paying for it, so just begin your journey toward success now.
NEW QUESTION # 13
Based on the definition of cross-laminated timber (CLT), panels are manufactured as follows:
Answer: C
Explanation:
The 2021 IBC definition of cross-laminated timber describes a prefabricated engineered wood product consisting of not less than three layers of solid-sawn lumber or structural composite lumber. The adjacent layers are cross oriented and bonded with structural adhesive to form a solid wood element. Accordingly, option C is correct.
Cross orientation means that the principal grain direction of one layer is arranged approximately perpendicular to that of the adjoining layer. This configuration distinguishes CLT from products in which all laminations run parallel, such as conventional glued-laminated timber. The cross-oriented layup provides two- way panel behavior, dimensional stability, and structural capacity in both principal directions.
Option A is incorrect because CLT must contain at least three layers. Option B describes a mechanically laminated product rather than structural glued CLT; nail-laminated timber uses mechanical fasteners, whereas code-compliant CLT uses structural adhesives and must conform to the applicable manufacturing standard.
Option D eliminates the defining cross-lamination characteristic and would instead describe a parallel- laminated product.
During inspection, the product label and certification documentation should be checked to confirm the panel was manufactured under the required quality-assurance program.
References/Topics: 2021 IBC Chapter 2 definition of "Cross-Laminated Timber"; Sections 602.4 and
2303.1.4; ANSI/APA PRG 320.
NEW QUESTION # 14

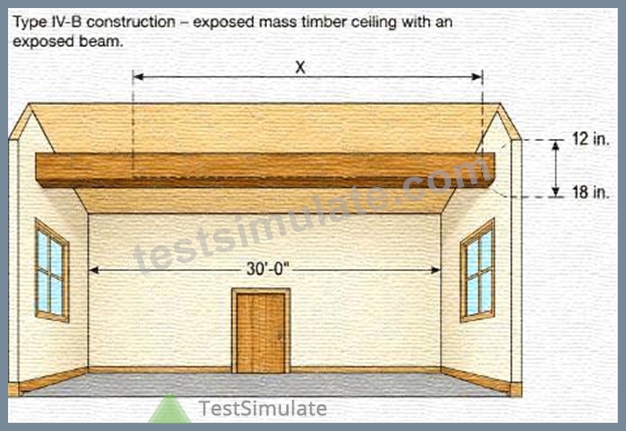

Refer to the figure by clicking on the EXHIBIT button above.
In Type IV-B construction, based on a 900 sq. ft. floor area, a 30 ' room width, and a 12 in. x 18 in. beam as shown in the Figure, the maximum length of the unprotected portion of the mass timber ceiling (dimension X) is _____ feet.
Answer: D
Explanation:
Section 602.4.2.2.2 permits unprotected mass timber ceilings in Type IV-B construction to equal no more than 20 percent of the floor area , and the code expressly states that attached beams are included when determining that exposed ceiling area.
The floor area is 900 square feet:
20% × 900 = 180 sq. ft. maximum exposed area .
The exposed 12-inch × 18-inch beam extends across the 30-foot room. Its three exposed surfaces consist of the 12-inch-wide bottom and two 18-inch-deep sides:
30 ft × (1 ft + 1.5 ft + 1.5 ft) = 120 sq. ft.
Because the attached beam counts against the ceiling exposure allowance, only:
180 # 120 = 60 sq. ft.
remains available for the exposed ceiling itself.
The exposed ceiling extends across the 30-foot room width, so:
30 ft × X = 60 sq. ft.
Therefore:
X = 2 ft .
Option A is correct. Ignoring the beam surfaces would overstate the permitted ceiling exposure and would contradict the explicit IBC requirement that attached beams be included in the exposed ceiling calculation.
References/Topics: 2021 IBC Section 602.4.2.2.2, Exception 1.1; Type IV-B exposed ceiling and attached- beam area calculations.
NEW QUESTION # 15
Fire-resistance ratings of members and assemblies can be established by all of the following except:
Answer: B
Explanation:
ASTM E84 is not a test for establishing the fire-resistance rating of a structural member or building assembly.
Therefore, option B is the exception.
The 2021 IBC establishes fire-resistance ratings primarily through testing conducted in accordance with ASTM E119 or UL 263. Those tests evaluate whether an element or assembly can maintain structural performance, limit flame passage, and control temperature rise for a specified duration under standardized fire exposure. ASTM E84 instead evaluates surface-burning characteristics, principally flame-spread and smoke- developed indices. An E84 classification cannot establish that a wall, floor, beam, column, or connection possesses a one-, two-, or three-hour fire-resistance rating.
The IBC also recognizes approved prescriptive designs under Section 721, calculated fire resistance under Section 722, and designs documented in approved sources or supported by permitted analytical methods.
Those are valid methods represented by options A, C, and D.
For inspection purposes, the approved construction documents must identify the method used to establish the rating. The inspector must then verify that the installed materials, dimensions, loading assumptions, protective layers, fasteners, joints, and connection details match the tested, calculated, or prescriptive design.
References/Topics: 2021 IBC Sections 703.2, 703.2.1, 721 and 722; ASTM E119 and UL 263 fire-resistance testing.
NEW QUESTION # 16
Calculated mass timber fire resistance can include each of the following except:
Answer: A
Explanation:
Minimum prescriptive dimensions are not themselves a component added into a calculated fire-resistance time. Therefore, option A is the exception.
IBC Section 602.4 states that a mass timber element's required fire resistance can be based on the fire- resistance contribution of the mass timber, the noncombustible protection, or a combination of those two components. Options B, C, and D reflect those permitted approaches.
Minimum dimensions under Section 2304.11 serve a different function. They establish the minimum cross- sectional size and construction characteristics required for qualifying heavy timber or mass timber elements.
A member can satisfy the minimum dimensional requirement without automatically achieving every required one-, two-, or three-hour fire-resistance rating. The structural fire calculation must evaluate the remaining effective section after charring, elevated-temperature effects, applied loading, and any credited protective materials.
The inspector must therefore verify both requirements independently: the installed member must meet the minimum code dimensions and must match the approved fire-resistance design. Increasing a member to the minimum prescriptive size does not by itself replace the required calculation, tested assembly, or approved protection system.
References/Topics: 2021 IBC Sections 602.4, 703.2, 722.7 and 2304.11; calculated mass timber fire resistance.
NEW QUESTION # 17
Refer to the exhibit by clicking on the EXHIBIT button above.
In the detail shown, if the connections at the glulam beam and the steel plate required a fire-resistance rating of one (1) hour and the wood cover is designed per AWC Technical Report 10 to provide the entire one (1) hour of protection, the minimum required thickness for the wood block member providing protection for the bolt connections is _____ inches.
Answer: B
Explanation:
The required minimum wood protection thickness is 1.75 inches , making option B correct. AWC Technical Report No. 10 establishes a thermal-separation methodology for protecting steel connectors and fasteners with sacrificial wood cover. Because the question specifies that the wood cover itself must provide the entire 60- minute fire-protection period, the protection thickness must be calculated using the thermal-separation provisions rather than relying on residual fire resistance from the connector or steel plate.
TR10 applies a reduction to the protection contribution of the base wood layer. Its connection examples use the relationship in Section 4.4.1.3, with the required thermal protection time divided by 0.85. For a 60-minute requirement, back-calculating the prescribed nonlinear wood charring equation gives approximately 1.71 inches of required wood thickness. The practical minimum corresponding to the available choices is therefore
1.75 inches.
The principle is critical for special inspection: steel connection components have high thermal conductivity and must remain below the temperature limits assumed by the connection fire design. The inspector must verify actual wood-cover thickness, fastening, continuity, and any gaps before concealment.
References/Topics: AWC Technical Report No. 10, Sections 4.4.1.3 and 4.5; connection thermal separation; wood protection of steel connectors. TR10 demonstrates the same calculation methodology for wood-covered steel connections.
NEW QUESTION # 18
......
