NEW QUESTION # 14

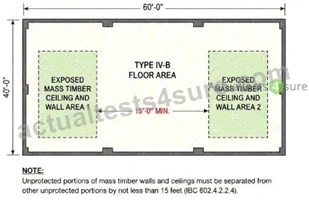

Refer to the figure by clicking on the EXHIBIT button above.
In Type IV-B construction, unprotected portions of mass timber as shown in the Figure are required to be separated by _____ feet.
Answer: D
Explanation:
The required separation is 15 feet , making option B correct. Section 602.4.2.2.4 of the 2021 IBC specifically regulates the separation distance between unprotected mass timber elements in Type IV-B construction.
Within each dwelling unit or fire area, unprotected portions of mass timber walls and ceilings must be separated from other unprotected wall and ceiling portions by not less than 15 feet . For ceiling-related surfaces, the separation is measured horizontally along the ceiling. For wall-to-wall exposure, the applicable separation is measured horizontally along the floor.
This requirement operates in addition to the maximum exposed-area restrictions. A designer therefore cannot merely demonstrate that the exposed ceiling is below 20 percent or that exposed walls are below 40 percent of floor area; the exposed regions must also satisfy the required spatial separation.
The purpose is to prevent multiple exposed mass timber regions from acting as closely spaced fuel packages during a compartment fire. During inspection, dimensions should be checked against the approved documents before required gypsum or other noncombustible protection is completed.
References/Topics: 2021 IBC Section 602.4.2.2.4; separation distance between unprotected Type IV-B mass timber elements.
NEW QUESTION # 15
Proprietary nails can be used by referencing which ICC-ES Evaluation Report?
Answer: D
Explanation:
ICC-ES ESR-1539 is the applicable evaluation report, making option C correct. ESR-1539 addresses nails and staples manufactured by participating companies and evaluates their use in engineered and nonengineered structural connections.
An ICC-ES Evaluation Report provides evidence that a proprietary product or system complies with specified building-code requirements where the product does not rely solely on the generic prescriptive provisions of the IBC. For proprietary nails, the report provides the technical basis needed to establish characteristics such as dimensions, materials, recognized structural applications, allowable design values, installation limitations, and conditions of use.
The current ICC-ES document is published as ESR-1539P, reflecting subsequent administrative updates to the report, but the identifying evaluation-report number remains 1539 , matching option C and the examination question.
For special inspection, merely recognizing the ESR number is not enough. The inspector should verify that the installed proprietary fastener is actually included in the report, that its diameter and length correspond to the approved construction documents, and that installation spacing, penetration, orientation, substrate, and other report conditions are satisfied.
References/Topics: ICC-ES ESR-1539, structural nails and staples; proprietary fastener evaluation and installation requirements. ICC-ES states that the nails and staples covered by ESR-1539 are used in engineered and prescriptive structural connections.
NEW QUESTION # 16
Refer to the exhibit by clicking on the EXHIBIT button above.
In the detail shown, if the connections at the glulam beam and the steel plate required a fire-resistance rating of one (1) hour and the wood cover is designed per AWC Technical Report 10 to provide the entire one (1) hour of protection, the minimum required thickness for the wood block member providing protection for the bolt connections is _____ inches.
Answer: A
Explanation:
The required minimum wood protection thickness is 1.75 inches , making option B correct. AWC Technical Report No. 10 establishes a thermal-separation methodology for protecting steel connectors and fasteners with sacrificial wood cover. Because the question specifies that the wood cover itself must provide the entire 60- minute fire-protection period, the protection thickness must be calculated using the thermal-separation provisions rather than relying on residual fire resistance from the connector or steel plate.
TR10 applies a reduction to the protection contribution of the base wood layer. Its connection examples use the relationship in Section 4.4.1.3, with the required thermal protection time divided by 0.85. For a 60-minute requirement, back-calculating the prescribed nonlinear wood charring equation gives approximately 1.71 inches of required wood thickness. The practical minimum corresponding to the available choices is therefore
1.75 inches.
The principle is critical for special inspection: steel connection components have high thermal conductivity and must remain below the temperature limits assumed by the connection fire design. The inspector must verify actual wood-cover thickness, fastening, continuity, and any gaps before concealment.
References/Topics: AWC Technical Report No. 10, Sections 4.4.1.3 and 4.5; connection thermal separation; wood protection of steel connectors. TR10 demonstrates the same calculation methodology for wood-covered steel connections.
NEW QUESTION # 17
The maximum allowable height for a Group E building of Type IV-A construction with an automatic sprinkler system in accordance with Section 903.3.1.1 is _____ stories.
Answer: A
Explanation:
The controlling provision is 2021 IBC Section 504.4 and Table 504.4, which establish the allowable number of stories above grade plane according to occupancy classification, construction type, and sprinkler protection.
The question identifies three controlling variables: Group E occupancy, Type IV-A construction, and an NFPA 13 automatic sprinkler system installed in accordance with Section 903.3.1.1.
In the Group E row, the sprinklered "S" value for Type IV-A construction is nine stories above grade plane.
Therefore, option D is correct. The three-story value applies to the nonsprinklered Type IV-A condition and must not be used because the question expressly states that the building is sprinklered. The six-story value corresponds to Type IV-B construction under the same sprinklered Group E condition, while the four-story value-although not listed as an answer-would apply to Type IV-C.
The special inspector should distinguish the story limitation in Table 504.4 from the separate building-height- in-feet limitation in Table 504.3. Both requirements apply concurrently; compliance with one does not permit the other to be exceeded.
References/Topics: 2021 IBC Section 504.4; Table 504.4, Group E, sprinklered Type IV-A construction; Section 903.3.1.1.
NEW QUESTION # 18
One code-recognized method for calculating the fire-resistance rating of exposed wood members and decking is:
Answer: C
Explanation:
The intended answer is ANSI/AWC NDS Chapter 16. The video option uses "AWS," but the correct standards organization is the American Wood Council-AWC . Option D is therefore correct based on its intended reference.
IBC Section 722.1 expressly permits exposed wood members and wood decking to have their calculated fire resistance determined in accordance with Chapter 16 of the ANSI/AWC National Design Specification for Wood Construction. The method evaluates charring, the effective char depth, the reduced residual cross section, elevated-temperature effects, loading, and the remaining structural capacity for the required exposure period.
ACI 216.1 applies to concrete and masonry fire resistance. TMS 0216 addresses masonry assemblies. ASCE
29 Chapter 5 provides procedures for calculating the fire resistance of structural steel assemblies. Those references are code-recognized methods, but they apply to different construction materials.
For mass timber inspection, the approved calculations should identify the exposed surfaces, required rating, timber species or product, member dimensions, design loads, protective contribution, and connection treatment. Field reductions in member dimensions can invalidate the calculated fire resistance.
References/Topics: 2021 IBC Section 722.1; ANSI/AWC NDS Chapter 16; calculated fire resistance of exposed wood members and decking.
NEW QUESTION # 19
......
