問題 #68
When Dynamic Host Configuration Protocol (DHCP) snooping is enabled on a FortiSwitch VLAN, which two statements are true? (Choose two answers)
答案：A,B
解題說明：
According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink 7.6 Study Guide, DHCP snooping is a security feature that prevents rogue DHCP servers from distributing incorrect IP addresses on a network.
Once enabled for a specific VLAN, the switch differentiates betweentrustedanduntrustedports to regulate DHCP traffic.
* Trusted Ports and DHCP Replies (Option A):In a managed FortiSwitch environment, all ports areuntrusted by default. To allow a DHCP server (such as a FortiGate or an external server) to provide IP addresses, the administrator must explicitly set the connecting port astrusted. DHCP snooping validates incoming packets; it allowsDHCP server messages(such as DHCPOFFER and DHCPACK) only on these trusted ports. Any DHCP server reply arriving on an untrusted port is identified as coming from a potentially rogue source and is discarded by the switch.
* Option 82 Data Insertion (Option C):FortiSwitch supportsDHCP Option 82(also known as the Relay Information Option), which provides additional security by appending location-specific information (such as the Circuit ID and Remote ID) toDHCP request packets. When DHCP snooping is active, the switch can be configured to insert this data into client requests as they enter untrusted ports. This allows the upstream DHCP server to identify the specific physical port or VLAN from which the request originated, even if the server is located in a different subnet.
Regarding the incorrect options:Option Bis false as DHCP snooping only inspects and filters DHCP-specific traffic, not general unicast data.Option Dis incorrect because DHCP requests (client-to-server) are generally permitted on all ports to ensure clients can find a server, though some configurations allow dropping requests from untrusted sources if they do not meet specific security criteria.
問題 #69
Which QoS mechanism maps packets with specific CoS or DSCP markings to an egress queue?
答案：A
解題說明：
"Classification: FortiSwitch maps packets with a given CoS or DSCP marking to an egress queue. There are eight egress queues on each port: queues 0 to 7." In Quality of Service (QoS) mechanisms, the process of mapping packets with specific CoS (Class of Service) or DSCP (Differentiated Services Code Point) markings to an egress queue involves two key steps:
classificationandqueuing.
* Classification: This occurs on the ingress side (incoming traffic). The switch examines the packet headers (e.g., CoS or DSCP values) to determine how the traffic should be treated. Based on this classification, the switch assigns the packet to a specific priority level or queue.
* Queuing: Once the packet is classified, it is mapped to an egress queue based on its priority level. The egress queues are used to manage how traffic is transmitted out of the switch.
* Option A (Queuing for egress traffic)refers to managing how packets leave the switch, but it does not involve the initial mapping of CoS/DSCP values to a queue.
* Option C (Rate limiting for egress traffic)is about controlling the rate of outgoing traffic, which is unrelated to CoS/DSCP mapping.
* Option D (Marking for ingress traffic)involves modifying the CoS or DSCP values of packets as they enter the switch, but it does not map them to an egress queue.
Thus,classification for ingress trafficis the mechanism that identifies and maps packets with specific CoS or DSCP markings to an appropriate egress queue.
問題 #70
Which packet capture method allows FortiSwitch to capture traffic on trunks and management interfaces?
答案：D
解題說明：
FortiSwitch supports packet capture through various methods, but the Sniffer profile is specifically capable of capturing traffic on both trunks and management interfaces.Here's why:
* Sniffer Profile (B):
* Versatile Capture:The sniffer profile in FortiSwitch is designed to capture traffic across different types of interfaces, including trunks (where multiple VLANs are present) and management interfaces (used for controlling and monitoring the switch).
* Configuration Flexibility:You can configure sniffer profiles to target specific traffic, offering flexibility in monitoring and troubleshooting network issues on both data and management planes.
* Other Options:
* SPAN (A)is used mainly for mirroring traffic to another port for analysis but is typically limited in its ability to capture management interface traffic.
* sFlow (C)andTCP dump (D)are useful tools but do not specifically align with the capability to universally capture traffic across trunks and management interfaces in the context described.
References:For further details on configuring and utilizing sniffer profiles on FortiSwitch, refer to the FortiSwitch management documentation:Fortinet Product Documentation
問題 #71

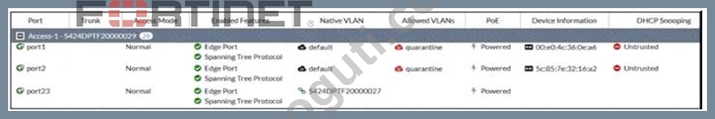

Refer to the exhibit.
The exhibit shows the current status of the ports on the managed FortiSwitch. Access-1.
Why would FortiGate display a serial number in the Native VLAN column associated with the port23 entry?
答案：D
解題說明：
The information in the " Native VLAN " column for port23 on the FortiSwitch indicates that a standalone switch is connected to it. This is because the column displays " $424MPTF20000027, " which matches the format of a Fortinet device serial number.
Here ' s a breakdown of the evidence in the image:
* Native VLAN:The " Native VLAN " column typically displays the VLAN ID for untagged traffic on a trunk port. However, in this case, it shows a serial number format ( " $424MPTF20000027 " ).
* No Trunk Information:The " Trunk " column is blank for port23, indicating it ' s not configured as a trunk member.
* Other Ports:Port1 and port2 show " default " in the " Native VLAN " column, which is the expected behavior for access ports.
Fortinet FortiSwitch devices typically don ' t display the serial number of adjacent FortiSwitch devices in the " Native VLAN " column. This column is reserved for VLAN information on trunk ports.
問題 #72
How does FortiGate handle configuration of flow tracking sampling if you export the settings to a managed FortiSwitch stack with sampling mode set to perimeter is true?
答案：B
解題說明：
When FortiGate exports configuration settings to a managed FortiSwitch stack with sampling mode set to
"perimeter is true," the behavior is:
* B. FortiGate configures FortiSwitch to perform ingress sampling on all switch interfaces, except ICL and ISL interfaces.This setting ensures that all incoming traffic on normal operational ports is sampled for monitoring and analysis purposes, but it excludes the inter-chassis link (ICL) and inter- switch link (ISL) interfaces from sampling. These exclusions are typically made to prevent the duplication of sampled data and to reduce unnecessary load on the monitoring system, as these links often carry traffic already monitored at other points.
Options A and D are incorrect because they either generalize the sampling across all interfaces without exceptions or incorrectly specify egress sampling on management interfaces. Option C is also incorrect as FortiGate can modify existing sampling settings to fit the perimeter-based configuration requirement.
