Different from other similar education platforms, the NSE7_FSN_AR-7.6 quiz guide will allocate materials for multi-plate distribution, rather than random accumulation without classification. The NSE7_FSN_AR-7.6 prepare torrent is absorbed in the advantages of the traditional learning platform and realize their shortcomings, so as to develop the NSE7_FSN_AR-7.6 test material more suitable for users of various cultural levels. And the NSE7_FSN_AR-7.6 test material provided many study parts of the plates is good enough to arouse the enthusiasm of the user, allow the user to keep attention of highly concentrated.
| Section | Weight | Objectives |
|---|---|---|
| Security Policy & Services | 10% | - Advanced firewall & security profile design - NAT & IP pool optimization - Identity-based policies |
| Monitoring & Troubleshooting | 10% | - Connectivity & performance troubleshooting - Diagnostic tools & CLI analysis - Fabric synchronization issues |
| Centralized Management | 20% | - FortiAnalyzer logging & reporting - Policy packages & object templates - Configuration provisioning & version control - FortiManager 7.6 deployment & role assignment |
| Advanced Routing & VPN | 25% | - SD-WAN design & SLA management - IPsec VPN & ADVPN architecture - Route redistribution & filtering - OSPF, BGP, IS-IS configuration & optimization |
| System Architecture & Design | 20% | - Hardware sizing & resource planning - FortiOS 7.6 architecture & components - VDOM design & multi-tenant deployment - Security Fabric integration & scaling |
| High Availability & Redundancy | 15% | - FGCP/FGSP/vCluster deployment - Cross-data center redundancy - Session synchronization & failover |
>> Fortinet NSE7_FSN_AR-7.6 Valid Dumps <<
For the candidates of the exam, you pay much attention to the pass rate. If you can’t pass the exam, all efforts you have done will be invalid. The pass rate of us is more than 98.95%, if you choose us, we will assure you that you can pass the exam, and all your efforts will be rewarded. Our service stuff will reply all your confusions about the NSE7_FSN_AR-7.6 Exam Braindumps, and they will give you the professional suggestions and advice.
NEW QUESTION # 28
Refer to the exhibit, which shows the partial output of FortiOS kernel slabs.
Which statement is true?
Answer: C
Explanation:
The study guide states:
"The kernel memory slabs are collections of objects with a common purpose. The kernel uses them to store information in memory." It also gives the exact calculation rule:
"Total slab size = available objects x object size"
From the exhibit:
tcp_session 3 5 1500 ...
So:
available objects = 5
object size = 1500
Therefore:
Total slab size = 5 × 1500 = 7500 kB
That makes D correct, and it is associated with the kernel, not user space.
Why the other options are wrong:
A is wrong because sctp_session 0 0 1600 ... gives 0 × 1600 = 0, but slabs are associated with the kernel, not user space.
B is wrong because ip_session 1 3 1200 ... gives 3 × 1200 = 3600, but again slabs are kernel memory, not user space.
C is wrong because ip6_session 0 0 1300 ... gives 0 × 1300 = 0, not 1300.
NEW QUESTION # 29
Which two statements about Security Fabric communications are true? (Choose two.)
Answer: B,D
Explanation:
Comprehensive and Detailed Explanation From Exact Extract of Network Security Support Engineer Study Guide (FortiOS 7.6) topics:
The correct answers are A and B. Security Fabric communication uses Fortinet-proprietary protocols, mainly FortiTelemetry and Neighbor Discovery. The study guide states that FortiTelemetry uses TCP port 8013, and that the connection is always established by the downstream FortiGate toward the upstream FortiGate. This validates option A. The same section also states that FortiTelemetry must be manually enabled. More precisely, the upstream FortiGate interface must have Security Fabric Connection enabled under administrative access so it can accept incoming Security Fabric connection requests. This validates option B.
Option C is wrong because only the FortiTelemetry TCP port 8013 can be changed; Neighbor Discovery uses UDP port 8014 and cannot be changed. Option D is also wrong because Security Fabric communication is not enabled automatically among all Fortinet devices. It requires the correct Security Fabric settings, interface administrative access, and downstream authorization. The study guide's troubleshooting section confirms that when FortiTelemetry is disabled, the upstream FortiGate receives TCP 8013 SYN packets but does not complete the Security Fabric connection.
NEW QUESTION # 30

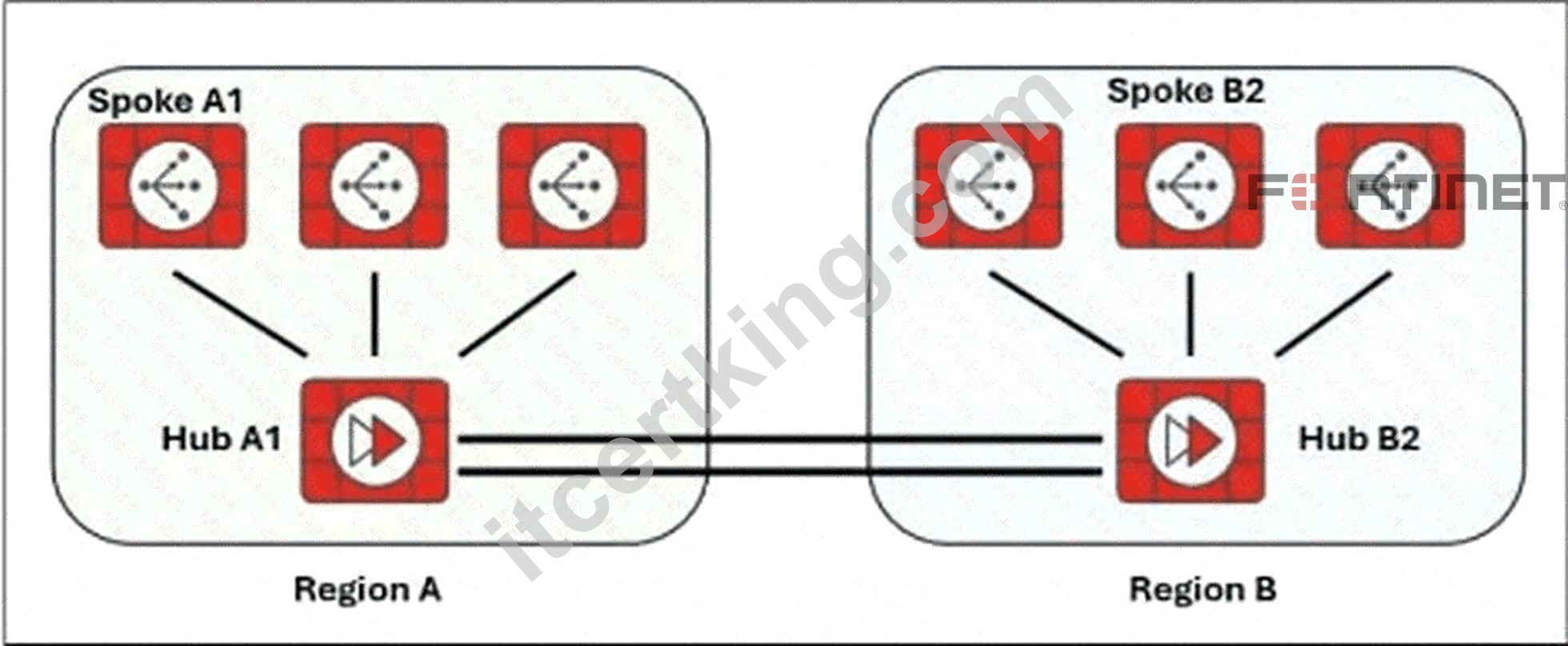

Refer to the exhibit.
Two hub-and-spoke groups are connected through redundant site-to-site IPsec VPNs between Hub 1 and Hub
2.
Which two configuration settings are required for Spoke A1 to establish an auto-discovery VPN (ADVPN) shortcut with Spoke B2? (Choose two.)
Answer: B,D
Explanation:
Comprehensive and Detailed 100 to 150 words of Explanation From Secure Networking Architect Study Guides topics:
For inter-region ADVPN shortcuts, each IPsec interface must be configured according to its ADVPN role.
The Enterprise Firewall 7.6 Administrator Study Guide states that when a spoke connects to a hub, auto- discovery-receiver must be enabled so that the spoke can receive shortcut messages and initiate negotiation of a dynamically created shortcut tunnel. Therefore, A is correct.
When hubs are interconnected through IPsec, the hub-to-hub tunnel must use auto-discovery-forwarder enable. This permits shortcut messages to cross the overlay networks and reach spokes in another region, making B correct. auto-discovery-sender belongs on the hub-facing ADVPN interface used to send shortcut offers to spokes, not on the spoke. Likewise, the hub is not configured as the receiver on its spoke-facing tunnels.
NEW QUESTION # 31
Which of the following regarding protocol states is true? (Choose one answer)
Answer: A
Explanation:
The correct answer is B .
The study guide states that for TCP , the protocol state is a two-digit number . The first digit is the server- side state and is 0 when the session is not subject to inspection . The second digit is the client-side state .
It also shows that value 1 = ESTABLISHED
So, for a normal TCP session with no inspection, proto_state=01 means:
* first digit 0 = no inspection
* second digit 1 = ESTABLISHED
That makes B correct.
Why the other options are wrong:
* A is wrong because for UDP , the study guide says 00 = one-way traffic and 01 = two-way traffic
* C is wrong because 10 does not represent the normal established TCP session described in the study guide. The established example shown is based on state value 1 , and the guide explicitly highlights proto_state=11 when both server-side and client-side TCP handshakes are completed
* D is wrong because for ICMP , the study guide says "the protocol state is always 00"
====
NEW QUESTION # 32
Refer to the exhibit.
The port1 interface configuration on FortiGate and partial session information for ICMP traffic are shown.
Which two things happen to the session information if a routing change occurs that affects this session?
(Choose two answers)
Answer: C,D
Explanation:
The correct answers are A and C.
The exhibit shows that preserve-session-route is enabled on port1:
config system interface
edit " port1 "
set preserve-session-route enable
next
end
The study guide explains the effect of this setting exactly:
"enable: FortiGate marks existing session routing information as persistent, and applies only the modified routes to new sessions" It also states:
"The current route must still be present in the FIB. Otherwise, FortiGate flags the session as dirty and reevaluates it" And the same page further clarifies:
"If you enable this setting, sessions passing through that interface continue to pass without being affected by the routing changes. The routing changes apply only to new sessions. If the route is removed from the FIB, then FortiGate must flag the session as dirty, flush its gateway information, and reevaluate the session." This proves:
A is correct because with preserve-session-route enable, existing sessions are normally preserved and routing changes apply only to new sessions.
C is correct because the session remains unchanged unless the current route is removed from the FIB/routing table, in which case FortiGate dirties and reevaluates the session.
Why the other options are wrong:
B is wrong because when the active route is removed, FortiGate does not simply mark the session dirty and stop there. The study guide says it "flags the session as dirty and reevaluates it", which means route lookup happens again.
D is wrong because the session does change if the active route is removed. FortiGate flushes gateway information and reevaluates the session.
So the verified answers are: A, C.
NEW QUESTION # 33
......
