>> Huawei H12-811_V2.0 Brain Exam <<
We have designed a chat window below the web page. Once you want to ask some questions about the H12-811_V2.0 training engine, you can click the little window. Then you just need to click the buttons after writing your email address and your questions about the H12-811_V2.0 Exam Questions. Our back operation system will soon receive your email; then you will get a quick feedback on the H12-811_V2.0 practice braindumps from our online workers.
NEW QUESTION # 100

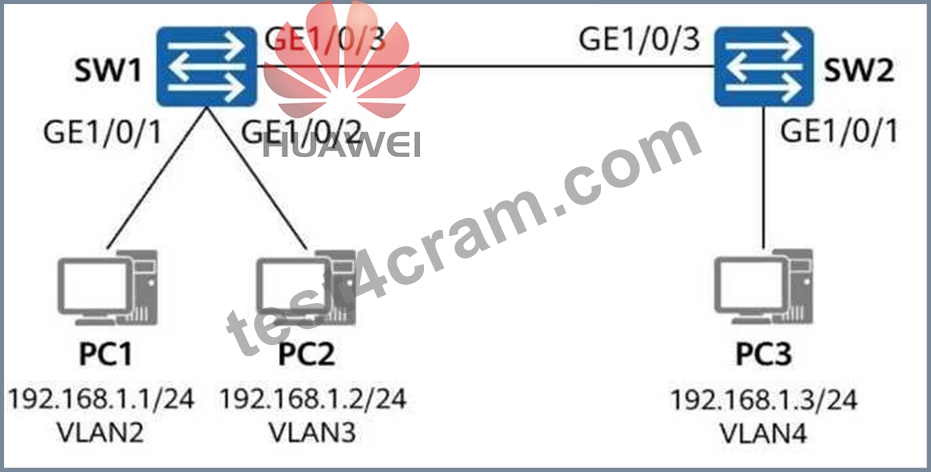

On the network shown in the figure, GE1/0/1 and GE1/0/2 of SW1 are access interfaces, and their PVIDs are VLAN 2 and VLAN 3 respectively. GE1/0/1 of SW2 is also an access interface, and its PVID is VLAN 4. Which of the following configurations on SW1 and SW2 can ensure that data packets sent from PC1 and PC2 can reach PC3?
Answer: B,C
Explanation:
PC1 and PC2 are in different VLANs on SW1, while PC3 is in VLAN 4 on SW2. To allow traffic from VLAN 2 and VLAN 3 users to reach PC3 through the inter-switch link, SW1 must be able to send frames from PC1 and PC2 toward SW2 in a form that SW2 can place into VLAN 4.
Option B is valid because a hybrid interface on SW1 can send frames from VLAN 2 and VLAN 3 untagged, and setting the PVID to VLAN 4 allows untagged inbound frames on the peer side to be associated appropriately when matched with the SW2 configuration. Option C is also valid because configuring SW2's GE1/0/3 as a trunk allowing VLAN 4 and setting its PVID to VLAN 4 means untagged frames arriving from SW1 are treated as belonging to VLAN 4 and can then be forwarded to PC3 through its access interface.
NEW QUESTION # 101

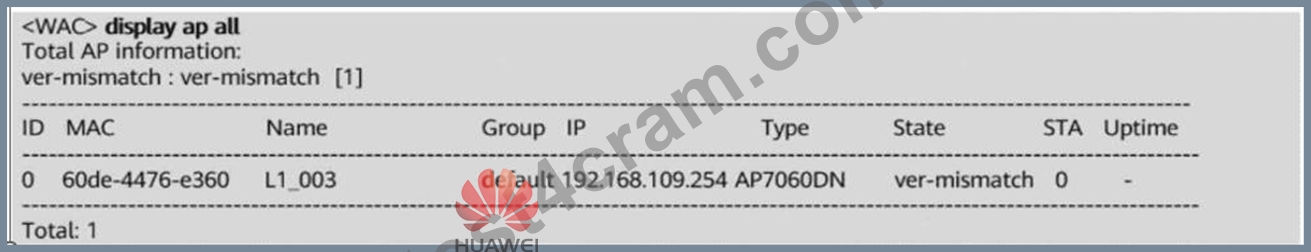

In the WAC + Fit AP networking, an AP fails to go online. The output of the display ap all command run on the WAC is shown below. According to the command output, which of the following is the possible cause of the AP's failure to go online?
Answer: B
Explanation:
The correct answer is C. In the command output, the AP state is shown as ver-mismatch. This state directly indicates a version mismatch between the AP and the WAC. In Huawei WLAN deployment, a Fit AP must use a software version that is compatible with the WAC version. If the versions do not match, the AP may be discovered by the WAC and appear in the AP list, but it cannot successfully complete the online process.
Option A is incorrect because blacklist-related failures are displayed with blacklist-related status information, not ver-mismatch. Option B is also incorrect because authentication failures normally generate authentication- related fault indications. Option D is incorrect because configuration initialization failure would not be identified by the specific ver-mismatch state.
HCIA-Datacom troubleshooting knowledge emphasizes reading AP online states carefully. Common causes of AP online failure include IP address acquisition failure, CAPWAP tunnel establishment failure, insufficient licenses, authentication problems, and version mismatch. When the state explicitly shows ver-mismatch, the troubleshooting direction is clear: check AP and WAC software compatibility and upgrade or align the software version as needed.
NEW QUESTION # 102

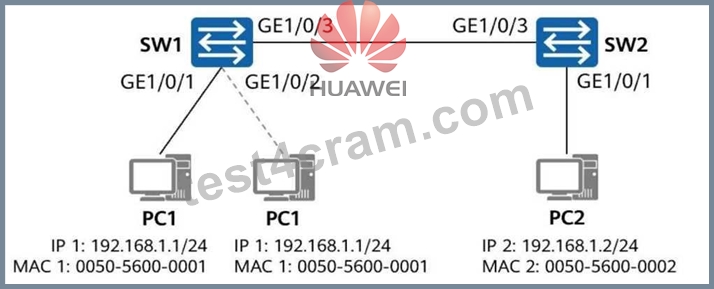

The figure shows the simplified topology of an enterprise campus network. On this network, the aging time of dynamic MAC address entries on switches is 300 seconds. The administrator connects PC1 to GE1/0/1 of SW1 and successfully pings the IP address of PC2 from PC1. Then, the administrator disconnects the Ethernet cable of PC1 from GE1/0/1 of SW1, immediately connects the cable to GE1/0/2 of SW1, and pings the IP address of PC2 from PC1. Which of the following operations does SW1 perform after receiving a data frame from PC1 when PC1 is connected to GE1/0/2 of SW1?
Answer: A
Explanation:
An Ethernet switch learns MAC address entries dynamically by examining the source MAC address of incoming frames. When SW1 first receives frames from PC1 on GE1/0/1, it creates a MAC address table entry mapping PC1's MAC address to that port. If PC1 later sends frames that arrive on GE1/0/2, SW1 updates the learned entry to reflect the new incoming interface.
Therefore, option B is correct: SW1 saves the mapping between PC1's MAC address and GE1/0/2 and removes or overwrites the old mapping associated with GE1/0/1.
NEW QUESTION # 103
To ensure that the same data flow can be forwarded through the same physical link in a link aggregation group (LAG) and different data flows can be load balanced among different physical links in the LAG, the administrator needs to enable per-packet load balancing on the devices at both ends of the LAG.
Answer: A
Explanation:
Ethernet link aggregation combines multiple physical links into one logical interface to improve available bandwidth and network reliability.
Huawei Eth-Trunk supports traffic distribution using a load-balancing mechanism based on flow information.
Per-packet load balancing distributes individual packets among available physical links. However, packets belonging to the same traffic flow may traverse different links with different transmission delays. This can cause packets to arrive out of order.
Per-flow load balancing addresses this problem by using packet-header information, such as source and destination addresses or transport-layer port numbers, to identify traffic flows and select member links.
Packets belonging to the same flow are normally forwarded through the same physical link, preserving packet order while allowing different flows to use different links.
Therefore, the stated requirement calls for per-flow rather than per-packet load balancing.
The correct answer is FALSE.
NEW QUESTION # 104
Drag and Drop Question

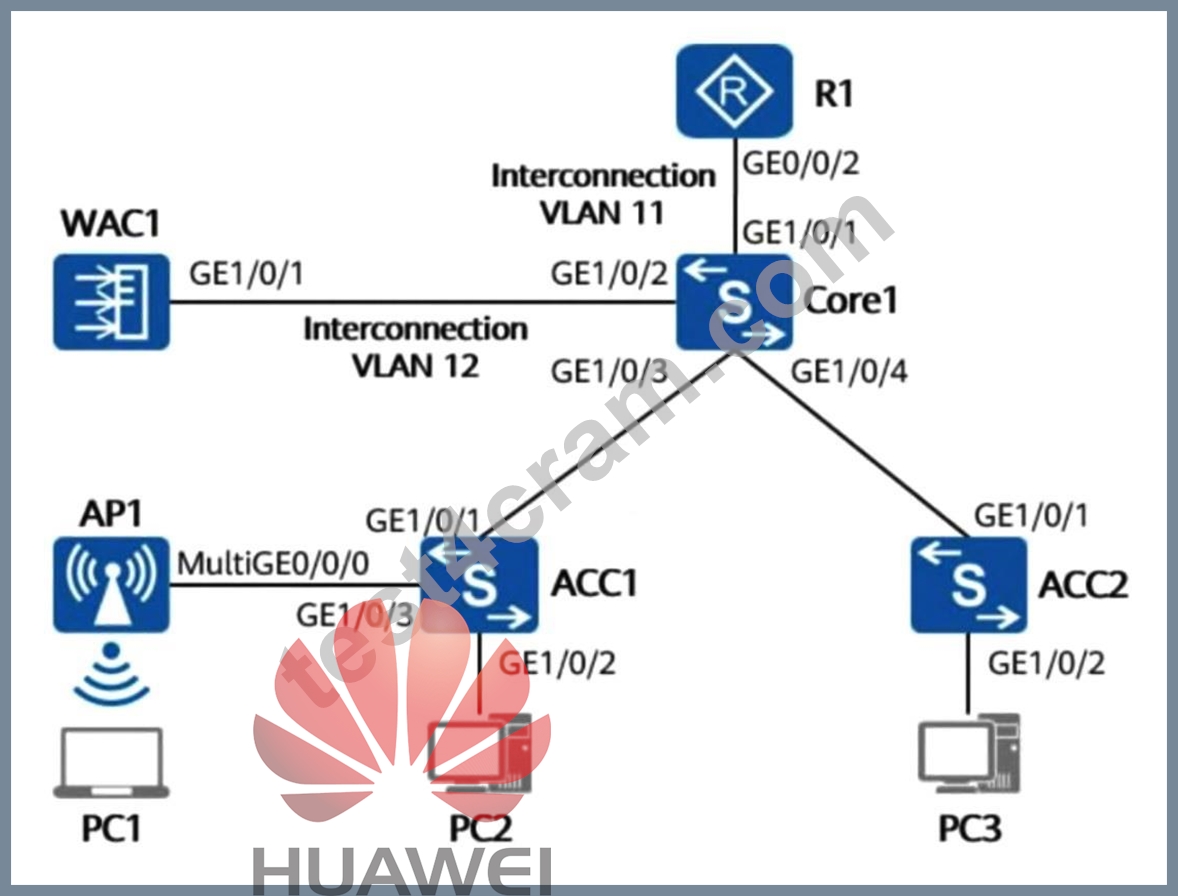

On the campus network shown in the figure below, the core switch Core1 functions as a Layer 3 gateway and as a DHCP server to dynamically assign IP addresses to AP1, PC1, PC2, and PC3.
The network below Core1 is a Layer 2 network. WAC1 and R1 are connected to Core1 at Layer

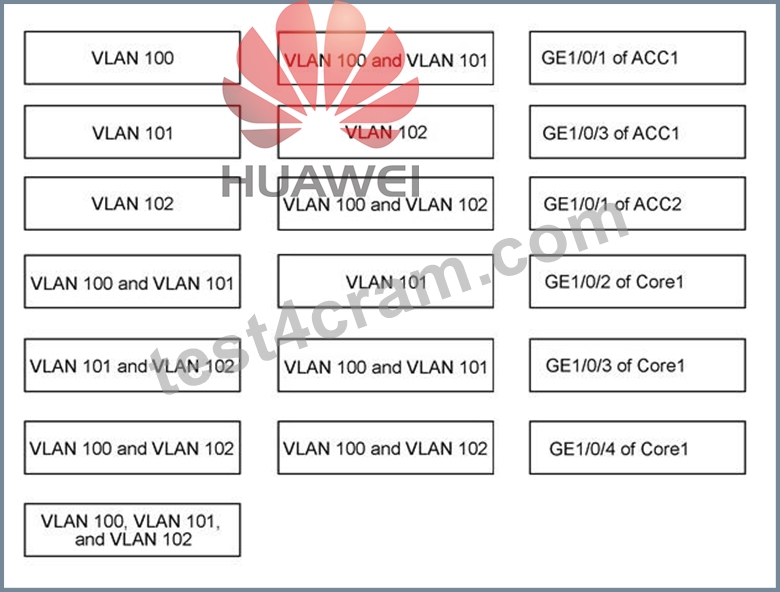

3. AP1 goes online through VLAN 100. VLAN 101 and VLAN 102 are respectively used for the wireless and wired services. Additionally, the tunnel forwarding mode is used for wireless traffic forwarding. Match device interfaces with their respective allowed VLANs. (Note: No additional VLANs are allowed on device interfaces, and interconnection VLANs are not considered.)
Answer:
Explanation:
Explanation:
VLAN 100 -> GE1/0/3 of ACC1
VLAN 101-> GE1/0/2 of Core1
VLAN 102 -> GE1/0/1 of ACC2
VLAN 100 and VLAN 101 -> GE1/0/1 of ACC1
VLAN 100 and VLAN 101 -> GE1/0/3 of Core1
VLAN 102 -> GE1/0/4 of Core1
GE1/0/3 of ACC1 -> VLAN 100: This interface directly connects ACC1 to AP1. Since AP1 goes online through management VLAN 100 and wireless user traffic uses tunnel forwarding mode (where user data is encapsulated inside a CAPWAP tunnel directly to WAC1), the physical link to the AP only needs to pass the untagged management traffic of VLAN 100.
GE1/0/2 of Corel -> VLAN 101: This port links Corel to WAC1. In tunnel forwarding mode, all wireless user data (VLAN 101) is encapsulated inside CAPWAP data tunnels by the AP and sent to the WAC. The WAC then decapsulates this traffic and forwards it into the core switch.
Therefore, the interface facing WAC1 must allow service VLAN 101 to route the decapsulated wireless traffic.
GE1/0/1 of ACC2 -> VLAN 102: This interface forms the uplink from the access switch ACC2 to Corel. Because ACC2 only services PC3 (wired service VLAN 102), its uplink only requires access to VLAN 102.
GE1/0/1 of ACC1 -> VLAN 100 and VLAN 102: This is the uplink interface from ACC1 to Corel.
ACC1 hosts AP1 (which requires management VLAN 100) and PC2 (which belongs to wired service VLAN 102). Therefore, this trunk link must allow both VLAN 100 and VLAN 102.
GE1/0/3 of Corel -> VLAN 100 and VLAN 102: This interface connects Corel down to ACC1. To match the configuration of ACCTs uplink, it must allow both the AP management traffic (VLAN
100) and the local wired user traffic (VLAN 102).
GE1/0/4 of Corel -> VLAN 102: This port connects Corel to ACC2. Because ACC2 exclusively handles the wired clients residing in service VLAN 102, this downlink interface only needs to permit VLAN 102.
NEW QUESTION # 105
......
