| Section | Objectives |
|---|---|
| EVPN Fundamentals | - VXLAN data plane basics
|
| BGP EVPN Control Plane Operations | - Multi-homing scenarios
|
| SR Linux Data Center Architecture | - SR Linux system fundamentals
|
| Data Center Interconnect (DCI) | - Interconnecting data centers with EVPN
|
>> Exam 4A0-D03 Introduction <<
Based on your situation, including the available time, your current level of knowledge, our 4A0-D03 study materials will develop appropriate plans and learning materials. You can use 4A0-D03 test questions when you are available, to ensure the efficiency of each use, this will have a very good effect. You don't have to worry about yourself or anything else. Our 4A0-D03 Study Materials allow you to learn at any time. And with our 4A0-D03 learning guide, you can pass the 4A0-D03 exam with the least time and effort.
NEW QUESTION # 50

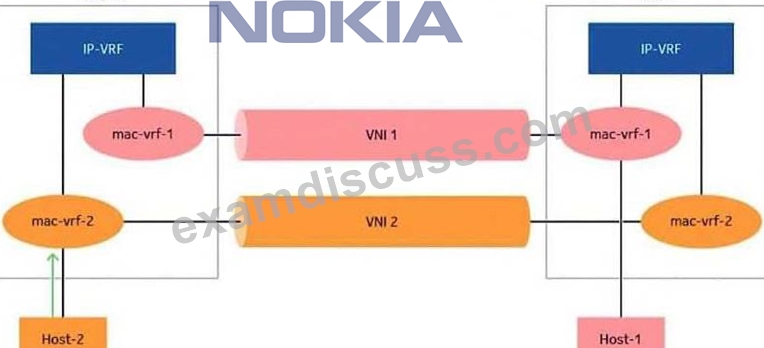

Consider the exhibit.
Host-2 is sending data to Host-1. The network is designed to use asymmetric routing.
Which of the following statements about the operation of the data plane is TRUE?
Answer: A
Explanation:
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
In asymmetric EVPN IRB, the ingress PE performs routing from the source subnet into the destination subnet, then forwards the packet across the VXLAN overlay using the destination MAC-VRF/VNI. The egress PE does not perform another IP-VRF lookup for that packet; it performs Layer 2 forwarding in the destination MAC-VRF. In this scenario, Host-2 sends traffic toward Host-1. After the ingress routing decision, the traffic arrives at Leaf-2 in the context of the destination MAC-VRF, mac-vrf-1. Leaf-2 then performs a MAC lookup in mac-vrf-1 and forwards the frame to Host-1. Option D is therefore correct. Option A reverses the forwarding direction and misidentifies the leaf action. Option B incorrectly sends mac-vrf-2 traffic toward the IP-VRF on Leaf-2, even though Leaf-2 is acting as the egress PE for Host-1. Option C is also incorrect because the egress forwarding action is based on the MAC table in the destination MAC-VRF, not an IP-VRF ARP lookup at that stage. Reference: asymmetric L3 EVPN IRB data-plane operation, ingress routing and egress MAC forwarding.
NEW QUESTION # 51
Which of the following statements about a distributed Layer 2 EVPN is FALSE?
Answer: A
Explanation:
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
In a distributed Layer 2 EVPN service, the local leaf learns host reachability from frames received on access interfaces. When a host replies to an ARP request, the local leaf can learn the source MAC address from the Ethernet frame and install it in the MAC forwarding table. If the ARP payload contains an IP/MAC binding, the PE can also use that information for proxy ARP and EVPN MAC/IP advertisement. The local PE then advertises the learned endpoint reachability using EVPN route type 2 to its BGP EVPN peers or route reflector. The false statement is B. The ARP reply is not replicated to every leaf in the flooding list as a normal operation. EVPN's purpose is to reduce unnecessary flooding by distributing endpoint reachability through the control plane. BUM replication is used for broadcast, unknown unicast, and multicast traffic when needed, but a learned ARP reply does not require blind replication to all remote leaves. Instead, the leaf advertises the learned MAC/IP state through MP-BGP EVPN, allowing remote PEs to install accurate forwarding and proxy ARP state. Reference: distributed L2 EVPN operation, ARP learning, EVPN RT-2 advertisement.
NEW QUESTION # 52
Which EVPN route-type (RT) is used in multi-homing scenarios to support aliasing and fast convergence?
Answer: D
Explanation:
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
The EVPN route type used for aliasing and fast convergence in multi-homing is RT-1, the Ethernet Auto-Discovery route. RT-1 has two important forms: Ethernet A-D per Ethernet Segment and Ethernet A-D per EVI. These routes advertise reachability to a multi-homed Ethernet Segment and to a specific EVPN instance on that segment. Remote PEs use this information for aliasing, meaning they can forward traffic toward any eligible PE attached to the same Ethernet Segment, even when a specific MAC was advertised by only one PE. RT-1 also supports fast convergence because withdrawal of Ethernet A-D routes quickly informs remote PEs that an attachment path or PE is no longer valid, avoiding slow MAC aging as the primary failure-detection mechanism. RT-4 Ethernet Segment routes are related to multi-homing, but their main function is Ethernet Segment discovery and Designated Forwarder election. RT-2 advertises host MAC/IP reachability, and RT-3 builds multicast/BUM replication lists. Therefore, RT-1 is the precise answer for aliasing and fast convergence. Reference: EVPN multi-homing route types, Ethernet Auto-Discovery, aliasing and convergence behavior.
NEW QUESTION # 53

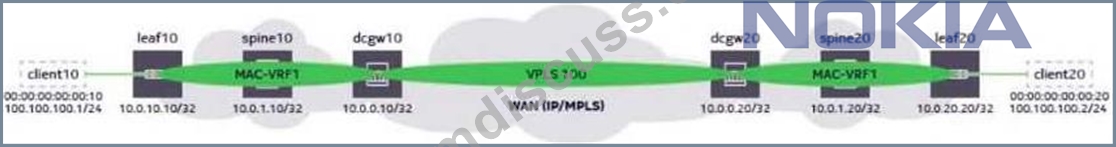

Consider the exhibit.
dcgw10 is a Nokia 7750SR and is used as the integrated gateway.
Which of the following is NOT configured in VPLS 100 on dcgw10?
Answer: D
Explanation:
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
For Layer 2 data center interconnect using an integrated gateway, VPLS 100 on the Nokia 7750 SR represents the WAN-side Layer 2 VPN service. The VPLS requires an EVI because EVPN uses the EVI to identify the L2 service instance in the control plane. It also requires BGP EVPN signaling with the appropriate route targets so the local and remote service instances can import the correct EVPN routes. Because the service is transported across the WAN, the BGP/EVPN instance must be associated with the MPLS transport tunnels toward the remote gateway, dcgw20. A VXLAN instance with a VNI is not configured in the 7750 SR VPLS 100 for this integrated WAN gateway service. The VXLAN/VNI mapping is used inside the SR Linux data center fabric where MAC-VRF services are transported over VXLAN. On the WAN side, the VPLS service is carried using MPLS/EVPN mechanisms, not a VXLAN VNI configured directly under the VPLS. Reference: integrated gateway DCI, L2 EVPN/VPLS interworking, EVI and route-target operation.
NEW QUESTION # 54

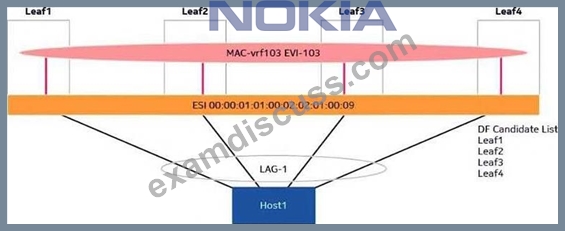

Consider the exhibit.
Leaf1 and Leaf2 have the Ethernet segment configured to use the default election algorithm while Leaf3 and Leaf4 are configured to use the preference-based algorithm with Leaf3 having the higher preference value. The DF candidate list is the same on all leaf routers.
Which of the following leafs is the DF for mac-vrf103?
Answer: B
Explanation:
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
Designated Forwarder election determines which PE forwards BUM traffic from the EVPN overlay toward a multi-homed Ethernet Segment for a given service. In this scenario, all leaf routers share the same DF candidate list for mac-vrf103, but the election configuration is not identical. Leaf1 and Leaf2 use the default algorithm, while Leaf3 and Leaf4 use the preference-based algorithm. Under preference-based DF election, the candidate with the highest configured preference is selected over lower-preference candidates, assuming the candidate list is valid and consistent. The question states that Leaf3 has the higher preference value compared with Leaf4. Therefore, Leaf3 becomes the DF for mac-vrf103. This is the correct outcome because the preference-based election explicitly overrides simple default behavior by assigning operator-defined priority to a PE. In production designs, this is useful when the operator wants deterministic forwarding placement, maintenance control, or service-specific primary-path selection rather than relying only on the default modulo-based DF selection process. Reference: EVPN DF election, preference-based algorithm, MAC-VRF service forwarding.
NEW QUESTION # 55
......
