Fortinet NSE6_SDW_AD-7.6 Prüfungsplan:

Thema	Einzelheiten
Thema 1	Centralized management: This domain focuses on deploying and managing SD-WAN using FortiManager for centralized control. It includes implementing branch configuration deployment and using SD-WAN Manager with overlay orchestration to simplify large-scale network management.
Thema 2	SD-WAN setup: This domain covers how to deploy an enterprise SD-WAN environment by designing SD-WAN members and zones and configuring them for efficient traffic management. It also focuses on implementing Performance SLAs to monitor link quality and ensure applications use the best available path.
Thema 3	Advanced IPsec: This section covers the deployment of advanced IPsec configurations within SD-WAN environments. It includes implementing hub-and-spoke IPsec topologies, configuring ADVPN, and supporting multihub, multiregion, and large-scale secure SD-WAN deployments.
Thema 4	SD-WAN troubleshooting: This domain explains how to diagnose and resolve issues related to SD-WAN operation. It includes troubleshooting SD-WAN rules, session behavior, routing problems, and ADVPN connectivity to maintain reliable network performance.
Thema 5	Rules and routing: This section explains how to design and apply SD-WAN rules to control traffic steering across multiple WAN links. It also includes configuring SD-WAN routing to ensure proper path selection and connectivity between networks.

>> NSE6_SDW_AD-7.6 Deutsch Prüfungsfragen <<

Fortinet NSE6_SDW_AD-7.6 Quiz - NSE6_SDW_AD-7.6 Studienanleitung & NSE6_SDW_AD-7.6 Trainingsmaterialien

Ist es nicht einfach, die Fortinet NSE6_SDW_AD-7.6 Zertifizierungsprüfung zu bestehen? Es ist sehr wahrscheinlich, Prüfung einmalig zu bestehen, wenn Sie die Fragenkataloge zur Fortinet NSE6_SDW_AD-7.6 aus Zertpruefung wählen. Die Fragenkataloge zur Fortinet NSE6_SDW_AD-7.6 aus Zertpruefung sind die Sammlung von den höchsten zertifizierten Experten im Fortinet -Bereich und das Ergebnis von Innovation, sie haben absolute Autorität. Wählen Sie Zertpruefung, bereuen Sie niemals.

Fortinet NSE 6 - SD-WAN 7.6 Enterprise Administrator NSE6_SDW_AD-7.6 Prüfungsfragen mit Lösungen (Q96-Q101):

96. Frage

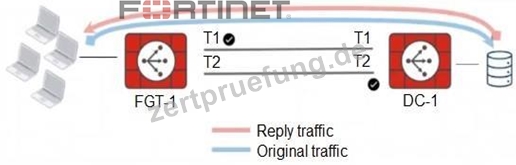

Refer to the exhibit. The administrator analyzed the traffic between a branch FortiGate and the server located in the data center, and noticed the behavior shown in the diagram. When the LAN clients located behind FGT1 establish a session to a server behind DC-1, the administrator observes that, on DC-1, the reply traffic is routed over T2. even though T1 is the preferred member in the matching SD-WAN rule.
What can the administrator do to instruct DC-1 to route the reply traffic through the member with the best performance?

A. FortiGate route lookup for reply traffic only considers routes over the original ingress interface.
B. Enable auxiliary-session under config system settings.
C. Enable reply-session under config system sdwan.
D. Enable snat-route-change under config system global.

Antwort: B

Begründung:
To ensure DC-1 responds via the best-performing SD-WAN member (T1) instead of defaulting to T2, enable auxiliary-sessionunder config system settings, so reply traffic is evaluated against current route policies-not bound to the ingress interface.

97. Frage

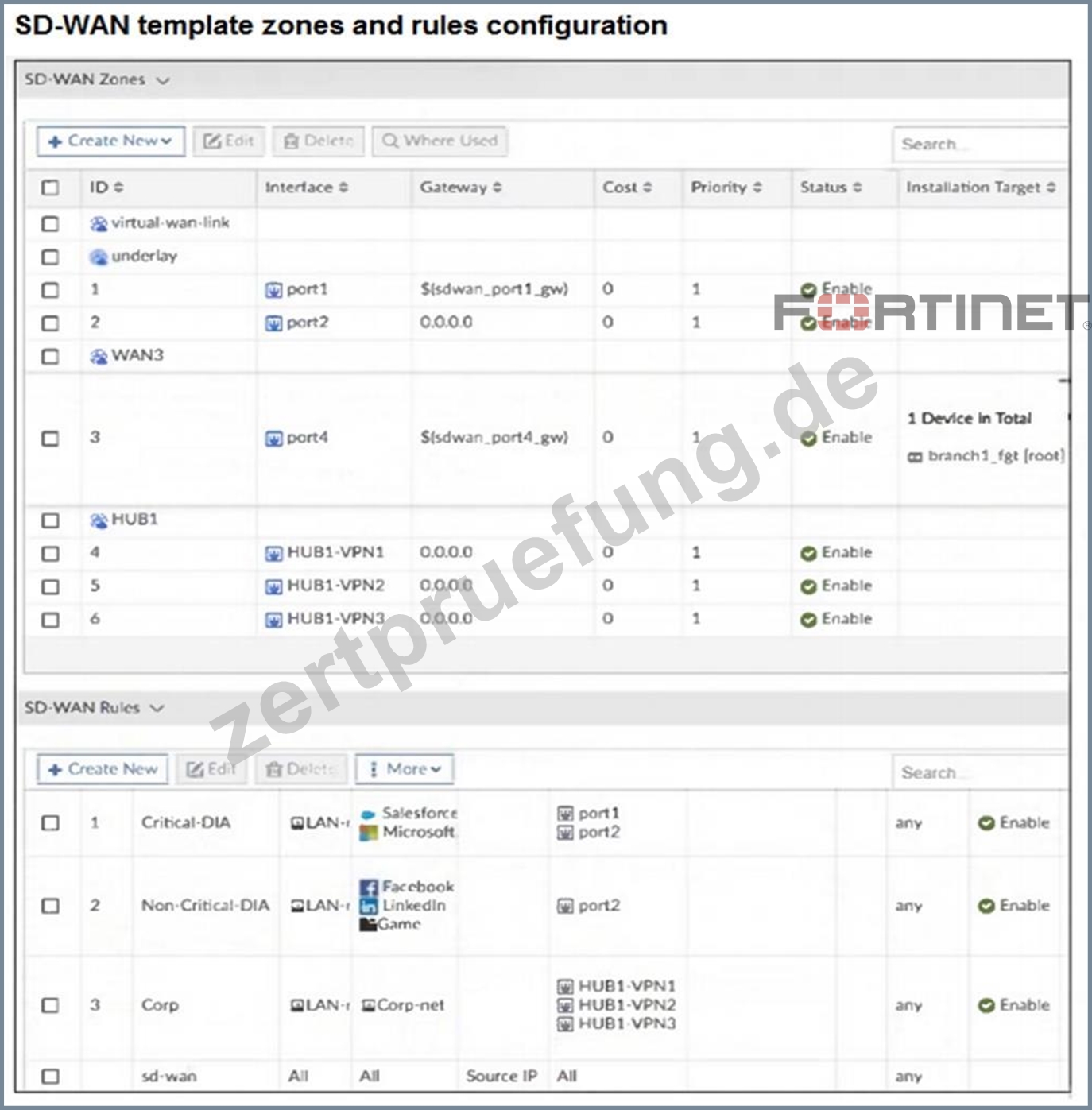

Refer to the exhibits.
You use FortiManager to configure SD-WAN on three branch devices.

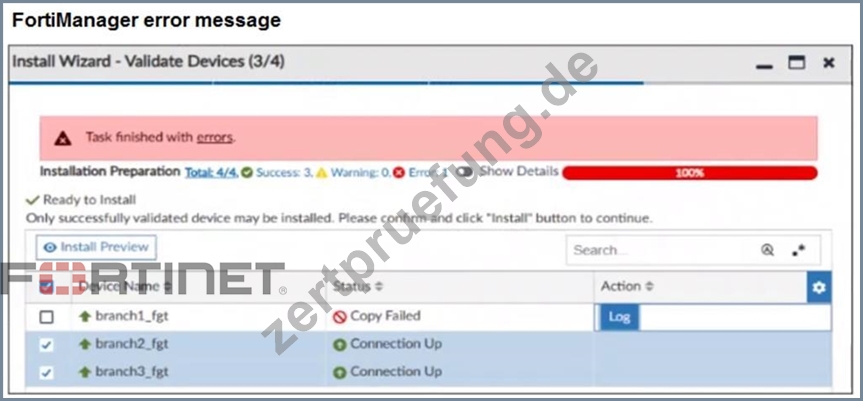

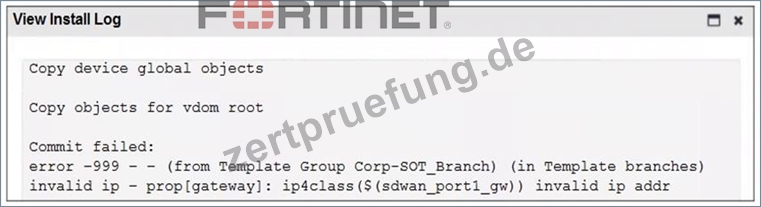

When you install the device settings, FortiManager prompts you with the error "Copy Failed" for the device branch1_fgt. When you click the log button, FortiManager displays the message shown in the exhibit.
There are two different ways to resolve this issue. Based on the exhibits, which methods could you use? (Choose two.)

A. Update the management IP address of branch1_fgt.
B. Do not define installation targets for SD-WAN members.
C. Review the per-device mapping configuration for metadata variables
D. Specify the gateway of the SD-WAN member port1 with an IP address or use the default value.

Antwort: C,D

Begründung:
Specify the gateway of the SD-WAN member port1 with an IP address or use the default value → The error log shows invalid ip - prop[gateway]: ip4class(${sdwan_port1_gw}) invalid ip addr, meaning the variable ${sdwan_port1_gw} does not have a valid mapping. Assigning a valid IP address or default value for the gateway resolves this error.
Review the per-device mapping configuration for metadata variables → The issue is tied to how the metadata variable ${sdwan_port1_gw} is mapped for branch1_fgt. If this device does not have the variable properly defined in per-device mapping, the configuration will fail. Correcting the mapping ensures that the install works.

98. Frage
You are planning a new SD-WAN deployment with the following criteria:
- Two regions
- Most of the traffic is expected to remain within its region
- No requirement for inter-region ADVPN
To remain within the recommended best practices, which routing protocol should you select for the overlays?

A. IBGP with BGP per overlays within each region and IBGP with BGP on loopback between the regions.
B. OSPF for the routing within ea raffic will be routed over HUB1-V ns.
C. IBGP within each region and between the regions.
D. IBGP with BGP on loopback within each region and EBGP between the regions.

Antwort: D

Begründung:
For SD-WAN deployments that span multiple regions-where most traffic is intra-region and there is no requirement for inter-region ADVPN-the best practice is to use IBGP with BGP on loopback interfaces for routing within each region and EBGP between the regions. This approach ensures robust and scalable routing, isolates regional routing domains, and enables policy control at region boundaries. BGP on loopback is preferred for its reliability and flexibility, as it enables peering that is not tied to specific physical interfaces.
EBGP between regions allows each region to maintain independent routing policies and summarization, optimizing performance and manageability. By separating IBGP (intra-region) and EBGP (inter-region), you create a modular architecture that scales easily and simplifies fault isolation and troubleshooting.
References:
[FCSS_SDW_AR-7.4 1-0.docx Q10]
Fortinet SD-WAN Reference Architecture Guide 7.4, "Regional Routing Best Practices" FortiOS 7.4 SD-WAN Overlay Design Guidelines

99. Frage
You are tasked with configuring ADVPN 2.0 on an SD-WAN topology already configured for ADVPN. What should you do to implement ADVPN 2.0 in this scenario?

A. Update the IPsec tunnel configuration on the branches.
B. Update the IPsec tunnel configurations on the hub.
C. Update the SD-WAN configuration on the branches.
D. Delete the existing ADVPN configuration and configure ADVPN 2.0.

Antwort: B

100. Frage
Which two statements correctly describe what happens when traffic matches the implicit SD-WAN rule?
(Choose two.)

A. Traffic is load balanced using the algorithm set for the v4-ecmp-mode setting.
B. FortiGate flags the session with may_dirty and vwl_def ault.
C. Traffic does not match any of the entries in the policy route table.
D. The traffic is distributed, regardless of weight, through all available static routes.
E. The session information output displays no SD-WAN service id.

Antwort: C,E

Begründung:
The implicit SD-WAN rule serves as the final catch-all. Per Fortinet:
"Sessions matching the implicit SD-WAN rule do not have an SD-WAN service id, as they are not associated with any specific user-defined SD-WAN rule. Additionally, this occurs only when traffic fails to match any entry in the policy route table. This default handling guarantees connectivity while minimizing the risk of blackholed traffic." Administrators can observe this in diagnostic outputs for troubleshooting.

101. Frage
......
