| Certification Vendor: | F5 |
|---|---|
| Exam Name: | BIG-IP Administration Data Plane Concepts |
| Exam Number: | F5CAB2 |
| Exam Format: | Multiple choice, Scenario-based |
| Related Certifications: | F5 Certified Administrator, BIG-IP |
| Exam Price: | $50 USD |
| Passing Score: | Not officially disclosed |
| Exam Duration: | 30 minutes |
| Real Exam Qty: | 30 |
| Available Languages: | English |
| Certificate Validity Period: | 3 years |
| Recommended Training: | BIG-IP Administration Training Courses |
| Exam Registration: | Pearson VUE Certiverse F5 Education Portal |
| Sample Questions: | F5 F5CAB2 Sample Questions |
| Exam Way: | Online proctored (Certiverse) / In-person (Pearson VUE centers) |
| Pre Condition: | No mandatory prerequisites; can take in any order with other F5CAB exams |
| Official Syllabus URL: | https://education.f5.com/exams/big-ip-administration-data-plane-concepts |
如果你要通過IT行業重要的F5的F5CAB2考試認證，選擇Fast2test F5的F5CAB2考試培訓資料庫是必要的，通過了F5的F5CAB2考試認證，你的工作將得到更好的保證，在你以後的事業中，至少在IT行業裏，你技能與知識將得到國際的認可與接受，這也是很多人選擇F5的F5CAB2考試認證的原因之一，所以這項考試也越來越被得到重視，我們Fast2test F5的F5CAB2考試培訓資料可以幫助你達成以上願望，我們Fast2test F5的F5CAB2考試培訓資料是由經驗豐富的IT專家實際出來的，是問題和答案的結合，沒有其他的培訓資料可以與之比較，也不要參加昂貴的培訓類，只要將Fast2test F5的F5CAB2考試培訓資料加入購物車，我們Fast2test足以幫助你輕鬆的通過考試。
| 主題 | 簡介 |
|---|---|
| 主題 1 |
|
| 主題 2 |
|
| 主題 3 |
|
問題 #61
The BIG-IP Administrator wants to provide quick failover between the F5 LTM devices that are configured as an HA pair with a single Self IP using the MAC Masquerade feature. The administrator configures MAC masquerade for traffic-group-1 using the following command:
`tmsh modify /cm traffic-group traffic-group-1 mac 02:12:34:56:00:00`
However, the Network Operations team identifies an issue with using the same MAC address across multiple VLANs. As a result, the administrator enables Per-VLAN MAC Masquerade to ensure a unique MAC address per VLAN by running:
`tmsh modify /sys db tm.macmasqaddr_per_vlan value true`
What would be the resulting MAC address on a tagged VLAN with ID 1501? (Choose one answer)
答案：B
解題說明：
Comprehensive and Detailed Explanation From BIG-IP Administration Data Plane Concepts documents:
In BIG-IP high availability (HA) configurations, MAC Masquerade is used to speed up failover by allowing traffic-group-associated Self IPs to retain the same MAC address when moving between devices. This prevents upstream switches and routers from having to relearn ARP entries during a failover event, resulting in near-instant traffic recovery.
By default, MAC masquerade applies one MAC address per traffic group, regardless of how many VLANs the traffic group spans. This can create problems in some network designs because the same MAC address appearing on multiple VLANs may violate network policies or confuse switching infrastructure.
To address this, BIG-IP provides Per-VLAN MAC Masquerade, enabled by the database variable:
`tm.macmasqaddr_per_vlan = true`
When this feature is enabled:
BIG-IP derives a unique MAC address per VLAN
The base MAC address configured on the traffic group remains the first four octets The last two octets are replaced with the VLAN ID expressed in hexadecimal The VLAN ID is encoded in network byte order (high byte first, low byte second)
### VLAN ID Conversion:
VLAN ID: 1501 (decimal)
Convert to hexadecimal:
1501₁₀ = 0x05DD
High byte: 05
Low byte: DD
### Resulting MAC Address:
Base MAC: `02:12:34:56:00:00`
Per-VLAN substitution → last two bytes = `05:DD`
Final MAC address:
`02:12:34:56:05:dd`
### Why the Other Options Are Incorrect:
A (01:15) - Incorrect hexadecimal conversion of 1501
B (dd:05) - Byte order reversed (little-endian, not used by BIG-IP)
D (15:01) - Uses decimal values instead of hexadecimal
### Key BIG-IP HA Concept Reinforced:
Per-VLAN MAC Masquerade ensures Layer 2 uniqueness per VLAN while preserving the fast failover benefits of traffic groups, making it the recommended best practice in multi-VLAN HA deployments.
問題 #62
Which event is always triggered when a client initially connects to a virtual server configured with an HTTP profile?
答案：B
問題 #63
A BIG-IP Administrator needs to connect a BIG-IP system to two upstream switches to provide external network resilience. The network engineer instructs the administrator to configure interface binding with LACP. Which configuration should the administrator use? (Choose one answer)
答案：C
解題說明：
In BIG-IP architecture, link aggregation and redundancy at Layer 2 are implemented using Trunks, not virtual servers or pools.
According to BIG-IP Administration Data Plane Concepts:
Interfaces are the physical network ports on the BIG-IP device
A Trunk is a logical grouping of multiple interfaces
Trunks can be configured to use LACP (Link Aggregation Control Protocol) to:
Provide link redundancy
Increase aggregate bandwidth
Allow automatic detection of link failures
VLANs are then assigned to the trunk, not directly to individual interfaces, once aggregation is in place Correct Design for the Scenario:
To connect BIG-IP to two upstream switches with LACP:
One physical interface from BIG-IP connects to Switch A
Another physical interface from BIG-IP connects to Switch B
Both interfaces are placed into the same trunk
LACP is enabled on the trunk and on the switches
This configuration allows:
Traffic to continue flowing if one interface or switch fails
Proper LACP negotiation between BIG-IP and the upstream switches
Clean separation of responsibilities (Layer 2 handled by trunking, Layer 4-7 by virtual servers) Why Option D Is Correct:
A Trunk containing an interface connected to each switch is exactly how BIG-IP implements LACP-based interface binding The trunk handles link state, load distribution, and failover at the data plane Why the Other Options Are Incorrect:
A & B - Virtual servers operate at Layers 4-7 and have nothing to do with physical link aggregation or LACP C - VLAN IDs and MAC addresses are not configured inside a trunk definition; trunks aggregate interfaces, and VLANs are applied to trunks Key Data Plane Concept Reinforced:
On BIG-IP systems, LACP is always configured on a Trunk, which aggregates physical interfaces to provide Layer 2 resiliency and bandwidth aggregation. Virtual servers and pools are not involved in physical interface binding.
問題 #64
What type of Virtual Server is configured with no Pool-members, and proxies traffic to the destination IP address specified by the client device?
答案：A
問題 #65

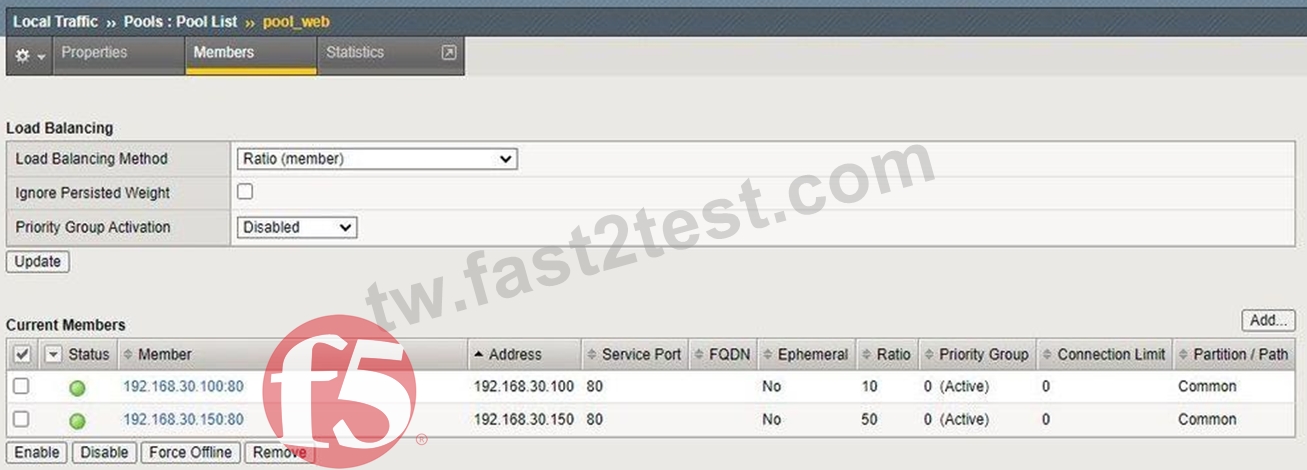

Refer to the exhibit.
The BIG-IP Administrator needs to avoid overloading any of the pool members with connections when they become active. What should the BIG-IP Administrator configure to meet this requirement? (Choose one answer)
答案：B
解題說明：
This question focuses on connection behavior when pool members transition from down to up, which is a classic data plane consideration in BIG-IP environments.
What problem is being solved?
When a pool member:
Recovers from a failure
Is enabled after maintenance
Transitions from inactive to active
...it can suddenly receive a large burst of new connections, especially when using load-balancing methods such as Least Connections. This sudden surge can overload the server.
Why Slow Ramp Time is the correct solution:
Slow Ramp Time is a pool-level setting that:
Gradually increases the number of connections sent to a newly available pool member Prevents sudden spikes in traffic Allows the server to warm up (application cache, JVM, DB connections, etc.) From BIG-IP Administration Data Plane Concepts:
Slow Ramp Time controls the rate at which BIG-IP increases load to a pool member that has just become available During the ramp period, BIG-IP artificially increases the member's connection count, making it appear "busier" and therefore less attractive for new connections This directly satisfies the requirement to avoid overloading pool members when they become active.
Why the Other Options Are Incorrect:
B . Different Ratio for each member
Ratios control relative distribution under normal operation
They do not prevent a sudden surge when a member becomes active
C . Action On Service Down to Reselect
Controls persistence behavior when a member goes down
Has no impact on connection ramp-up when a member comes back online
D . Same Priority Group to each member
Affects failover logic between priority groups
Does not control connection rate or ramp-up behavior
Key Data Plane Concept Reinforced:
To protect backend servers during recovery events, BIG-IP provides Slow Ramp Time, ensuring graceful reintroduction of traffic and preventing connection storms that can occur during high-load scenarios.
問題 #66
......
