| Section | Objectives |
|---|---|
| Code Compliance and Related Requirements | - Energy code requirements applicable to mass timber buildings - Sound transmission requirements - Documentation and verification of compliance |
| Fire Protection and Fire-Resistance | - Fire protection systems and related provisions - Noncombustible protection and protection of mass timber elements - Fire-resistance requirements |
| Special Inspection Requirements | - Inspection of connections and protective materials - Special inspection procedures for tall mass timber buildings - Inspector duties and responsibilities |
| Tall Mass Timber Building Code Provisions | - International Building Code requirements for tall mass timber construction - Types IV-A, IV-B and IV-C construction - Mass timber materials and construction requirements |
| Structural Inspection | - Mass timber structural elements - Connections and fastening systems - Structural loads and related code requirements |
| Construction Fire Safety | - Protection of mass timber during construction - International Fire Code requirements - Construction-phase fire safety requirements |
>> Reliable 93-Tall-Mass-Timber-Buildings Exam Sims <<
With the development of society and the perfection of relative laws and regulations, the 93-Tall-Mass-Timber-Buildings certificate in our career field becomes a necessity for our countryPassing the 93-Tall-Mass-Timber-Buildings and obtaining the certificate may be the fastest and most direct way to change your position and achieve your goal. And we are just right here to give you help. Being considered the most authentic brand in this career, our professional experts are making unremitting efforts to provide our customers the latest and valid 93-Tall-Mass-Timber-Buildings Exam simulation.
NEW QUESTION # 40
Fire-resistance ratings of members and assemblies can be established by all of the following except:
Answer: D
Explanation:
ASTM E84 cannot be used to establish the hourly fire-resistance rating of a structural member or assembly.
Therefore, option B is correct.
ASTM E84 evaluates surface-burning characteristics , principally flame-spread and smoke-developed indices. Those measurements characterize how a material ' s exposed surface behaves when subjected to the standard tunnel test. They do not demonstrate that a wall, floor, roof, beam, column, or structural assembly will maintain integrity and structural performance for one, two, or three hours.
Fire-resistance ratings are instead established through the methods recognized by the IBC, including standard fire testing-principally ASTM E119 or UL 263-prescriptive rated construction provided by Section 721, and calculated fire-resistance procedures under Section 722. The code also recognizes appropriately documented approved designs and other approved methods within the Section 703 framework.
This distinction is particularly important in mass timber work because ASTM E84 may appear elsewhere in the code for flame-spread limitations on materials, but an acceptable E84 result does not establish structural fire endurance.
The special inspector must determine which approved fire-resistance methodology applies and verify that the installed assembly precisely reflects that design.
References/Topics: 2021 IBC Sections 703, 721 and 722; ASTM E119; UL 263; distinction between fire resistance and ASTM E84 surface-burning testing.
NEW QUESTION # 41
Refer to the figure by clicking on the EXHIBIT button above.

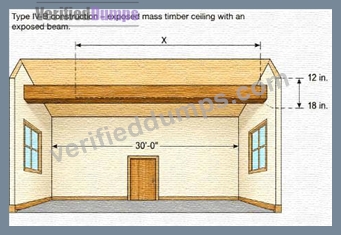

In Type IV-B construction, based on a 900 sq. ft. floor area, a 30 ' room width, and a 12 in. x 18 in. beam as shown in the Figure, the maximum length of the unprotected portion of the mass timber ceiling (dimension X) is _____ feet.
Answer: B
Explanation:
Section 602.4.2.2.2 permits unprotected mass timber ceilings in Type IV-B construction to equal no more than 20 percent of the floor area , and the code expressly states that attached beams are included when determining that exposed ceiling area.
The floor area is 900 square feet:
20% × 900 = 180 sq. ft. maximum exposed area .
The exposed 12-inch × 18-inch beam extends across the 30-foot room. Its three exposed surfaces consist of the 12-inch-wide bottom and two 18-inch-deep sides:
30 ft × (1 ft + 1.5 ft + 1.5 ft) = 120 sq. ft.
Because the attached beam counts against the ceiling exposure allowance, only:
180 # 120 = 60 sq. ft.
remains available for the exposed ceiling itself.
The exposed ceiling extends across the 30-foot room width, so:
30 ft × X = 60 sq. ft.
Therefore:
X = 2 ft .
Option A is correct. Ignoring the beam surfaces would overstate the permitted ceiling exposure and would contradict the explicit IBC requirement that attached beams be included in the exposed ceiling calculation.
References/Topics: 2021 IBC Section 602.4.2.2.2, Exception 1.1; Type IV-B exposed ceiling and attached- beam area calculations.
NEW QUESTION # 42
Refer to the figure by clicking on the EXHIBIT button above.

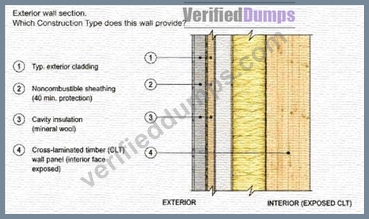

The exterior wall section shown in the Figure provides the prescribed noncombustible protection required by which Construction Type?
Answer: A
Explanation:
The illustrated configuration represents Type IV-C construction , so option C is correct. The distinguishing feature is the combination of noncombustible protection on the exterior face with an exposed CLT surface toward the interior.

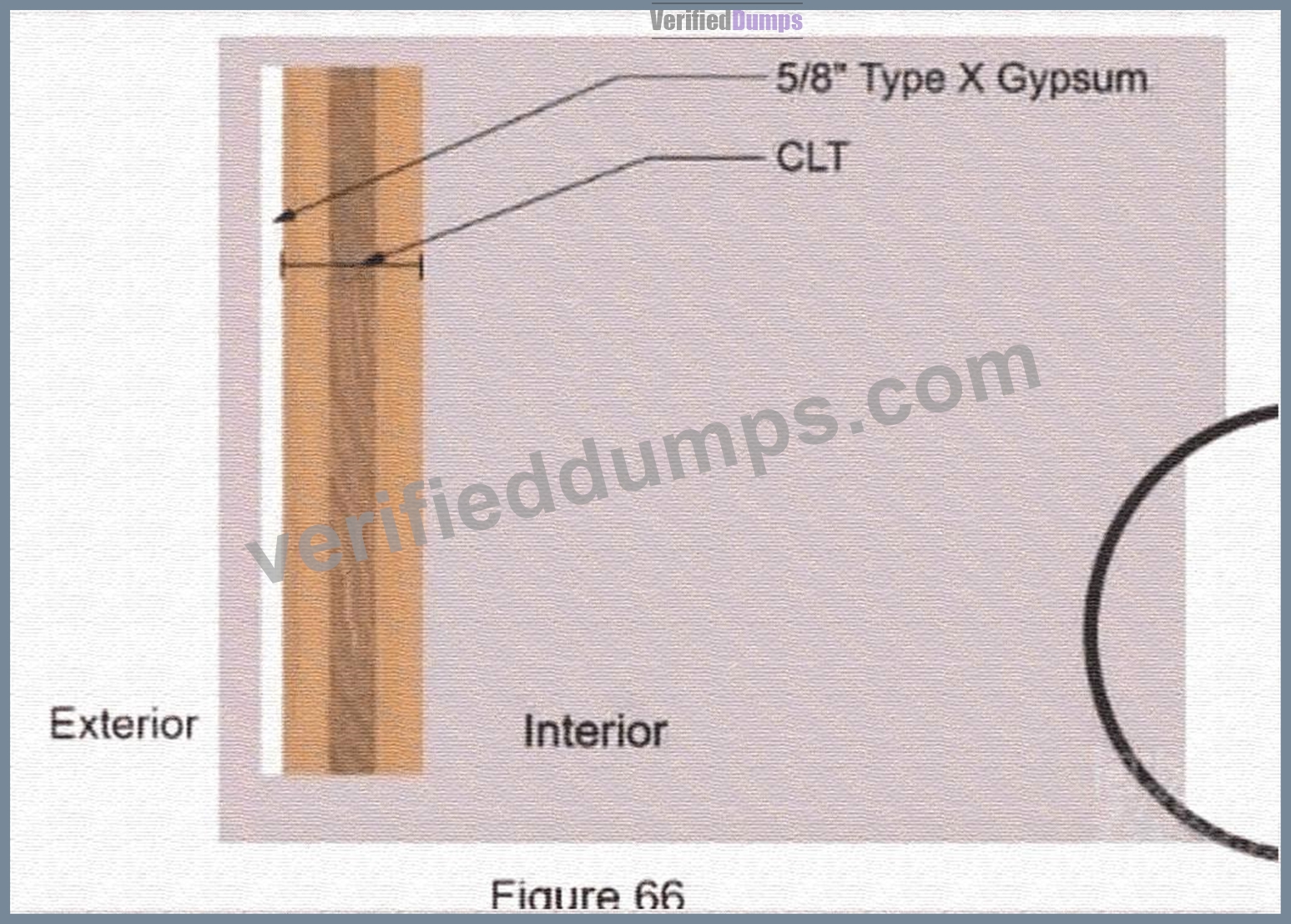

IBC Section 602.4.3.1 requires the exterior side of combustible exterior walls in Type IV-C construction to have noncombustible protection providing a minimum assigned time of 40 minutes . Table 722.7.1(2) assigns exactly 40 minutes to one layer of 5/8-inch Type X gypsum board, matching the protection illustrated in Figure 66.
The decisive distinction is Section 602.4.3.2: mass timber elements in Type IV-C are permitted to be unprotected on the interior . This is fundamentally different from Type IV-A, where essentially all interior mass timber faces must be protected, and Type IV-B, where interior protection is generally required but limited areas may remain exposed under specific area and separation restrictions.
Type IV-HT does not use the Type IV-C protected-exterior/exposed-interior regulatory scheme.
References/Topics: 2021 IBC Sections 602.4.3, 602.4.3.1 and 602.4.3.2; Table 722.7.1(2), 5/8-inch Type X gypsum board = 40 minutes.
NEW QUESTION # 43
Refer to the figure by clicking on the EXHIBIT button above.

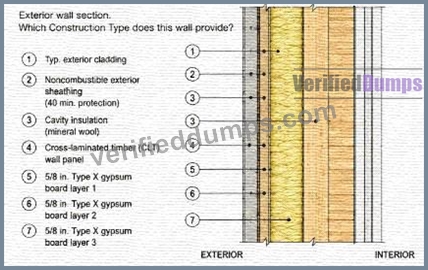

The exterior wall section shown in the Figure provides the prescribed noncombustible protection required by which Construction Type?
Answer: D
Explanation:

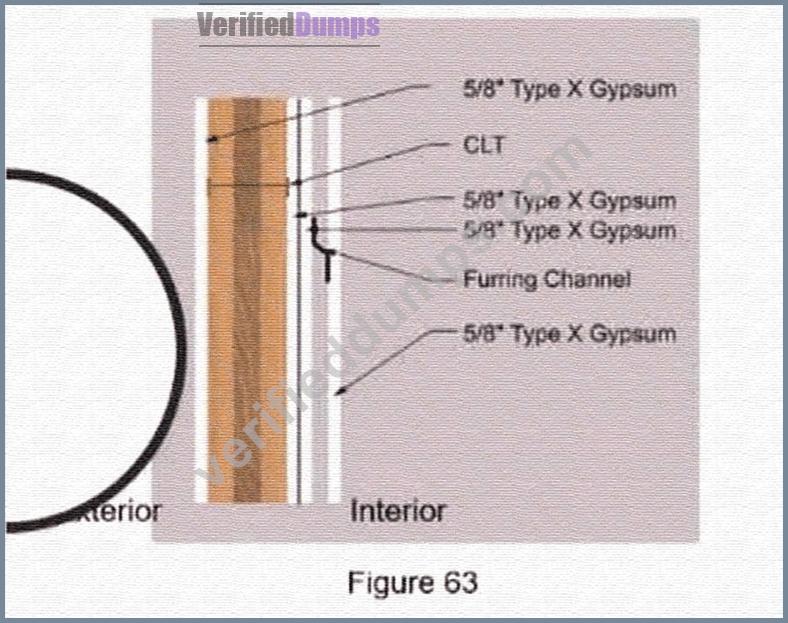

The illustrated wall corresponds to Type IV-A construction , making option A correct. The key indicator is the extensive Type X gypsum protection provided on the interior face of the CLT wall. Figure 63 shows multiple layers of 5/8-inch Type X gypsum board protecting the interior mass timber, together with the required exterior-side protection.
Type IV-A is the most comprehensively protected of the three tall mass timber construction classifications.
IBC Section 602.4.1.2 requires the interior faces of all mass timber elements , including the inside face of exterior mass timber walls, to be protected with qualifying noncombustible material. Section 602.4.1.2.1 requires the protection contribution to satisfy Table 722.7.1(1) and never be less than 80 minutes. Type IV-A exterior walls also require at least 40 minutes of noncombustible protection on the outside face.
The three interior layers shown are consistent with a heavily protected Type IV-A rated wall. By contrast, Type IV-B permits limited exposed interior mass timber, while Type IV-C expressly permits mass timber interior elements to remain unprotected. Type IV-HT operates under fundamentally different heavy-timber provisions.
References/Topics: 2021 IBC Sections 602.4.1.1, 602.4.1.2 and 602.4.1.2.1; Tables 601 and 722.7.1(1)-(2).
NEW QUESTION # 44
Refer to the figure by clicking on the EXHIBIT button above.

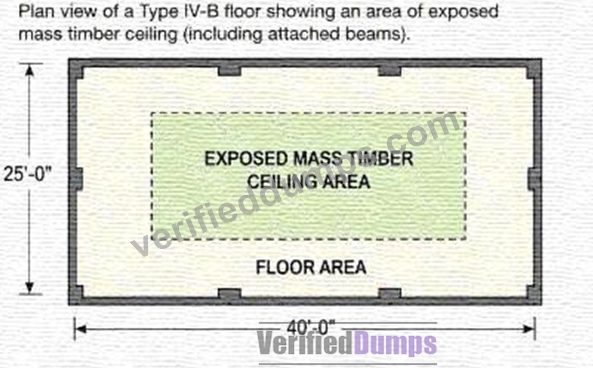

In Type IV-B construction, unprotected portions of mass timber as shown in the Figure is limited to an area equal to not more than what percentage of the base floor area?
Answer: B
Explanation:
The figure depicts an unprotected portion of the mass timber ceiling . For Type IV-B construction, Section
602.4.2.2.2, Exception 1.1, limits unprotected ceiling areas-including attached mass timber beams-to 20 percent of the floor area of the applicable dwelling unit or fire area. Option B is therefore correct.
The percentage is based on floor area rather than total ceiling surface area. For example, where the associated fire area contains 1,000 square feet of floor area, the maximum ceiling exposure permitted under this particular exception would be 200 square feet, subject to the additional separation and mixed-exposure provisions.
The 40-percent value in option D applies to mass timber walls, including attached columns , rather than ceilings. The 15-percent and 30-percent values are not the prescribed Type IV-B ceiling exposure limitations in the 2021 IBC.
The inspector must additionally determine whether another exposed wall or ceiling region exists nearby.
Section 602.4.2.2.4 imposes a 15-foot separation requirement, and Section 602.4.2.2.3 controls situations where both wall and ceiling surfaces are intentionally exposed.
References/Topics: 2021 IBC Sections 602.4.2.2.2 through 602.4.2.2.4; Type IV-B ceiling exposure limitations.
NEW QUESTION # 45
......
