| Section | Objectives |
|---|---|
| Topic 1: Troubleshoot and Optimize the VMware Solution | - Given a scenario, identify the appropriate VCF tool/product to troubleshoot an issue in NSX - Given a scenario, troubleshoot common connectivity and routing issues - Given a scenario, describe the purpose of Equal Cost Multi-Path (ECMP) and high availability - Given a scenario, troubleshoot common NSX infrastructure issues - Given a scenario, describe logical routing packet walk |
| Topic 2: Install, Configure, Administrate the VMware Solution | - Given a scenario, configure Projects and Tenancy in NSX - Perform operational tasks in a VMware NSX environment - Given a scenario, identify the process for creating an NSX Tier-0 gateway - Given a scenario, deploy and manage Virtual Private Cloud (VPC) - Given a scenario, configure Stateful Services in NSX - Given a scenario, identify the process for deploying an NSX Edge Cluster - Given a scenario, identify the process steps for deploying VMware NSX Federation in VCF - Given a scenario, configure advanced NSX integrations - Given a scenario, configure NSX components - Given a scenario, identify the process for creating an NSX Tier-1 gateway - Given a scenario, identify the process steps to create an NSX Logical Segment |
| Topic 3: Map IT Architectures, Technologies, Standards; VMware Products and Solutions | |
| Topic 4: Plan and Design the VMware Solution | - Given a scenario, make design decisions for NSX optimization and acceleration - Describe and explain NSX Fleet design considerations - Describe and explain NSX architecture and components - Given a scenario, design an NSX connectivity solution (centralized vs distributed) - Given a scenario, design an NSX multisite solution in VCF |
>> 3V0-25.25 Training Materials <<
We believe that the best brands are those that go beyond expectations. They don't just do the job – they go deeper and become the fabric of our lives. Therefore, our company as the famous brand, even though we have been very successful we have never satisfied with the status quo, and always be willing to constantly update the contents of our 3V0-25.25 Exam Torrent in order to keeps latest information about 3V0-25.25 exam.
NEW QUESTION # 20
An administrator is troubleshooting east-west network performance between several virtual machines connected to the same logical segment. The administrator inspects the internal forwarding tables used by ESXi and notices that different tables exist for MAC and IP mapping. Which table on an ESXi host is used to determine the location of a particular workload for frame forwarding?
Answer: D
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In the context ofVMware Cloud Foundation (VCF)networking, understanding how an ESXi host (acting as a Transport Node) handles East-West traffic is fundamental. East-West traffic refers to communication between workloads within the same data center, often on the same logical segment.
When a Virtual Machine sends a frame to another VM on the same logical segment, the ESXi host's virtual switch must determine the "location" of the destination MAC address to performframe forwarding. The MAC Table(also known as the Forwarding Table or L2 Table) is the primary structure used for this decision.
For each logical segment, the host maintains a MAC table that maps the MAC addresses of virtual machines to their specific "locations." If the destination VM is residing on thesame host, the MAC table points the frame toward a specific internal port (vUUID) associated with that VM's vNIC. If the destination VM is on adifferent host(in an overlay environment), the MAC table entry for that remote MAC address will point to theTunnel End Point (TEP)IP of the remote ESXi host. While the TEP table (Option C) contains the list of known Tunnel Endpoints and the ARP table (Option A) maps IP addresses to MAC addresses, neither is the primary table used for the final frame forwardingdecision.
TheMAC Tableis the authoritative source for Layer 2 forwarding. In an NSX-managed VCF environment, these tables are dynamically populated and synchronized via theLocal Control Plane (LCP), which receives updates from the Central Control Plane. This ensures that even as VMs move via vMotion, the MAC table remains updated across all transport nodes, allowing for seamless East-West connectivity without the need for traditional MAC learning (flooding) in the physical fabric.
NEW QUESTION # 21
An administrator is investigating packet loss reported by workloads connected to VLAN segments in an NSX environment. Initial checks confirm:
* All VMs are powered on
* VLAN segment IDs are consistent across transport nodes
* Physical switch configurations are correct.
Which two NSX tools can be used to troubleshoot packet loss on VLAN Segments? (Choose two.)
Answer: C,D
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In a VMware Cloud Foundation (VCF) environment, troubleshooting packet loss requires tools that can provide visibility into both the logical and physical paths of a packet. When dealing specifically withVLAN segments(as opposed to Overlay segments), the traffic does not leave the host encapsulated in Geneve; instead, it is tagged with a standard 802.1Q header.
Traceflowis the primary diagnostic tool within NSX for identifying where a packet is being dropped. It allows an administrator to inject a synthetic packet into the data plane from a source (such as a VM vNIC) to a destination. The tool then reports back every "observation point" along the path, including switching, routing, and firewalling. If a packet is dropped by a Distributed Firewall (DFW) rule or a physical misconfiguration that wasn't caught initially, Traceflow will explicitly state at which stage the packet was lost.
Packet Captureis the second essential tool. NSX provides a robust, distributed packet capture utility that can be executed from the NSX Manager CLI or UI. This tool allows administrators to capture traffic at various points, such as the vNIC, the switch port, or the physical uplink (vmnic) of the ESXi Transport Node. By comparing captures from different points, an administrator can determine if a packet is reaching the virtual switch but failing to exit the physical NIC, or if return traffic is reaching the host but not the VM.
Options likeFlow MonitoringandLive Floware excellent for observing traffic patterns and session statistics (IPFIX), but they are less effective for pinpointing the exact cause of "packet loss" compared to the granular, packet-level analysis provided by Traceflow and Packet Capture.Activity Monitoringis typically used for endpoint introspection and user-level activity, which is irrelevant to Layer 2/3 packet loss troubleshooting.
NEW QUESTION # 22
An administrator is creating NSX segments in an environment. The NSX segment on an ESX Host is not realized. To troubleshoot the issue, the administrator needs to track the communication of components in the environment.

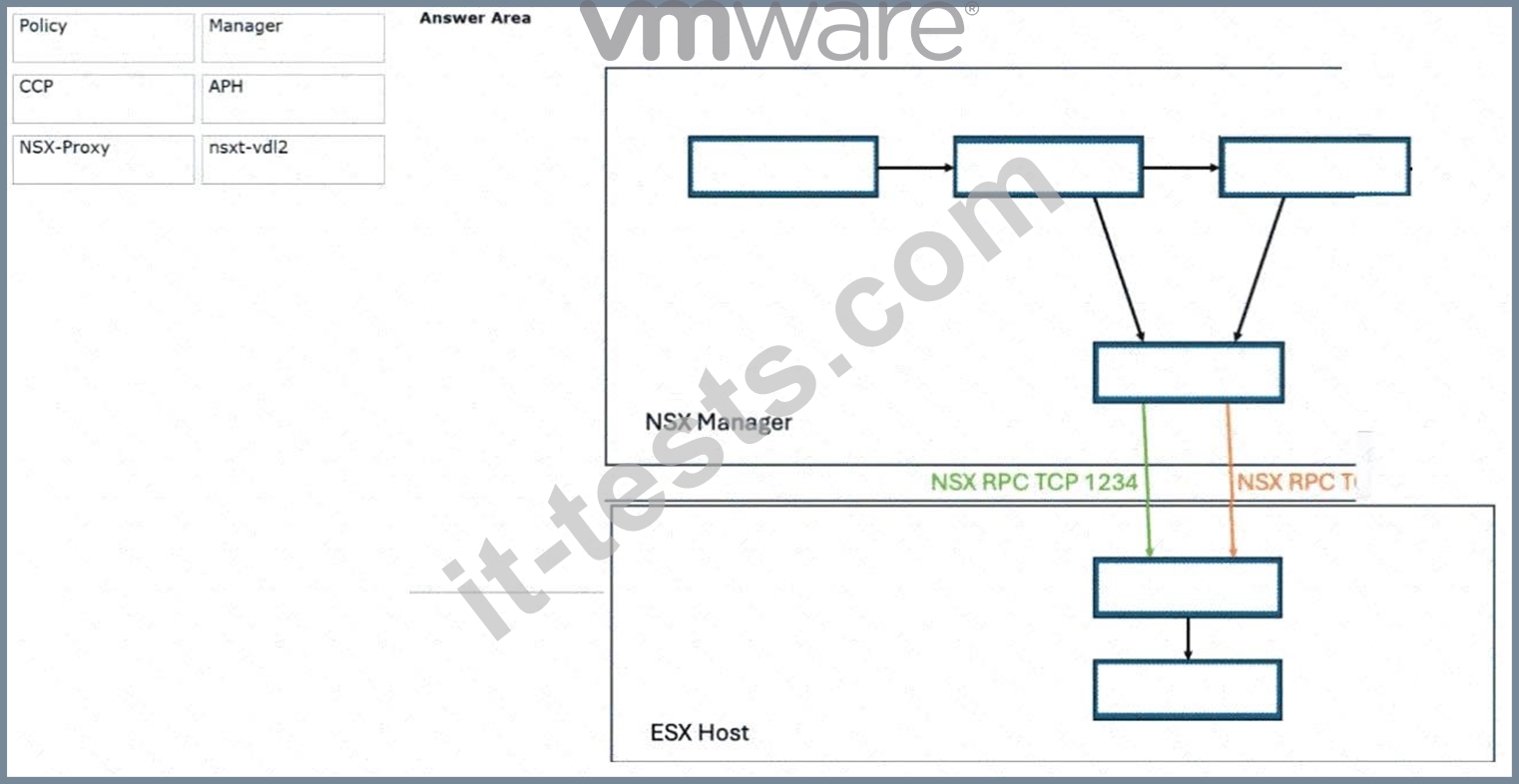

Drag and drop the component to the appropriate location in the diagram to track the path from desired state to completed state.
Answer:
Explanation:
Explanation:

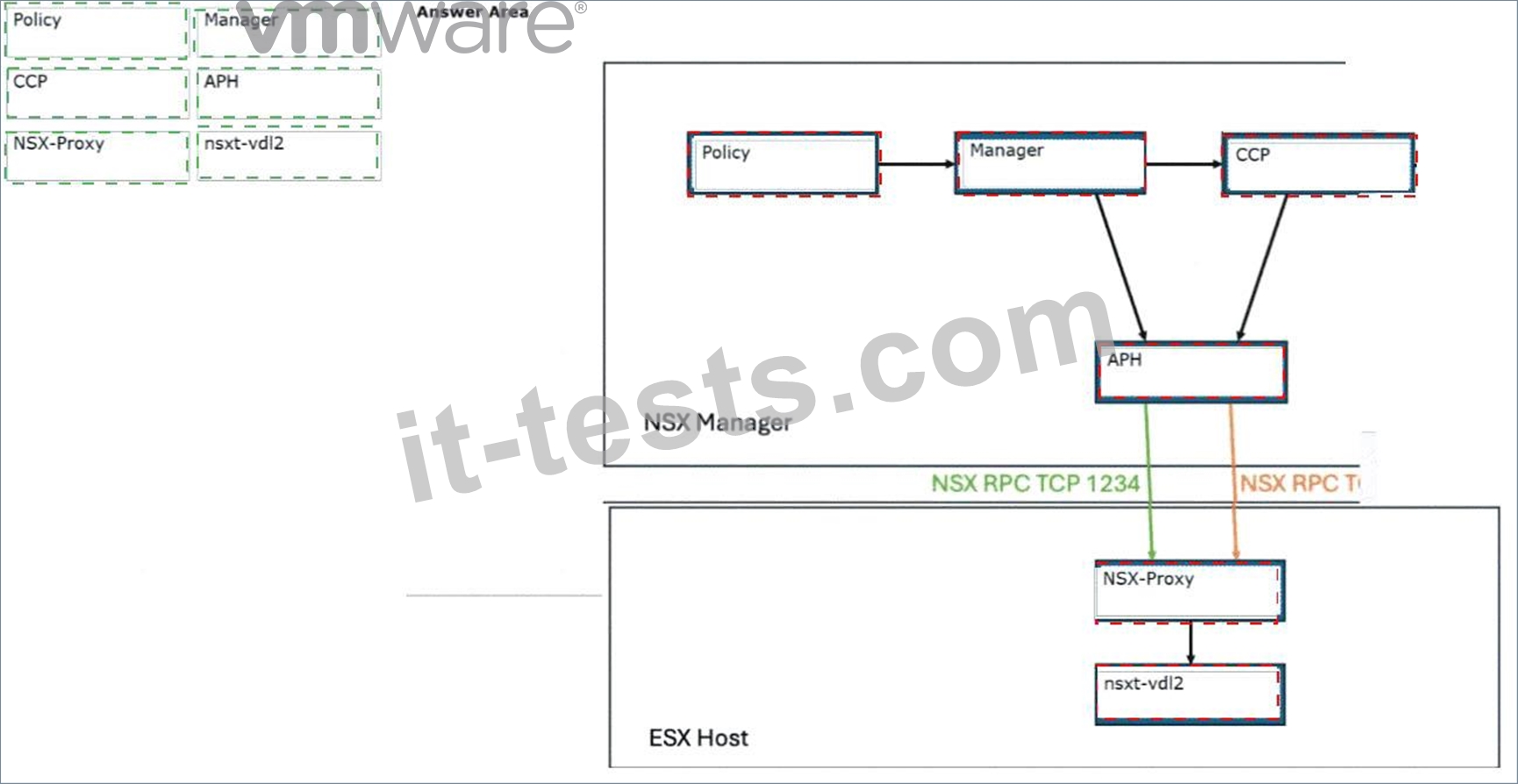

Answer Area Placement:
* NSX Manager Top-Left Box:Policy
* NSX Manager Top-Middle Box:Manager
* NSX Manager Top-Right Box:CCP (Central Control Plane)
* NSX Manager Bottom Box:APH (Asynchronous Proxy Handler)
* ESXi Host Top Box:NSX-Proxy
* ESXi Host Bottom Box:nsxt-vdl2
InVMware Cloud Foundation (VCF)and NSX architectures, the realization of a logical object (like a segment) involves a multi-step communication flow across different management and control plane layers.
The Management Plane (NSX Manager)
* Policy:The entry point where the "Desired State" is defined by the user or automation.
* Manager:Receives the policy, validates it, and stores it in the management database.
* CCP (Central Control Plane):Processes the logical configuration and computes the actual instructions needed for the data plane.
* APH (Asynchronous Proxy Handler):Acts as a broker on the NSX Manager, responsible for pushing these instructions down to the transport nodes viaNSX RPC TCP 1234(Management) andNSX RPC TCP 1235(Control).
The Local Control Plane (ESXi Host)
* NSX-Proxy:A local agent on the ESXi host that maintains a persistent connection to the APH. It receives the instructions and ensures the "Local Control Plane" state matches the "Central Control Plane" intent.
* nsxt-vdl2:The final component in the chain. It interacts directly with the ESXi kernel modules to program the Virtual Distributed Switch (VDS) and realize the segment on the host. Once this step is finished, the segment moves to the"Completed State"and is ready for use.
NEW QUESTION # 23
An administrator is troubleshooting a BGP connectivity issue on a Tier-0 Gateway (Active/Active). The Tier-
0 has the following configuration:
* Uplink VLAN 100: 192.168.100.0/24
* Uplink VLAN 101: 192.168.101.0/24
* BGP neighbors configured: 192.168.100.1 and 192.168.101.1
* A single static default route (0.0.0.0/0) exists with next-hop 192.168.100.1.
Symptoms observed on both Edge Nodes:
* Get BGP neighbors -> both neighbors stuck in Idle (Connect) - "No route to peer"
* Ping to 192.168.100.1 and 192.168.101.1 succeeds from the Edge nodes
* Get route shows the default route present only on VLAN 100 interface (fp-eth0), missing on VLAN 101 (fp- eth1) What is the root cause of both BGP sessions remaining in Idle state?
Answer: A
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
InVMware NSXnetworking, the Tier-0 Gateway'sRouting Table(RIB) is the definitive source for determining how to reach BGP neighbors. A common point of confusion occurs when an administrator can
"ping" a neighbor but the BGP state remainsIdleorConnectwith a "No route to peer" error.
This symptom specifically points to the"Scope"setting of a static route. In NSX, when a static route (such as the default route 0.0.0.0/0) is created, the administrator can define theScopeto be a specific uplink segment or interface. If the scope is set exclusively to theVLAN 100segment, the Tier-0 Gateway will only install that route into the forwarding table for the Service Router (SR) component associated with the VLAN 100 interface.
Because the default route is the only path the Tier-0 has to reach non-local networks (or even other local subnets not directly attached), the BGP process for the neighbor at192.168.101.1(VLAN 101) checks the routing table for a path. Since the only available route is scoped strictly to VLAN 100, the Tier-0 determines it has "No route" to reach the neighbor in VLAN 101. BGP requires a valid entry in the routing table for the neighbor's IP before it will even attempt to initiate the TCP three-way handshake on port 179.
The fact that pings succeed is due to pings often being tested from the specific interface (e.g., ping
192.168.101.1 -I fp-eth1), which bypasses the general routing table logic that the BGP control plane must follow. To resolve this, the static route scope should be expanded to include all relevant uplink segments or left as "All Uplinks," ensuring that the Tier-0 recognizes valid egress paths for neighbors on both VLAN 100 and VLAN 101.
NEW QUESTION # 24
An administrator is responsible for managing a VMware Cloud Foundation (VCF) Private Cloud consisting of a single VCF Fleet with a single Workload Domain.
The administrator has been tasked with configuring NSX to support the new Virtual Desktop Infrastructure (VDI) solution that allows users to securely access a mainframe- based application located on the physical network. The VDI solution will use a dedicate DHCP solution for each of the the desktop pool segments and static addresses for all VDI management components.
The administrator completes the following steps towards configuring DHCP:
1. Creates a new tier-1 gateway (vdi-tier-1) and links it to the tier-0 gateway (gw-tier-0).
2. Creates one new segment for vdi management (vdi-seg-01) and connects it to vdi-tier-1.
3. Creates two new segments for virtual desktops (vdi-seg-02 and vdi-seg-03) and connects them to vdi-tier-1.

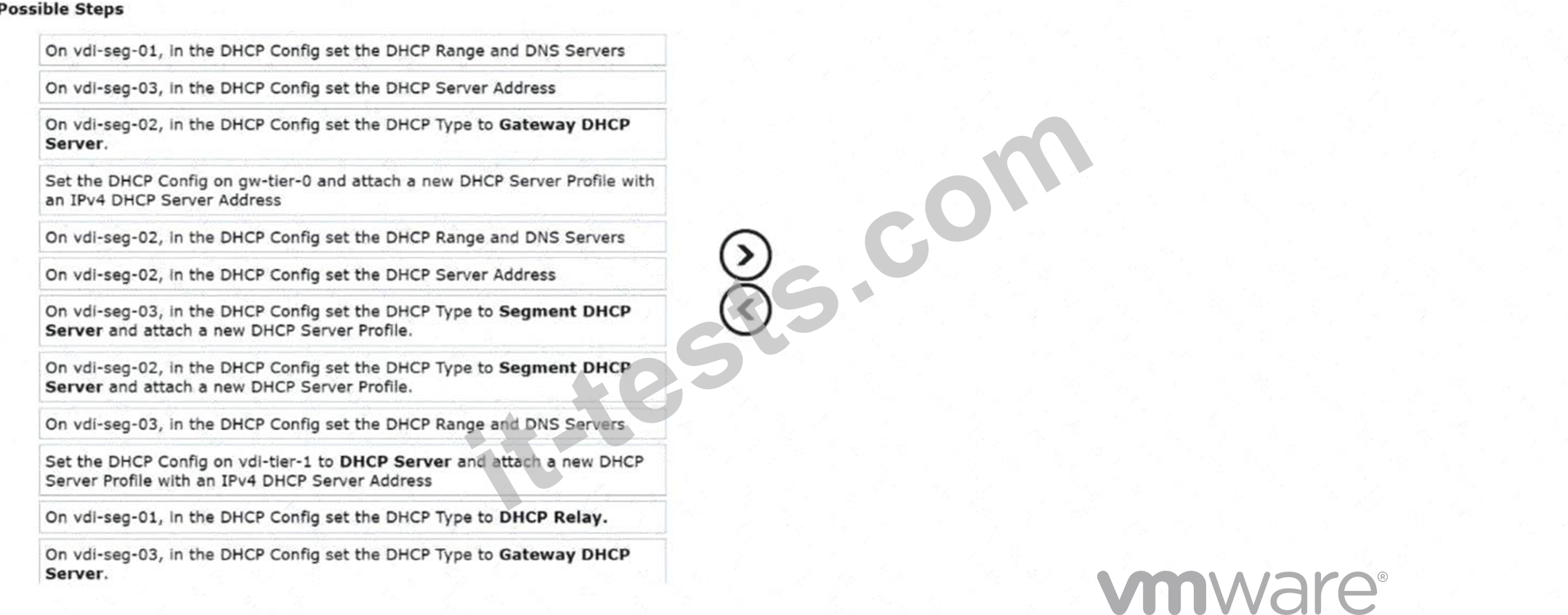

Drag and drop the six steps from the list of Possible Steps on the left and place them in order in to the Solution Steps. (Choose six.)
Answer:
Explanation:
Explanation:
For the VDI solution requiring dedicated DHCP for desktop pool segments and static addresses for management components, the correct sequence of steps to configure DHCP is as follows:
* Set the DHCP Config on vdi-tier-1 to DHCP Server and attach a new DHCP Server Profile with an IPv4 DHCP Server Address.This establishes the Tier-1 gateway as the local DHCP service provider for its attached segments.
* On vdi-seg-02, in the DHCP Config set the DHCP Type to Gateway DHCP Server.This instructs the segment to use the DHCP server service configured on its parent Tier-1 gateway.
* On vdi-seg-02, in the DHCP Config set the DHCP Range and DNS Servers.Defines the specific IP pool and network settings for the first desktop pool.
* On vdi-seg-03, in the DHCP Config set the DHCP Type to Gateway DHCP Server.Instructs the second desktop segment to also leverage the Tier-1 DHCP service.
* On vdi-seg-03, in the DHCP Config set the DHCP Range and DNS Servers.Defines the IP pool for the second desktop pool.
* On vdi-seg-01, in the DHCP Config set the DHCP Type to DHCP Relay.Since management components use static addresses provided by an external mainframe-based solution or dedicated physical infrastructure, a relay is used rather than a local server to ensure proper network isolation and policy enforcement for the physical mainframe application.
NEW QUESTION # 25
......
