NEW QUESTION # 32
Which of the following commands can an administrator run to specify the configuration file for the next startup?
Answer: B
Explanation:
On Huawei VRP, the startup saved-configuration command specifies the configuration file that the device will load at the next restart. This is distinct from selecting the system software image. The startup system- software command identifies the software package used for the next boot, whereas startup saved- configuration identifies the saved configuration that should be restored after the software starts. The reset saved-configuration command clears the saved startup configuration rather than selecting one, and reset factory-configuration is used to restore factory-related settings on platforms that support it. In normal operations, an administrator first saves or uploads a valid configuration file to local storage and then uses startup saved-configuration to nominate that file for the next startup. The selected file must be in a format supported by the device and accessible in its file system. Therefore, when the requirement is specifically to define which configuration file is used after the next reboot, option B is the correct Huawei VRP command.
NEW QUESTION # 33
After entering an incomplete command keyword on the CLI of a Huawei switch, you can press Tab to complete the keyword. If the entered keyword does not change after you press Tab, the possible reason is that the matched keyword is not unique, and YunShan OS cannot determine which specific command it corresponds to.
Answer: A
Explanation:
Huawei YunShan OS provides command-line completion to simplify device configuration and reduce typing errors. Pressing the Tab key can automatically complete a partially entered command keyword.
When the entered characters uniquely identify a valid keyword, the CLI can expand the incomplete input into the corresponding complete keyword.
However, when multiple command keywords share the same prefix, the system cannot immediately determine which keyword the administrator intends to use.
In this situation, the input may remain incomplete, and the administrator can press Tab repeatedly to cycle through possible matching keywords or enter additional characters to distinguish the intended command.
For example, typing a short prefix shared by several commands does not uniquely identify a single command.
Therefore, the statement describes a valid possible reason why command completion does not occur immediately. The correct answer is TRUE.
NEW QUESTION # 34

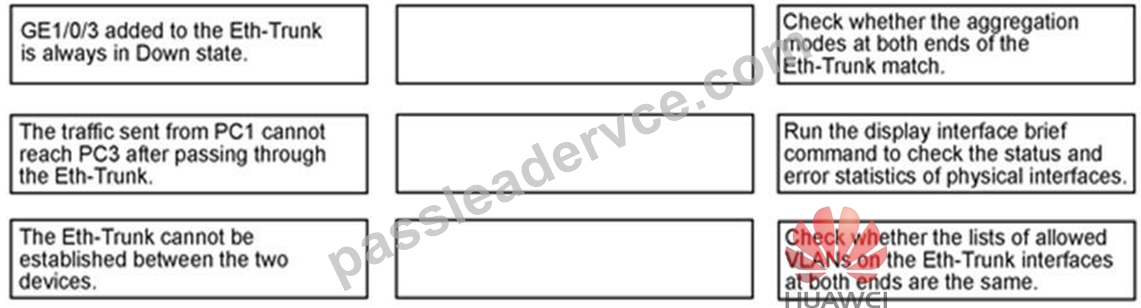

Drag and Drop Question

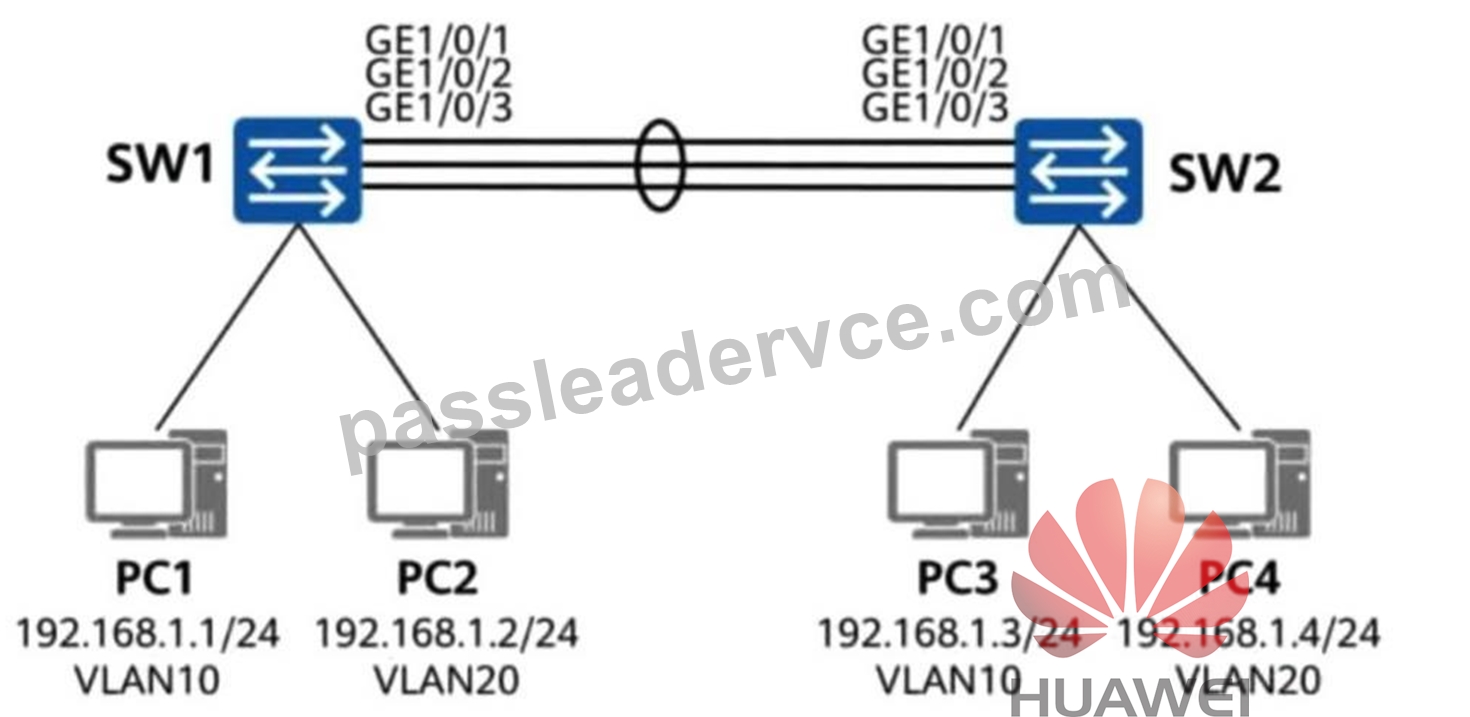

On the network shown in the figure, the administrator creates an Eth-Trunk between SW1 and SW2 to increase link bandwidth and enable terminals in VLAN 10 and VLAN 20 to communicate with each other. When the network is running, the administrator encounters network problems.
Match the problems with the troubleshooting methods.

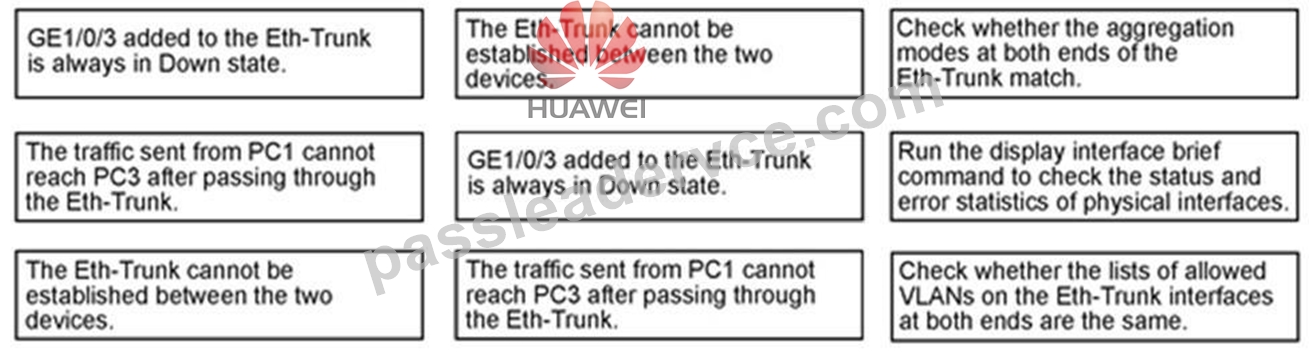

Answer:
Explanation:
Explanation:
GE1/0/3 added to the Eth-Trunk is always in Down state. -> Run the display interface brief command to check the status and error statistics of physical interfaces.
The traffic sent from PC1 cannot reach PC3 after passing through the Eth-Trunk. -> Check whether the lists of allowed VLANs on the Eth-Trunk interfaces at both ends are the same.
The Eth-Trunk cannot be established between the two devices. -> Check whether the aggregation modes at both ends of the Eth-Trunk match.
Physical Interface Down: When a single member port (GE1/0/3) fails to come up within the trunk, the immediate first step is checking the physical layer and link-layer protocol status using display interface brief to rule out hardware, cable, or transceiver errors.
VLAN Reachability Issues: If the Eth-Trunk trunk link is successfully built but specific traffic (like PC1 in VLAN 10 to PC3 in VLAN 10) fails to traverse across, it points directly to misconfigured VLAN permissions (e.g., forgetting to allow VLAN 10 on the Eth-Trunk trunk port configuration).
Trunk Establishment Failure: If the logical Eth-Trunk interface itself cannot form, it is typically due to a mismatch in foundational parameters-most notably, one side being configured in standard manual load-balancing mode while the other is using dynamic LACP mode.
NEW QUESTION # 35

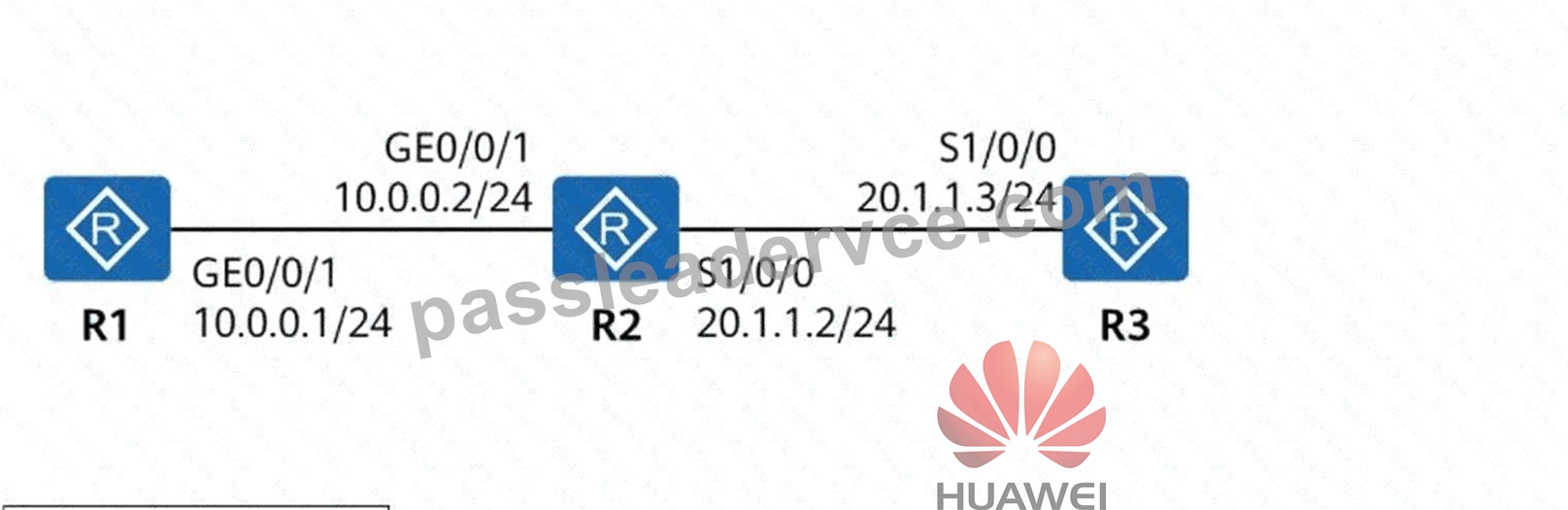

On the network shown in the figure, it is required that interfaces on R1 and R3 are reachable to each other through static routes. When implementing this requirement, there is no need to configure static routes on
_____. (Enter a device name in the figure, for example, R1.)
Answer:
Explanation:
R2
Explanation:
A directly connected route is automatically generated when a router interface has a valid IP address and the interface is operational.
In this topology, R2 connects directly to two networks: 10.0.0.0/24 through GE0/0/1 and 20.1.1.0/24 through S1/0/0.
Therefore, R2 already has the necessary routing information to forward packets between these two directly connected networks. Additional static routes are not required on R2.
However, R1 initially knows only its directly connected network, so it requires a static route toward 20.1.1.0
/24 using R2 as its next hop.
Similarly, R3 requires a static route toward 10.0.0.0/24 through R2.
These routes provide bidirectional connectivity between interfaces on R1 and R3.
Therefore, the router that does not require additional static routes is R2.
NEW QUESTION # 36
DAD enables a node to detect whether an IPv6 address is already in use by another node before assigning it to an interface. This ensures that duplicate unicast addresses do not exist on a network. Which of the following packets are used for DAD? (Select all that apply)
Answer: A,C
Explanation:
Duplicate Address Detection ( DAD ) is an IPv6 mechanism used to verify that a unicast address is not already in use before the address is assigned to an interface. DAD is implemented using Neighbor Solicitation (NS) and Neighbor Advertisement (NA) messages, which are part of the ICMPv6 Neighbor Discovery protocol. Therefore, options A and D are correct.
When a host wants to verify a tentative IPv6 address, it sends an NS message for that address. If another node on the link is already using that address, that node responds with an NA message, indicating the address is duplicated and cannot be assigned. If no NA is received within the required period, the host assumes the address is unique and can use it. Options B and C are incorrect because Router Solicitation (RS) and Router Advertisement (RA) are used for router discovery, prefix advertisement, and stateless address autoconfiguration, not for DAD itself. HCIA-Datacom emphasizes the distinction between Neighbor Discovery functions, including address resolution, next-hop reachability, router discovery, and duplicate address detection in IPv6 networks.
NEW QUESTION # 37
......
