| Section | Weight | Objectives |
|---|---|---|
| Topic 1: Security Policy & Services | 10% | - Advanced firewall & security profile design - Identity-based policies - NAT & IP pool optimization |
| Topic 2: High Availability & Redundancy | 15% | - Cross-data center redundancy - Session synchronization & failover - FGCP/FGSP/vCluster deployment |
| Topic 3: System Architecture & Design | 20% | - Security Fabric integration & scaling - VDOM design & multi-tenant deployment - Hardware sizing & resource planning - FortiOS 7.6 architecture & components |
| Topic 4: Centralized Management | 20% | - Configuration provisioning & version control - FortiAnalyzer logging & reporting - FortiManager 7.6 deployment & role assignment - Policy packages & object templates |
| Topic 5: Advanced Routing & VPN | 25% | - OSPF, BGP, IS-IS configuration & optimization - IPsec VPN & ADVPN architecture - Route redistribution & filtering - SD-WAN design & SLA management |
| Topic 6: Monitoring & Troubleshooting | 10% | - Connectivity & performance troubleshooting - Diagnostic tools & CLI analysis - Fabric synchronization issues |
>> NSE7_FSN_AR-7.6 Reliable Exam Topics <<
The advent of our Fortinet NSE7_FSN_AR-7.6 study guide with three versions has helped more than 98 percent of exam candidates get the certificate successfully. Rather than insulating from the requirements of the Fortinet NSE 7 - Secure Networking 7.6 Architect NSE7_FSN_AR-7.6 Real Exam, our NSE7_FSN_AR-7.6 practice materials closely co-related with it.
NEW QUESTION # 123
Exhibit 1.
Exhibit 2.
Refer to the exhibits, which show the configuration on FortiGate and partial internet session information from a user on the internal network.
An administrator would like to lest session failover between the two service provider connections.
Which two changes must the administrator make to force this existing session to immediately start using the other interface? (Choose two.)
Answer: A,C
Explanation:
FortiOS Admin Guide: Static Routing, SNAT Route Change Feature
NEW QUESTION # 124
Refer to the exhibit.

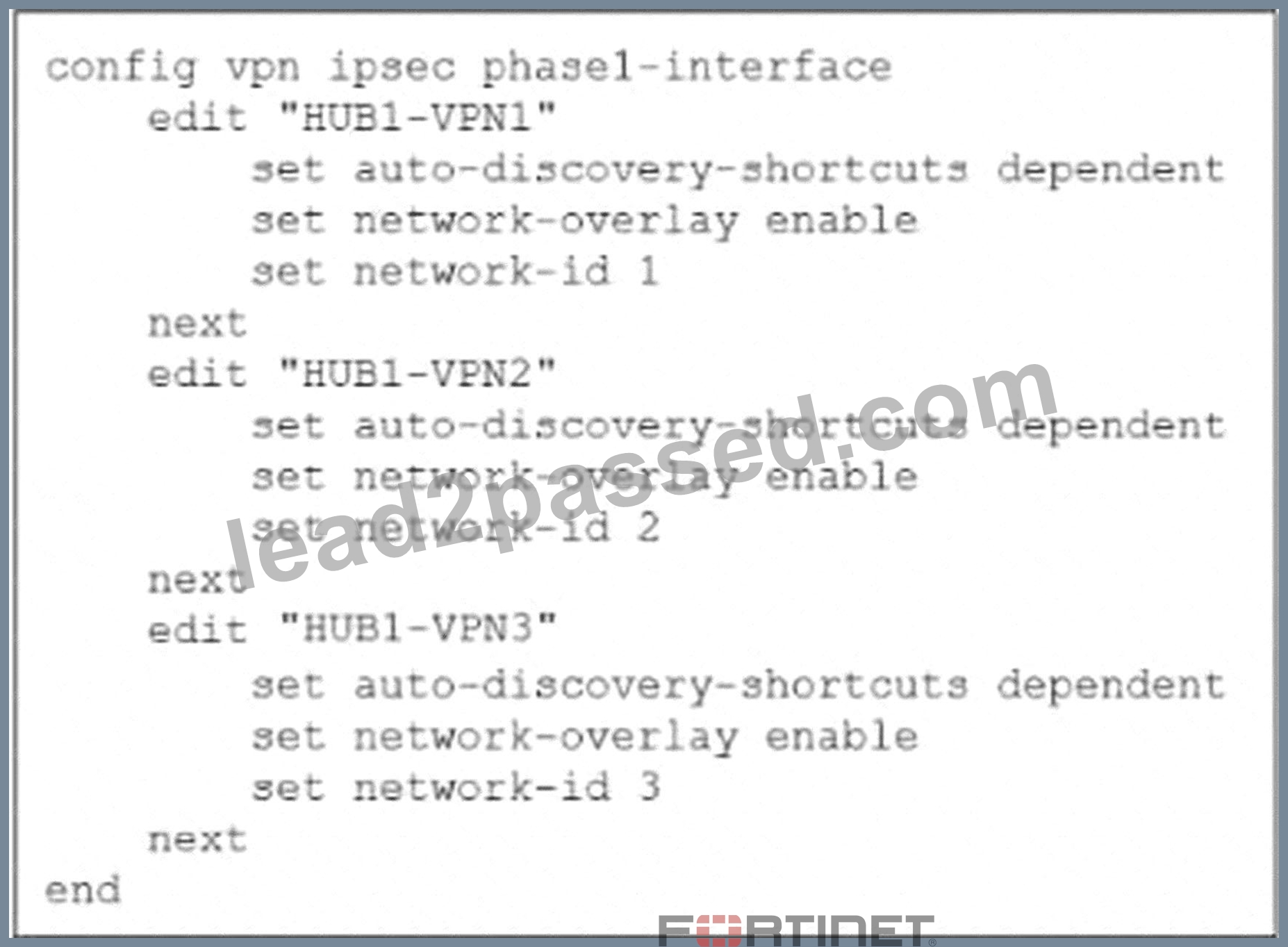

You update the spokes configuration of an existing auto-discovery VPN (ADVPN) topology by adding the parameters shown in the exhibit.
Which is a valid objective of those settings?
Answer: C
Explanation:
The configuration enables network-overlay and assigns a different network-id to each overlay. The SD-WAN
7.6 Enterprise Administrator Study Guide explains that these settings distinguish overlays and prevent shortcut establishment across incompatible overlay networks. Consequently, the valid objective is preventing cross-overlay shortcuts.
The additional auto-discovery-shortcuts dependent setting controls shortcut lifetime: a shortcut is brought down when its parent tunnel goes down. It does not convert an existing ADVPN deployment to ADVPN 2.0.
It also does not prevent multiple legitimate shortcuts from using the same overlay. Although network-overlay enable identifies an IPsec tunnel as an overlay, the combination of network-overlay with distinct network-id values specifically provides overlay separation. Therefore, C is the correct answer.
NEW QUESTION # 125
Refer to the exhibit.

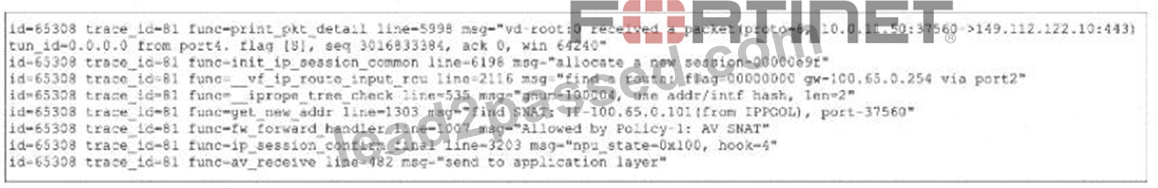

Which two observations can you make about the web filter traffic captured using the flow tool? (Choose two.)
Answer: B,D
Explanation:
Analyze the " Send to Application Layer " Message:
The most critical line in the debug output is: id=65308 ... func=av_receive ... msg= " send to application layer
"
Meaning: This message indicates that the FortiGate kernel is handing the packet over to a user-space daemon (specifically the WAD/Proxy process, indicated by av_receive handlers) for deep inspection.
Implication: This behavior is the hallmark of Proxy-based inspection. In Flow-based inspection, the traffic is handled by the IPS engine (often within the kernel or via specific IPS handlers like ips_measure), and you would not typically see a " send to application layer " message for standard web filtering.
Evaluate Option B (Firewall Policy Mode):
Since the traffic is being sent to the application layer proxy, the Firewall Policy controlling this traffic (Policy ID 1, as seen in Allowed by Policy-1) must be configured with Inspection Mode = Proxy. If it were Flow- based, the traffic would stay in the flow path. Thus, Option B is correct.
Evaluate Option C (Web Filter Profile Mode):
In FortiOS, when a firewall policy is set to Proxy-based inspection, the security profiles (like Web Filter) applied to that policy also operate in Proxy-based inspection mode. The presence of the av_receive function confirms that the content inspection (Web Filter/AV) is being performed by the proxy engine. Thus, Option C is correct.
Why Option A is Incorrect (NPU Offload):
The output shows npu_state=0x100. In the context of a flow trace where traffic is being " sent to application layer, " this confirms the session is not fully offloaded to the NPU (Network Processor). Offloaded traffic (Fast Path) is handled by the hardware and would not generate these specific CPU-level debug logs for the payload inspection phase. The proxying process requires CPU intervention.
Why Option D is Incorrect (Port Mapping):
While valid protocol mapping is necessary for inspection, the specific debug output shown is a direct result of the Inspection Mode (Proxy vs. Flow). The observation of the traffic moving to the application layer is primarily caused by the policy and profile mode settings, making B and C the direct " observations " derived from the log data.
Reference:
FortiGate Troubleshooting (Debug Flow): " If the debug flow shows msg= ' send to application layer ' , it confirms the traffic is being handled by the proxy (WAD) for Proxy-based inspection. "
NEW QUESTION # 126
Refer to the exhibit.
The modified output of live routing kemel is shown
Which two statements about the output are (rue? (Choose two.)
Answer: A,B
Explanation:
We must analyze the flags (*, > , S, O, B) and Administrative Distances (AD) shown in the get router info routing-table database exhibit to determine the correct statements.
Analysis for Option A (The BGP route to 10.0.4.0/24 is not in the forwarding information base):
True. Look at the entry for 10.0.4.0/24.
There is an OSPF route: O * > 10.0.4.0/24 [110/2]. The * indicates it is in the FIB, and > indicates it is the selected route.
There is a BGP route: B 10.0.4.0/24 [200/10]. This line lacks the * flag.
Reason: The OSPF route has an Administrative Distance of 110. The BGP route (iBGP) has an AD of 200.
Since 110 is lower than 200, OSPF wins, and the BGP route is not installed in the Forwarding Information Base (FIB).
Analysis for Option B (The default static route through 10.200.1.254 is in the forwarding information base):
True. Look at the 0.0.0.0/0 entries.
The first entry is S * > 0.0.0.0/0 [10/0] via 10.200.1.254.
The * flag confirms this specific route is installed in the FIB.
The second static route (via 10.200.2.254) has a higher distance ([20/0]) and no * flag, so it is inactive.
Why C is False: ECMP (Equal Cost Multi-Path) requires routes to have the same cost/priority. Here, one static route has AD 10 and the other has AD 20. They are not equal, so ECMP is not performed.
Why D is False: The routing table database shows active routes, not the raw Link State Advertisement (LSA) database. You cannot determine the number of LSAs received solely from this output.
Reference:
FortiGate Security 7.6 Study Guide (Routing): " The routing table database displays all known routes... The * indicates the route is in the FIB... Lower Administrative Distance is preferred. "
NEW QUESTION # 127
Refer to the exhibit.
An administrator has configured a firewall policy to use proxy-based inspection mode. What could explain the messages observed in the debug flow output?
Answer: D
Explanation:
The correct answer is A .
The debug flow shows:
* traffic is going to TCP port 211
* FortiGate logs run helper-ftp(dir=original)
The study guide explains exactly what that message means:
"In this example, the run helper-ftp message indicates that the FTP session helper is being used." Under normal proxy-based inspection, protocol handling is controlled by Protocol Options . The FortiOS administration guide states:
"Protocol port mapping only works with proxy-based inspection." and "The ports can be modified to inspect any port with flowing traffic." So if the policy is configured for proxy-based inspection but the debug still shows the FTP session helper on port 211, the most likely explanation is that the FTP protocol mapping in Protocol Options is broad enough to match unexpectedly, such as being mapped to Any . That would cause FortiGate to identify the traffic as FTP and invoke the helper.
Why the other options are wrong:
* B is wrong because SSL deep inspection is unrelated to this debug. The traffic shown is plain TCP/211
, and the key message is about the FTP helper , not SSL decryption.
* C is wrong because if FTP had not been mapped to port 211, FortiGate would be less likely to treat this traffic as FTP. The observed run helper-ftp indicates FTP handling is being triggered.
* D is wrong because low-memory conserve behavior would typically cause inspection bypass or blocking behavior, not specifically the run helper-ftp message. The study guide's helper example ties this message to session-helper use, not memory shortage.
So the verified answer is: A .
