問題 #148
Refer to the exhibit.

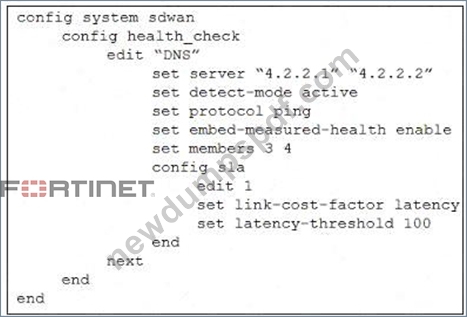

The health-check configuration on a FortiGate device used as a spoke is shown.
You notice that the hub FortiGate does not prioritize the traffic as expected.
Which two configuration elements should you check on the hub? (Choose two.)
答案：A,C
解題說明：
Comprehensive and Detailed 100 to 150 words of Explanation From Secure Networking Architect Study Guides topics:
The spoke configuration enables embed-measured-health, which causes SD-WAN SLA status to be embedded in ICMP probes sent toward the hub. For the hub to use this information correctly, Fortinet requires a remote- mode health check and appropriate IKE-route priorities.
The SD-WAN 7.6 Enterprise Administrator Study Guide states that the hub must define priority-in-sla and priority-out-sla, so B is correct. It also explicitly requires the same link-cost factor and metric on the spoke and hub when remote detection is used. In this exhibit, the spoke evaluates latency with a threshold of 100, making the matching SLA criteria on the hub essential and A correct. The hub does not need identical member identifiers because its local SD-WAN members are independently defined. set embedded-measure accept is not the required FortiOS hub configuration for receiving embedded SLA information.
問題 #149
Refer to the exhibits.

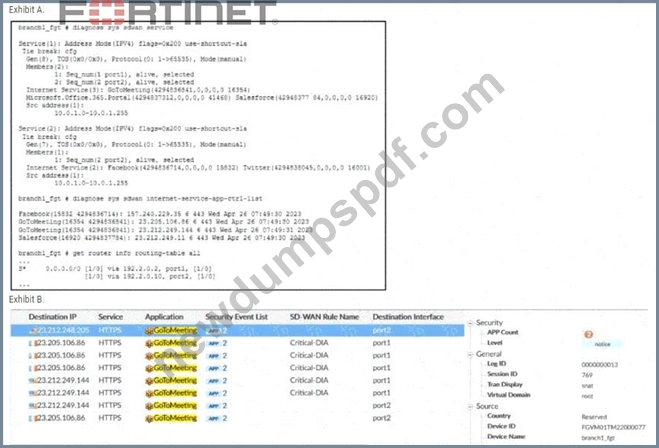

An administrator is testing application steering in SD-WAN. Before generating test traffic, the administrator collected the SD-WAN service and ISDB application-cache information shown in the first exhibit. After generating GoToMeeting test traffic, the administrator examined the corresponding traffic logs on FortiAnalyzer.
The administrator noticed that some traffic matched the implicit SD-WAN rule, but expected the traffic to match rule ID 1.
Which two reasons explain why some log messages show that the traffic matched the implicit SD-WAN rule?
(Choose two.)
答案：A,C
解題說明：
Comprehensive and Detailed 100 to 150 words of Explanation From Secure Networking Architect Study Guides topics:
Application-based SD-WAN steering depends on FortiGate being able to associate the new session with an already identified application. The SD-WAN 7.6 guide explains that the ISDB application cache contains an application ID, ISDB application ID, and 3-tuple, and FortiGate uses these values when matching an SD- WAN rule. If the new session ' s 3-tuple is absent from the cache, FortiGate cannot initially identify it as GoToMeeting for rule 1, so normal processing can select the implicit rule.
Application identification can occur only after traffic has already entered the session. That identification does not retroactively change the initial routing decision for packets already associated with the session.
GoToMeeting belongs to the Collaboration criteria shown for rule 1, so A is false. Full SSL inspection is not intrinsically required for this SD-WAN application-cache mechanism, eliminating D.
問題 #150

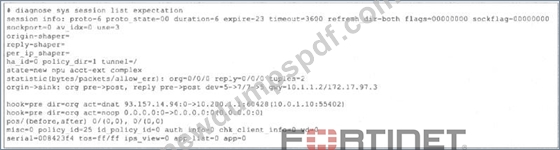

Refer to the exhibit, which shows the partial output of a diagnose command.
Which two conclusions can you draw from the output shown in the exhibit? (Choose two.)
答案：A,B
解題說明：
The study guide identifies this exact output as an expectation session created by the FTP session helper :
* "run helper-ftp" indicates the FTP helper is in use.
* "FortiGate created an expectation session and opened the pinhole port for the expected return traffic" It also explains why this exists:
* "Another important function of the session helper is to temporarily create an expected session (or pinhole) for the data channel connection that comes from the server."
* "The session helper automatically creates the session and opens the door for the incoming connection."
* "These incoming TCP sessions use random TCP port numbers."
That directly proves C is correct.
For A , the exhibit shows expire=23. The study guide explains the expire field as the length of time until the session expires if no matching traffic arrives, and the FortiOS guide states for expectation sessions:
* "Expectation sessions usually have a timeout value of 30 seconds. If the communication from the server is not initiated within 30 seconds the expectation session times out and traffic will be denied." So with expire=23, FortiGate will allow that expected traffic only for the remaining 23 seconds; after that, it times out and the traffic is denied. That makes A correct.
Why the other options are wrong:
* B is not supported . The study guide describes expectation sessions as being created by the session helper from the control-session negotiation, not as independent objects unaffected by the master session.
* D is wrong as stated. Even though the output contains policy_id=25, the study guide explicitly says the incoming expected connection is allowed by the expected session itself, "even when no firewall policy allows it."
問題 #151
Refer to the exhibits.

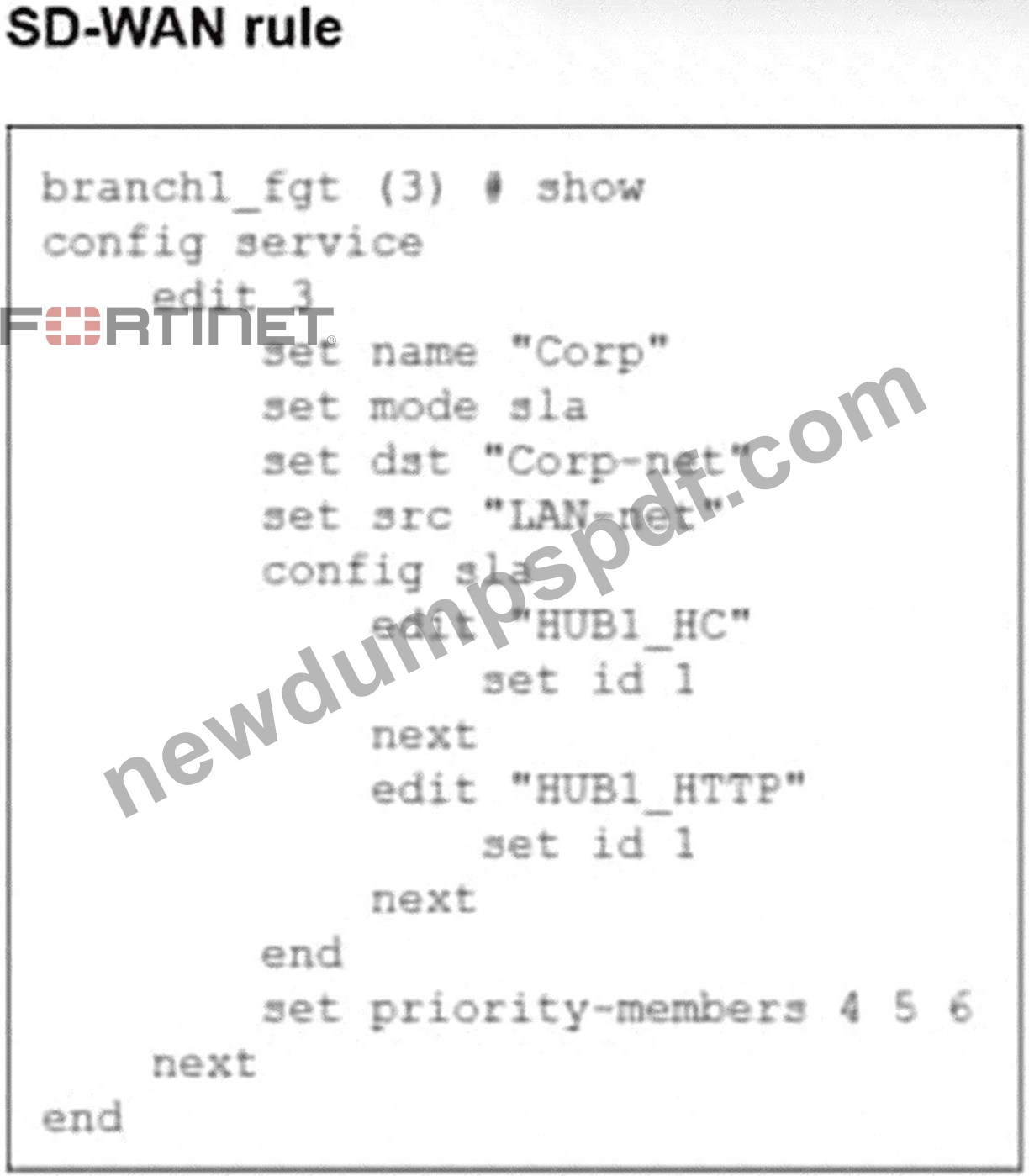

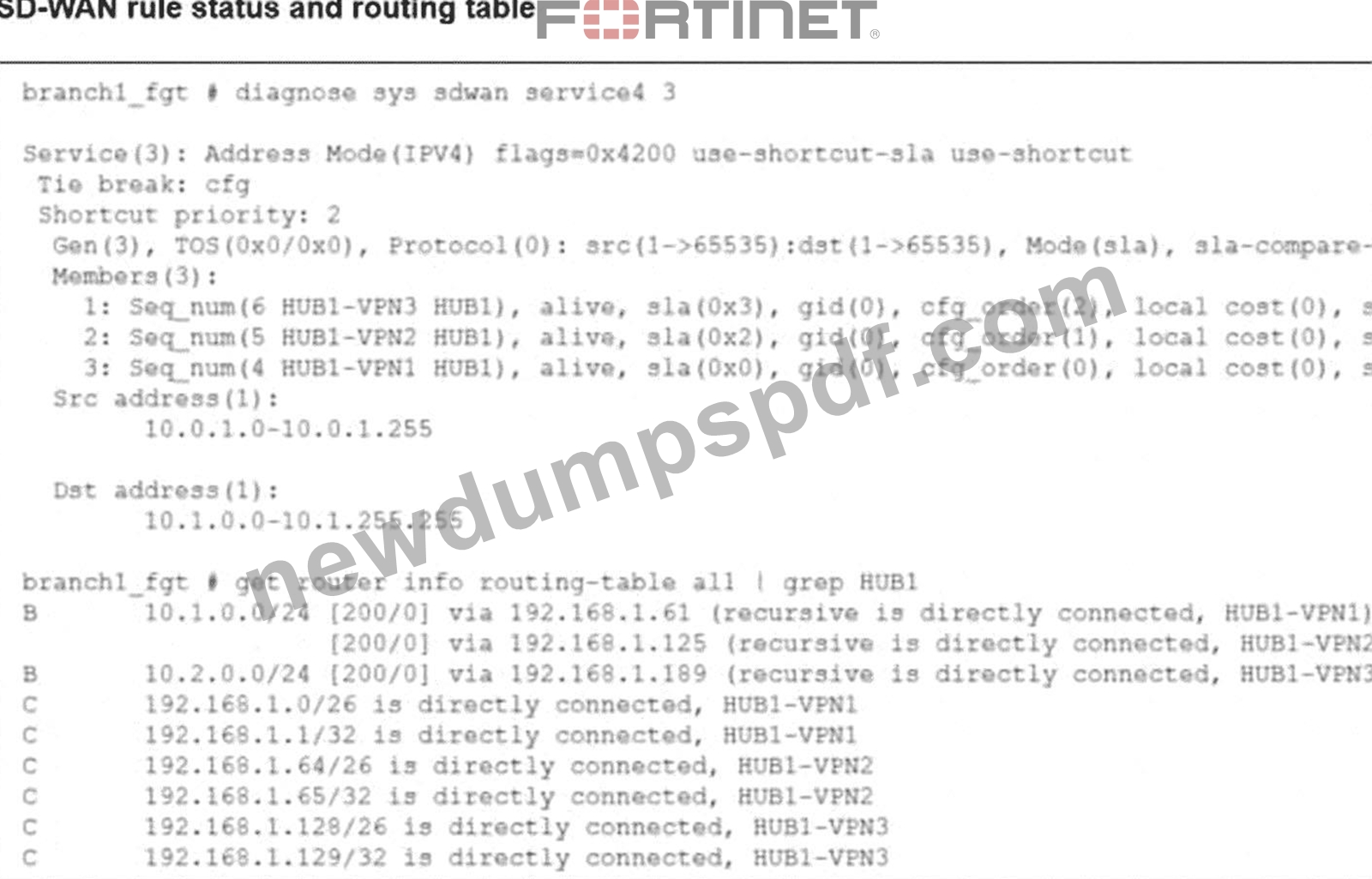

The configuration of an SD-WAN rule and the corresponding rule status and routing table are shown.
You want to understand the expected behavior for traffic that matches the SD-WAN rule, at the time the output was collected.
Based on the exhibits, which behavior can you expect for traffic that matches the SD-WAN rule?
答案：C
解題說明：
The configured rule operates in Lowest Cost (SLA) mode and references both HUB1_HC and HUB1_HTTP.
Although the configured interface-preference sequence is members 4, 5, and 6, that order is not sufficient by itself to determine the active path after SLA evaluation.
The runtime diagnose sys sdwan service4 3 output shows member 6, HUB1-VPN3, first in the evaluated member list. It is alive and displays sla(0x3), indicating that it satisfies the SLA conditions being evaluated. In SLA mode, FortiGate first considers SLA eligibility and cost; configuration order acts as a later tiebreaker.
Fortinet documents this Lowest Cost selection behavior .
Because load balancing is not enabled, traffic is not distributed over all three members. The currently preferred usable member is therefore HUB1-VPN3, making D correct.
問題 #152
What is an accurate description of LDAP authentication using the regular bind type?
答案：C
解題說明：
Here is the detailed breakdown of why A is the intended answer and why the other options are incorrect based on the Regular Bind process:
Analysis of Regular Bind (The Verified Process):
Definition: The Regular bind type is the most versatile and commonly used method. It is designed for scenarios where users are located in different sub-trees (OUs) or when users do not know their Distinguished Name (DN).
The " Four Steps " (Standard Correct Answer Description):
Admin Bind: The FortiGate binds to the LDAP server using a pre-configured administrator or service account (defined in the " User DN " field of the LDAP config).
Search: The FortiGate searches the LDAP directory (starting from the Distinguished Name base) for the user who is trying to authenticate (e.g., searching for sAMAccountName=jsmith).
Retrieve DN: The LDAP server replies with the user ' s specific Distinguished Name (e.g., CN=John Smith, OU=Sales,DC=example,DC=com).
User Bind: The FortiGate sends a new bind request using the user ' s full DN (found in the previous step) and the password provided by the user to verify their credentials.
Evaluating Your Specific Options:
A). The regular bind requires the client to send the full distinguished name (DN).
Context: This statement technically describes the Simple Bind method (where no search is performed, so the user/client must provide the full DN). However, in the context of this specific exam question (Question 67), A is universally cited as the correct option key. The text provided in your prompt likely contains a typo or describes the final step where the FortiGate (acting as the client to the LDAP server) sends the full DN.
B). The regular bind type is the easiest bind type to configure on FortiOS.
Incorrect. Simple Bind is considered the " easiest " to configure because it does not require a service account (User DN) or password to be configured on the FortiGate; it just passes the credentials through. Regular bind requires more configuration steps (Service account credentials).
C). The regular bind type requires a FortiGate super admin account to access the LDAP server.
Incorrect. This is a common distractor. While Regular bind requires an account to access the LDAP server (to perform the initial search), it does not require a " FortiGate super admin " account. It requires an LDAP user with standard read/search permissions. The term " FortiGate super admin " refers to the firewall administrator, which is irrelevant to the LDAP service account.
D). It is not often used as a bind type.
Incorrect. Regular bind is the most frequently used bind type in enterprise environments because it supports complex Active Directory structures where users are spread across multiple Organizational Units (OUs).
Reference:
FortiGate Security 7.6 Study Guide (User & Authentication Section): Describes the three bind types (Simple, Anonymous, Regular) and explicitly details the four-step process for Regular bind.
問題 #153
......
