NEW QUESTION # 31
The BIG-IP Administrator has to provide encrypted communication between the users and the virtual server they access. Multiple hostnames are configured in DNS with the same IP address. Which profile type and setting in the profile should be used?
Answer: B
Explanation:
When a single IP address (Virtual Server) must host multiple hostnames (e.g., site1.com, site2.com) over HTTPS, the BIG-IP must be able to present the correct SSL certificate for each site during the initial handshake. This requirement is handled by a technology called Server Name Indication (SNI).
To implement this on the BIG-IP, the administrator must use a Client SSL profile because the encryption is occurring between the user (Client) and the Virtual Server. Within the Client SSL profile settings, there is a field called Server Name. By creating multiple Client SSL profiles-each with a different "Server Name" (the hostname) and its corresponding certificate-and attaching them all to the same Virtual Server, the BIG-IP can inspect the SNI extension in the client's "Client Hello" packet. It then selects the specific profile that matches the requested hostname.
Option A is incorrect because "Client Name" is not the standard field name used for SNI hostname matching in the profile. Options B and C refer to Server SSL profiles, which manage the connection between the BIG- IP and the backend servers. While Server SSL profiles also have a "Server Name" field (used to send SNI to a backend server), the requirement here is to provide encrypted communication for "users" accessing the virtual server, which definitively requires a Client-side SSL configuration.
NEW QUESTION # 32
A BIG-IP Administrator creates a new Virtual Server. The end user is unable to access the page. During troubleshooting, the administrator learns that the connection between the BIG-IP system and server is NOT set up correctly. What should the administrator do to solve this issue? (Choose one answer)
Answer: C
Explanation:
The issue described is a classic symptom of asymmetric routing, which frequently occurs when the BIG-IP system and the back-end servers reside on the same subnet (often referred to as a "one-arm" deployment).
* The Routing Problem: By default, the BIG-IP system preserves the original client source IP address when forwarding traffic to a pool member. If the server is in the same subnet as the client or if the server's default gateway is not the BIG-IP, the server will attempt to send its response directly back to the client's IP address, bypassing the BIG-IP.
* Stateful Failure: Since the BIG-IP is a Full Proxy, it maintains a state table. Because the response packet never returns through the BIG-IP, the system cannot complete the three-way handshake or manage the application session, resulting in a connection failure for the user.
* The Solution (SNAT): Enabling Source Network Address Translation (SNAT) solves this by changing the source IP address of the request to an IP address owned by the BIG-IP (typically a self-IP).
* Requirement for Subnet Alignment: To ensure the server sends the response back to the BIG-IP, the translation address must be reachable. By using a self-IP configured in the same subnet as the servers, the BIG-IP ensures that the server sees the request coming from a local "neighbor." The server will then naturally send the response back to that self-IP, allowing the BIG-IP to translate the packet back and forward it to the client.
Why other options are incorrect:
* A: Disabling address translation would ensure the server-side traffic uses the client IP, making asymmetric routing inevitable in this scenario.
* B: This is technically contradictory; "Auto Map" specifically uses existing self-IPs and does not require or use a "SNAT pool" configuration.
* C: While using a specific translation address can work, it does not inherently guarantee the Layer 2
/Layer 3 reachability mentioned in the scenario as effectively as ensuring the self-IP is correctly placed in the server's subnet.
NEW QUESTION # 33

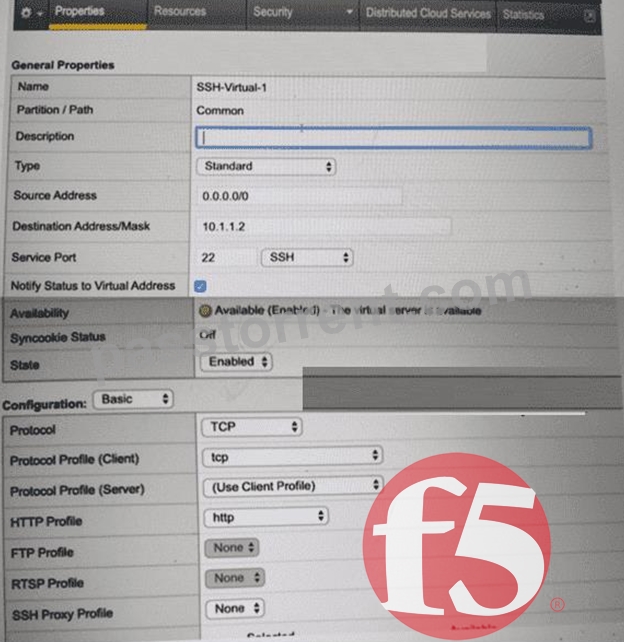

Refer to the exhibit.
A BIG-IP Administrator creates a new Virtual Server to load balance SSH traffic. Users are unable to log on to the servers.
What should the BIG-IP Administrator do to resolve the issue? (Choose one answer)
Answer: C
Explanation:
SSH is a Layer 4 TCP-based protocol that operates on TCP port 22 and does not use HTTP in any capacity. In the exhibit, the Virtual Server is configured with an HTTP Profile applied, which is inappropriate for SSH traffic and causes connection failures.
According to the BIG-IP Administration: Data Plane Configuration documentation:
An HTTP profile must only be applied to Virtual Servers handling HTTP or HTTPS traffic.
When an HTTP profile is attached, BIG-IP expects HTTP headers and attempts to parse application-layer data.
Non-HTTP protocols such as SSH, FTP (control), SMTP, and other raw TCP services will fail if an HTTP profile is enabled.
Why the other options are incorrect:
A). Set Protocol to UDPSSH uses TCP, not UDP. Changing the protocol would break SSH entirely.
B). Set Source Address to 10.1.1.2The source address setting controls client access restrictions and is unrelated to protocol parsing issues.
C). Set Destination Address/Mask to 0.0.0.0/0The destination address is already valid for a specific SSH service and does not impact protocol handling.
Correct Resolution:
The BIG-IP Administrator should remove the HTTP Profile (set it to None) so the Virtual Server functions as a pure Layer 4 TCP service, allowing SSH connections to pass through successfully.
NEW QUESTION # 34
The BIG-IP Administrator has configured an HTTP health monitor applied to a Pool of HTTP web servers hosting www.f5.com, but all Pool Members show a DOWN status. The web server is returning a response of '
400 Bad Request ' . What would be the correct monitor Send string?
Answer: D
Explanation:
A 400 Bad Request response from an HTTP/1.1 web server is a definitive indicator that the HTTP request sent by the health monitor is missing a required Host header . In HTTP/1.1, the Host header is mandatory per RFC 7230. Web servers - particularly those hosting named virtual hosts such as www.f5.com - will reject any HTTP/1.1 request that omits the Host header, returning a 400 error, which the BIG-IP monitor interprets as a failed health check, marking all members DOWN.
The correct Send string must include:
* The GET request line with HTTP/1.1 protocol declaration
* A \r\n (carriage return + line feed) after the request line
* The Host: www.f5.com header to satisfy HTTP/1.1 requirements
* A \r\n after the Host header
* Connection: Close header to instruct the server to close the connection after responding
* A final \r\n\r\n to properly terminate the HTTP request headers
Only option C satisfies all these requirements with the correct syntax and Host header inclusion.
Option D (the current configured string) omits the Host header entirely - the root cause of the 400 error.
Options A and B are structurally incomplete or syntactically malformed.
Reference: BIG-IP Administration - Data Plane Configuration, Module: Health Monitors - HTTP Monitor Send String Configuration and HTTP/1.1 Host Header Requirements.
NEW QUESTION # 35
A BIG-IP Administrator is setting up a new BIG-IP device. The network administrator reports that the interface has an incompatible media speed. The BIG-IP Administrator needs to change this setting manually.
From which location should the BIG-IP Administrator perform this task?
Answer: D
Explanation:
Standard BIG-IP administration dictates that hardware-level physical attributes are managed within the Network section of the configuration. When a network switch and a BIG-IP fail to successfully negotiate speed and duplex settings (Auto-Negotiation), it can result in CRC errors, late collisions, or a total lack of link. To resolve this manually, the administrator must navigate to the Configuration Utility (GUI) and go to Network > Interfaces.
Within the Interfaces list, the administrator can select the specific physical port (e.g., 1.1 or 1.2) and modify its properties. By default, the media speed is set to "Auto," but the drop-down menu allows for manual selection of specific speeds (e.g., 100Mb/s, 1Gb/s, 10Gb/s) and duplex settings (Full or Half). While these changes can also be made via the TMOS Shell (TMSH) (Option B) using the modify net interface command, the question asks for the standard location, which in most administrative contexts refers to the primary GUI path. System > Configuration (Option D) is used for global device settings like NTP, DNS, and licensing, not for interface-specific physical layer parameters. The Front Console (Option A), referring to the LCD panel on physical appliances, is primarily used for initial management IP setup and viewing system alerts, but does not provide the granular interface configuration required for media speed adjustments.
NEW QUESTION # 36
......
