NEW QUESTION # 51
In the figure, both PC1 and PC2 belong to VLAN 10. Interface GE1/0/1 on SW1 is a trunk interface with the default PVID, and interface GE1/0/2 on SW1 is an access interface in VLAN 10. Which of the following statements are true about the forwarding of data frames between PC1 and PC2? (Select all that apply)
Answer: B,C
Explanation:
When a switch receives an untagged frame from a user host on an access interface , it associates that frame with the VLAN configured on the interface. In this scenario, PC1 and PC2 are in VLAN 10, and GE1/0/2 is an access interface in VLAN 10. After SW1 receives the frame from PC1, it internally associates the frame with VLAN 10 , so option A is correct in the practical VLAN-processing sense used in HCIA-Datacom questions.
When the frame is forwarded out an access interface toward PC2, the switch sends it without a VLAN tag , because end hosts normally do not process 802.1Q tags. Therefore, option D is correct. Option B is incorrect because both hosts are in the same VLAN and can communicate normally; SW1 does not discard the return traffic for that reason. Option C is not correct in the standard VLAN switching model used by Huawei training, because the switch performs forwarding based on VLAN membership and internally processes the frame as belonging to VLAN 10. This question mainly checks understanding of access/trunk behavior and tag handling on ingress and egress.
NEW QUESTION # 52

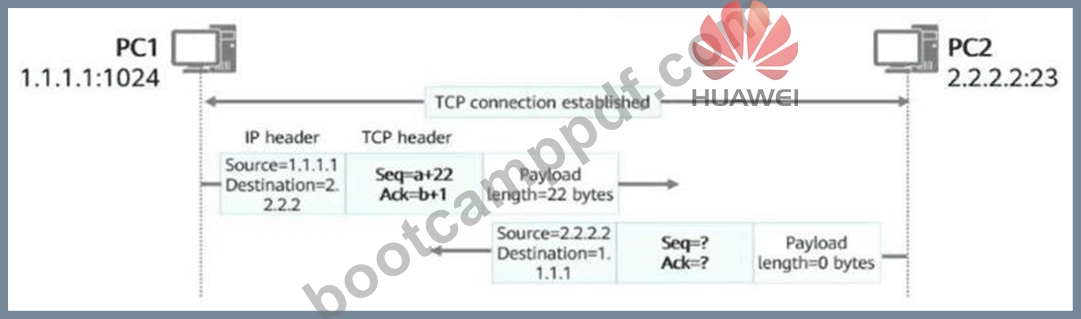

In the figure, a TCP connection has been established between PC1 and PC2. After PC1 sends a data segment to PC2, which of the following is the acknowledgment number in the packet returned by PC2?
Answer: B
Explanation:
In TCP, the acknowledgment number indicates the next byte that the receiver expects to receive. In the figure, PC1 sends a TCP segment to PC2 with sequence number = a+22 and payload length = 22 bytes .
Since TCP sequence numbers count bytes, the last byte carried in this segment corresponds to sequence number a+43 . Therefore, after PC2 successfully receives this data, it sends back an ACK indicating that the next expected byte is a+44 .
That is why option B is correct. This is a standard TCP reliability mechanism. TCP does not acknowledge
"packets" as units; it acknowledges the byte stream. The ACK number always points to the next byte expected from the peer. The source and destination port numbers identify the session, but the sequence and acknowledgment numbers track ordered delivery. HCIA-Datacom uses this mechanism to explain connection- oriented transport, reliable delivery, retransmission, and traffic control. Understanding how the payload length affects sequence progression is essential when analyzing packet captures and troubleshooting TCP communication problems in enterprise networks.
NEW QUESTION # 53
Assume that the IPv6 address of GE0/0/0 on R1 is 2001:db8:12::1/64. Which of the following is the solicited- node multicast address of this IPv6 address?
Answer: C
Explanation:
An IPv6 solicited-node multicast address is automatically derived from the lower 24 bits of a unicast or anycast IPv6 address. The fixed solicited-node prefix is FF02::1:FF00:0/104. The interface address in the question is 2001:db8:12::1. Its final 24 bits are 000001 in hexadecimal representation. Combining those 24 bits with the solicited-node multicast prefix produces FF02::1:FF00:1. This multicast address is used by IPv6 Neighbor Discovery for functions such as address resolution and Duplicate Address Detection, reducing the need to disturb every host on the local link in the way an IPv4 ARP broadcast does. FF02::1 is the all-nodes link-local multicast address and FF02::2 is the all-routers link-local multicast address, so neither represents the solicited-node group for this interface. Option A contains unrelated lower-order bits and does not correspond to the source address. Therefore the derived solicited-node multicast address is FF02::1:FF00:1, making option C correct.
NEW QUESTION # 54
According to the following routing table, it can be inferred that the IP address of VLANIF 2 on R1 is 10.0.12.1/24.
[R1] display ip routing-table
Proto: Protocol Pre: Preference
Route Flags: R - relay, D - download to fib, T - to vpn-instance, B -
black hole route
Routing Table: public
Destinations: 10 Routes : 10
Destination/Mask Proto Pre Cost Flags NextHop Interface
10.0.12.0/24 Direct 0 0 D 10.0.12.1 Vlanif2
10.0.12.1/32 Direct 0 0 D 127.0.0.1 Vlanif2
10.0.12.255/32 Direct 0 0 D 127.0.0.1 Vlanif2
10.0.21.0/24 Direct 0 0 D 10.0.21.1 Vlanif3
10.0.21.1/32 Direct 0 0 D 127.0.0.1 Vlanif3
10.0.21.255/32 Direct 0 0 D 127.0.0.1 Vlanif3
Answer: B
Explanation:
This statement is true. From the routing table, the entry 10.0.12.0/24 Direct ... NextHop 10.0.12.1 Interface Vlanif2 indicates that the network 10.0.12.0/24 is directly connected through Vlanif2, and the local interface address associated with that directly connected network is 10.0.12.1.
This conclusion is further supported by the host route 10.0.12.1/32 Direct ... 127.0.0.1 Vlanif2, which represents the local IP address of the interface itself. On Huawei devices, when an IP address is configured on an interface, the routing table commonly generates a direct route to the connected network, a host route to the interface IP itself, and sometimes a host route to the broadcast address where applicable in IPv4. Therefore, from the displayed entries, it can indeed be inferred that VLANIF 2 has the IP address 10.0.12.1/24. HCIA-Datacom uses these routing- table characteristics to help learners identify connected interfaces, local addresses, and route origins during troubleshooting and route analysis on routers and Layer 3 switches.
NEW QUESTION # 55
With SNMP, an NMS can only display the device running status but cannot deliver configurations.
Answer: B
Explanation:
With SNMP (Simple Network Management Protocol), a Network Management System (NMS) can both monitor device status and configure settings on managed devices using SNMP Set commands.
