| Section | Weight | Objectives |
|---|---|---|
| System Architecture & Design | 20% | - Hardware sizing & resource planning - Security Fabric integration & scaling - FortiOS 7.6 architecture & components - VDOM design & multi-tenant deployment |
| Security Policy & Services | 10% | - Identity-based policies - Advanced firewall & security profile design - NAT & IP pool optimization |
| High Availability & Redundancy | 15% | - Session synchronization & failover - FGCP/FGSP/vCluster deployment - Cross-data center redundancy |
| Advanced Routing & VPN | 25% | - Route redistribution & filtering - OSPF, BGP, IS-IS configuration & optimization - IPsec VPN & ADVPN architecture - SD-WAN design & SLA management |
| Centralized Management | 20% | - Policy packages & object templates - Configuration provisioning & version control - FortiManager 7.6 deployment & role assignment - FortiAnalyzer logging & reporting |
| Monitoring & Troubleshooting | 10% | - Diagnostic tools & CLI analysis - Fabric synchronization issues - Connectivity & performance troubleshooting |
>> NSE7_FSN_AR-7.6 Fragen Und Antworten <<
Während andere Leute in der U-Bahn erstarren, können Sie mit Pad die PDF Version von Fortinet NSE7_FSN_AR-7.6 Prüfungsunterlagen lesen. Während andere im Internet spielen, können Sie mit Online Test Engine der Fortinet NSE7_FSN_AR-7.6 trainieren. Wir glauben, dass so fleißig wie Sie sind, können Sie bestimmt in einer sehr kurzen Zeit die Fortinet NSE7_FSN_AR-7.6 Prüfung bestehen. Während andere noch über Ihre ausgezeichnete Erzeugnisse erstaunen, haben Sie wahrscheinlich ein wunderbare Arbeitsstelle bekommen.
105. Frage

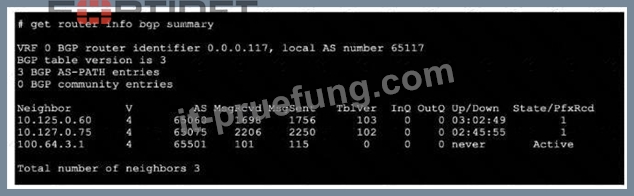

Refer to the exhibit, which shows the output of a BGP debug command.
What can you conclude about the router in this scenario?
Antwort: D
Begründung:
The BGP debug output shows session information for peers, including state details. According to official Fortinet BGP documentation, if the session state with a peer does not show " Idle, " " Active, " or " Connect, " but instead shows " Established, " " Up, " or related counters (e.g., messages sent/received or uptime), it indicates the session is operational. In this scenario, the peer 10.127.0.75 is the only one showing a positive indication of a live, established session. Other options like neighbor-range configuration, AS mismatch, or route-maps blocking prefixes are not supported by evidence provided in a simple BGP session state debug, nor does the output show errors relating to local or remote AS issues.
The correct interpretation comes from Fortinet ' s BGP troubleshooting guide, which outlines how to read session status and neighbor states in debug and summary outputs.
References:
FortiOS BGP Debugging Guide: Session State Interpretation
BGP CLI Reference: Neighbor Status Fields
106. Frage
Exhibit.

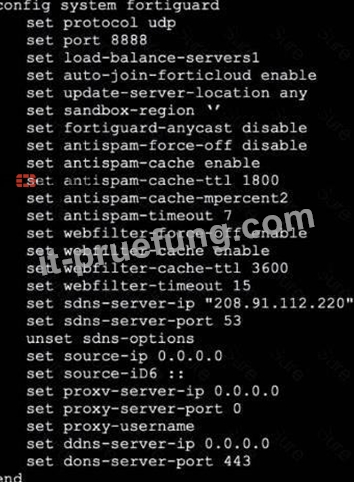

Refer to the exhibit, which shows a FortiGate configuration.
An administrator is troubleshooting a web filter issue on FortiGate. The administrator has configured a web filter profile and applied it to a policy; however the web filter is not inspecting any traffic that is passing through the policy.
What must the administrator do to fix the issue?
Antwort: A
Begründung:
The exhibit shows a FortiGate configuration under config system fortiguard related to web filtering and FortiGuard options. There is a line:
set webfilter-force-off enable
According to official Fortinet documentation, the " webfilter-force-off " option, when enabled, causes the FortiGate to bypass web filtering for all traffic-even if a web filter profile is applied to a policy.
This override is typically used for troubleshooting or performance reasons and is documented as an explicit bypass feature.
If an administrator wants to enforce web filtering inspection, this setting must be disabled. The correct way to restore web filtering functionality is to run:
set webfilter-force-off disable
Once done, traffic passing through policies with web filter profiles will be inspected and filtered as per configuration. Other settings such as timeout or cache TTL do not bypass web filtering; they only affect operational nuances.
Reference:
FortiOS Administration Guide: Web Filtering, FortiGuard Options, "webfilter-force-off" CLI
107. Frage

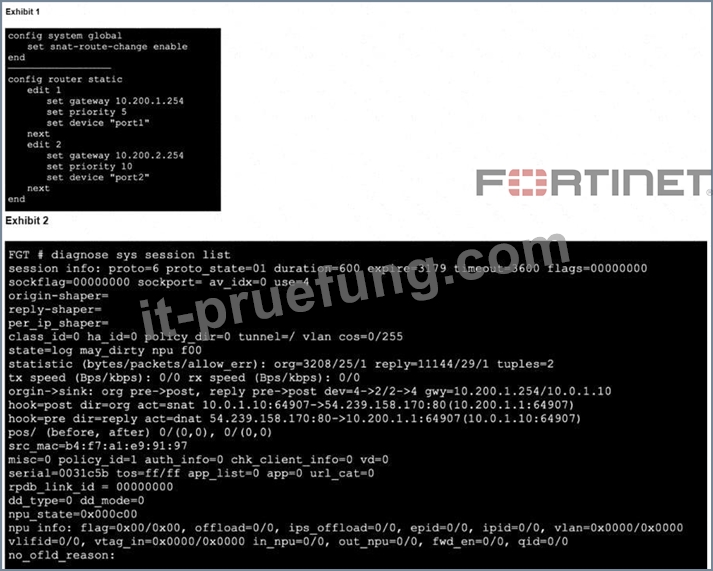

Refer to the exhibits,
which show the configuration on FortiGate and partial session information for internet traffic from a user on the internal network. If the priority on route ID 2 were changed from 10 to 0, what would happen to traffic matching that user session? (Choose one answer)
Antwort: A
Begründung:
The correct answer is A. This behavior is dictated by the configuration command set snat-route-change enable shown in Exhibit 1 under config system global.
Routing Change: By changing the priority of route ID 2 from 10 to 0, it becomes lower than route ID 1 (priority 5). In FortiOS, a lower priority value indicates a more preferred route. Consequently, the active route for the destination changes from port1 to port2.
SNAT Implication: The existing session (shown in Exhibit 2) is using Source NAT (SNAT) with the IP address associated with port1 (10.200.1.1). If the traffic were simply switched to port2, the source IP would be incorrect for that interface and the return traffic would likely fail or be dropped.
snat-route-change enable: This specific setting instructs the FortiGate on how to handle established SNAT sessions when a routing change occurs that alters the preferred outgoing interface. When enabled, if a route change forces an SNAT session to a new interface, FortiGate flushes (deletes) the session from the session table. This is necessary because a live TCP session cannot survive a change in its source IP address. The client must initiate a new session, which will then be created using the new correct route (port2) and the corresponding new SNAT IP.
If this setting were disabled, the session would likely remain " sticky " to the original interface (port1) until it closed, provided the route still existed. However, the explicit configuration forces the deletion.
108. Frage
You configure the overlay tunnels for an SD-WAN hub-and-spoke topology defined with IPsec tunnels, BGP on loopback, and dynamic BGP.
Which two are recommended IPsec settings for this topology? (Choose two answers.)
Antwort: A,C
Begründung:
The SD-WAN 7.6 Enterprise Administrator Study Guide identifies the recommended BGP-on-loopback IPsec settings. For branches, it specifies:
* "Static tunnel type (remote end IP address is known)."
* "net-device enable."
Enabling net-device on the spoke creates a kernel interface for the tunnel. This assists with tunnel monitoring and management and is required to support ADVPN shortcut tunnels. Dynamic BGP establishes on-demand BGP peerings between spokes after an ADVPN shortcut is created; therefore, the spoke must support those dynamic shortcut interfaces. This makes option C correct.
The spoke should also configure localid. The FortiOS 7.6 Administrator Study Guide explains: "Local ID: if the peer accepts a specific peer ID, type that same peer ID in this field." The local ID supplies the spoke's IKE identity to the dial-up hub, allowing the hub to identify and authenticate the connecting spoke correctly.
Therefore, option D is correct.
Option A reverses the recommended roles. The hub must use a dynamic tunnel type because it operates as the dial-up server and does not require every spoke's changing public gateway address in advance.
Option B is also incorrect. The guide states: "There is no need to configure any tunnel IP address, so the IKE Mode Config is not used." BGP on loopback uses the loopback address and exchange-interface-ip instead of IKE mode configuration.
References: SD-WAN 7.6 Enterprise Administrator Study Guide, SD-WAN Overlay Design and Best Practices
, pages 118-119 and 122; FortiOS 7.6 Administrator Study Guide, IPsec VPN - Phase 1 Network Settings , page 375; FortiOS 7.6 - BGP on loopback .
109. Frage
You are checking an enterprise network and see a suspicious packet with the MAC address 00:09:0f:09:18:81.
Which two statements about the suspicious packet are correct? (Choose two.)
Antwort: A,B
Begründung:
Comprehensive and Detailed 100 to 150 words of Explanation From Secure Networking Architect Study Guides topics:
The MAC prefix 00:09:0f:09 identifies FortiGate ' s logic-2 HA virtual-MAC construction. The Enterprise Firewall 7.6 guide states that logic 2 applies when the virtual-cluster ID is 0 or 1, the HA group ID is below
256, and the physical-interface index is below 128.
In 00:09:0f:09:18:81, hexadecimal 18 represents HA group ID 24, confirming that the group ID is below 255 and making D correct. The high bit in the final octet indicates virtual-cluster ID 1; this means virtual clustering
/VDOM functionality is involved, making C correct. The remaining physical-index bits identify index 1, not
2, eliminating A. This virtual-MAC construction belongs to FortiGate Clustering Protocol HA operation and does not establish that the device uses standalone FGSP session synchronization, eliminating B.
