| Section | Weight | Objectives |
|---|---|---|
| Topic 1: Application Design and Build | 20% | - Understand multi-container Pod design patterns (e.g., sidecar, init and others) - Define, build and modify container images - Choose and use the right workload resource (Deployment, DaemonSet, CronJob, etc.) - Utilize persistent and ephemeral volumes |
| Topic 2: Application Deployment | 20% | - Use Kubernetes primitives to implement common deployment strategies (e.g., blue/green or canary) - Understand Deployments and how to perform rolling updates - Kustomize - Use the Helm package manager to deploy existing packages |
| Topic 3: Application Observability and Maintenance | 15% | - Implement probes and health checks - Understand API deprecation policies - Use built-in CLI tools to monitor Kubernetes applications - Utilize container logs - Debugging in Kubernetes |
| Topic 4: Services and Networking | 20% | - Use Ingress rules to expose applications - Provide and troubleshoot access to applications via services - Demonstrate basic understanding of NetworkPolicies |
| Topic 5: Application Environment, Configuration and Security | 25% | - Understand authentication, authorization and admission control - ConfigMaps and Secrets - Discover and use resources that extend Kubernetes (CRD, Operators) - SecurityContexts - Understanding and defining resource requirements, limits and quotas - ServiceAccounts |
Itcertkr 의 Linux Foundation인증 CKAD시험에 도전장을 던지셨나요? 현황에 만족하지 않고 열심히 하는 모습에 박수를 보내드립니다. Linux Foundation인증 CKAD시험을 학원등록하지 않고 많은 공부자료 필요없이Itcertkr 에서 제공해드리는 Linux Foundation인증 CKAD덤프만으로도 가능합니다. 수많은 분들이 검증한Linux Foundation인증 CKAD덤프는 시장에서 가장 최신버전입니다.가격도 친근하구요.
질문 # 98
Refer to Exhibit.

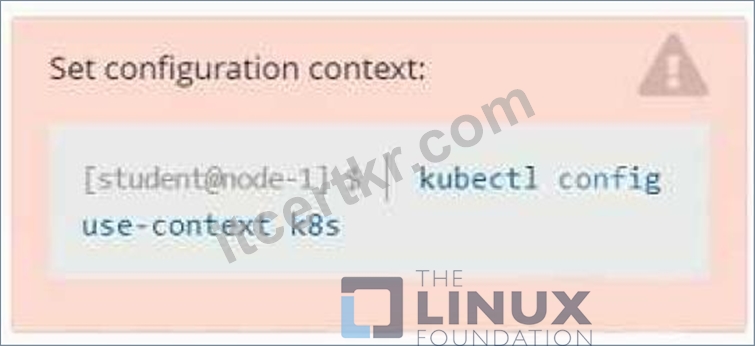

Set Configuration Context:
[student@node-1] $ | kubectl
Config use-context k8s
Context
A container within the poller pod is hard-coded to connect the nginxsvc service on port 90 . As this port changes to 5050 an additional container needs to be added to the poller pod which adapts the container to connect to this new port. This should be realized as an ambassador container within the pod.
Task
* Update the nginxsvc service to serve on port 5050.
* Add an HAproxy container named haproxy bound to port 90 to the poller pod and deploy the enhanced pod. Use the image haproxy and inject the configuration located at /opt/KDMC00101/haproxy.cfg, with a ConfigMap named haproxy-config, mounted into the container so that haproxy.cfg is available at /usr/local/etc/haproxy/haproxy.cfg. Ensure that you update the args of the poller container to connect to localhost instead of nginxsvc so that the connection is correctly proxied to the new service endpoint. You must not modify the port of the endpoint in poller's args . The spec file used to create the initial poller pod is available in /opt/KDMC00101/poller.yaml
정답：
설명：
Solution:
To update the nginxsvc service to serve on port 5050, you will need to edit the service's definition yaml file. You can use the kubectl edit command to edit the service in place.
kubectl edit svc nginxsvc
This will open the service definition yaml file in your default editor. Change the targetPort of the service to 5050 and save the file.
To add an HAproxy container named haproxy bound to port 90 to the poller pod, you will need to edit the pod's definition yaml file located at /opt/KDMC00101/poller.yaml.
You can add a new container to the pod's definition yaml file, with the following configuration:
containers:
- name: haproxy
image: haproxy
ports:
- containerPort: 90
volumeMounts:
- name: haproxy-config
mountPath: /usr/local/etc/haproxy/haproxy.cfg
subPath: haproxy.cfg
args: ["haproxy", "-f", "/usr/local/etc/haproxy/haproxy.cfg"]
This will add the HAproxy container to the pod and configure it to listen on port 90. It will also mount the ConfigMap haproxy-config to the container, so that haproxy.cfg is available at /usr/local/etc/haproxy/haproxy.cfg.
To inject the configuration located at /opt/KDMC00101/haproxy.cfg to the container, you will need to create a ConfigMap using the following command:
kubectl create configmap haproxy-config --from-file=/opt/KDMC00101/haproxy.cfg You will also need to update the args of the poller container so that it connects to localhost instead of nginxsvc. You can do this by editing the pod's definition yaml file and changing the args field to args: ["poller","--host=localhost"].
Once you have made these changes, you can deploy the updated pod to the cluster by running the following command:
kubectl apply -f /opt/KDMC00101/poller.yaml
This will deploy the enhanced pod with the HAproxy container to the cluster. The HAproxy container will listen on port 90 and proxy connections to the nginxsvc service on port 5050. The poller container will connect to localhost instead of nginxsvc, so that the connection is correctly proxied to the new service endpoint.
Please note that, this is a basic example and you may need to tweak the haproxy.cfg file and the args based on your use case.
질문 # 99
You have a Deployment running a container image for a web application. The application's configuration files are currently stored within the image itself. you want to move the configuration files to a ConfigMap so that they can be updated independently or the application image. Describe the steps involved in modifying the Deployment and creating a ConfigMap to achieve this separation.
정답：
설명：
See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :
1. Create a ConfigMap:
- Create a ConfigMap using 'kubectl create configmap' with the configuration files. For example:
kubectl create configmap webapp-config -from-literal=config.json='{"port": 8080, "database_url": "mongodb://localhost27017"}'
- Replace 'config_json' with the name of your configuration file and the JSON content with your actual configuration values.
2. Modify the Deployment:

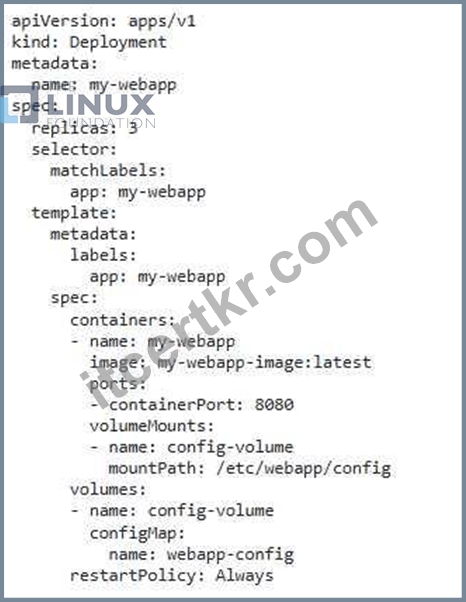

- Modify your Deployment YAML file to mount the ConfigMap as a volume. Here's an example:
- Modify your application code to read configuration files from '/etctwebapp/config' 3. Apply the Changes: - Apply the updated Deployment using 'kubectl apply -f deployment_yamr 4. Verify the Update: - Check the logs of the pods using 'kubectl logs -f You should see the application loading configuration values from the ConfigMap. 5. Update the Configuration: - You can now update the configuration files within the ConfigMap without rebuilding the image. For example.
- This will update the ConfigMap and trigger a rolling update of the Deployment, effectively updating the application configuration without rebuilding the image.
질문 # 100
You are developing a service that uses a custom configuration file called 'service.properties'. You want to use ConfigMaps to store and manage this file in a secure and efficient manner. The 'service-properties' file contains sensitive information such as database credentials and API keys.
How would you create a ConfigMap that securely stores the 'service-properties' file, ensuring that the file is accessible only to the service's container?
정답：
설명：
See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :
1. Create a Secret for Sensitive Data:
- Create a Secret
- Encode the 'service-properties' file: bash echo "your-database-username=your-database-username" > service-properties echo "your-database-password=your-database-password" >> service-properties echo 'Your-api-key=your-api-key" >> service.properties base64 -w 0 service.properties - Replace with the output from the base64 command. 2. Create the ConfigMap for the File:
3. Apply the Secret and ConfigMap: bash kubectl apply -f service-secrets-yaml kubectl apply -f service-config.yaml 4. Update the Deployment to use the ConfigMap and Secret
5. Apply the updated Deployment: bash kubectl apply -f my-service-deployment-yaml 6. Access the File in the Container. - Mount the ConfigMap and Secret: - The ConfigMap mounts the 'service.properties' file as a placeholder. - The Secret mounts the actual 'service.properties' file securely. - Access the File: - The container should access the 'service.properties' file from '/var/secrets/service/service.properties' This approach uses a Secret to store sensitive data and a ConfigMap to mount the file securely within the container. The container will have access to the 'service-properties' file, but the actual data is stored in the Secret, ensuring its confidentiality'.
질문 # 101
You are deploying a web application with a separate database container. You need to implement a proxy container that handles requests from the web server and forwards them to the database container. The proxy container should also log all incoming requests to a dedicated log file within the Pod.
정답：
설명：
See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :

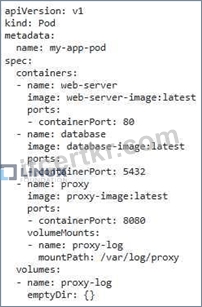

1. Define the Pod YAML: Create a Pod YAML file that includes the web server, database, and proxy containers.
2. Configure the Proxy Container: Choose a suitable proxy container image (e.g., Nginx, HAProxy) and configure it to forward requests from port 8080 to the database container on port 5432 3. Implement Logging: Configure the proxy container to log incoming requests to the '/var/log/proxy' directory. You can use the proxy container's built- in logging facilities or install a separate logging agent within the container. 4. Deploy the Pod: Apply the Pod YAML using ' kubectl apply -f my-app-pod_yaml' 5. Verify Functionality: Access the web server container on port 80 and ensure requests are forwarded to the database container Check the log file ' Ivar/log/proxys to verify that requests are being logged. Note: This solution demonstrates using a proxy container to manage communication between different containers within a Pod. You can customize the proxy's configuration based on your specific application's requirements.,
질문 # 102
You are building a Kubernetes application that involves a microservice architecture with multiple pods for each service. One of your services requires a sidecar container to handle logging and monitoring. How would you design the pod structure and define the relationships between the application container and the sidecar container?
정답：
설명：
See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :
1. Define Pod Specification:
- Create a pod definition file (e.g., 'pod.yaml').
- Include the 'apiVersion', 'kind', 'metadata' (name, labels), and 'spec' sections.
2. Define Application Container:
- Within the 'spec.containerS section, define the primary application container:
- 'name': Provide a descriptive name for the application container (e.g., 'app').
- Simage: Specify the Docker image for the application.
- 'ports': Define any ports that the application exposes.
- 'resources': (Optional) Specify resource requests and limits for the application container.
3. Define Sidecar Container.
- Add another container definition within the 'spec-containers' section for the sidecar:
- 'name': Provide a name for the sidecar container (e.g., Slogger').
- 'image': Specify the Docker image for the sidecar container (e.g., "busybox'
- 'command': Define the command to run within the sidecar. This might involve using a logging agent, monitoring tool, or any other custom script.
- 'volumeMountss: (Optional) If the sidecar needs access to shared data, mount volumes here.
4. Define Shared Volumes (Optional):
- If necessary, create a 'spec-volumes' section to define any shared volumes that both containers can access. This might include:
- 'emptyDir': For temporary data that only exists within the pod.
- 'persistentVolumeClaim': To use a persistent volume claim for shared data that persists beyond pod restarts.
5. Configure Container Relationships:
- Ensure that the 'name' of the application container and sidecar container is the same as the 'name' used in the 'volumeMounts' section.

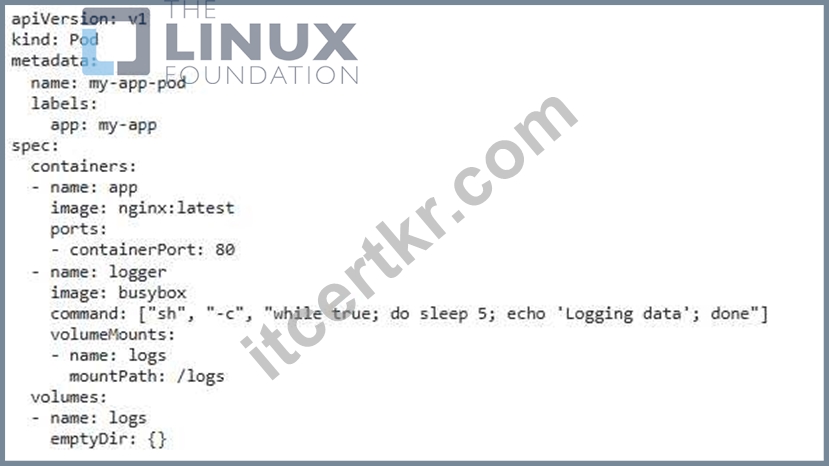

Example YAML:
- The pod named 'my-app-pod' includes two containers: 'app' (the primary application) and 'logger' (the sidecar). - The 'loggers container uses a 'command' to simulate logging activity. - Both containers can access the 'logs' volume, which is an empty directory. Important Note: - The sidecar container should ideally be configured to interact with the application container. This might involve using shared volumes, environment variables, or inter-process communication mecnanisms to facilitate data exchange or Signal passing. - Remember to adapt the example to your specific application requirements, choosing the appropriate container images, commands, and volumes.]
