| Section | Weight | Objectives |
|---|---|---|
| Central Management & Deployment | 25% | - FortiSwitch management via FortiManager over FortiLink - VLAN, port, trunk configuration and policy enforcement - FortiAP and FortiExtender management - Zero-touch provisioning and device onboarding |
| Zero-Trust LAN Access | 30% | - NAC policies for wired and wireless networks - Guest portal and secure access deployment - FortiLink NAC, dynamic VLAN, VLAN pooling - Machine authentication, MAC Authentication Bypass |
| Authentication | 25% | - FortiAuthenticator configuration: syslog, RADIUS Single Sign-On (RSSO) - Two-factor authentication (2FA) and digital certificates - Advanced authentication with RADIUS and LDAP |
| Monitoring & Troubleshooting | 20% | - Quarantine and security enforcement - Wireless connectivity and performance monitoring - Troubleshooting FortiSwitch, FortiAP, FortiGate integration - FortiAIOps and analytics tools usage |
>> FCSS_LED_AR-7.6 Valid Exam Questions <<
After our unremitting efforts, FCSS_LED_AR-7.6 learning guide comes in everybody's expectation. Our professional experts not only have simplified the content and grasp the key points for our customers, but also recompiled the FCSS_LED_AR-7.6 preparation materials into simple language so that all of our customers can understand easily no matter which countries they are from. In such a way, you will get a leisure study experience as well as a doomed success on your coming FCSS_LED_AR-7.6 Exam.
NEW QUESTION # 52
Refer to the exhibits.

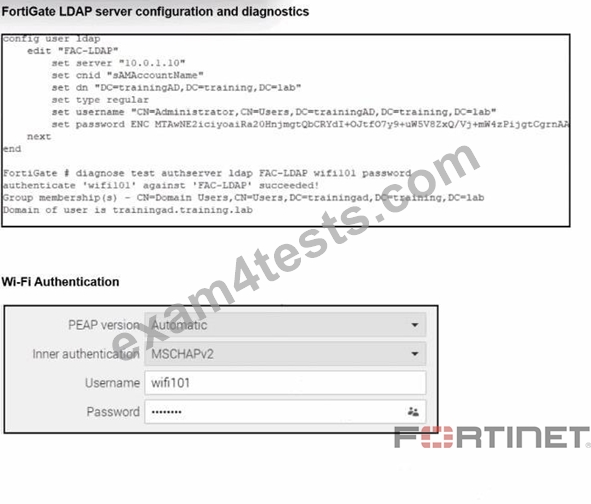

An LDAP server has been successfully configured on FortiGate. which forwards LDAP authentication requests to a Windows Active Directory (AD) server. Wireless users report that they are unable to authenticate. Upon troubleshooting, you find that authentication fails when using MSCHAPv2.
What is the most likely reason for this issue?
Answer: B
Explanation:
From the exhibit, LDAP on FortiGate is correctly configured and tested:
diagnose test authserver ldap FAC-LDAP wifi101 password
authenticate 'wifi101' against 'FAC-LDAP' succeeded!
Group membership(s) - CN=Domain Users,...
So:
* LDAP connectivity works
* Bind DN, DN, CNID, and credentials are correct(so optionCis eliminated).
* Firewall policies do not affect the802.1X / Wi-Fi authentication stepitself, soAis not the root cause.
* Nothing in the scenario indicates that AD is enforcing LDAPS-only; the LDAP test already succeeds using the configured parameters, soBis also excluded.
The Wi-Fi supplicant is configured forPEAP with inner authentication = MSCHAPv2.
MSCHAPv2 is achallenge-response mechanism designed for RADIUS, not for LDAP simple bind.
FortiGate's LDAP implementation uses asimple bind (username/password) over LDAP or LDAPS, and it doesnotimplement MSCHAPv2 against LDAP backends.
In Fortinet's design, if you needPEAP-MSCHAPv2 with Active Directory, you must use:
* ARADIUS server(such as Windows NPS or FortiAuthenticator), and
* Have FortiGate use RADIUS,notLDAP, as the authentication backend for 802.1X / Wi-Fi users.
Because FortiGate cannot process MSCHAPv2 exchanges directly against an LDAP server, authentication fails when the inner method is MSCHAPv2, even though LDAP works when tested with a simple bind from the CLI.
NEW QUESTION # 53
Refer to the exhibits.

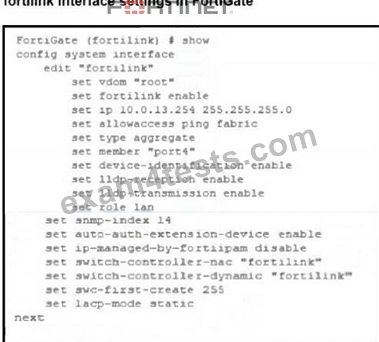

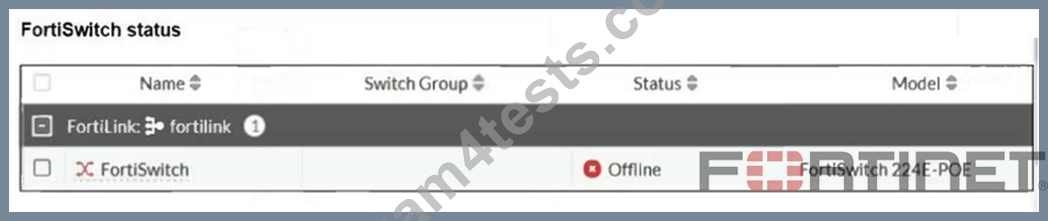

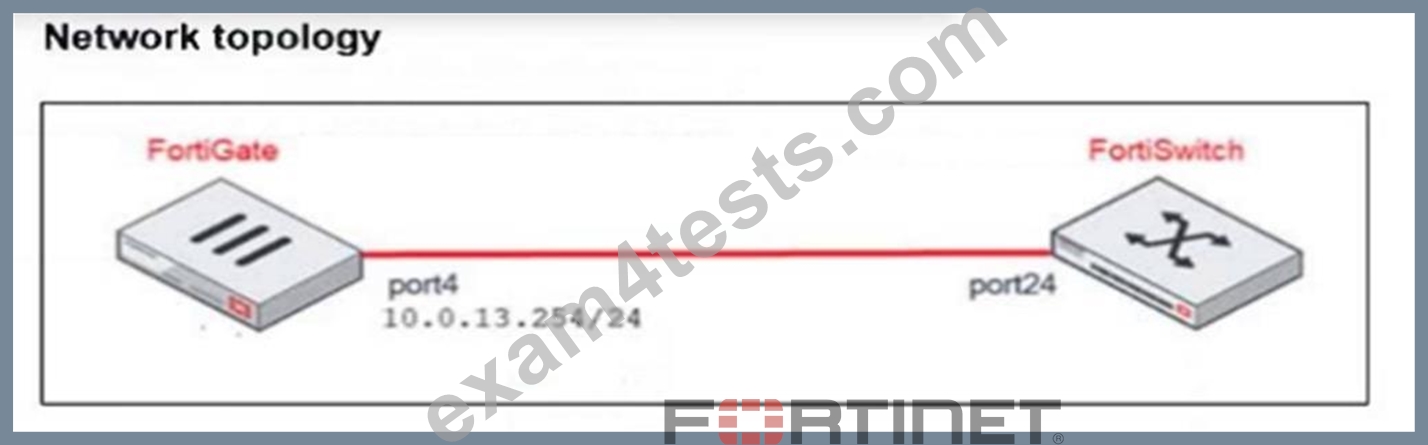

You are adding a new FortiSwitch to FortiGate for management. All necessary settings have been configured on FortiGate, but FortiSwitch remains offline. The cabling has been verified and is correctly connected.
Which misconfiguration might be preventing FortiGate from detecting FortiSwitch?
Answer: A
Explanation:
On FortiLink, FortiGate's built-in DHCP server is what gives FortiSwitch its IP so it can come under management. For automatic FortiSwitch onboarding, the DHCP server is usually set with:
set vci-match enable
set vci-string "FortiSwitch" "FortiExtender"

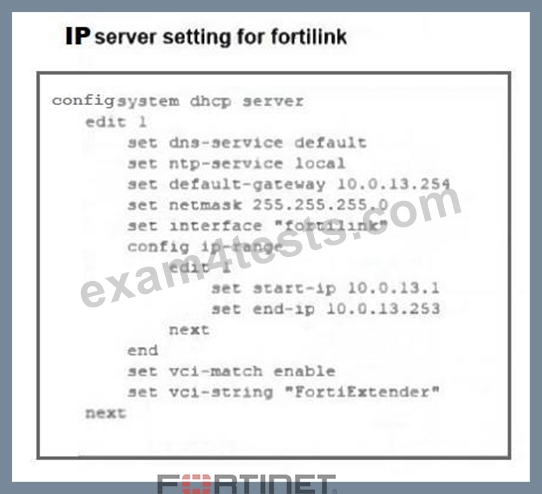

In the exhibit, the DHCP server for fortilink has:
set vci-match enable
set vci-string "FortiExtender"
Because theVCI string doesn't include "FortiSwitch", DHCP offers are only sent to clients whose Vendor Class Identifier matchesFortiExtender. The FortiSwitch never receives an IP, so it staysOffline.
NEW QUESTION # 54
What is the purpose of FortiAIOps monitoring and automatically adjusting to changes in the radio frequency (RF) environment?
Answer: D
Explanation:
FortiAIOps continuously monitors the RF environment (e.g., noise, interference, congestion) and automatically adjusts radio settings like channel selection and transmit power. This ensures optimal wireless coverage, minimizes interference, and maintains high performance for clients.
NEW QUESTION # 55
Refer to the exhibit.

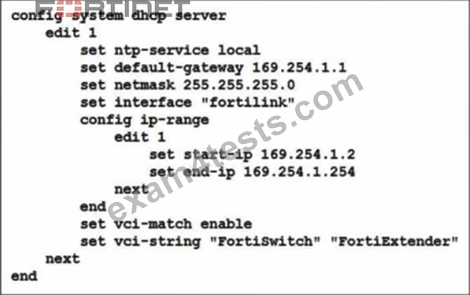

You've configured the FortiLink interface, and the DHCP server is enabled by default. The resulting DHCP server settings are shown in the exhibit.
What is the role of the vci-string setting in this configuration?
Answer: B
Explanation:
The vci-match setting enforces that only DHCP requests containing a matching Vendor Class Identifier (VCI) string are processed. By specifying FortiSwitch and FortiExtender as allowed VCI strings, only those devices will receive IP addresses, while all others are denied.
NEW QUESTION # 56
Refer to the exhibits.
The exhibits show the VAP configuration. Wi-Fi SSIDs. and zone table.
Which two statements describe how FortiGate handles VLAN assignment for wireless clients? (Choose two.)
Answer: B,D
Explanation:

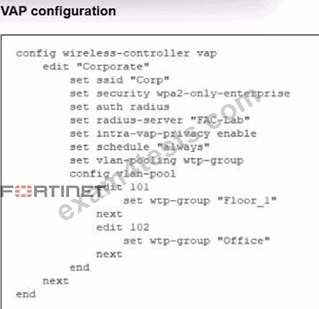

The VAP configuration clearly showsVLAN pooling using WTP-groups:
set vlan-pooling wtp-group
config vlan-pool
edit 101
set wtp-group "Floor_1"
edit 102
set wtp-group "Office"
How VLAN assignment works in this mode
VLAN-pooling with wtp-group modemeans:
* Each AP group (WTP group) is tied to exactly one VLAN in the pool.
* The FortiGate doesnot load balanceVLANs.
* Instead, VLANs are mappedper AP group, not per client.
Now verify each answer option:
A). FortiGate will load balance clients using VLAN 101 and 102...
#Incorrect.
FortiGatedoes NOT load-balance clientswhen vlan-pooling is set towtp-group.
Each AP group receivesonly the VLAN mapped to it.
B). All clients in the Corp zone get IPs from 10.0.20.0/24
#Incorrect.

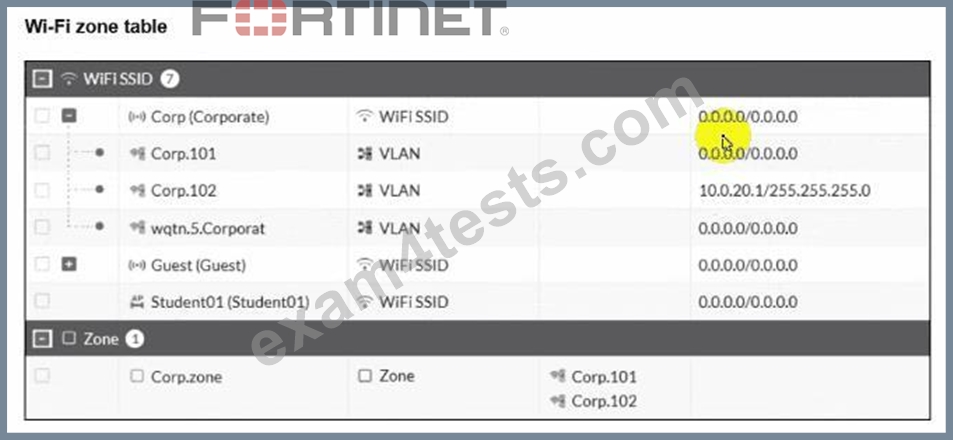

In the Wi-Fi zone table, onlyCorp.102has an IP subnet:
* Corp.101 #0.0.0.0/0.0.0.0(no IP assigned # clients get no DHCP)
* Corp.102 #10.0.20.1/255.255.255.0
Thus, clients associated to VLAN 101cannotget IPs.
C). Clients connecting to APs in the Floor_1 group cannot receive an IP address
#Correct.
Reason:
* Floor_1 WTP-group # VLAN101
* VLAN 101 hasno IPin the Wi-Fi table #0.0.0.0/0.0.0.0
* No DHCP =Clients receive no IP address
D). Clients connecting to APs in the Office group will be assigned to VLAN 102
#Correct.
Reason:
* Office WTP-group maps to VLAN102
* VLAN 102 has subnet10.0.20.0/24
* So Office group clients get an IP in that range
NEW QUESTION # 57
......
