NEW QUESTION # 28

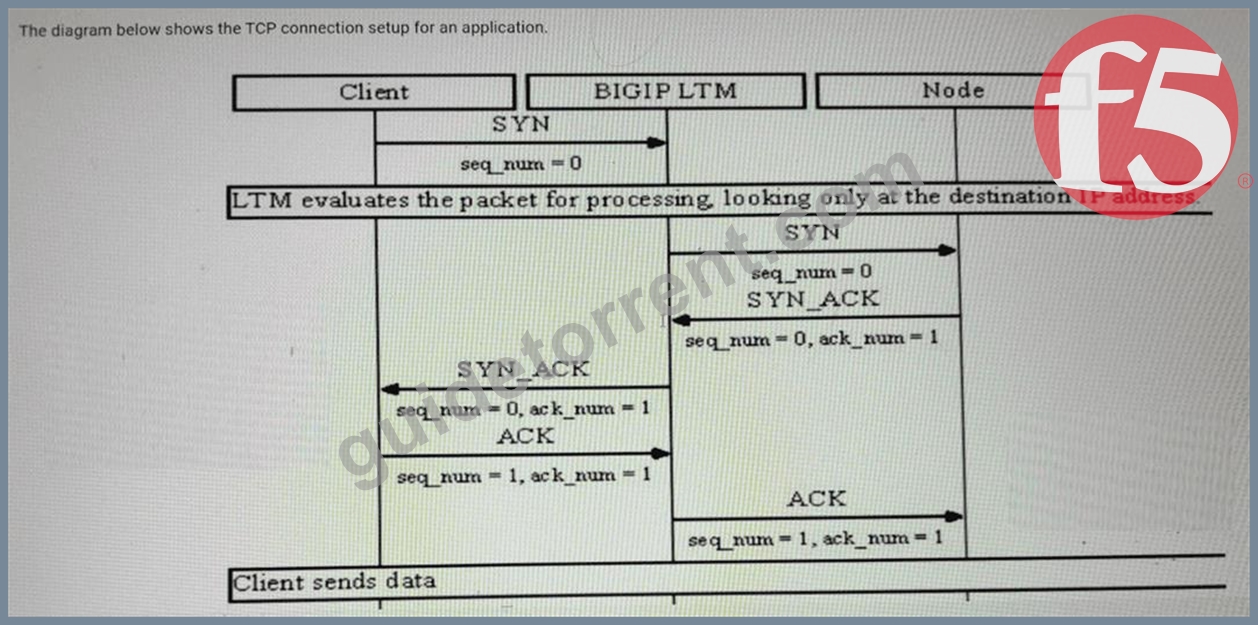

The diagram below shows the TCP connection setup for an application.
Which of the following virtual server types applies? (Choose one answer)
Answer: C
Explanation:
Comprehensive and Detailed Explanation From BIG-IP Administration Data Plane Concepts documents:
The diagram illustrates a specific TCP handshake sequence where the BIG-IP system acts as a transparent forwarder rather than a full proxy. The key indicators that identify this as a Forwarding (IP) virtual server are as follows:
Initial Packet Processing: The diagram explicitly states that the LTM evaluates the packet looking only at the destination IP address. This is the fundamental characteristic of a Forwarding IP virtual server, which uses the system's routing table to make forwarding decisions instead of load balancing to a pool of members.
Handshake Sequence: Unlike a Standard virtual server, which completes the three-way handshake with the client (SYN, SYN-ACK, ACK) before initiating a separate connection to the server, the Forwarding IP virtual server passes the client's original SYN packet directly to the destination node.
Response Timing: The BIG-IP system waits for the SYN-ACK from the destination node before it sends a SYN-ACK back to the client. It essentially "passes through" the handshake signals while still maintaining a state entry in the connection table to track the flow.
Packet-by-Packet Logic: While it tracks the state, it does not perform address translation (unless SNAT is specifically configured) or deep packet inspection like a full proxy would.
Why other options are incorrect:
Standard virtual server: A Standard virtual server is a "full proxy." It would finish the handshake with the client first and only then open a second, independent TCP connection to the backend server.
Stateless virtual server: A stateless virtual server does not track connections in the connection table. The diagram shows the system meticulously passing sequence numbers ($seq\_num$) and acknowledgment numbers ($ack\_num$) between the two sides, which requires stateful tracking of the TCP flow.
NEW QUESTION # 29
Refer to the exhibit.
The network team creates a new VLAN on the switches. The BIG-IP Administrator creates a new VLAN and a Self IP on the BIG-IP device, but theservers on the new VLAN are NOT reachablefrom the BIG-IP device.
Which action should the BIG-IP Administrator take to resolve this issue? (Choose one answer)
Answer: D
Explanation:
For BIG-IP to send or receive traffic on a VLAN, that VLANmust be bound to a physical interface or a trunk. Creating a VLAN object and a Self IP alone isnot sufficientto establish data-plane connectivity.
From the exhibit:
* The VLAN (vlan_1033) exists and has a tag defined.
* A Self IP is configured and associated with the VLAN.
* However, traffic cannot reach servers on that VLAN.
This indicates aLayer 2 connectivity issue, not a Layer 3 or HA issue.
Whyassigning a physical interfacefixes the problem:
* BIG-IP VLANs do not carry traffic unless they are explicitly attached to:
* Aphysical interface(e.g., 1.1), or
* Atrunk
* Without an interface assignment, the VLAN is effectively isolated and cannot transmit or receive frames, making servers unreachable regardless of correct IP addressing.
Why the other options are incorrect:
* A. Set Port Lockdown to Allow AllPort Lockdown controls which services can be accessedon the Self IP(management-plane access), not whether BIG-IP can reach servers on that VLAN.
* B. Change Auto Last Hop to enabledAuto Last Hop affects return traffic routing for asymmetric paths. It does not fix missing Layer 2 connectivity.
* D. Create a Floating Self IP addressFloating Self IPs are used for HA failover. They do not resolve reachability issues on a single device when the VLAN itself is not connected to an interface.
Conclusion:
The servers are unreachable because the VLAN hasno physical interface assigned. To restore connectivity, the BIG-IP Administrator mustassign a physical interface (or trunk) to the VLAN, enabling Layer 2 traffic flow.
NEW QUESTION # 30
Which virtual server type is being configured in the screenshot? (Choose one answer.)
Answer: C
Explanation:
Comprehensive and Detailed Explanation (BIG-IP Administration - Data Plane Concepts):
The configuration shown matches a Performance Layer 4 virtual server because it is explicitly using a FastL4 profile:
The screenshot shows Protocol: TCP and Protocol Profile (Client): fastL4.
In BIG-IP data plane terms, FastL4 is the hallmark of a Performance (Layer 4) virtual server, designed to process connections at Layer 4 with minimal overhead (high throughput/low latency) compared to full proxy L7 processing.
The screenshot also shows HTTP Profile (Client): None (and HTTP server profile effectively not in use).
A Standard virtual server commonly uses full-proxy features and frequently includes L7 profiles (like HTTP) when doing HTTP-aware load balancing, header manipulation, cookie persistence, etc. In contrast, a Performance L4 virtual server typically does not use an HTTP profile because it is not doing HTTP-aware (Layer 7) processing.
It is not a Forwarding IP virtual server:
A Forwarding (IP) virtual server is used to route/forward packets (often without load balancing to pool members in the same way as Standard/Performance VS) and is selected by choosing a forwarding type. The presence of a TCP protocol with a FastL4 client profile aligns with a Layer 4 load-balancing style virtual server, not a packet-forwarding virtual server type.
Conclusion: Because the configuration is TCP-based and explicitly uses fastL4 with no HTTP profile, the expected BIG-IP virtual server type is Performance Layer 4 (Option C).
NEW QUESTION # 31
A BIG-IP system receives a client connection destined to 1.0.0.10:8080. Multiple virtual servers are configured on the system. Which virtual server will process the connection? (Choose one answer)
Answer: A
Explanation:
Comprehensive and Detailed Explanation From BIG-IP Administration Data Plane Concepts documents:
BIG-IP uses a virtual server matching and precedence algorithm to determine which virtual server processes an incoming connection. This decision is made entirely in the data plane and is based on how specifically a virtual server matches the destination IP address and port.
BIG-IP Virtual Server Selection Rules (Simplified):
When multiple virtual servers could match a packet, BIG-IP selects the most specific match, using the following precedence:
Exact IP address and exact port
Exact IP address with wildcard port (port 0 / any)
Wildcard IP address with exact port
Wildcard IP address and wildcard port
Applying the Rules to This Scenario:
Incoming traffic destination: 1.0.0.10:8080
Option C: 1.0.0.10:8080
Exact IP match
Exact port match
Highest possible specificity
If the virtual server is available (green), it wins the match
Option B: 1.0.0.10:any
Exact IP match, but wildcard port
Lower priority than an exact IP + exact port match
Option D: 0.0.0.0:8080
Wildcard IP, exact port
Lower priority than an exact IP match
Option A: 0.0.0.0:any
Wildcard IP and wildcard port
Lowest priority, used only if no more specific virtual server exists
Final Determination:
Because a virtual server configured with destination 1.0.0.10:8080 exactly matches both the IP address and port of the incoming connection-and is available-it will always be selected to process the traffic.
Key Data Plane Concept Reinforced:
BIG-IP always processes traffic using the most specific matching virtual server. Exact destination IP and port matches take precedence over any wildcard or forwarding virtual server definitions.
NEW QUESTION # 32
Which virtual server type is being configured in the screenshot? (Choose one answer.)
Answer: C
Explanation:
The configuration shown matches a Performance Layer 4 virtual server because it is explicitly using a FastL4 profile:
* The screenshot shows Protocol: TCP and Protocol Profile (Client): fastL4.In BIG-IP data plane terms, FastL4 is the hallmark of a Performance (Layer 4) virtual server, designed to process connections at Layer 4 with minimal overhead (high throughput/low latency) compared to full proxy L7 processing.
* The screenshot also shows HTTP Profile (Client): None (and HTTP server profile effectively not in use).A Standard virtual server commonly uses full-proxy features and frequently includes L7 profiles (like HTTP) when doing HTTP-aware load balancing, header manipulation, cookie persistence, etc. In contrast, a Performance L4 virtual server typically does not use an HTTP profile because it is not doing HTTP-aware (Layer 7) processing.
* It is not a Forwarding IP virtual server:A Forwarding (IP) virtual server is used to route/forward packets (often without load balancing to pool members in the same way as Standard/Performance VS) and is selected by choosing a forwarding type. The presence of a TCP protocol with a FastL4 client profile aligns with a Layer 4 load-balancing style virtual server, not a packet-forwarding virtual server type.
Conclusion: Because the configuration is TCP-based and explicitly uses fastL4 with no HTTP profile, the expected BIG-IP virtual server type is Performance Layer 4 (Option C).
NEW QUESTION # 33
......
