86. Frage
Refer to the exhibit.
Two routes in the routing monitor are marked as available but are not installed in the forwarding information base (FIB). Which statement correctly explains why the routes have this status? (Choose one answer)
Antwort: D
Begründung:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the Routing Monitor provides a comprehensive view of the Routing Information Base (RIB), which includes all routes learned via static configuration or dynamic protocols (OSPF, BGP, etc.). However, not every route present in the RIB is active for traffic forwarding. The switch must select the " best " path for any given destination to be installed into theForwarding Information Base (FIB).
The provided exhibit shows a routing table with multiple sources for the same destination. Specifically, there is aStaticdefault route ($0.0.0.0/0$) with an administrative distance of 220, and anOSPFdefault route ($0.0.0.0
/0$) with an administrative distance of 110. In FortiSwitchOS routing logic, when multiple routes to the exact same destination exist, the system compares theirAdministrative Distance (AD). The route with the lowest AD is considered the most " preferred " or " trustworthy " .
In this case, the OSPF route ($AD 110$) is more preferred than the Static route ($AD 220$). Consequently, the OSPF route is marked with a green checkmark in theFIBcolumn, while the Static route-despite being " Available " in the RIB-is excluded from the FIB. The same logic applies to the $10.0.100.0/30$ subnet, where theConnectedroute is preferred over the OSPF learned route for the same destination. Therefore, the status reflects standard route selection behavior where less-preferred routes remain in the RIB as backups but are not used for active forwarding.
87. Frage
(Full question statement start from here)
A FortiGate is connected to a pair of FortiSwitch devices.
For redundancy, FortiGate must use uplinks on both switches simultaneouslywithout depending on Spanning Tree Protocol (STP).
Which configuration is required? (Choose one answer)
Antwort: C
Begründung:
In FortiSwitchOS 7.6, achieving link-level redundancy and active-active uplink utilization acrosstwo separate FortiSwitch unitsrequires a technology that operates independently of Spanning Tree Protocol (STP). This requirement is fulfilled byMultichassis Link Aggregation Group (MCLAG).
MCLAG allows two FortiSwitch devices to operate as alogical aggregation peer, presenting themselves as a single logical switch to an upstream device such as a FortiGate. With MCLAG, FortiGate can form a single LACP-based aggregated interfacethat spans both FortiSwitches. This enablessimultaneous use of uplinks on both switches, providing full bandwidth utilization and redundancy without blocking links, which is a fundamental limitation of STP-based designs.
According to the FortiSwitchOS 7.6 Administrator Guide, MCLAG synchronizes control-plane information between the two FortiSwitch peers using inter-switch links (ISLs) and dedicated keepalive mechanisms. This ensures consistent forwarding behavior and loop-free topology while allowing all member links to remain active. If one FortiSwitch fails, traffic continues to flow through the remaining switch with minimal disruption.
The other options do not meet the stated requirement. A standard LAG (Option D) operates only within a single switchand cannot span multiple FortiSwitch units. Multi-tier topology (Option A) and full mesh HA (Option C) describe architectural layouts or FortiGate HA concepts but do not provide link-level aggregation across switches.
Therefore, the only configuration that allows FortiGate to use uplinks on both FortiSwitches simultaneously without relying on STPisMultichassis Link Aggregation Group (MCLAG), makingOption Bthe correct and fully verified answer.
88. Frage

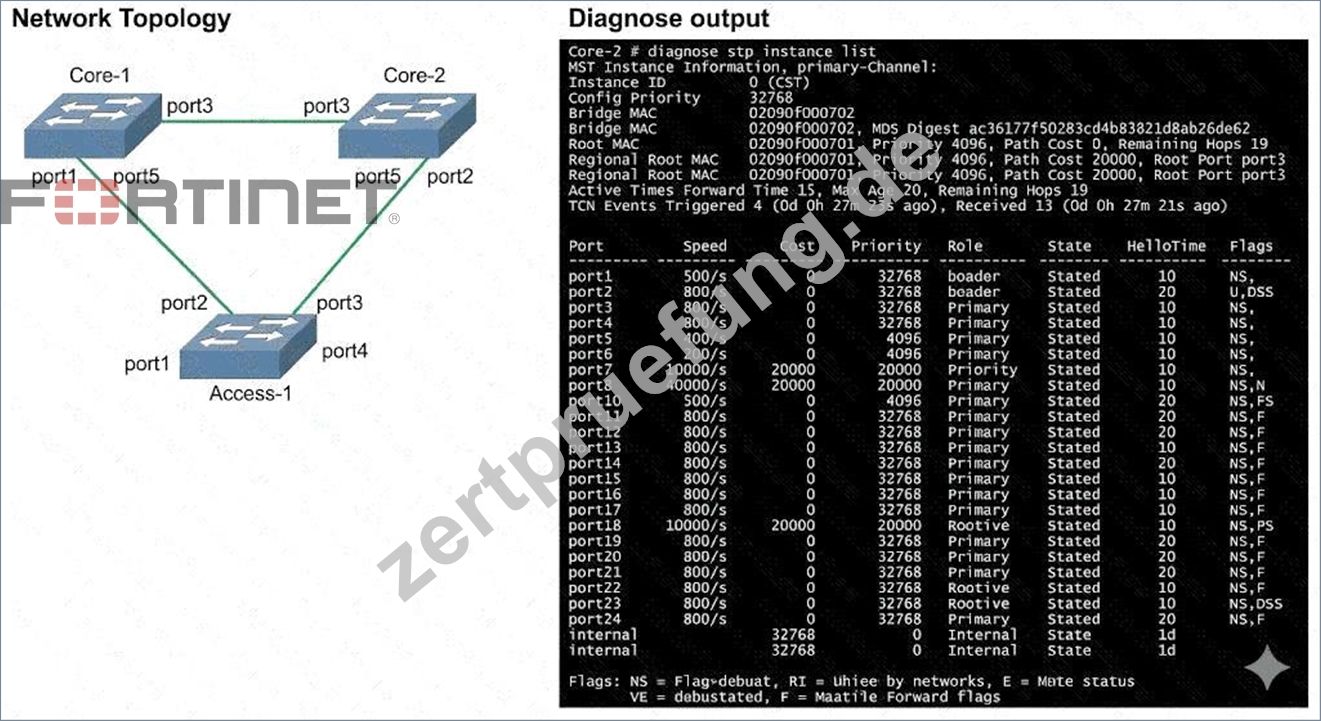

Refer to the exhibits.
Three FortiSwitch devices in standalone mode are interconnected. The CLI command diagnose stp instance list is executed on Core-2. Based on the output shown in the exhibit, what can you conclude about Core-2?
(Choose one answer)
Antwort: B
Begründung:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the output of the diagnose stp instance list command provides critical information about the Spanning Tree Protocol (STP) state of a switch within a given instance. In the provided exhibit, the output forInstance ID 0 (CST)on Core-2shows several key indicators of its role and connectivity within the STP topology.
First, the output explicitly identifies aRootbridge with MAC address 02090f000701 and a priority of 4096.
Core-2 itself has a MAC address of 02090f000702 and a priority of 32768. Because Core-2 knows the MAC address and priority of the Root bridge, it must have received this information viaBridge Protocol Data Units (BPDUs). Furthermore, the port table shows thatport3on Core-2 has been assigned the role ofROOT and is in theFORWARDINGstate. In STP/RSTP, a Root Port is the port on a non-root switch that has the lowest path cost to the root bridge. To elect a Root Port and maintain its state, the switch must continuously receive BPDUs from the root bridge (or a bridge closer to the root) on that port.
Option B is incorrect because Core-2 has aRoot Port, which is only present on non-root bridges. Option C is incorrect because ports 1, 2, 4, 5, and the internal port are all in theFORWARDINGstate. Option D is incorrect as the output does not show any ports in anALTERNATErole; all active ports are either ROOT or DESIGNATED. Therefore, the most accurate conclusion is that Core-2 has successfully received BPDUs to identify the root and determine its own port roles.
89. Frage
Exhibit.
port24 is the only uplink port connected to the network where access to FortiSwitch management services is possible. However, FortiSwitch is still not accessible on the management interface. Which two actions should you take to fix the issue and access FortiSwitch? (Choose two.)
Antwort: A,C
Begründung:
To enable access to the FortiSwitch management interface from the network, certain configuration adjustments need to be made, particularly considering the VLAN settings displayed in the exhibit:
* Adding port24 native VLAN to the allowed VLANs on internal (Option A): The management VLAN (VLAN 4094 in this case, as it is set as the native VLAN on the 'internal' interface of the FortiSwitch) must be included in the allowed VLANs on the interface that provides management connectivity. Since port24 is set with a different native VLAN (VLAN 100), VLAN 4094 (the management VLAN) should be allowed through to ensure connectivity.
* Allow VLAN ID 4094 on port24 if management traffic is tagged (Option C): Management traffic is tagged on VLAN 4094. Since port24 is connected to the network and serves as an uplink, allowing VLAN 4094 ensures that management traffic can reach the management interface of the FortiSwitch through this port.
The changes align with Fortinet's best practices for setting up management VLANs and ensuring they are permitted on the relevant switch ports for proper management traffic flow.
References:
FortiGate Infrastructure and Security 7.2 Study Guides
Best practices for VLAN configurations in Fortinet's technical documentation
90. Frage

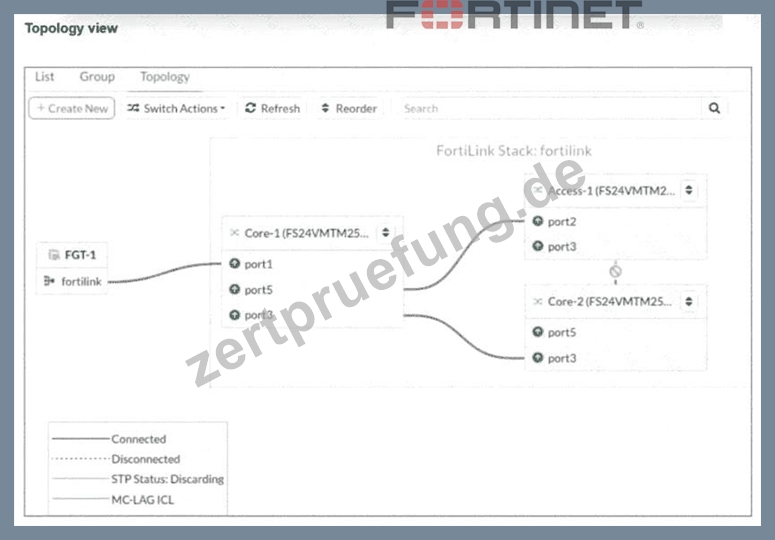

Refer to the exhibit.
You just connected three FortiSwitch devices:Core-1,Core-2, andAccess-1. Core-1 and Core-2 both connect to Access-1 for redundancy. All switches are managed by FortiGate, which uses port4 as the FortiLink interface. After you enable the uplink ports on Core-2, you notice that port3 on Access-1 enters the Discarding STP state. What is the most likely cause of this behavior? (Choose one answer)
Antwort: D
Begründung:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink 7.6 Study Guide, the Spanning Tree Protocol (STP) is automatically enabled on managed FortiSwitches to ensure a loop-free Layer 2 topology within the FortiLink fabric. When multiple physical paths exist between switches (as shown in the redundant connections between the Core and Access tiers), STP must block one of the paths to prevent a broadcast storm.
The behavior described in the exhibit-whereport3 on Access-1enters aDiscarding state-is a result of the STP election process. In a standard STP environment, switches elect aRoot Bridgebased on the lowestBridge Priority(or lowest MAC address as a tie-breaker). Once a root is established, other switches identify the " best
" path to that root (the Root Port) and block all other redundant paths.
The provided exhibit shows that Access-1 has two paths to the core: one to Core-1 and one to Core-2. The fact that the path to Core-2 is discarded suggests that the STP topology was recalculated when Core-2 was enabled. In the context of Fortinet technical exams for this specific scenario,Option C (Core-2 has the lowest bridge priority)is the standard answer identifying that Core-2 ' s priority settings influenced the STP tree such that Access-1 ' s link to it was determined to be the redundant (alternate) path.
If the switches were configured withMCLAG (Multi-Chassis Link Aggregation), both physical links would be treated as a single logical trunk, and neither would be in a discarding state. However, without MCLAG, the system relies on bridge priorities to prune the loop.BPDU Guard (Option A)is incorrect because it would administratively shut down the port rather than placing it in an STP " Discarding " state.Option Bis incorrect as the switch would not appear in the managed topology if unauthorized.
