Are you aiming to ace the VMware 3V0-23.25 exam on your first attempt? Look no further! Pass4Success provides updated Advanced VMware Cloud Foundation 9.0 Storage (3V0-23.25) exam questions that will help you succeed. In today's competitive job market, obtaining the VMware 3V0-23.25 Certification is essential for securing high-paying jobs and promotions. Don't waste your time and money studying outdated 3V0-23.25 practice test material. Prepare with actual 3V0-23.25 questions to save time and achieve success.
| Section | Weight | Objectives |
|---|---|---|
| Storage Architecture and Design | 25% | - Design vSAN storage solutions for VMware Cloud Foundation - Integrate external storage arrays with VMware Cloud Foundation - Plan for storage capacity, performance, and availability requirements |
| Storage Optimization and Troubleshooting | 25% | - Troubleshoot common storage issues in VMware Cloud Foundation - Perform health checks and implement remediation - Monitor and optimize storage performance and capacity |
| Integration and Automation | 20% | - Use APIs and command-line tools for storage management - Automate storage provisioning and management tasks - Integrate storage components with other VMware Cloud Foundation services |
| Storage Configuration and Management | 30% | - Implement and manage storage policies - Configure and manage vSAN in a VMware Cloud Foundation environment - Manage data services (deduplication, compression, encryption) |
>> Exam 3V0-23.25 Questions Answers <<
If you want to clear VMware real exams but doubt to us, you can download the free demo of 3V0-23.25 dumps pdf to check. We will provide the one-year free update once you purchase our 3V0-23.25 Practice Questions. I will give you my support if you have any problems and doubts when you learn the Professional Level Exams study materials.
NEW QUESTION # 64
An administrator is responsible for managing a VMware Cloud Foundation (VCF) Private Cloud.
The following information has been provided about the environment:
* There are 3 customer datacenters, Site A, Site B and Site C.
* The datacenter at Site A runs all Production Services.
* The datacenter at Site B has reached capacity and there is no space for additional physical hardware.
* The datacenter at Site C has been commissioned to replace Site B, because there is more rack space and power capacity to cater for future demand.

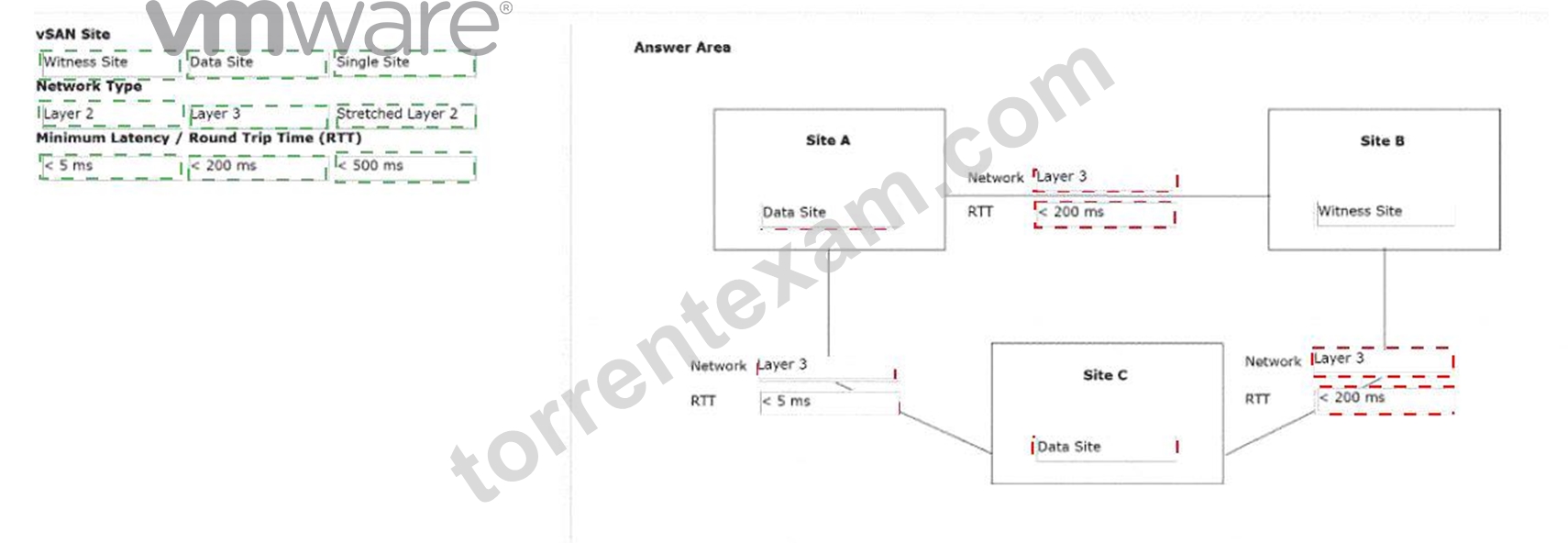

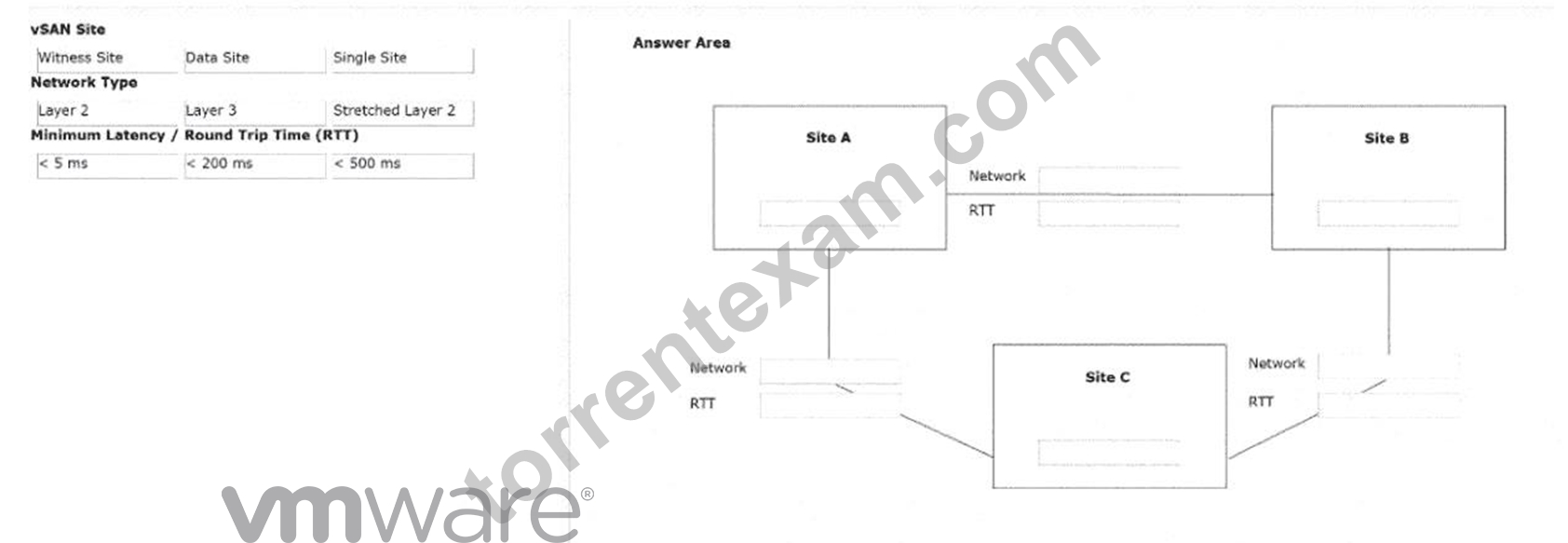

The administrator has been tasked with identifying the networking requirements for a new VMware vSAN Stretched Cluster with the following requirements:
* The solution will deploy a total of 10 new ESX host servers to create a VMware vSAN Stretched Cluster.
* The solution must deploy appropriate networking to ensure minimal disruption from issues with Spanning Tree Protocol (STP).
Drag and drop the correct vSAN Site Type, Networking Type and Round Trip Latency (RTT) within the boxes provided to complete the high-level diagram.
Answer:
Explanation:
Explanation:
Site A = Data Site; Site B = Witness Site; Site C = Data Site; Site A # Site C = Layer 3, RTT < 5 ms; Site A # Site B = Layer 3, RTT < 200 ms; Site B # Site C = Layer 3, RTT < 200 ms Site A and Site C should be the data sites because Site A hosts production services and Site C has been commissioned to replace the capacity-constrained Site B.
Site B should be used as the witness site because it has no space for additional physical hosts, and a vSAN witness appliance does not run workload VMs. A vSAN Stretched Cluster requires two availability zones for data nodes and a third site for the witness appliance. The data-site-to-data-site connection carries synchronous vSAN data traffic and must meet less than 5 ms RTT. The witness site carries metadata traffic only, so the data- site-to-witness links support higher latency, with less than 200 ms RTT for up to 10 hosts per site.
Because the requirement specifically calls out minimizing disruption from STP, Layer 3 is the preferred network type between sites. VMware states that Layer 3 helps avoid STP redirecting traffic across undesirable links, such as constrained witness links. Reference topics: vSAN Stretched Cluster Network Design, Data Site and Witness Site Placement, Layer 3 Recommendation, RTT Requirements.
NEW QUESTION # 65
A VMware Cloud Foundation (VCF) Workload Domain is requested to be deployed with the following information:
* 6 blade style hosts with no local storage beyond the operating system.
* 4 25 Gb networking cards installed in each host.
* A 30 TB external array configured to support NVMe/TCP only.
* 2 dVS switches, one configured for storage isolation and one for all other traffic.
* NVMe/TCP multi-path configuration required.
* Existing Management Domain is deployed with VCF.

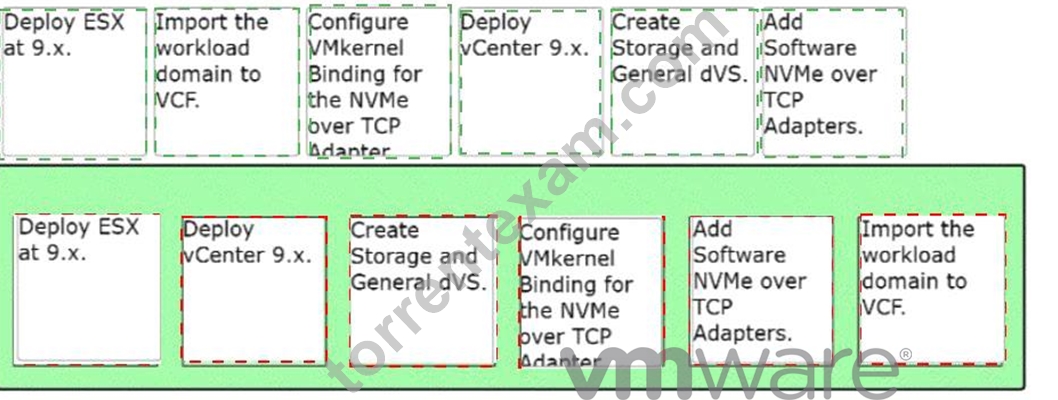

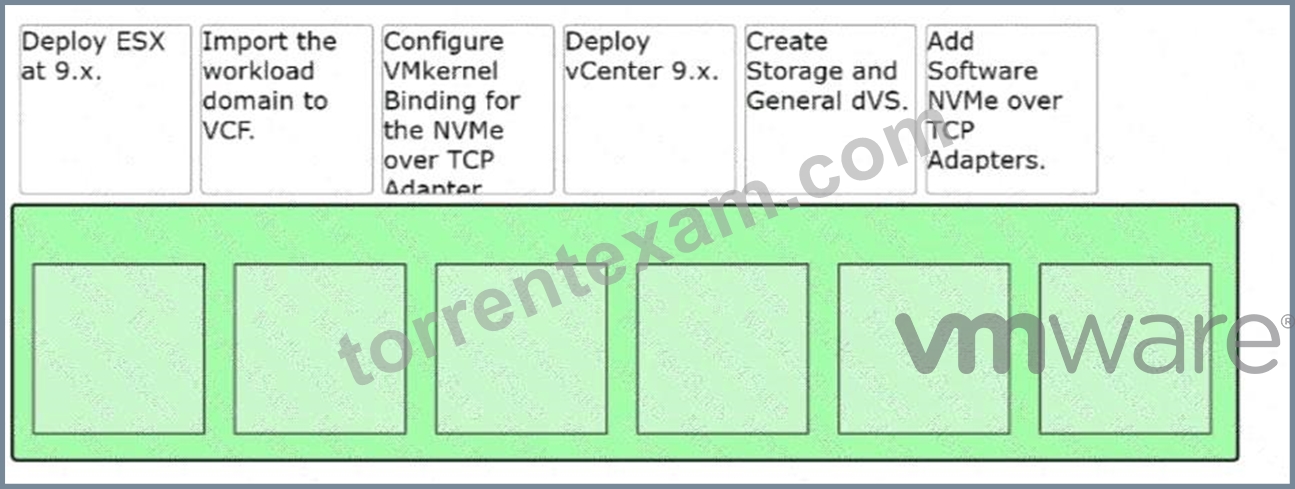

Place the steps for importing VCF on to this configuration.
Answer:
Explanation:
Explanation:
Deploy ESX at 9.x
Deploy vCenter 9.x
Create Storage and General dvS
Configure VMkernel Binding for the NVMe over TCP Adapter
Add Software NVMe over TCP Adapters
Import the workload domain to VCF
The correct sequence starts by preparing the vSphere environment that will later be imported into VMware Cloud Foundation. ESX 9.x must be deployed first on the six blade hosts because the hosts provide the compute foundation for the workload domain. After the hosts are available, vCenter 9.x is deployed to manage the cluster and provide the required vSphere inventory. The two distributed switches are then created: one for storage isolation and one for general host and workload traffic.
Because the external array supports NVMe/TCP only and multipathing is required, VMkernel binding must be configured for the NVMe over TCP adapter before the software NVMe over TCP adapters are added. This ensures the NVMe/TCP storage paths are correctly associated with the intended storage network. After the software NVMe over TCP adapters are created and the hosts can access the external storage, the prepared workload domain can be imported into the existing VCF environment. Reference topics: NVMe over TCP Configuration, VMkernel Binding, Software NVMe/TCP Adapters, Existing vCenter Import, VCF Workload Domain Import.
NEW QUESTION # 66
A Solutions Architect is designing a new VCF Workload Domain that combines advanced vSAN Data Protection with Storage Policy Based Management (SPBM) rules.
The requirements stipulate:
1. VMs must be locally protected with FTT=2 (RAID-6).
2. VMs must be replicated to a remote cluster with an RPO of 30
minutes.
3. The replicated data on the remote site must be immutable for 5 days.
The architect creates the following SPBM policy to automate the provisioning:
```
# SPBM Policy: "Secure-DR-Policy"
[Capabilities]
Host.FailuresToTolerate: 2 (RAID-6)
DataProtection.RemoteTarget: "DR-Cluster-02"
DataProtection.RPO: 30 minutes
DataProtection.Immutability: Enabled
DataProtection.Retention: 5 days
```
How does the vCenter and vSAN integration handle the instantiation and lifecycle of this complex policy? (Select all that apply.)
Answer: A,C,D
NEW QUESTION # 67

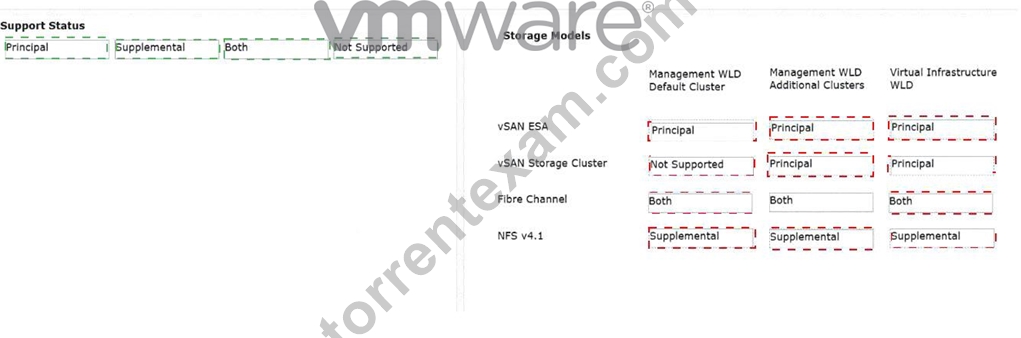

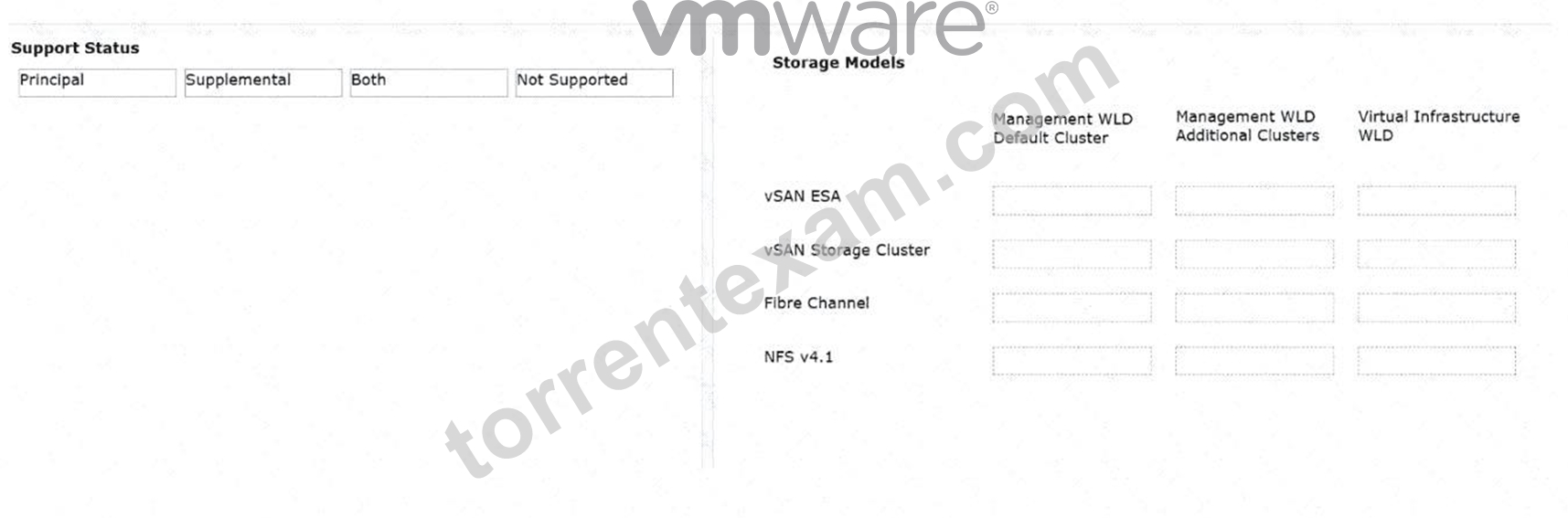

An architect is describing the for a client which storage platforms are supported in which types of Domains for automated installation in VMware Cloud Foundation (VCF) Private Clouds.
Drag and drop the Support Status of each storage model on the left to each type of Workload Domain on the right.
Answer:
Explanation:
Explanation:

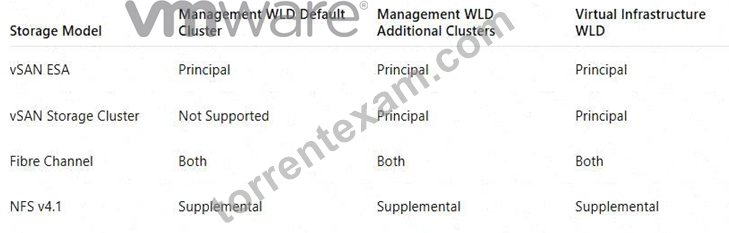

The correct mapping comes from the VCF 9.0 Principal and Supplemental Storage model. vSAN ESA is supported as principal storage for the Management Domain default cluster, Management Domain additional clusters, and VI Workload Domains. A vSAN Storage Cluster is not supported for the Management Domain default cluster because the initial management cluster requires a standard principal storage model, but it is supported as principal storage for Management Domain additional clusters and VI Workload Domains. Fibre Channel is supported as both principal and supplemental storage across all three domain or cluster categories, allowing either initial cluster creation or later datastore expansion. NFS v4.1 is supplemental-only across these categories. NFS can be principal only when using NFS v3; NFS v4.1 is used as supplemental storage after the domain or cluster exists. These statuses align with VCF's distinction between principal storage, which is used during workload domain or cluster creation, and supplemental storage, which is added after creation for workloads or data-at-rest use cases. Reference topics: Storage Models, Principal Storage, Supplemental Storage, vSAN ESA, Storage Cluster, Fibre Channel, NFS.
NEW QUESTION # 68
A Storage Administrator uses the Ruby vSphere Console (RVC) to diagnose a massive host isolation event in a vSAN ESA cluster.
```
[RVC Output: vsan.cluster_info ~cluster]
Host: esx-04
Network Status: Partitioned (Isolated)
CMMDS Master: Self (Partition Group size: 1)
```
esx-04 has completely lost vSAN network connectivity (an effective internal APD for its remote replicas).
How do the vSphere HA "Host Isolation Response" and the vSAN "Inaccessible Object" mechanics fuse to handle the Virtual Machines currently running on the isolated host esx-04?
(Select all that apply.)
Answer: A,B,C
NEW QUESTION # 69
......
