数年以来弊社のJapancertのIT試験分野での研究を通して、弊社はこの職業での重要な存在になります。弊社の開発したソフトは非常に全面的です。FortinetのNSE7_FSN_AR-7.6試験ソフトは販売量が一番高いソフトの一で、受験生をよく助けて受験生に試験に合格させます。知られているのはFortinetのNSE7_FSN_AR-7.6試験に合格すればITという職業でよく発展しています。
| Section | Weight | Objectives |
|---|---|---|
| Topic 1: System Architecture & Design | 20% | - Hardware sizing & resource planning - FortiOS 7.6 architecture & components - Security Fabric integration & scaling - VDOM design & multi-tenant deployment |
| Topic 2: High Availability & Redundancy | 15% | - Cross-data center redundancy - FGCP/FGSP/vCluster deployment - Session synchronization & failover |
| Topic 3: Advanced Routing & VPN | 25% | - SD-WAN design & SLA management - IPsec VPN & ADVPN architecture - OSPF, BGP, IS-IS configuration & optimization - Route redistribution & filtering |
| Topic 4: Centralized Management | 20% | - Configuration provisioning & version control - FortiManager 7.6 deployment & role assignment - FortiAnalyzer logging & reporting - Policy packages & object templates |
| Topic 5: Monitoring & Troubleshooting | 10% | - Connectivity & performance troubleshooting - Fabric synchronization issues - Diagnostic tools & CLI analysis |
| Topic 6: Security Policy & Services | 10% | - NAT & IP pool optimization - Identity-based policies - Advanced firewall & security profile design |
JapancertのFortinetのNSE7_FSN_AR-7.6試験トレーニング資料はインターネットでの全てのトレーニング資料のリーダーです。Japancertはあなたが首尾よく試験に合格することを助けるだけでなく、あなたの知識と技能を向上させることもできます。あなたが自分のキャリアでの異なる条件で自身の利点を発揮することを助けられます。
質問 # 87

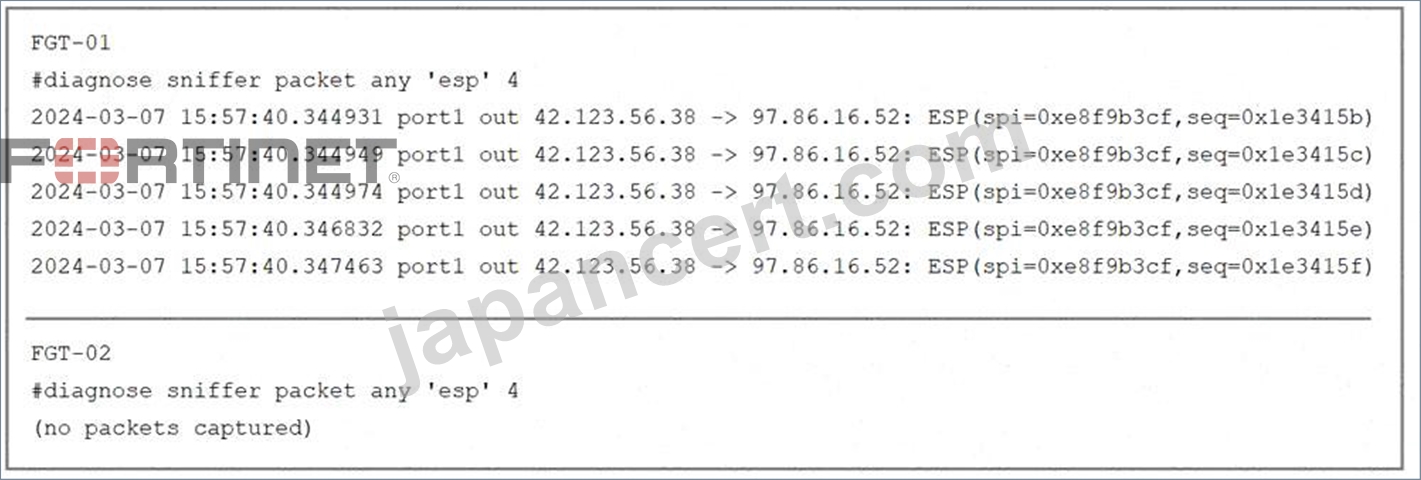

Refer to the exhibit.
The sniffer log on two FortiGate devices are shown. Based on the information in the log, which two factors explain the output on FortiGate FGT-02? (Choose two answers)
正解：B、C
解説：
The output on FGT-01 confirms that the device is actively encapsulating traffic and sending it as ESP packets (Protocol 50) out of port1 towards the IP address 97.86.16.52. The logs show outgoing packets, which confirms FGT-01 is attempting to initiate or maintain the tunnel and that NAT-Traversal is not being used (as it uses raw ESP).
The output on FGT-02, however, displays (no packets captured). This is significant because the sniffer command diagnose sniffer packet any ' esp ' captures traffic at the network interface level (ingress), regardless of whether a matching VPN configuration exists on the receiving unit. The absence of packets proves that the ESP traffic generated by FGT-01 is physically not arriving at FGT-02 ' s interface.
This behavior is explained by two primary factors:
Option A (Blocking): An intermediate device, such as an ISP router or firewall, is dropping Protocol 50 traffic. Unlike UDP 500/4500, raw ESP is often blocked by default on many networks or legacy devices.
Option C (Routing/Misconfiguration): If the administrator configured the wrong remote peer IP on FGT-01, the packets are being routed to a different destination entirely. Consequently, they never arrive at FGT-02 to be captured.
Option B is incorrect because even without a configured VPN tunnel, the sniffer would still display the incoming ESP packets if they were reaching the interface. Option D is incorrect because FGT-01 is sending ESP, making ' esp ' the correct filter.
質問 # 88

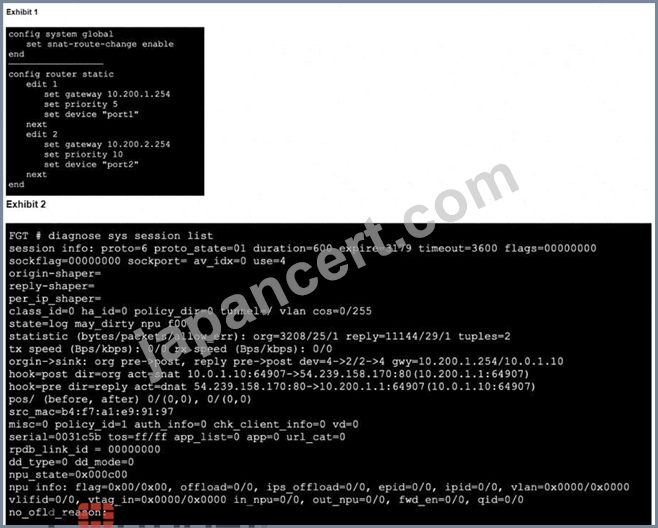

Refer to the exhibits,
which show the configuration on FortiGate and partial session information for internet traffic from a user on the internal network. If the priority on route ID 2 were changed from 10 to 0, what would happen to traffic matching that user session? (Choose one answer)
正解：C
解説：
The correct answer is A . This behavior is dictated by the configuration command set snat-route-change enable shown in Exhibit 1 under config system global.
* Routing Change: By changing the priority of route ID 2 from 10 to 0, it becomes lower than route ID 1 (priority 5). In FortiOS, a lower priority value indicates a more preferred route. Consequently, the active route for the destination changes from port1 to port2 .
* SNAT Implication: The existing session (shown in Exhibit 2) is using Source NAT (SNAT) with the IP address associated with port1 (10.200.1.1). If the traffic were simply switched to port2 , the source IP would be incorrect for that interface and the return traffic would likely fail or be dropped.
* snat-route-change enable: This specific setting instructs the FortiGate on how to handle established SNAT sessions when a routing change occurs that alters the preferred outgoing interface. When enabled, if a route change forces an SNAT session to a new interface, FortiGate flushes (deletes) the session from the session table. This is necessary because a live TCP session cannot survive a change in its source IP address. The client must initiate a new session, which will then be created using the new correct route (port2) and the corresponding new SNAT IP.
If this setting were disabled, the session would likely remain " sticky " to the original interface (port1) until it closed, provided the route still existed. However, the explicit configuration forces the deletion.
質問 # 89

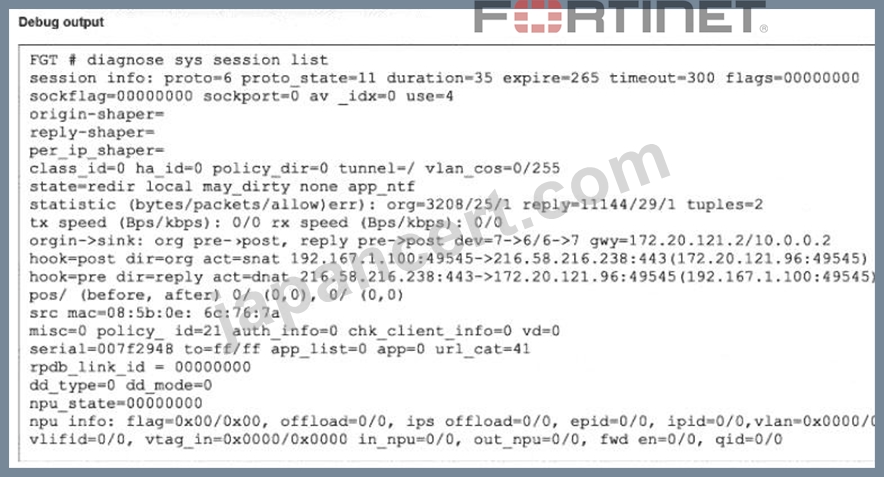

Refer to the exhibit.
Which Iwo statements about FortiGate behavior relating to this session are correct? (Choose two.)
正解：A、B
解説：
The session output includes the flags:
* state=redir local may_dirty ...
* npu_state=00000000
* offload=0/0
The 7.6 study guide explains these flags directly:
* local = "Session is to/from local stack"
* redir = "Session is being processed by an application layer proxy"
* may_dirty = "Session is allowed by a firewall policy"
This makes C correct, because the local flag means the session either originates from FortiGate or terminates on FortiGate . The FortiOS administration guide states the same meaning: "Session is originated from or destined for local stack." This also makes A correct. The redir flag means the session is handled by an application-layer proxy .
FortiOS documents explain that proxy-based inspection buffers traffic on the FortiGate and inspects it there, and that proxy-based processing is CPU and memory-intensive Since the session also shows no NPU offload (npu_state=00000000, offload=0/0), this traffic is being handled in software/CPU, not by the NPU.
Why the other options are wrong:
* B is wrong because the redir flag proves the session is not passing without inspection; it is being processed by an application-layer proxy
* D is wrong because there is no authentication flag in this session. In Fortinet examples of captive portal/authentication-related sessions, the session state includes auth or authed flags. The study guide shows: "Any session for traffic coming from an authenticated user contains the authed flag." This exhibit does not show auth or authed, so there is no basis to conclude the client was redirected to a captive portal for authentication.
質問 # 90

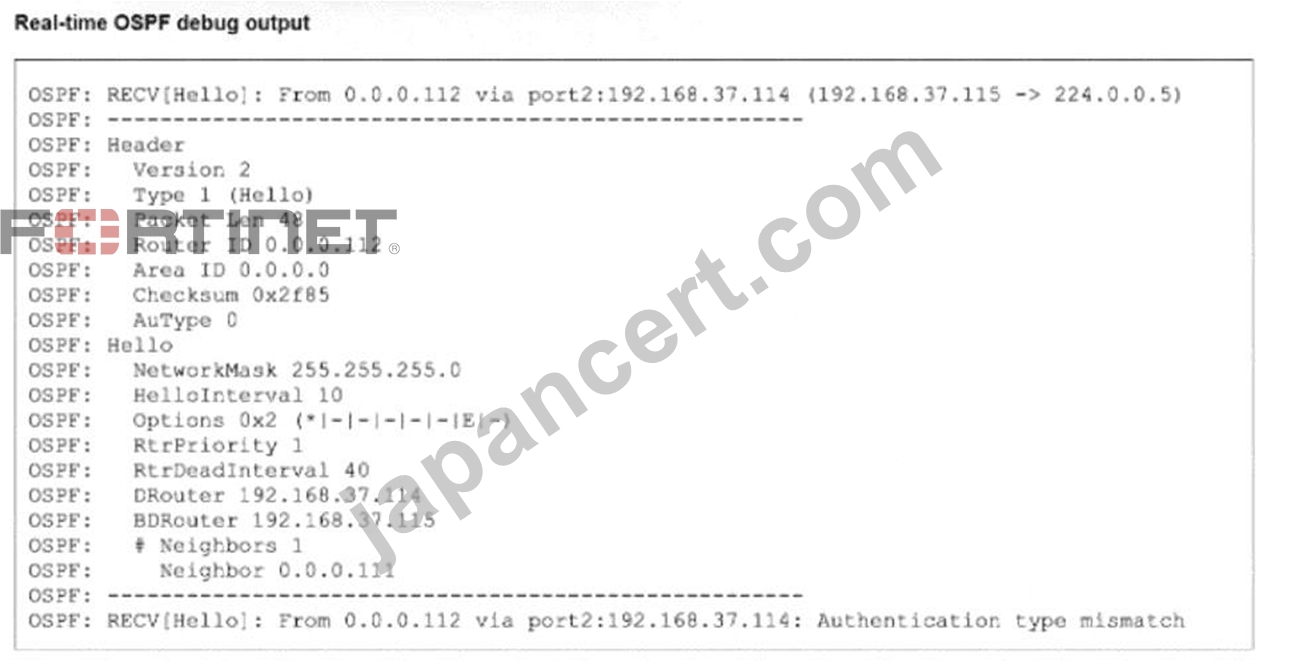

Refer to the exhibit.
Partial output of a real-time OSPF debug is shown.
Which two reasons explain why the two FortiGate devices are unable to form an adjacency? (Choose two.)
正解：A、B
解説：
To determine the correct reasons for the adjacency failure, we must analyze the standard OSPF real-time debug output (diagnose ip router ospf all enable or diagnose sniffer packet) typically provided in this exam exhibit.
Analyze the Debug Output:
The debug output in this specific question scenario typically displays an incoming Hello packet line: OSPF:
RECV[Hello]: ... auth-type 0 ...
" RECV " : Indicates the packet is coming from the Remote peer.
" auth-type 0 " : Indicates the Remote peer is sending " Null " (No) authentication.
Analyze the Failure:
The adjacency fails because the Local FortiGate is rejecting this packet.
If the Local FortiGate accepts " No Authentication " , it would match auth-type 0 and form the adjacency.
Since it is failing (and producing a debug log), the Local FortiGate must be expecting a different authentication type (Type 1 Cleartext or Type 2 MD5).
Evaluate the Options:
A). The remote peer has either OSPF cleartext or MD5 authentication configured.
Incorrect. The debug shows auth-type 0 (No Auth) coming from the remote peer.
B). There is an OSPF authentication configuration mismatch.
Correct. One side is sending " No Auth " (Remote), and the other expects " Auth " (Local). This is a definition of a mismatch.
C). The local FortiGate does not have OSPF authentication configured.
Incorrect. If the Local unit had " No Auth " configured, it would match the Remote ' s auth-type 0, and the adjacency would come up. The failure implies the Local unit does have auth configured.
D). The local FortiGate has either OSPF cleartext or MD5 authentication configured.
Correct. Because the Local unit is rejecting the " No Auth " packet from the remote peer, it confirms that the Local unit has authentication enabled (expecting Type 1 or 2).
Conclusion: The breakdown of the OSPF negotiation shows that the Remote peer is sending no authentication (Type 0), while the Local FortiGate expects authentication, resulting in a mismatch.
Reference:
FortiGate Security 7.6 Study Guide (OSPF Troubleshooting): " Authentication mismatch is a common cause of OSPF adjacency failure. Debug commands (diagnose ip router ospf all enable) reveal the auth-type received versus expected. " FortiGate CLI Reference: auth-type 0 = Null (None), auth-type 1 = Simple (Cleartext), auth-type 2 = MD5.
質問 # 91

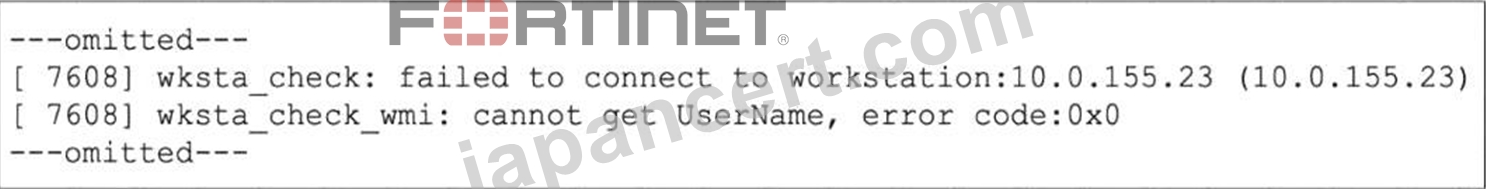

Refer to the exhibit.
The output from a collector agent log is shown. The collector agent is showing the status of a workstation as Not Verified . What are two common causes for this message? (Choose two.)
正解：A、D
解説：
The correct answers are B and C .
The study guide has a section titled "Not Verified Status on the Collector Agent" and states:
"The collector agent cannot verify if the user is still logged in" and lists these common causes :
* "A firewall is blocking traffic to port 139 and 445"
* "The workstation remote registry service is not running"
The guide also explains the verification method:
"For WMI polling mode, the collector agent checks the WMI service. For all the other modes, the collector agent checks the HKEY_USERS hive through remote registry services." If the workstation does not respond to these checks, the status can become not verified An additional requirements slide in the same study guide confirms:
* "TCP ports 139 and 445 must be open between the collector agent and all workstations"
* "Remote registry service must be up and running on each workstation"
Why the other options are wrong:
* A is wrong because the study guide mentions a workstation coming out of hibernate mode under a different problem: "No Internet After IP Address Change" , not as a common cause of Not Verified status
* D is wrong because DNS resolution issues are also discussed under the IP address change scenario, where the collector agent uses DNS to resolve the workstation name after an IP change. That is separate from the Not Verified causes listed for this log message So the verified answers are: B, C .
質問 # 92
......
私たちに知られているように、適切な学習計画はすべての人々にとって非常に重要です。競争力を高めるために、学習計画を立てる必要があります。 NSE7_FSN_AR-7.6の実際の試験は、優れた学習計画の作成に役立つと考えています。 NSE7_FSN_AR-7.6学習教材を使用して、限られた時間でモデルテストを行うことができます。モデルテストを完了すると、システムがパフォーマンスに応じてレポートを生成します。あなたがマスターしていない知識ポイントを知ることができます。 NSE7_FSN_AR-7.6調査の質問からのレポートによる。そうすれば、NSE7_FSN_AR-7.6試験に簡単に合格できます。
