Cisco 800-150 Prüfungsplan:

Thema	Einzelheiten
Thema 1	Cisco UCS and Data Center Architecture: This section of the exam measures the skills of a Data Center Engineer and introduces Cisco’s UCS and data center solutions. It explains the devices found in a data center, including switches, UCS servers, and director switches, and describes different server deployment models. Students will also learn about virtualization components like virtual machines, hypervisors, cloud computing concepts, and deployment models. The section covers how Cisco UCS devices fit into campus networks, edge locations, and data centers, and explains the key components and connections used in UCS architecture.
Thema 2	Cisco Infrastructure and Collaboration Infrastructure: This section of the exam measures the skills of a Collaboration Engineer and focuses on Cisco infrastructure devices, endpoints, and collaboration technologies. It introduces network devices, collaboration endpoints like IP phones and video systems, and explains on-premises collaboration deployments using tools like Cisco Unified Communications Manager. It also covers how video systems integrate into collaboration environments and highlights Cisco’s cloud services for enterprise communication, including Webex Meetings, Webex Teams, and hosted collaboration solutions.
Thema 3	Common Service Tasks and Tools: This section of the exam measures the skills of a Technical Support Engineer and focuses on tasks commonly needed to manage Cisco devices. It explains how devices boot up, introduces common Cisco IOS commands, and identifies tools for file management. It shows how to confirm physical connections, remotely access devices, and connect to the console port. It also covers how to capture the status of a device, recover passwords, and replace devices by using proper tools. Students are also taught how to find serial numbers on Cisco equipment to assist with support and maintenance activities.

>> 800-150 Online Test <<

Seit Neuem aktualisierte 800-150 Examfragen für Cisco 800-150 Prüfung

Haben Sie Fast2test, haben Sie den Schlüssel zum Erfolg, denn Sie können damit die Cisco 800-150 Zertifizierungsprüfung zügig bestehen. Unsere Berufsgruppe aus gut ausgebildeten und erfahrenen IT-Eliten haben die Entwicklungen der ständig veränderten IT-Branche untersucht und erforscht, dann erstellen Sie die Schulungsunterlagen zur Cisco 800-150 Zertifizierungsprüfung für Fast2test. Ihre Autorität ist zweifellos. Bevor Sie unsere Prüfungsmaterialien kaufen, können Sie die Demo durch unsere Webseite Fast2test herunterladen.

Cisco Supporting Cisco Devices for Field Technicians 800-150 Prüfungsfragen mit Lösungen (Q55-Q60):

55. Frage
Which protocol should be analyzed when troubleshooting call quality between IP phones?

A. 323: An older protocol suite for multimedia communication, encompassing both signaling and media, but less commonly used in modern IP telephony. Reference: Supporting Cisco Devices for Field Technicians (FLDTEC) - Troubleshooting Methodologie
B. SCCP
C. H.323
D. RTP
E. SIP

Antwort: D

Begründung:
When addressing call quality issues between IP phones, the Real-time Transport Protocol (RTP) is the primary protocol to analyze. RTP is responsible for the actual transmission of voice data during a call, and its performance directly impacts call quality.
Key factors affecting RTP and, consequently, call quality include:
Packet Loss: Missing packets can lead to audio gaps.
Jitter: Variations in packet arrival times can cause choppy audio.
Latency: Delays in packet delivery can result in noticeable lag.
Analyzing RTP streams allows technicians to identify these issues and implement appropriate Quality of Service (QoS) measures to mitigate them.
In contrast:
SIP (Session Initiation Protocol): Handles call setup, modification, and teardown but not the media stream.
SCCP (Skinny Client Control Protocol): A Cisco proprietary protocol for signaling, not media transport.

56. Frage
What is the purpose of the packages.conf file in Install mode on Cisco IOS XE Software supported switches?

A. It contains the entire bundled software image in a single file.
B. It is a subdirectory in flash memory where individual software packages are stored.
C. It determines which software packages need to be loaded and in what order during boot up.
D. It is used to extract the bin file during the installation process.

Antwort: C

Begründung:
InInstall mode, thepackages.conffile plays a crucial role in the boot process of Cisco IOS XE Software. It specifies the list of software packages to be loaded and the sequence in which they should be initialized during system startup. This file ensures that all necessary components are correctly loaded, providing a modular and flexible approach to software management.
Contrary to the other options:
* Thepackages.conffile does not extract the bin file; it references already extracted packages.
* It does not contain the entire bundled image; that's characteristic of Bundle mode.
* While it resides in the flash memory, it is not a subdirectory but a configuration file.
Reference:Supporting Cisco Devices for Field Technicians (FLDTEC) - Cisco IOS Software Basics

57. Frage
Which function does theStack Port 1 serve on a Cisco Meraki switch?

A. It connects to the Stack Port 2 of the next switch in a stack configuration.
B. It provides a dedicated uplink to the Meraki cloud for management.
C. It connects to the Stack Port 2 of the previous switch in a stack configuration.
D. It serves as a high-speed interconnect for clustered switches.

Antwort: D

Begründung:
OnCisco Meraki switches,Stack Port 1(along with Stack Port 2) is used to form aphysical stacking connectionbetween multiple switches. These stack ports arededicated high-speed interconnectsthat enable multiple switches to operate as a single logical switch.
The stacking topology depends on the number of switches, but Stack Port 1 serves as one side of this high- speed inter-switch communication channel - not for management or cloud access.
Reference:Supporting Cisco Devices for Field Technicians (FLDTEC) - Cisco Equipment and Related Hardware

58. Frage

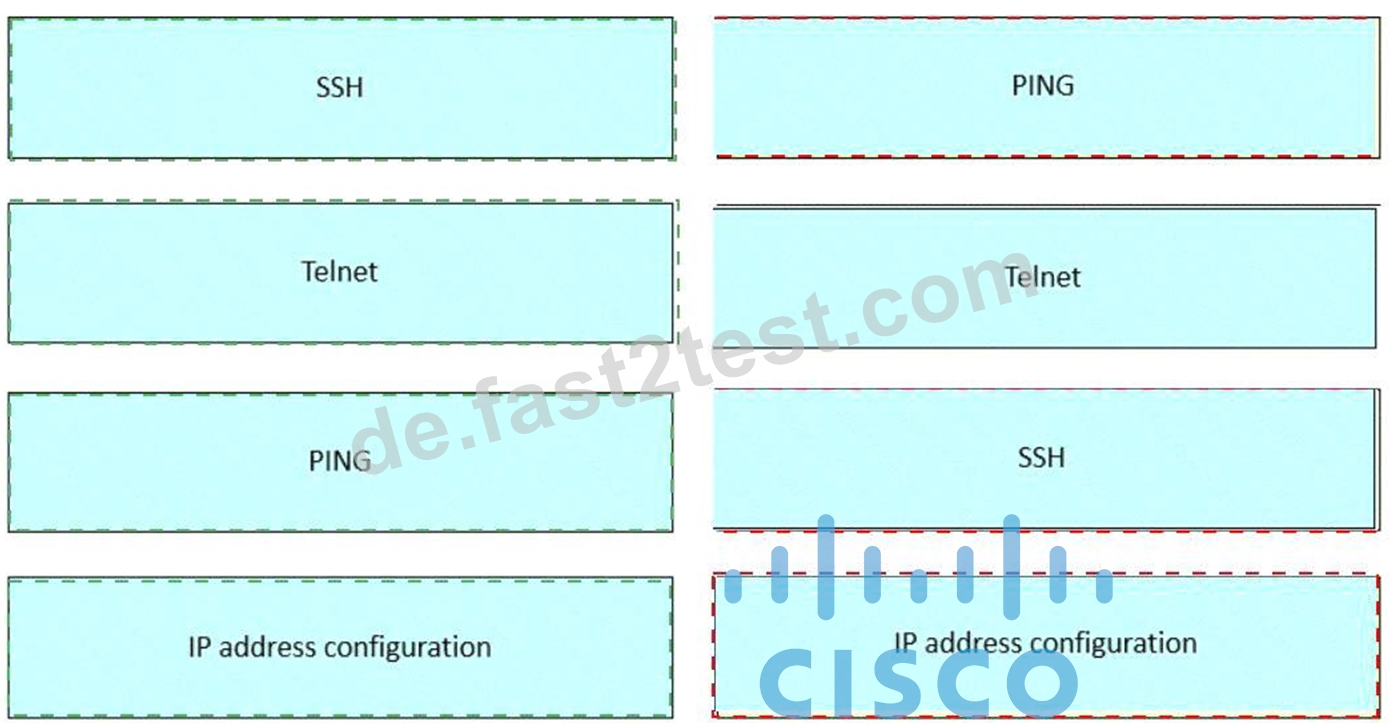

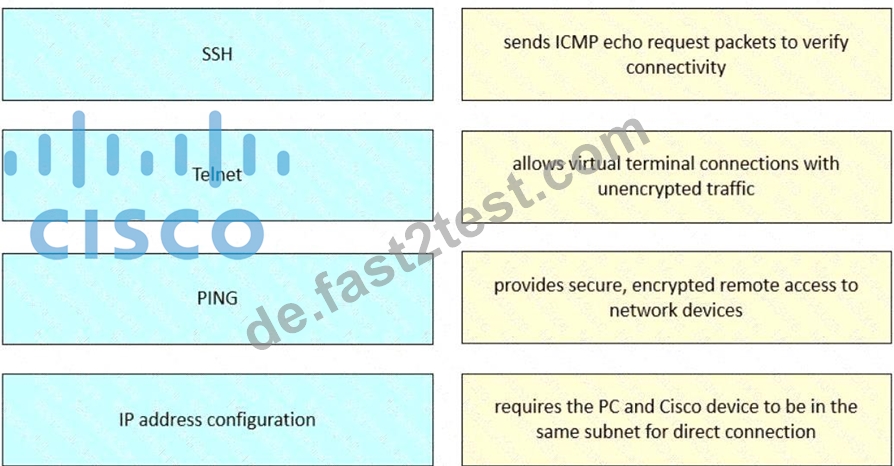

Drag and drop the network connectivity and management tools used to ensure connectivity from the left onto the description on the right.

Antwort:

Begründung:

Explanation:
* PING# Sends ICMP echo request packets to verify connectivity
* Telnet# Allows virtual terminal connections with unencrypted traffic
* SSH# Provides secure, encrypted remote access to network devices
* IP address configuration# Requires the PC and Cisco device to be in the same subnet for direct connection These tools and their functions are covered under"Device Configuration and Verification"in the FLDTEC course:
PING:Utilized to test basic networkconnectivity using ICMP echo request/reply messages. It confirms whether a device is reachable and measures the round-trip time.
Telnet:A protocol that allows for remote device access but transmits data in plaintext, which makes it insecure. It's typically disabled by default on modern Cisco devices due to security concerns.
SSH (Secure Shell):Replaces Telnet as the preferred method for secure CLI access. It encrypts the session, protecting sensitive information such as login credentials.
IP Address Configuration:For direct device access via the same local network, both the PC and the Cisco device must be in the same subnet. This allows the use of tools like browser-based GUIs or terminal emulators when connecting directly.

59. Frage
What is the primary function of a wireless LAN controller in a Cisco Unified Wireless Network solution?

A. To operate at Layer 3 of the OSI model
B. To translate data into a frame format for transmission
C. To manage and configure associated access points centrally
D. To provide wireless connectivity to LAN devices

Antwort: C

Begründung:
The Wireless LAN Controller (WLC) plays a central role in Cisco's Unified Wireless Network solution by providing centralized management, configuration, and monitoring for multiple access points (APs). It allows for streamlined policy enforcement, seamless mobility, load balancing, and security management across wireless networks.
While WLCs facilitate wireless connectivity indirectly, their main role is to centrally manage and control access points - not to function as Layer 3 routers or format data frames.
Reference:
The primary function of a wireless LAN controller (WLC) in a Cisco Unified Wireless Network is to centrally manage, configure, and monitor multiple access points, simplifying administration and enhancing scalability.
