NEW QUESTION # 155

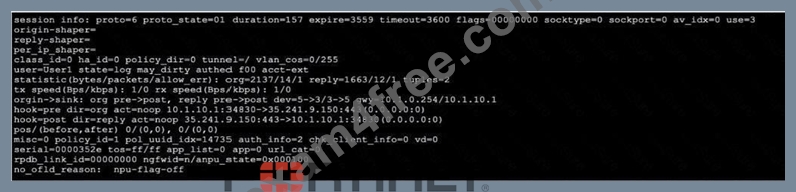

Exhibit.
Refer to the exhibit, which shows the output of a session. Which two statements are true? (Choose Iwo.)
Answer: B,C
NEW QUESTION # 156

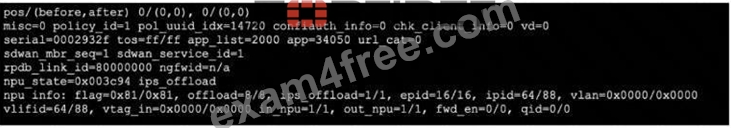

Refer to the exhibit, which shows the omitted output of a session table entry.
Which two statements are true? (Choose two.)
Answer: A,C
Explanation:
In the provided session table output, the following details justify the answers:
Policy ID Match: The line policy_id=1 directly confirms that this session was matched by Firewall Policy ID
1. According to Fortinet's session table documentation, the policy_id field always references the policy that allowed this session, so this is a clear indicator.
Session Offloading: The presence of the strings npu_state, ips_offload, and notably the NPU info section such as offload=8/8, ips_offload=1/1 shows that this session has been offloaded to the Network Processor Unit (NPU). Fortinet technical documentation states that " offload " values greater than zero in both directions (and an NPU info section) affirm that NPU hardware processing (fast path) is handling this traffic, thus the session is not being handled in software only.
Other options:
VLAN Tagging (vlan=0x0000/0x0000): This means no VLAN tag is assigned to this session.
NP7: The actual NPU model handling the session isn't exposed in this snippet-the offload parameters shown are generic and not specific to NP7 hardware, so it cannot be concluded from the session data.
References:
Fortinet Technical Tip: FortiGate Session Table and NPU Offloading
FortiOS Diagnostics Guide: Policy ID, Offload, and VLAN Session Table Fields
NEW QUESTION # 157

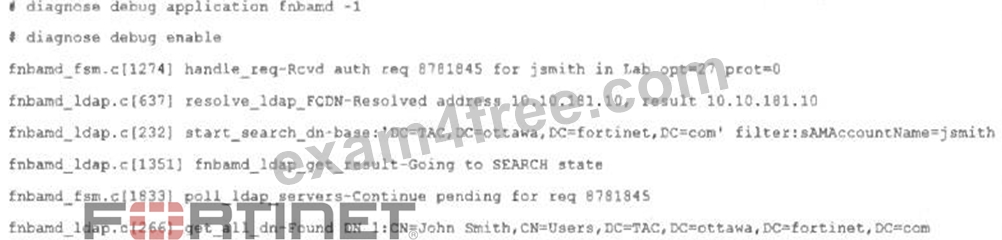

Refer to the exhibit, which shows a partial output of a real-time LDAP debug.
What two conclusions can you draw from the output? (Choose two.)
Answer: B,D
Explanation:
The exhibit includes these key debug lines:
start_search_dn-base: ' DC=TAC,DC=ottawa,DC=fortinet,DC=com ' filter:sAMAccountName=jsmith get_all_dn-Found DN 1:CN=John Smith,CN=Users,DC=TAC,DC=ottawa,DC=fortinet,DC=com The study guide explains that in regular bind, LDAP authentication has four steps, and that during step 2, FortiGate searches the LDAP tree to find the user's DN:
"During the second step, FortiGate does a search query in the LDAP database to find the user's location-in other words, the user's DN. If the user is found, the server replies with the user's DN." It also states for the real-time debug of step 2:
"An fnbamd_ldap_build_dn_search_req-base message indicates that FortiGate is performing step two:
searching for the user in the LDAP tree. This message includes the base branch (distinguished name setting) and the name of the attribute used to locate the user... If the LDAP server finds the user, the output shows the user's full DN." That directly proves:
D is correct because the debug is showing step 2: Search Request
A is correct because the base DN and found DN are under DC=TAC,DC=ottawa,DC=fortinet,DC=com, which corresponds to the LDAP domain/tree root TAC.ottawa.fortinet.com Why the other options are wrong:
B is wrong because binding with the user's credentials is step 3, not the step shown here. The study guide says: "Step 3 - Bind user credentials" and shows that this happens later with fnbamd_ldap_build_userbind_req / __ldap_build_bind_req-Binding to ' CN=John Smith... ' C is wrong because collecting user group information is step 4, not the step shown in the exhibit. The study guide says: "The last step is to get the user group information" and shows step 4 with Attr query / memberOf search
NEW QUESTION # 158

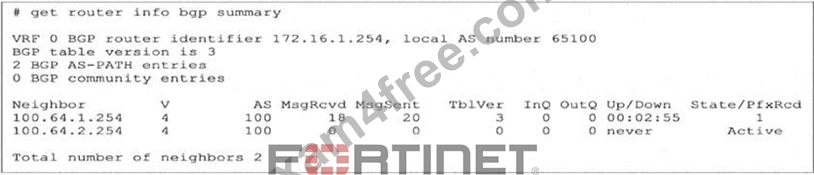

Refer to the exhibit.
The output of the get router info bgp summary command is shown.
Which statement regarding adjacencies between the local router and its neighbors is correct?
Answer: D
Explanation:
The correct answer is B.
In the exhibit:
Neighbor 100.64.1.254 shows State/PfxRcd = 1, which means the session is established and the local FortiGate has received 1 prefix Neighbor 100.64.2.254 shows State/PfxRcd = Active The study guide explains the BGP states exactly:
Connect: Waiting for a successful three-way TCP connection
Active: Unable to establish the TCP session
OpenSent: Waiting for an OPEN message from the peer
OpenConfirm: Waiting for the keepalive message from the peer
Established: Peers have successfully exchanged OPEN and keepalive messages It also explains how to read the State/PfxRcd column:
"If the state is not established, this column displays the BGP state. If the state is established, this column displays the number of prefixes that the local FortiGate received from that neighbor." Therefore, because neighbor 100.64.2.254 is in Active state, the correct conclusion is that the BGP adjacency cannot form because the TCP session could not be established.
Why the other options are wrong:
A is wrong because BGP can establish adjacencies with multiple neighbors independently; one established neighbor does not block another C is wrong because BGP adjacency is not established based on neighbor "priority"; the output shows adjacency is established because the session completed and prefixes were exchanged D is wrong because having two neighbors in the same remote AS is valid in BGP and does not prevent adjacency formation So the verified answer is: B.
NEW QUESTION # 159

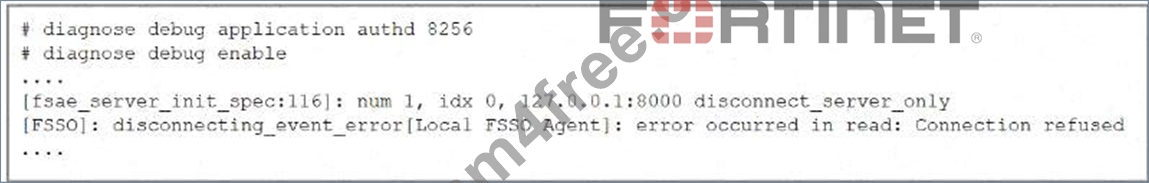

Refer to the exhibit showing a debug output.
An administrator deployed FSSO in DC Agent Mode but FSSO is failing on FortiGate. Pinging FortiGate from where the collector agent is deployed is successful.
The administrator then produces the debug output shown in the exhibit.
What could be causing this error message?
Answer: B
NEW QUESTION # 160
......
