56. Frage

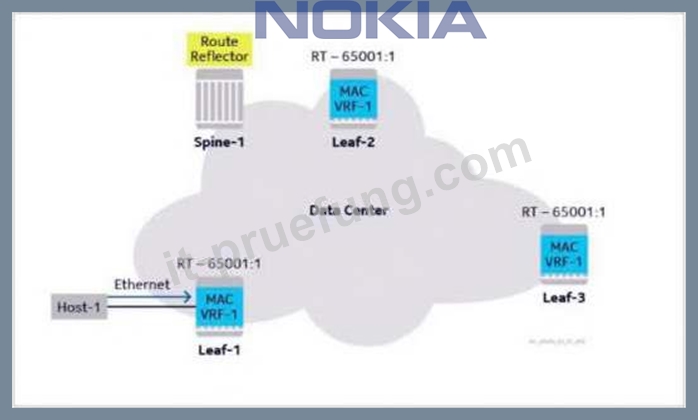

Consider the exhibit.
All three of the leafs have a MP-BGP EVPN session to the route-reflector Spine-1. Leaf-1, Leaf-2 and Leaf-3 have existing instances of an L2 EVPN named MAC VRF-1. Host-1 has just sent its first Ethernet frame into MAC VRF-1 on Leaf-1.
Which of the following steps is FALSE?
Antwort: C
Begründung:
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
When Host-1 sends its first Ethernet frame into MAC VRF-1, Leaf-1 performs normal local data-plane MAC learning on the access interface and installs Host-1's MAC address into the MAC forwarding table. In an L2 EVPN MAC-VRF, host MAC reachability is then advertised into the EVPN control plane using EVPN route type 2, the MAC/IP Advertisement route. Route type 5 is not used for host MAC advertisement; RT-5 is used for IP prefix advertisement in Layer 3 EVPN services. Therefore, option B is false because it incorrectly states that Leaf-1 generates an EVPN RT-5 update with the host MAC address. In this topology, Leaf-1 sends the correct EVPN update to the route reflector, Spine-1. The route reflector then reflects the update to Leaf-2 and Leaf-3, and those remote leaves import the route if the route target matches their MAC VRF-1 import policy. The route target controls service membership, ensuring that only PEs participating in the same EVPN instance import the MAC route. Reference: L2 EVPN MAC learning, RT-2 MAC/IP advertisement, route-reflector distribution, route-target import.
57. Frage
Consider the exhibit.
Host-2 is sending data to Host-1. The network is designed to use asymmetric routing.
Which of the following statements about the operation of the data plane is TRUE?
Antwort: C
Begründung:
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
In asymmetric EVPN IRB, the ingress PE performs routing from the source subnet into the destination subnet, then forwards the packet across the VXLAN overlay using the destination MAC-VRF/VNI. The egress PE does not perform another IP-VRF lookup for that packet; it performs Layer 2 forwarding in the destination MAC-VRF. In this scenario, Host-2 sends traffic toward Host-1. After the ingress routing decision, the traffic arrives at Leaf-2 in the context of the destination MAC-VRF, mac-vrf-1. Leaf-2 then performs a MAC lookup in mac-vrf-1 and forwards the frame to Host-1. Option D is therefore correct. Option A reverses the forwarding direction and misidentifies the leaf action. Option B incorrectly sends mac-vrf-2 traffic toward the IP-VRF on Leaf-2, even though Leaf-2 is acting as the egress PE for Host-1. Option C is also incorrect because the egress forwarding action is based on the MAC table in the destination MAC-VRF, not an IP-VRF ARP lookup at that stage. Reference: asymmetric L3 EVPN IRB data-plane operation, ingress routing and egress MAC forwarding.
58. Frage
Which EVPN route-type (RT) is used in multi-homing scenarios to support aliasing and fast convergence?
Antwort: D
Begründung:
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
The EVPN route type used for aliasing and fast convergence in multi-homing is RT-1, the Ethernet Auto-Discovery route. RT-1 has two important forms: Ethernet A-D per Ethernet Segment and Ethernet A-D per EVI. These routes advertise reachability to a multi-homed Ethernet Segment and to a specific EVPN instance on that segment. Remote PEs use this information for aliasing, meaning they can forward traffic toward any eligible PE attached to the same Ethernet Segment, even when a specific MAC was advertised by only one PE. RT-1 also supports fast convergence because withdrawal of Ethernet A-D routes quickly informs remote PEs that an attachment path or PE is no longer valid, avoiding slow MAC aging as the primary failure-detection mechanism. RT-4 Ethernet Segment routes are related to multi-homing, but their main function is Ethernet Segment discovery and Designated Forwarder election. RT-2 advertises host MAC/IP reachability, and RT-3 builds multicast/BUM replication lists. Therefore, RT-1 is the precise answer for aliasing and fast convergence. Reference: EVPN multi-homing route types, Ethernet Auto-Discovery, aliasing and convergence behavior.
59. Frage
Leaf routers are configured to support Layer 2 multi-homing all-active mode.
Which of the following statements is FALSE?
Antwort: C
Begründung:
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
In all-active Layer 2 EVPN multi-homing, the host is typically dual-homed to two or more leaf routers using a LAG. The participating leaf routers must configure the LAG and associate it with the Ethernet Segment so EVPN can advertise the common ESI and apply aliasing, split-horizon, and DF procedures. If VLAN tagging is used for service separation, tagging must be configured on the LAG interface so that the correct subinterfaces can bind into the MAC-VRF and Ethernet Segment. Option C is false because it states that the LACP system-id-mac must uniquely identify each leaf router. In an all-active EVPN multihomed LAG, the opposite principle applies: from the host's LACP perspective, the multihomed leaf pair must appear as a single logical LACP system. That generally requires a shared LACP system ID or coordinated system MAC behavior across the participating PEs. If each leaf presented a unique LACP system identity, the host would treat them as separate LAG partners and the all-active bundle would not form correctly. Reference: all-active L2 EVPN multi-homing, LAG attachment, LACP system ID behavior, Ethernet Segment association.
60. Frage
Which of the following statements about utilizing VXLAN for the data plane in the data center is FALSE?
Antwort: D
Begründung:
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
VXLAN provides a Layer 2 overlay over a Layer 3 underlay by encapsulating Ethernet frames in UDP/IP. This allows tenant bridge domains to span a routed IP fabric without requiring the underlay itself to behave like one large Layer 2 network. VXLAN uses a 24-bit VXLAN Network Identifier, which supports approximately 16 million logical overlays, far exceeding the scale of traditional 12-bit VLAN IDs. Because the VXLAN underlay is IP-routed, traffic can benefit from ECMP across equal-cost paths, improving fabric utilization and resiliency. The false statement is B. VXLAN was not originally developed specifically to support EVPN. VXLAN began as a data-plane overlay encapsulation technology, while EVPN later became the preferred control plane for distributing MAC, MAC/IP, multicast, and prefix reachability in VXLAN-based fabrics. In modern data center design, EVPN and VXLAN are commonly paired: VXLAN supplies the encapsulation and VNI-based segmentation, while EVPN supplies scalable control-plane learning and signaling. Reference: VXLAN data plane, EVPN control plane, ECMP underlay, VNI-based tenant isolation.
61. Frage
......
