質問 # 92
Exhibit.
port1 and port2 are the only ports configured with the same native VLAN 10.
What are two reasons that can trigger port1 to shut down? (Choose two.)
正解：B、C
質問 # 93

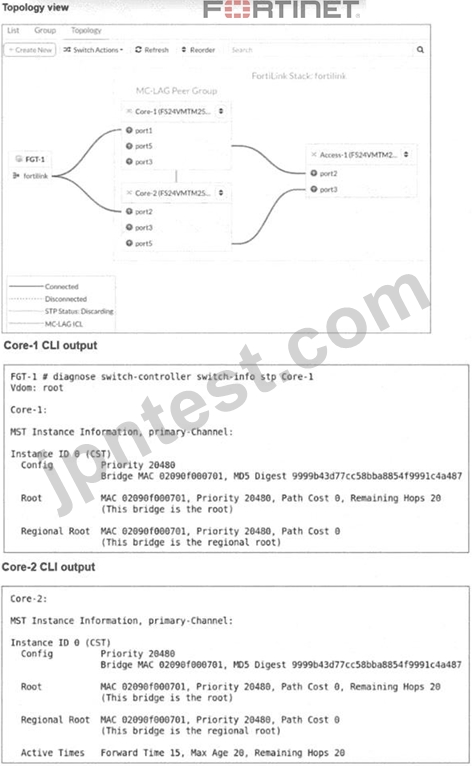

Refer to the exhibits.
An administrator has deployed two FortiSwitch devices, Core-1 and Core-2, as multichassis link aggregation group (MCLAG) peers. These switches are connected to FortiGate for FortiLink and to an access switch (Access-1) using an inter-switch link (ISL). After configuration, the administrator notices that both Core-1 and Core-2 are claiming to be the root bridge in the Multiple Spanning Tree Protocol (MSTP) topology. What explains this behavior? (Choose one answer)
正解：D
解説：
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Multichassis Link Aggregation (MCLAG) provides node-level redundancy by grouping two physical switches together so that theyappear as a single logical switchto the rest of the network. This logical representation is critical for preventing Spanning Tree Protocol (STP) from blocking redundant uplinks from downstream client switches.
To achieve this " single switch " appearance, the MCLAG peer switches synchronize their STP state andshare the same Bridge ID, which consists of a synchronized bridge MAC address and the same bridge priority. As shown in the exhibits for Core-1 and Core-2, both switches are configured with aBridge MAC of
02090f000701and aPriority of 20480. Because they possess identical identification parameters, each physical switch in the peer group locally recognizes itself as part of the root bridge entity for the MSTP region.
This behavior is intentional and is a fundamental characteristic of MCLAG design in FortiSwitchOS. It ensures that any downstream device, such as Access-1, receives BPDUs with the same bridge ID from both Core-1 and Core-2, thereby treating them as a single high-availability neighbor rather than two separate devices. Option A is incorrect as FortiGate typically does not participate in STP calculations. Option B is incorrect because this " duplicate " root behavior is the expected sign of acorrectlyfunctioning MCLAG control plane. Option D is incorrect as STP remains active to prevent loops elsewhere in the fabric; it is merely logically simplified for the MCLAG domain.
質問 # 94
An administrator must deploy managed FortiSwitch devices in a remote location where multiple VLANs must be used to segment devices. No layer 3 switch or router is present at the site, and the only WAN connectivity is an ISP-provided router connected to the public internet. Which two components are required to enable VLAN segmentation across this remote site? (Choose two answers)
正解：B、D
解説：
According to theFortiOS 7.6 Administration Guideand theFortiSwitch 7.6 FortiLink Guide, deploying managed switches over a Layer 3 underlay-such as the public internet-requires a specific tunneling mechanism to bridge Layer 2 broadcast domains. Traditional FortiLink relies on a direct Layer 2 connection; however, for remote sites,FortiLink over VXLANis the standard solution.
* FortiLink over VXLAN (Option A):Virtual Extensible LAN (VXLAN) is used to encapsulate Layer 2 Ethernet frames into Layer 3 UDP packets, allowing VLAN-tagged traffic to traverse an ISP's routable network. This enables the FortiGate to manage remote FortiSwitch "islands" as if they were locally connected, maintaining full VLAN segmentation across the WAN.
* Layer 3 Termination (Option E):The FortiGate acts as theVirtual Tunnel Endpoint (VTEP). It must have a reachable Layer 3 interface (such as a WAN port with a public IP or an IPsec tunnel interface) to terminate the VXLAN overlay. Once the VXLAN tunnel is terminated at the FortiGate, the encapsulated VLAN traffic is extracted, and the FortiGate can perform inter-VLAN routing and security inspection.
Regarding the incorrect options:Option Bis incorrect because the FortiGate at the central site handles the routing, eliminating the need for a local L3 device.Option Cis a performance consideration but not a functional requirement for basic connectivity.Option Dis often used for security to encrypt the underlay, but IPsec alone does not provide the Layer 2 extension capabilities required for VLAN segmentation; VXLAN is the specific component that handles the MAC-in-UDP encapsulation.
質問 # 95

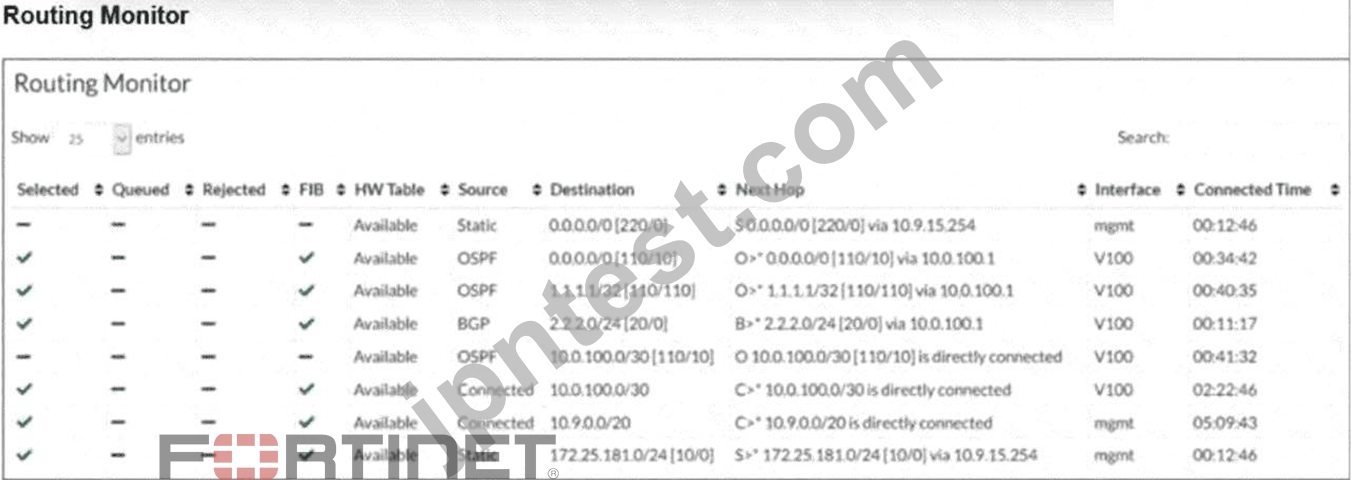

Refer to the exhibit.
and an OSPF route with destination 0.0.0.0/0 [110/10]. The OSPF route is marked with a checkmark in the FIB column, while the Static route has a dash.] The routing monitor displays multiple route entries, but only some are installed in the forwarding information base (FIB). After analyzing the two route entries with the destination 0.0.0.0/0, which statement correctly describe why one of these routes is not installed in the FIB? (Choose one answer)
正解：A
解説：
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the Routing Information Base (RIB) contains all potential routes discovered by the switch, but theForwarding Information Base (FIB)only includes the " best " active routes used for hardware packet forwarding. When the routing process receives multiple paths to the exact same destination (in this case, the default route 0.0.0.0/0), it must select the most reliable source based on a specific hierarchy.
The primary tie-breaker for routes from different protocols is theAdministrative Distance (AD). AD is a value from 1 to 255 that represents the trustworthiness of the routing source, where alower value is more preferred.
In the provided exhibit:
* TheOSPFroute has an AD of110(shown as [110/10]).
* TheStaticroute has been configured with an AD of220(shown as [220/0]).
Because the OSPF route ' s AD (110) is lower than the Static route ' s AD (220), the system considers the OSPF route to be superior. Consequently, only the OSPF route is " Selected " and installed into theFIB. The static route remains in the RIB as a " backup " or floating static route; it will only be moved to the FIB if the preferred OSPF route becomes unavailable. Option D is incorrect because having identical prefixes is not a " conflict " but a standard part of route selection where AD decides the winner. Option A is incorrect because metric is only compared if the AD is identical.
質問 # 96
Which statement about the configuration of VLANs on a managed FortiSwitch port is true?
正解：C
解説：
The native VLAN is implicitly part of the allowed VLAN on the port (C): On a managed FortiSwitch port, the native VLAN, which is the VLAN assigned to untagged traffic, is implicitly included in the list of allowed VLANs. This means it does not need to be explicitly specified when configuring VLAN settings on the port.
This configuration simplifies VLAN management and ensures that untagged traffic is handled correctly without additional configuration steps.
質問 # 97
......
