Learning knowledge is not only to increase the knowledge reserve, but also to understand how to apply it, and to carry out the theories and principles that have been learned into the specific answer environment. The Implementing Cisco Service Provider Advanced Routing Solutions exam dumps are designed efficiently and pointedly, so that users can check their learning effects in a timely manner after completing a section. Our 300-510 test material is updating according to the precise of the real exam. Our Implementing Cisco Service Provider Advanced Routing Solutions exam dumps will help you to conquer all difficulties you may encounter.
| Section | Weight | Objectives |
|---|---|---|
| Multicast Routing | 15% | - Identify and resolve multicast routing issues
- Describe Phantom RP |
| Routing Policy and Manipulation | 20% | - Implement and troubleshoot redistribution - Implement and troubleshoot route filtering
|
| MPLS and Segment Routing | 30% | - Describe CGNAT (NAT44, NAT64, MAP-T) - Implement and troubleshoot Segment Routing (SR-MPLS and SRv6)
|
| Unicast Routing | 35% | - Troubleshoot IS-IS operations - Troubleshoot BGP (eBGP and iBGP)
- Compare OSPF and IS-IS routing protocols |
>> 300-510 Real Exam Questions <<
The best news is that during the whole year after purchasing, you will get the latest version of our 300-510 exam prep study materials for free, since as soon as we have compiled a new version of the study materials, our company will send the latest one of our study materials to your email immediately. The experts in our company are always keeping a close eye on even the slightest change in the field. Therefore, we can assure that you will miss nothing needed for the 300-510 Exam. What's more, the latest version of our study materials will be a good way for you to broaden your horizons as well as improve your skills.
NEW QUESTION # 194
A network engineer of an ISP using Cisco IOS XR routers wants to limit the number of prefixes that BGP peers can accept.
To accomplish this task, the command maximum- prefix 1000 is used.
Which two results of this configuration are expected? (Choose two.)
Answer: F,G
NEW QUESTION # 195

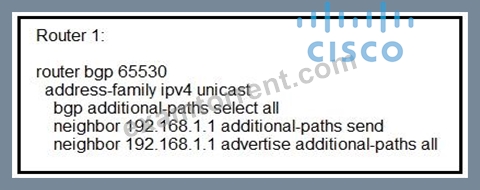

Refer to the exhibit.
Which statement about this configuration is true?
Answer: D
NEW QUESTION # 196

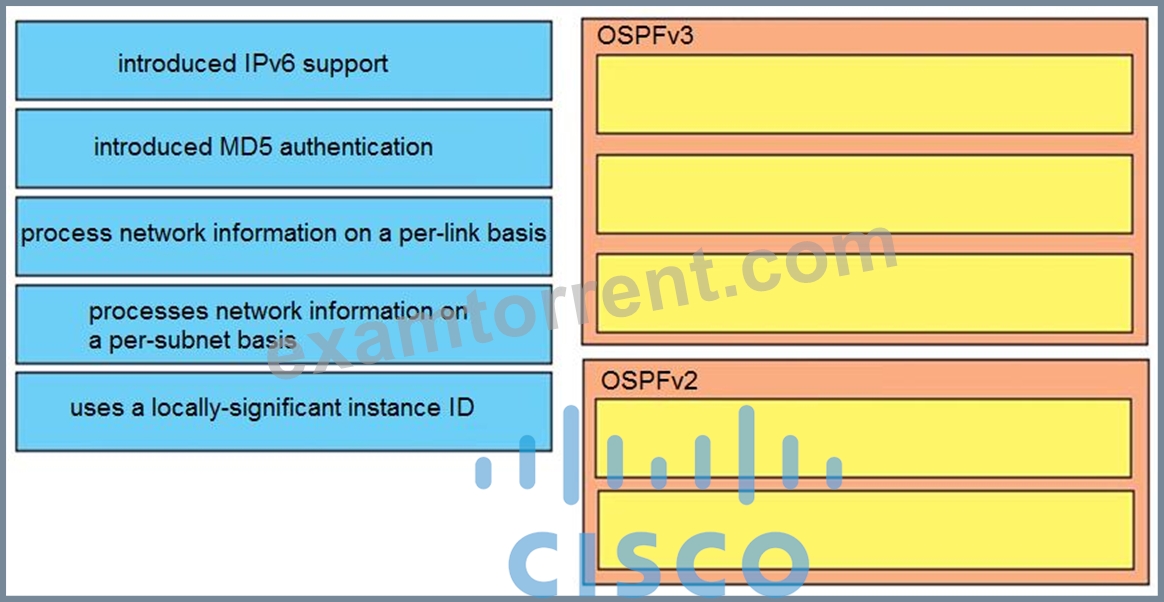

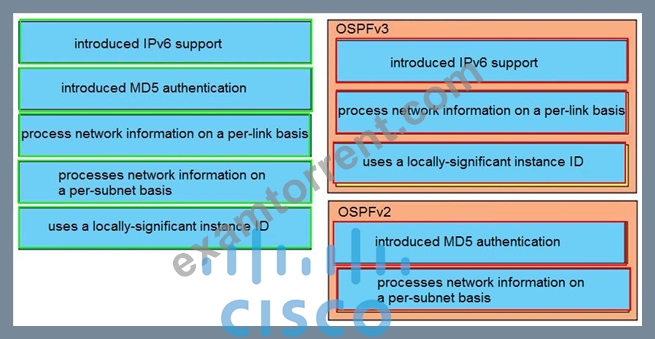

Compare different features between OSPFv2 and OSPFv3. Drag and drop the descriptions of OSPF from the left onto the correct OSPF versions on the right.
Answer:
Explanation:
NEW QUESTION # 197

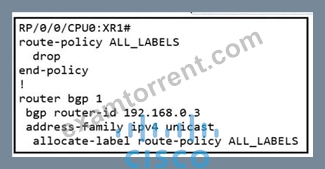

Refer to the exhibit.
A network operator is working to deploy a Unified BGP design and allow it to be available only in selected markets and services in the future. The label allocation is not functioning as desired. Which action will fix the issue?
Answer: A
NEW QUESTION # 198
SIMULATION
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
- Refer to the Tasks tab to view the tasks for this lab item.
- Refer to the Topology tab to access the device console(s) and perform the tasks.
- Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
- All necessary preconfigurations have been applied.
- Do not change the enable password or hostname for any device.
- Save your configurations to NVRAM before moving to the next item.
- Click Next at the bottom of the screen to submit this lab and move to the next question.
- When Next is clicked, the lab closes and cannot be reopened.

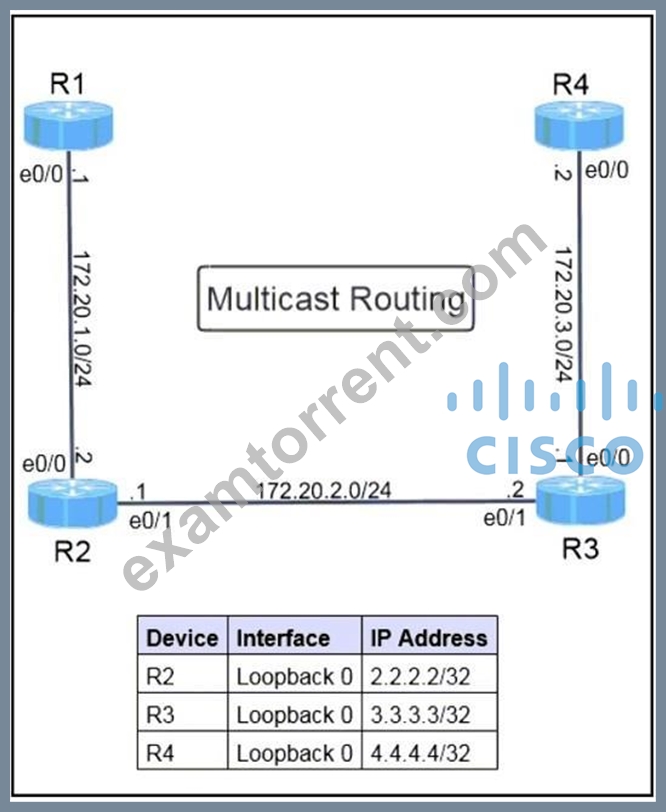

Topology
Tasks
R2 and R3 are routers that perform multicast operations. Candidates are required to perform the below configuration and verification tasks on R1 and R2.
1. Configure R2 and R3 to be able to process, route and forward multicast packets.
2. Configure R3 as the root of the shared tree for the any source multicast domain.
3. Configure R1 as the receiver for group 239.100.100.1 and ensure a ping to that group from R4 is successful.
Initial configuration with IP addressing has been completed. The candidate must not make any changes to the configurations except to fulfill the tasks listed above. Use non-proprietary protocol where needed. Only use the provided logical interface for the applicable task.
Answer:
Explanation:
1. Enable Multicast Routing on R2 and R3
To process, route, and forward multicast packets, multicast routing must be enabled globally, and PIM (Protocol Independent Multicast) must be configured on the appropriate interfaces.
Commands on R2 and R3:
R2(config)# ip multicast-routing
R2(config)# interface e0/0
R2(config-if)# ip pim sparse-mode
R2(config)# interface e0/1
R2(config-if)# ip pim sparse-mode
R2(config)# interface loopback 0
R2(config-if)# ip pim sparse-mode
R3(config)# ip multicast-routing
R3(config)# interface e0/0
R3(config-if)# ip pim sparse-mode
R3(config)# interface e0/1
R3(config-if)# ip pim sparse-mode
R3(config)# interface loopback 0
R3(config-if)# ip pim sparse-mode
ip multicast-routing enables multicast routing globally.
ip pim sparse-mode enables PIM in Sparse Mode on interfaces.
2. Configure R3 as the Root of the Shared Tree (Rendezvous Point - RP)
To configure R3 as the RP for the multicast domain, use Auto-RP or Static RP. Here, we configure Static RP for group 239.100.100.1.
Commands on R2 and R3:
R2(config)# ip pim rp-address 3.3.3.3
R3(config)# ip pim rp-address 3.3.3.3
ip pim rp-address <RP-IP>: Configures R3's Loopback0 IP (3.3.3.3) as the RP for the multicast domain.
3. Configure R1 as the Receiver for Group 239.100.100.1
To configure R1 as a multicast receiver, enable IGMP (Internet Group Management Protocol) on R1's e0/0 interface.
Commands on R1:
R1(config)# interface e0/0
R1(config-if)# ip igmp join-group 239.100.100.1
ip igmp join-group <group>: Forces R1 to join the multicast group 239.100.100.1.
Verification: Ensure Ping to Group 239.100.100.1 is Successful from R4
To verify multicast group reachability:
1. Send Multicast Traffic from R4:
R4# ping 239.100.100.1 repeat 5
2. Verify Multicast Routing Table on R2 and R3:
R2# show ip mroute
R3# show ip mroute
3. Verify IGMP Group Membership on R1:
R1# show ip igmp groups
Complete Summary of Configurations:
1. R2 Configuration:
ip multicast-routing
interface e0/0
ip pim sparse-mode
interface e0/1
ip pim sparse-mode
interface loopback 0
ip pim sparse-mode
ip pim rp-address 3.3.3.3
2. R3 Configuration:
ip multicast-routing
interface e0/0
ip pim sparse-mode
interface e0/1
ip pim sparse-mode
interface loopback 0
ip pim sparse-mode
ip pim rp-address 3.3.3.3
3. R1 Configuration:
interface e0/0
ip igmp join-group 239.100.100.1
Verification Checklist:
1. R3 is the RP: Use show ip pim rp mapping..
2. R1 is a Group Member: Verify with show ip igmp groups.
3. Multicast Traffic Flows: Use ping 239.100.100.1 from R4 and verify success.
NEW QUESTION # 199
......
