| Section | Weight | Objectives |
|---|---|---|
| Advanced Routing & VPN | 25% | - OSPF, BGP, IS-IS configuration & optimization - IPsec VPN & ADVPN architecture - SD-WAN design & SLA management - Route redistribution & filtering |
| Monitoring & Troubleshooting | 10% | - Connectivity & performance troubleshooting - Fabric synchronization issues - Diagnostic tools & CLI analysis |
| Centralized Management | 20% | - Policy packages & object templates - FortiAnalyzer logging & reporting - FortiManager 7.6 deployment & role assignment - Configuration provisioning & version control |
| Security Policy & Services | 10% | - Advanced firewall & security profile design - NAT & IP pool optimization - Identity-based policies |
| High Availability & Redundancy | 15% | - FGCP/FGSP/vCluster deployment - Cross-data center redundancy - Session synchronization & failover |
| System Architecture & Design | 20% | - Hardware sizing & resource planning - Security Fabric integration & scaling - FortiOS 7.6 architecture & components - VDOM design & multi-tenant deployment |
>> Valid NSE7_FSN_AR-7.6 Cram Materials <<
Prep4King also offers up to 1 year of free updates. It means if you download our actual NSE7_FSN_AR-7.6 exam questions today, you can get instant and free updates of these NSE7_FSN_AR-7.6 questions. With this amazing offer, you don't have to worry about updates in the Fortinet NSE 7 - Secure Networking 7.6 Architect (NSE7_FSN_AR-7.6) examination content for up to 1 year. In case of any update within three months, you can get free NSE7_FSN_AR-7.6 exam questions updates from Prep4King.
NEW QUESTION # 123
Which three common FortiGate-to-collector-agent connectivity issues can you identify using the FSSO real- time debug? (Choose three.)
Answer: B,D,E
NEW QUESTION # 124

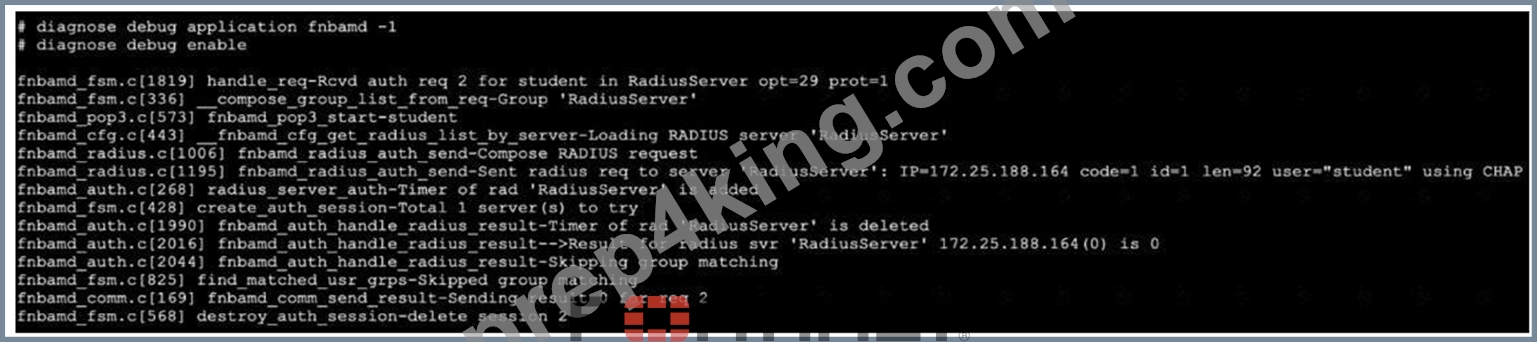

Refer to the exhibit, which shows a truncated output of a real-time RADIUS debug.
Which two statements are true? (Choose two answers)
Answer: C,E
Explanation:
The correct answers are A and D.
The debug output shows:
Sent RADIUS req to server ' RadiusServer ' : IP=172.25.188.164 ... user= " student " using CHAP Result for radius svr ' RadiusServer ' 172.25.188.164(0) is 0 Sending result 0 for req 2 The study guide explains that in RADIUS real-time debug, FortiGate shows the IP address of the RADIUS server it is querying. In the example, it says FortiGate "creates an access request to the RADIUS server at IP address 10.0.13.130" and shows the line Sent radius req to server ... IP=10.0.13.130 So in your exhibit, the queried server is clearly 172.25.188.164, which makes A correct.
The study guide also states:
"The message fnbamd_comm_send_result-Sending result 0 indicates that the authentication was successful and that FortiGate received the Access-Accept message." Since your exhibit also ends with Sending result 0, that makes D correct.
Why the other options are wrong:
B is wrong because result 0 means authentication successful, not failed C is wrong because the debug explicitly shows using CHAP, and the study guide lists supported RADIUS schemes as CHAP, PAP, MS-CHAP, and MS-CHAPv2 E is wrong because the study guide says two-factor authentication would involve an Access-Challenge response: "If two-factor authentication is enabled on the server, the response is an Access-Challenge message" Your exhibit shows successful result 0 / Access-Accept, not a challenge.
So the verified answers are: A, D.
NEW QUESTION # 125
During the SAML negotiation process, in which section does the Identity Provider (IdP) provide the SAML attributes used in the authentication process to the Service Provider (SP)?
Answer: B
Explanation:
The correct answer is B. Assertion dump.
The study guide states: "SAML attributes are pieces of information about a user that are exchanged between IdPs and SPs during the SAML authentication process. These attributes are included in the SAML assertion, which is built by the IdP as part of the authentication process." The same study guide page for real-time SAML troubleshooting shows the section labeled **** Assertion Dump ****, and inside that assertion it displays the actual user attributes, such as:
< saml:Attribute Name= " username " >
< saml:Attribute Name= " groups " >
It also explicitly marks this part as "Attributes sent by IdP"
Why the other options are wrong:
A). Bindings HTTP post is incorrect because bindings define how SAML messages are transported, not the section that contains the attributes. The study guide says: "Bindings: Define how SAML protocol messages are transmitted over different communication channels." C). Authentication request is incorrect because that is built by the SP and sent toward the IdP, not where the IdP's user attributes are shown. The study guide's flow says the SP "Builds auth request" and the IdP later
"Builds auth response."
D). Authentication response is broader than the exact section being asked. The exact section in the study guide where the IdP-provided attributes are shown is the Assertion dump.
So the verified answer is: B.
NEW QUESTION # 126
When FortiGate enters conserve mode because of memory pressure, which action can FortiGate perform to preserve memory?
Answer: D
Explanation:
The best verified answer is C .
The study guide says that when FortiGate is in conserve mode, it activates protection measures to recover memory space:
* "System configuration cannot be changed"
* "FortiGate skips quarantine actions (including FortiSandbox analysis)" It also explains that inspection behavior can be reduced while in conserve mode:
* "pass (default): All new sessions pass without inspection until FortiGate switches back to non- conserve mode."
* "The av-failopen setting also applies to flow-based antivirus inspection." The FortiOS administration guide summarizes this behavior as:
"This causes functions such as antivirus scanning to change how they operate to reduce the functionality and conserve memory without compromising security." That is why C is the closest correct choice: FortiGate can reduce functionality of some processes, especially antivirus-related inspection, to preserve memory.
Why the other options are wrong:
* A is wrong because FortiGate does not automatically reboot as a default conserve-mode action. A reboot can be configured through an automation stitch , but that is an optional administrator-defined response, not the built-in conserve-mode behavior
* B is wrong because the documentation does not say FortiGate switches from proxy-based inspection to flow-based inspection. Instead, it may pass traffic without inspection depending on av-failopen settings
* D is not generally correct for conserve mode . The study guide says FortiGate starts dropping new sessions only when memory usage exceeds the extreme threshold : "If memory usage exceeds the extreme threshold, all new sessions that require inspection (flow-based or proxy-based) are blocked." So the verified answer is: C .
NEW QUESTION # 127

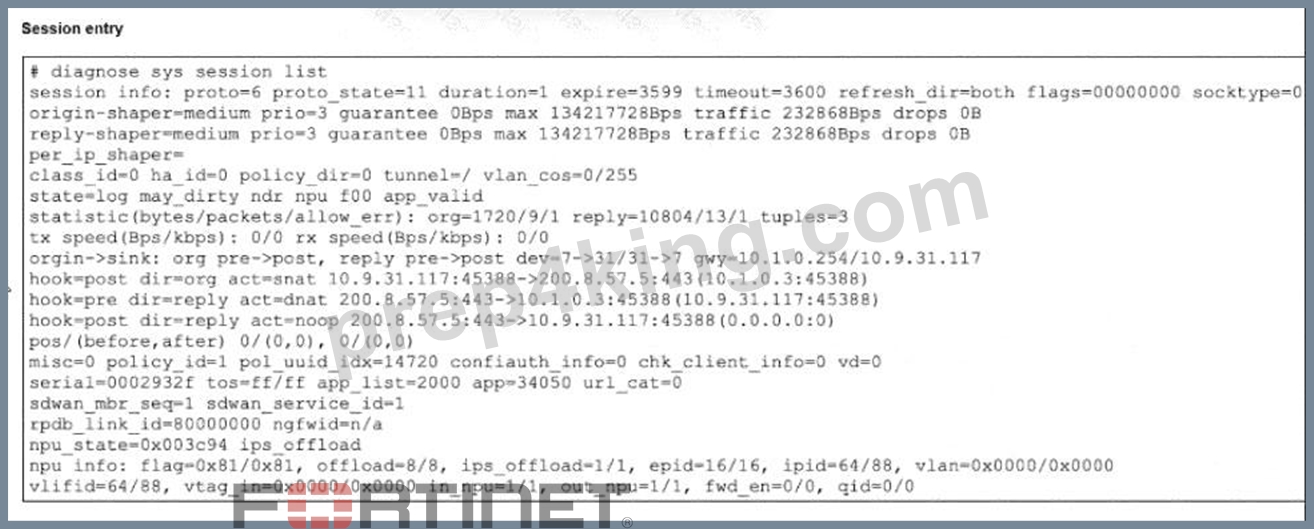

Refer to the exhibit.
The exhibit shows a session entry. Which statement about this TCP session is true?
Answer: D
Explanation:
The correct answer is C. The session is offloaded using NPU.
The exact session example in the study guide shows:
proto=6 # this is a TCP session
expire=3599 # the session will expire in 3599 seconds, not in one second hook=post dir=org act=snat 10.9.31.117:45388- > 200.8.57.5:443(10.1.0.3:45388) hook=pre dir=reply act=dnat 200.8.57.5:443- > 10.1.0.3:45388(10.9.31.117:45388) npu info: ... offload=8/8 ...
and the slide explicitly states: "Offloaded in both directions using NP6" The study guide also explains this exact point clearly:
"Counters for hardware acceleration-The presence of the npu info field indicates the session has been offloaded to hardware acceleration. In this example, traffic is being offloaded in both directions using network processor (NP) 6, which is represented by the value of 8." Why the other options are wrong:
A is wrong because expire=3599, not 1. The duration=1 field means the session has existed for 1 second, not that it will expire in 1 second.
B is wrong because the original session is from 10.9.31.117 to the remote server 200.8.57.5:443. The IP
10.1.0.3 is the SNAT-translated source address, not the final destination.
D is not the best answer for this single-select question. The reply is indeed DNATed back toward the original client, but the exact validated takeaway highlighted by the study guide for this exhibit is the NPU offload state.
