NEW QUESTION # 99

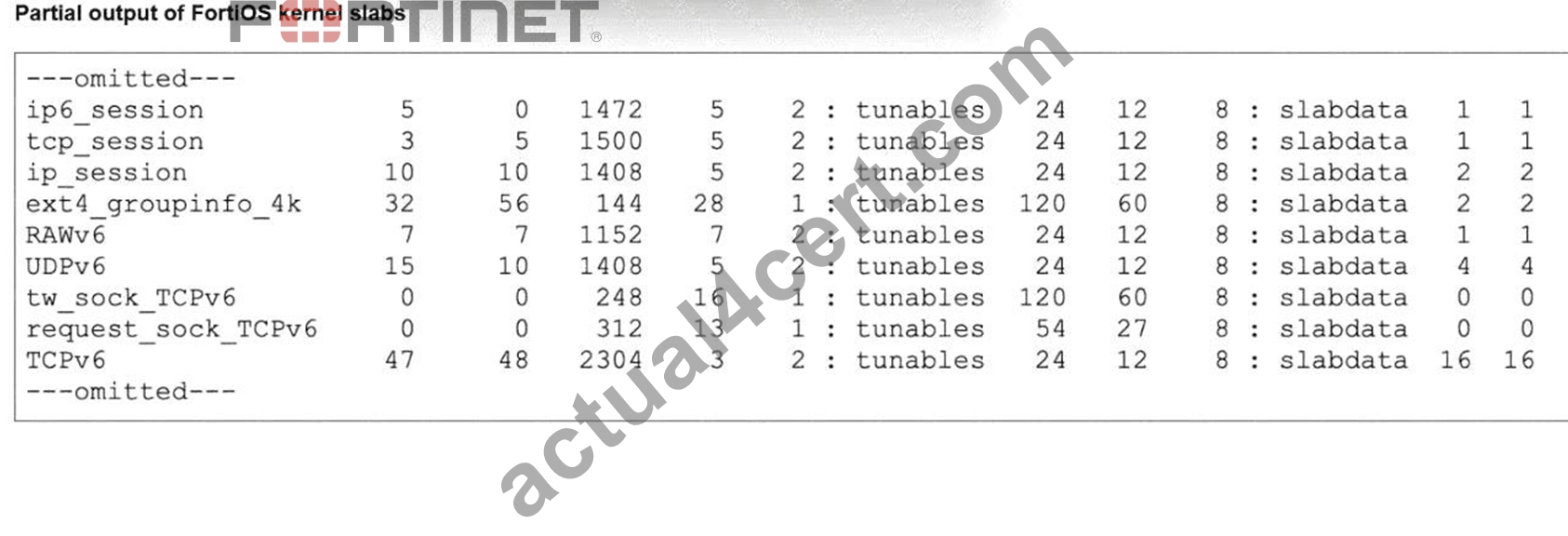

Refer to the exhibit.
The partial output of FortiOS kernel slabs is shown. Which statement about total slab size is true?
Answer: D
Explanation:
The correct answer is B.
The study guide explicitly states that slabs are used by the kernel: "The kernel memory slabs are collections of objects with a common purpose. The kernel uses them to store information in memory." It also gives the exact calculation method: "Total slab size = available objects x object size" and explains that in the diagnose hardware sysinfo slab output, the columns are active objects, available objects, and object size From the exhibit:
tcp_session 3 5 1500 ...
available objects = 5
object size = 1500
So:
Total slab size = 5 × 1500 = 7500
That matches option B.
Why the other options are wrong:
A: ip_session 10 10 1408 ... gives 10 × 1408 = 14080, but slabs are associated with the kernel, not user space C: ip6_session 5 0 1472 ... gives 0 × 1472 = 0, not 1472 D: UDPv6 15 10 1408 ... gives 10 × 1408 = 14080, but again slabs are associated with the kernel, not user space So the verified answer is B.
NEW QUESTION # 100

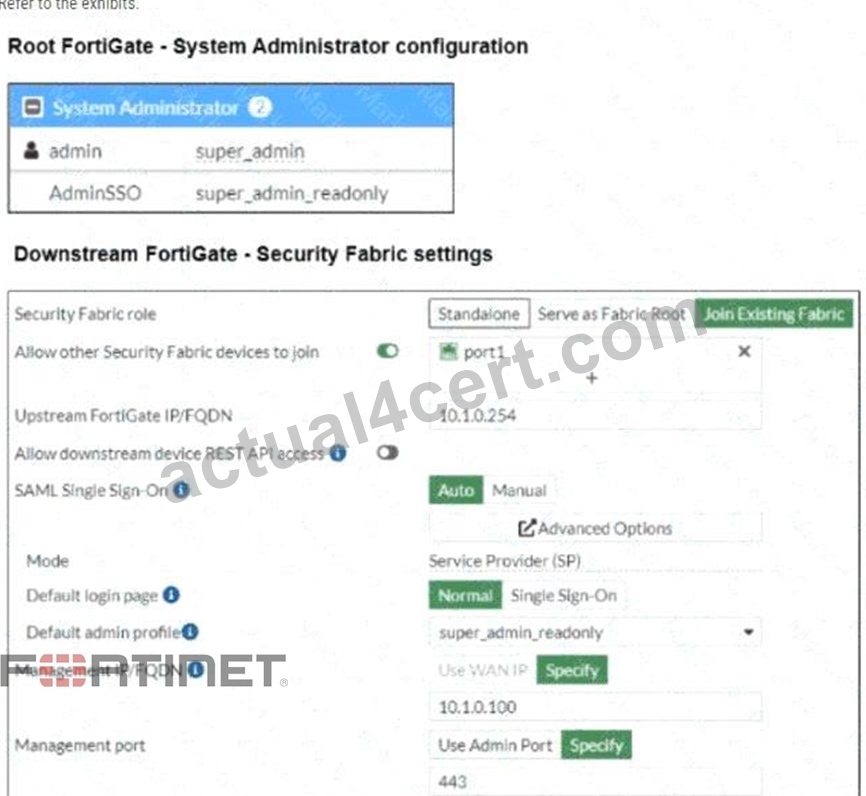

Refer to the exhibits.
The system administrator settings configured on the root FortiGate and the Security Fabric settings configured on a downstream FortiGate are shown.
When prompted to sign in with Security Fabric to the downstream FortiGate, a user enters the single sign-on (SSO) provider credentials.
What happens next for the user?
Answer: C
Explanation:
The Enterprise Firewall 7.6 Administrator Study Guide explains: "The root FortiGate acts as the identity provider (IdP) and you configure the other devices as service providers (SP)." Therefore, the root FortiGate authenticates the credentials for the AdminSSO administrator, while the downstream FortiGate operates as the SAML service provider.
After successful authentication, the root FortiGate returns a SAML assertion to the downstream FortiGate.
The downstream device then grants access according to its configured SAML administrator profile. The exhibit shows that its Default admin profile is super_admin_readonly. Consequently, the user is logged in to the downstream FortiGate with read-only super-administrator privileges.
The browser can be redirected temporarily to the root FortiGate for identity-provider authentication, but that is not the final access outcome, so option A is incomplete. AdminSSO is the administrator account name, not an access profile, and the user is not left on the root FortiGate, eliminating option C. Because the credentials are successfully authenticated, option D is also incorrect.
References: Enterprise Firewall 7.6 Administrator Study Guide, Security Fabric - Use Case 4: Security Fabric with SAML SSO , page 266; FortiOS 7.6 - Configuring a downstream FortiGate as an SP ; FortiOS 7.6
- SSO administrators .
NEW QUESTION # 101

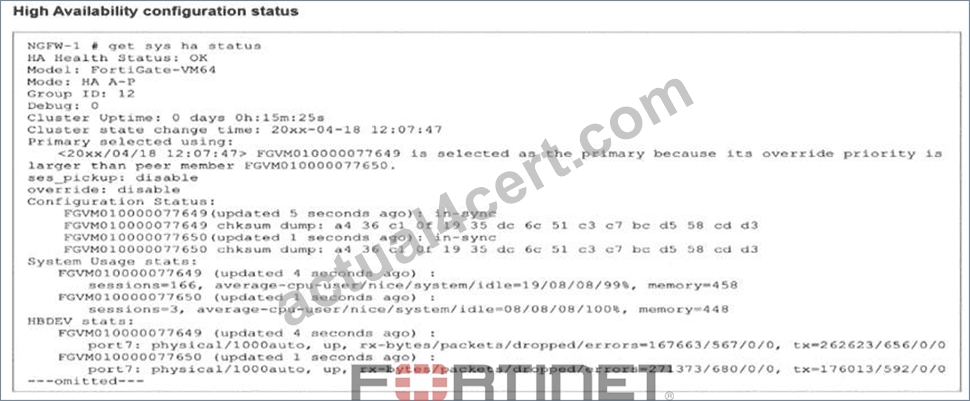

Refer to the exhibit.
Which two statements about the output are true, considering NGFW-1 and NGFW-2 have been up for a week? (Choose two.)
Answer: A,C
Explanation:
The correct answers are A and B.
The exhibit shows:
override: disable
both members are currently in-sync
only port7 appears under HBDEV stats, so it is the active heartbeat interface the cluster is in HA A-P mode Why A is correct:
With override disabled, after a failover the new primary keeps that role when the old primary comes back.
The FortiOS administration guide states:
"When the primary FortiGate rejoins the cluster the secondary FortiGate continues to operate as the primary FortiGate." So if FGVM...649 reboots and FGVM...650 becomes primary, FGVM...650 will remain primary after FGVM...649 rejoins.
Why B is correct:
The study guide states:
"When FortiGate devices configured in an HA cluster lose communication with each other on the heartbeat interface, each FortiGate assumes the role of the primary device." The exhibit shows only port7 as the heartbeat device in HBDEV stats So if port7 is disconnected and heartbeat communication is lost, the cluster can enter a split-brain condition, where both units believe they are primary. The FortiOS administration guide confirms the same behavior: loss of heartbeat communication causes each member to think it is the primary Why the other options are wrong:
C is wrong because configuration synchronization status is specifically used to detect whether secondary members remain synchronized with the primary. If members are no longer synchronized, the status changes from in-sync to out-of-sync D is wrong because the study guide explains that during a configuration change, checksums may differ briefly while changes are copied, but it does not describe this as the secondary initiating a "synchronization reset" So the verified answers are: A, B.
NEW QUESTION # 102

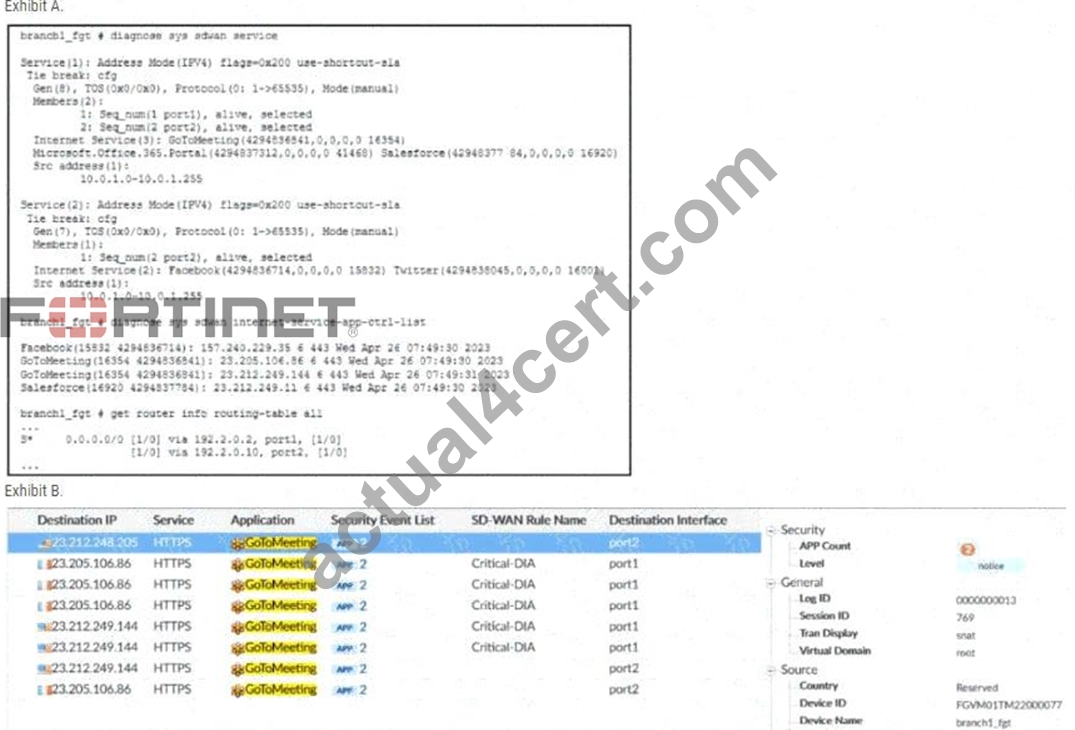

Refer to the exhibits.
An administrator is testing application steering in SD-WAN. Before generating test traffic, the administrator collected the SD-WAN service and ISDB application-cache information shown in the first exhibit. After generating GoToMeeting test traffic, the administrator examined the corresponding traffic logs on FortiAnalyzer.
The administrator noticed that some traffic matched the implicit SD-WAN rule, but expected the traffic to match rule ID 1.
Which two reasons explain why some log messages show that the traffic matched the implicit SD-WAN rule?
(Choose two.)
Answer: A,B
Explanation:
Comprehensive and Detailed 100 to 150 words of Explanation From Secure Networking Architect Study Guides topics:
Application-based SD-WAN steering depends on FortiGate being able to associate the new session with an already identified application. The SD-WAN 7.6 guide explains that the ISDB application cache contains an application ID, ISDB application ID, and 3-tuple, and FortiGate uses these values when matching an SD- WAN rule. If the new session ' s 3-tuple is absent from the cache, FortiGate cannot initially identify it as GoToMeeting for rule 1, so normal processing can select the implicit rule.
Application identification can occur only after traffic has already entered the session. That identification does not retroactively change the initial routing decision for packets already associated with the session.
GoToMeeting belongs to the Collaboration criteria shown for rule 1, so A is false. Full SSL inspection is not intrinsically required for this SD-WAN application-cache mechanism, eliminating D.
NEW QUESTION # 103

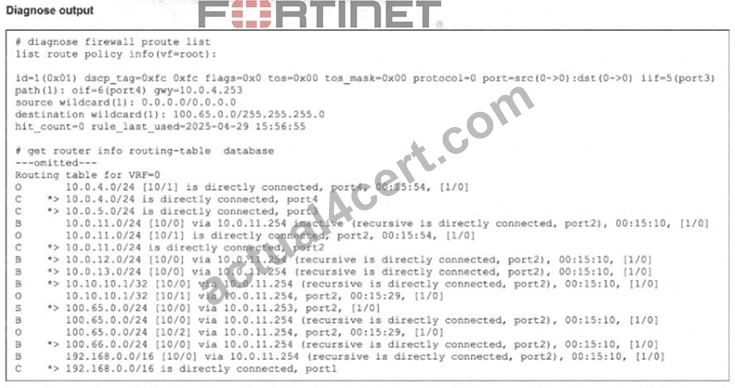

Refer to the exhibit.
Which route will traffic take to get to the 100.65.0.0/24 network considering the routes are all configured with the same distance?
Answer: C
Explanation:
To determine the path the traffic will take, we must look at the FortiGate Route Lookup Precedence (Packet Processing Flow) and the specific configurations shown in the exhibit Analyze the Routing Precedence:
In FortiOS, when a packet arrives (and is not part of an existing session), the FortiGate performs route lookups in a specific order:
Policy Routes: Configured under config router policy (or diagnose firewall proute list). These are checked first. If a packet matches the criteria (Source, Destination, Protocol, Incoming Interface), the Policy Route is used immediately, bypassing the standard routing table.
FIB (Forwarding Information Base): If no Policy Route matches, the device looks at the standard routing table (Static, Connected, Dynamic).
Analyze the Exhibit:
Policy Route Section: The output of diagnose firewall proute list shows an active policy route (id=1).
Destination: 100.65.0.0/255.255.255.0 (Matches the network in the question).
Action: It directs traffic to gateway 10.0.4.253 via oif=6(port4).
Routing Table Section: The output of get router info routing-table database shows multiple routes for
100.65.0.0/24 (Static, OSPF, BGP) all with distance 10. The Static route (S) is currently selected (* > ) in the FIB.
Conclusion:
Because Policy Routes take precedence over the standard routing table (FIB), the FortiGate will forward the traffic using the instructions in Policy Route ID 1. It will not use the Static, BGP, or OSPF routes visible in the routing table for any traffic that matches the policy route ' s criteria (ingress port 3).
Reference:
FortiGate Security 7.6 Study Guide (Routing): " Policy routes take precedence over entries in the routing table. If a packet matches a policy route, the FortiGate routes the packet according to the specified interface and gateway. "
