NEW QUESTION # 129

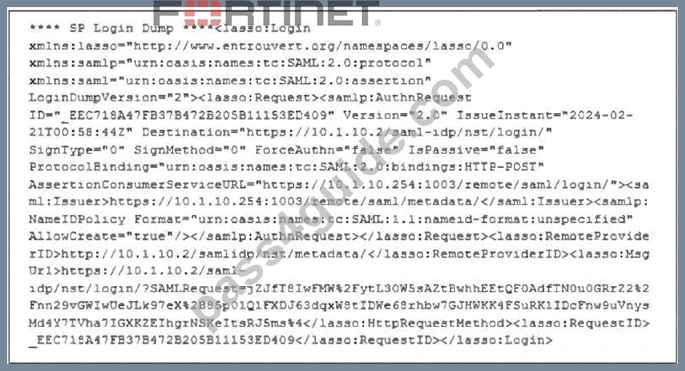

Refer to the exhibit.
The exhibit shows the output from using the command diagnose debug application samld -1 to diagnose a SAML connection.
Based on this output, what can you conclude?
Answer: A
NEW QUESTION # 130

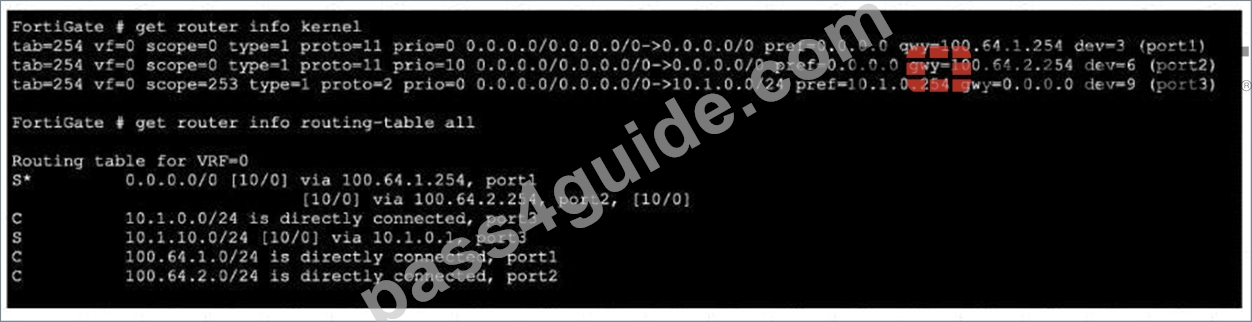

Refer to the exhibit, which shows partial outputs from two routing debug commands.
Which change must an administrator make on FortiGate to route web traffic from internal users to the internet, using ECMP?
Answer: C
Explanation:
The 7.6 study guide explains the route selection order:
"Route Selection Process
Most specific route
Lowest distance
Lowest metric (dynamic routes)
Lowest priority (static routes)
ECMP (static, BGP, and OSPF routes)"**
It then states:
"If there are multiple routes with the same netmask, distance, metric, and priority, FortiGate shares the traffic among all of them. This is called equal-cost multi-path (ECMP)." The FortiOS administration guide confirms the ECMP prerequisite:
"Routes must have the same destination and costs. In the case of static routes costs include distance and priority." In the exhibit, the kernel/FIB output shows the two default routes as:
gwy=100.64.1.254 dev=3 (port1) prio=0
gwy=100.64.2.254 dev=6 (port2) prio=10
So although both are default routes, their priorities are different. Since FortiGate uses the FIB/kernel for forwarding traffic, ECMP will not happen until the static-route priorities are the same. The study guide also notes that the FIB is the table used to perform standard routing Therefore, to make the two default routes eligible for ECMP, the administrator must make the priorities equal.
Since port2 is already 10, the needed change is to set the port1 default route priority to 10.
Why the other options are wrong:
A is wrong because snat-route-change affects how existing SNAT sessions react to routing changes, not whether static routes qualify for ECMP B is wrong because changing port2 to priority 1 still would not match port1 at 0, so the routes still would not have equal cost for ECMP C is wrong because preserve-session-route affects existing-session route persistence after routing changes, not ECMP qualification
NEW QUESTION # 131

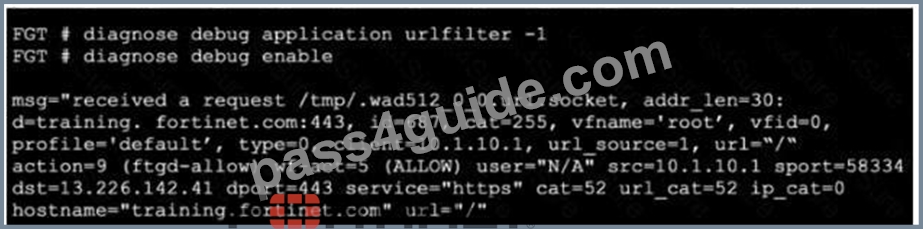

Refer to the exhibit, which shows the output of a real-time debug. Which statement about this output is true?
(Choose one answer)
Answer: B
Explanation:
The correct answer is A .
The debug output is for an HTTPS request and shows a hostname value. The study guide explains that with SSL certificate inspection, FortiGate extracts the FQDN from either:
* "TLS extension server name indication (SNI)"
* "SSL certificate common name (CN)"
So the hostname shown in the real-time web-filter debug can be derived from the SNI in the client request or, if needed, from the CN in the server certificate. That makes A correct.
Why the other options are wrong:
* B is wrong because the study-guide example for web-filter real-time debug explicitly says: "This slide shows an example of real-time debug output when the URL to categorize isn ' t in the FortiGuard cache." In these debugs, cat=255 appears before the final lookup result, so this does not indicate a local- cache hit.
* C is wrong because ftgd-allow is the action , not the profile name. The debug line shows the action as action=9 (ftgd-allow) while the profile shown is profile= ' default ' . FortiOS web-filter logs also use the profile field separately from the action field
* D is wrong because the final category shown is url_cat=52 , not 255. The study guide's example shows the same pattern: an initial cat=255 in the request line, followed by the resolved result cat=52 url_cat=52 So the verified answer is: A .
NEW QUESTION # 132

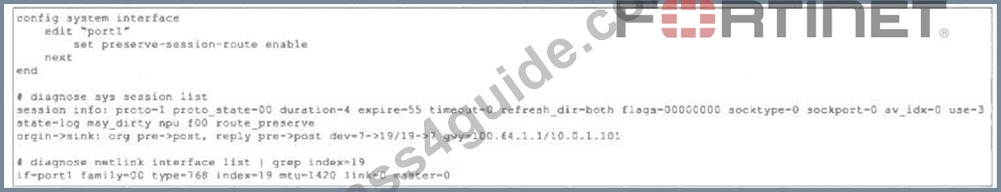

Refer to the exhibit.
The port1 interface configuration on FortiGate and partial session information for ICMP traffic are shown.
Which two things happen to the session information if a routing change occurs that affects this session?
(Choose two answers)
Answer: C,D
Explanation:
The correct answers are A and C .
The exhibit shows that preserve-session-route is enabled on port1:
config system interface
edit " port1 "
set preserve-session-route enable
next
end
The study guide explains the effect of this setting exactly:
"enable: FortiGate marks existing session routing information as persistent, and applies only the modified routes to new sessions" It also states:
"The current route must still be present in the FIB. Otherwise, FortiGate flags the session as dirty and reevaluates it" And the same page further clarifies:
"If you enable this setting, sessions passing through that interface continue to pass without being affected by the routing changes. The routing changes apply only to new sessions. If the route is removed from the FIB, then FortiGate must flag the session as dirty, flush its gateway information, and reevaluate the session." This proves:
* A is correct because with preserve-session-route enable, existing sessions are normally preserved and routing changes apply only to new sessions.
* C is correct because the session remains unchanged unless the current route is removed from the FIB
/routing table, in which case FortiGate dirties and reevaluates the session.
Why the other options are wrong:
* B is wrong because when the active route is removed, FortiGate does not simply mark the session dirty and stop there. The study guide says it "flags the session as dirty and reevaluates it" , which means route lookup happens again.
* D is wrong because the session does change if the active route is removed. FortiGate flushes gateway information and reevaluates the session.
So the verified answers are: A, C .
NEW QUESTION # 133

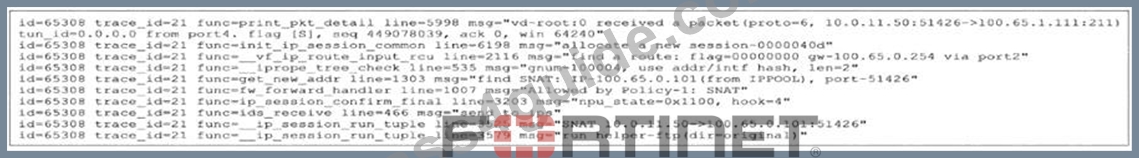

Refer to the exhibit.
An administrator has configured a firewall policy to use proxy-based inspection mode. What could explain the messages observed in the debug flow output?
Answer: D
Explanation:
The correct answer is A .
The debug flow shows:
* traffic is going to TCP port 211
* FortiGate logs run helper-ftp(dir=original)
The study guide explains exactly what that message means:
"In this example, the run helper-ftp message indicates that the FTP session helper is being used." Under normal proxy-based inspection, protocol handling is controlled by Protocol Options . The FortiOS administration guide states:
"Protocol port mapping only works with proxy-based inspection." and "The ports can be modified to inspect any port with flowing traffic." So if the policy is configured for proxy-based inspection but the debug still shows the FTP session helper on port 211, the most likely explanation is that the FTP protocol mapping in Protocol Options is broad enough to match unexpectedly, such as being mapped to Any . That would cause FortiGate to identify the traffic as FTP and invoke the helper.
Why the other options are wrong:
* B is wrong because SSL deep inspection is unrelated to this debug. The traffic shown is plain TCP/211
, and the key message is about the FTP helper , not SSL decryption.
* C is wrong because if FTP had not been mapped to port 211, FortiGate would be less likely to treat this traffic as FTP. The observed run helper-ftp indicates FTP handling is being triggered.
* D is wrong because low-memory conserve behavior would typically cause inspection bypass or blocking behavior, not specifically the run helper-ftp message. The study guide's helper example ties this message to session-helper use, not memory shortage.
So the verified answer is: A .
NEW QUESTION # 134
......
