With the SAP C_S43 Certification Exam, you can demonstrate your skills and upgrade your knowledge.The SAP C_S43 certification exam will provide you with many personal and professional benefits such as more career opportunities, updated and in demands expertise, an increase in salary, instant promotion, and recognition of skills across the world.
| Section | Weight | Objectives |
|---|---|---|
| Topic 1: Maintenance Processing - Advanced Functions | 11% - 20% | - Advanced Maintenance Scenarios
|
| Topic 2: User Interface and User Experience | 10% or less | - SAP Fiori Applications
|
| Topic 3: Managing Clean Core | 10% or less | - Clean Core Principles
|
| Topic 4: Preventive Maintenance | 11% - 20% | - Maintenance Planning
|
| Topic 5: Technical Objects | 11% - 20% | - Equipment and Functional Locations
|
| Topic 6: Organizational Units and Master Data | 11% - 20% | - Enterprise Structure
|
| Topic 7: Maintenance Processing - Basic Functions | 11% - 20% | - Maintenance Notifications
|
>> C_S43 Reliable Exam Labs <<
With passing rate up to 98 to 100 percent, the quality and accuracy of our C_S43 training materials are unquestionable. You may wonder their price must be equally steep. While it is not truth. On the contrary everyone can afford them easily. By researching on the frequent-tested points in the real exam, our experts have made both clear outlines and comprehensive questions into our C_S43 Exam Prep. So our C_S43 practice engine is easy for you to understand.
NEW QUESTION # 11
Task 4: Configure and create Technical Objects
The project team evaluates during the implementation project Technical Object structures in SAP S/4HANA Asset Management. The following features need to be checked:
* Configure and create Functional Locations
* Create, serialize and install Equipment
* Create Functional Location master record ZZ0##-01 and save it. Use the following information:
* Create Equipment master record EQUI-## and save it. Use the following information:
* Serialize the just created Equipment master record EQUI-## . Use the following data:
* Install Equipment EQUI-## at the Functional Location 00-01-ASS-02 .
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 4: Configure and create Technical Objects
This task evaluates your ability to structure and manage the physical and functional hierarchy of assets in SAP S/4HANA Asset Management.
Step 1: Create Functional Location Master Record
A Functional Location represents the area at which a maintenance task is to be performed.
* Access the Transaction : Use transaction code IL01 (Create Functional Location).
* Enter Initial Data :
* Functional Location : ZZ048-01.
* Structure Indicator : ZZ48.
* Functional Location Category : T.
* Press Enter .
* Enter General Data :
* Description : Production Line Z48.
* Enter Location and Organization Data :
* Maintenance Plant : 1020.
* Cost Center : 4110.
* Planning Plant : 1020.
* Planner Group : Z48.
* Main WorkCtr : T-ME48.
* Work Center Plant : 1010.
* Save : Click the Save icon.
Explanation : By creating this record, you define a specific functional area within Plant 1020 where maintenance costs and history will be tracked for all equipment installed there.
Step 2: Create Equipment Master Record
Equipment represents an individual physical object that is maintained as an autonomous unit.
* Access the Transaction : Use transaction code IE01 (Create Equipment).
* Enter Initial Data :
* Equipment : EQUI-48.
* Equipment Category : T.
* Press Enter .
* Enter General Data :
* Description : Drive Motor GR48.
* Save : Click the Save icon.
Explanation : This step creates a master record for a physical asset-a drive motor-allowing you to track its individual lifecycle, independent of where it is currently installed.
Step 3: Serialize the Equipment
Serialization links a piece of equipment to a specific material and unique serial number for inventory management and tracking.
* Access the Transaction : Use transaction code IE02 (Change Equipment) and enter EQUI-48.
* Navigate to Serial Data : Go to the SerData (Serial Data) tab.
* Enter Serialization Data :
* Material : T-PM8000.
* Serial Number : EQUI-48.
* Save : Click the Save icon.
Explanation : Linking the motor to Material T-PM8000 enables the system to track this specific asset as a serialized part, which is essential for warehouse movements and warranty tracking.
Step 4: Install Equipment at a Functional Location
This establishes the relationship between the physical asset (Equipment) and the functional area where it is operating.
* Access the Transaction : Use transaction code IE02 (Change Equipment) for EQUI-48.
* Modify Installation Location :
* Click on the Structure tab.
* Find the FunctLoc field.
* Enter the location: 00-01-ASS-02.
* Save : Click the Save icon.
Explanation : This installation "plugs" your drive motor into the functional hierarchy at location 00-01-ASS-02. From this point forward, any maintenance performed on this motor will be automatically associated with that location's history.
NEW QUESTION # 12
Task: 5
Configure and create a Maintenance Notification
The project team evaluates during the implementation project the Maintenance Notifications in SAP S
/4HANA Asset Management. The following features need to be checked:
* Configure and create a Maintenance Notification
* Assign catalog specific data to a Maintenance Notification
* Create a Maintenance Notification and save it. Use the following information:
* Assign the following data to the just created notification:
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 5 Overview
The project team is evaluating Maintenance Notifications in SAP S/4HANA Asset Management. This task involves creating a notification and assigning catalog-specific data to it.
Step 1: Create the Maintenance Notification
In this step, you will record a technical problem in the system.
* Access the Transaction : Use transaction code IW21 (Create Maintenance Notification) in the SAP GUI or the corresponding Fiori app.
* Initial Screen :
* Notification Type : Enter Z1 .
* Press Enter .
* Enter General Data :
* Description : Enter Pump is leaking .
* Priority : Select High .
* Equipment : Enter T-PA48 .
* Save : Click the Save (floppy disk) icon to generate a notification number.
Explanation : Creating a notification is the first step in the maintenance process. It documents the "what" (leaking pump), the "how critical" (high priority), and the "where" (Equipment T-PA48).
Step 2: Assign Catalog Specific Data
Now you must assign technical codes to describe the damage precisely for future reporting and analysis.
* Access the Transaction : Use transaction code IW22 (Change Maintenance Notification) to open your recently created notification.
* Navigate to Item Data : Go to the Items tab or the relevant section for damage and causes.
* Enter Damage Details :
* Damage Code Group : PMP-100 .
* Damage Code : 1000 .
* Description : Leaking .
* Enter Object Part Details :
* Object Part Code Group : PMP-Z48 .
* Object Part Code : 1001 .
* Description : Inlet/Outlet .
* Enter Cause Details :
* Cause Code Group : PMP-248 .
* Cause Code : 2000 .
* Description : Material fatigue .
* Save : Click the Save icon to finalize the notification.
Explanation : Assigning catalog data categorizes the issue using standardized codes. This allows the company to run "Bad Actor" reports later to see, for example, how many pumps are failing due to "Material fatigue" versus "Operator error".
NEW QUESTION # 13
Create and use a Maintenance Work Center
The project team evaluates during the implementation project the organizational elements in SAP S/4HANA Asset Management. The following features need to be checked:
* Create a Maintenance Work Center
* Create a capacity demand for a Maintenance Work Center
* Create a new Maintenance Work Center master record ZZ-ME## for maintenance plant 1010 similar to maintenance work center T-ME00 and save it. Use the following information:
* Create a capacity demand of 1 hour for the just created Maintentance Work Center ZZ-ME## by creating a new maintenance order of order type PM01 .
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 3: Create and Use a Maintenance Work Center
Objective
In Task 3, the requirement was to:
* create a new maintenance work center ZZ-ME42 for plant 1010 similar to T-ME00
* maintain the required capacity values
* create a 1-hour capacity demand for that work center by creating a maintenance order of type PM01
Part 1: Create the Maintenance Work Center
Requirement from task file

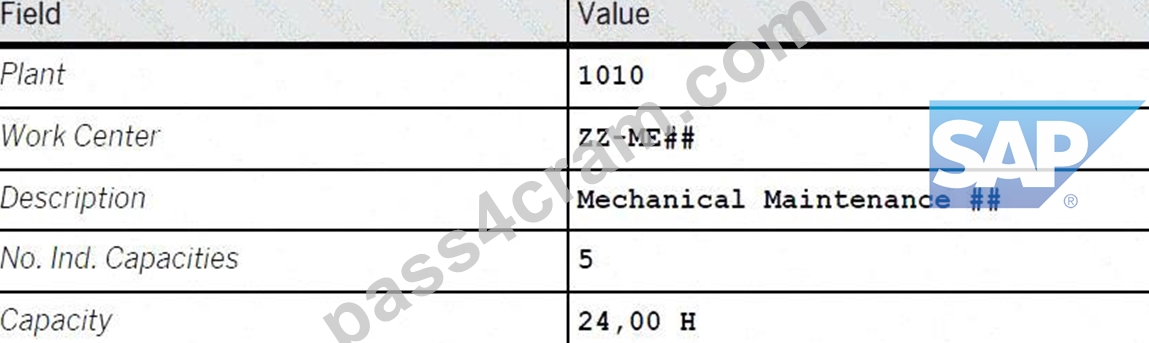

The task required the following values for the work center:
* Plant = 1010
* Work Center = ZZ-ME42
* Description = Mechanical Maintenance 42
* No. Ind. Capacities = 5
* Capacity = 24.00 H
The task also stated that the work center must be created similar to maintenance work center T-ME00 .
Step-by-step procedure
Step 1: Open work center creation
* Go to SAP GUI command field
* Enter transaction IR01
* Press Enter
Transaction IR01 is used to create a new work center. This is the correct starting point for creating the maintenance work center required in Task 3.
Step 2: Enter initial work center data
On the Create Work Center: Initial Screen , enter:
* Plant = 1010
* Work Center = ZZ-ME42
* Work Center Category = 0005
* In Copy from :
* Plant = 1010
* Work Center = T-ME00
Then press Enter .
The task explicitly required the work center to be created for plant 1010 and to be created similar to T-ME00.
Work center category 0005 is the maintenance work center category, so this was the correct category to use for a maintenance work center.
Step 3: Include capacity data during copy
When the Copy from popup appeared:
* select Capacities
* continue with the green check
This was important because the task required changing capacity-related data:
* No. Ind. Capacities = 5
* Capacity = 24.00 H Copying the capacity data ensured the new work center inherited the capacity structure from T-ME00 and could then be adjusted correctly.
Step 4: Maintain basic data
On the work center master screen:
* change the description to Mechanical Maintenance 42
This matches the exact description required by the task.
Step 5: Maintain capacity values
Go to the Capacities tab, then open the capacity detail screen.
Maintain or verify:
* No. Ind. Capacities = 5
* Capacity Base Unit = H
* Capacity recalculated to 24.00 H
In our system, the Capacity field was system-calculated and not directly editable.
The final valid values were achieved with:
* Start Time = 08:00:00
* End Time = 17:00:00
* Length of breaks = 01:00:00
* Capacity Utilization = 60
* No. Ind. Capacities = 5
This produced:
* Capacity = 24.00 H
The task required 24.00 H capacity, but SAP calculated it automatically based on operating time, utilization, and number of individual capacities.
The resulting calculation was correct and matched the task requirement exactly.
Step 6: Save the work center
* Click Save
Later, when trying to create the same work center again, SAP displayed the system message:
* "Work center ZZ-ME42 in plant 1010 already exists"
Explanation / Verification:
This system message confirmed that the work center had already been created successfully.
Therefore, the creation of ZZ-ME42 was verified as complete.
Part 2: Create a 1-Hour Capacity Demand
Requirement from task file
The task required:
* create a capacity demand of 1 hour
* for the newly created maintenance work center ZZ-ME42
* by creating a maintenance order of type PM01
Step-by-step procedure
Step 7: Open maintenance order creation
* In the command field, enter /nIW31
* Press Enter
Transaction IW31 is used to create a maintenance order.
The /n ensured SAP exited the previous transaction and opened the new one directly.
Step 8: Enter order header data
On the Create Maintenance Order: Initial Screen , enter:
* Order Type = PM01
* Planning Plant = 1010
Then press Enter .
The task explicitly required the capacity demand to be created by means of a maintenance order of type PM01 .
Step 9: Enter order description
On the order header screen, enter a short text such as:
* Capacity demand ZZ-ME42
The task did not prescribe a specific short text, so a meaningful description was used for traceability.
Step 10: Create the first operation
In the first operation area / operations overview, maintain:
* Operation = 0010
* Work Center = ZZ-ME42
* Plant = 1010
* Control Key = PM01
* Work Duration / Work = 1
* Unit = H
Then press Enter .
This operation is the actual source of the capacity demand .
The capacity demand is not created merely by the order header; it is created by assigning the operation to the work center with a planned work value of 1 hour .
Therefore, these operation entries were the critical part of fulfilling Task 3.
Step 11: Save the maintenance order
* Click Save
SAP displayed the confirmation message:
* "Order saved with number 4000314"
Explanation / Verification:
This was the final confirmation that the maintenance order had been created successfully.
Because the operation was assigned to ZZ-ME42 with 1 H planned work, this verified that the required 1- hour capacity demand had been created for the work center.
Verified completed objects
The following results were verified during execution:
* Maintenance Work Center created
* Work Center = ZZ-ME42
* Plant = 1010
* confirmed by SAP message that the work center already existed when rechecked
* Capacity maintained correctly
* No. Ind. Capacities = 5
* Capacity = 24.00 H
* Capacity demand created
* maintenance order type PM01
* operation assigned to ZZ-ME42
* planned work = 1 H
* Order successfully saved
* SAP confirmation: Order saved with number 4000314
NEW QUESTION # 14
Create a Maintenance Order with Checklists
The project team evaluates during the implementation project Maintenance Orders with Checklists in SAP S
/4HANA Asset Management. The following features need to be checked:
* Create a Maintenance Order with Checklist
* Display a Maintenance Order with automatically generated Object List and Checklist.
* Create a Maintenance Order using an Order Type which is already configured for the checklist process.

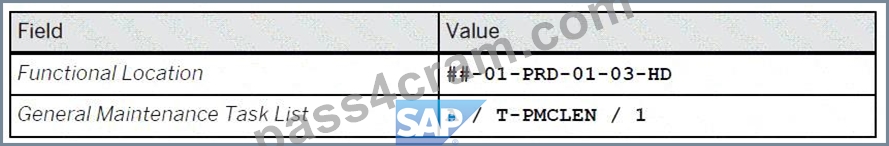

Use the following data:
* Display the previously created Maintenance Order with automatically generated Object List and Checklist.
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 12 Overview
In this task, you will create a maintenance order using a specific order type configured for the checklist process. The system will then automatically generate an object list and a corresponding checklist based on the equipment and task list assigned.
Step 1: Create a Maintenance Order with Checklist
You need to create a new order using a functional location and a specific task list that triggers the checklist functionality.
* Access the Transaction : Use transaction code IW31 (Create Maintenance Order).
* Initial Screen :
* Order Type : Select an order type already configured for the checklist process (typically PM01 or a specific custom type designated for checklists in your training environment).
* Press Enter .
* Enter Header and Location Data :
* Functional Location : Enter 48-01-PRD-01-03-HD .
* Description : Enter a relevant description (e.g., Pump Checklist Maintenance GR48).
* Assign the Task List :
* Go to the Operations tab or find the task list assignment section.
* General Maintenance Task List : Enter A / T-PMCLEN / 1 .
* Press Enter to validate.
* Save : Click the Save (floppy disk) icon.
Explanation : By assigning this specific functional location and general task list, you are triggering the
"Checklist" integration. The system uses the classification data you set up in Task 11 to determine that a checklist (inspection lot) is required for this job.
Step 2: Display and Verify the Checklist
After saving, you must verify that the system correctly generated the technical components of the checklist.
* Display the Order : Use transaction code IW33 and enter the order number you just created.
* Verify the Object List :
* Navigate to the Object List tab.
* You should see the equipment or functional location listed here with a link to the checklist.
* Verify the Checklist :
* Look for a button or tab labeled Checklists or Inspection Lot within the order.
* The system should show that a checklist has been automatically generated for the repair operations.
Explanation : The goal of this step is to confirm that the "Object List" and "Checklist" were created automatically by the system. This proves the background configuration for QM (Quality Management) integration is working correctly with your maintenance order
NEW QUESTION # 15
Create a Task List
The project team evaluates during the implementation project Task Lists in SAP S/4HANA Asset Management. The following features need to be checked:
* Create a Task List header
* Create Task List operations
* Create a Task List with 3 Task List operations. Maintenance Strategy Z## comprises Maintenance Packages with different hierarchy levels.
Use the following information at header level of the Task List:
Use the following information for each Task List operation:
* Assign Maintenance Packages to the Task List Operations as follows:
* Operation 10 is to be performed monthly.
* Operation 20 is to be performed every 4 months.
* Operation 30 is to be performed every 12 months.
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Since we encountered that error with the Z48 strategy , we must ensure that is fixed before we can finish the Task List. Here is the complete, verified, step-by-step process to finalize Task 7 , including the "hidden" pre- requisite.
Task 7: Create a General Task List
Objective : To create a standardized template of maintenance steps that can be automatically pulled into future work orders based on a schedule.
Step 1: The Pre-requisite (Fixing Strategy Z48)
If you haven't done this yet, SAP will not let you save the Task List.
* Transaction : IP11 (Maintain Maintenance Strategies).
* Action : Click New Entries .
* Strategy : Z48
* Description : Strategy for Group 48
* Strategy Unit : MON (Months).
* Packages : On the left, double-click Packages , then click New Entries :
* Line 1 : Cycle 1 / Unit MON / Text Monthly
* Line 2 : Cycle 4 / Unit MON / Text Every 4 Months
* Line 3 : Cycle 12 / Unit MON / Text Yearly
* Save (Floppy Disk icon).
Explanation : A strategy is the "calendar" that defines how often work happens. Without this, the system doesn't know what "Monthly" or "Yearly" means.
Step 2: Create Task List Header
* Transaction : IA05 .
* Initial Screen : Group TL-48, Group Counter 1. Press Enter .
* Header Fields :
* Description : Regular Maintenance GR48
* Planning Plant : 1010
* Work Center : MK-00 / Plant : 1010
* Usage : 4 (Plant Maintenance)
* Status : 4 (Released)
* Planner Group : P48
* Maint. Strategy : Z48
Explanation : The header defines who is responsible for the work (Planner Group P48) and which scheduling rules (Strategy Z48) apply to the whole list.
Step 3: Create Operations
* Click the Operations button (F6) at the top.
* Enter three rows with this data:
* Op 10 : Work Center MK-00, Plant 1010, Control Key PM01, Work 30, Unit MIN.
* Op 20 : (Same as above).
* Op 30 : (Same as above).
Explanation : Operations are the actual steps the technician follows. Here, we are saying each step takes 30 minutes of mechanical labor.
Step 4: Assign Maintenance Packages (The "Frequencies")
This is the most important part of Task 7. We tell SAP which operation happens when.
* Select Row 10 (click the box at the far left of the row).
* Go to Menu: Goto > Maintenance Packages .
* Check the box for the 1 Month package. Click the Back (Green Arrow) icon.
* Select Row 20 .
* Go to Goto > Maintenance Packages and check the 4 Month package. Click Back .
* Select Row 30 .
* Go to Goto > Maintenance Packages and check the 12 Month package. Click Back .
Explanation : Now, SAP knows that Op 10 happens every month, but Op 30 only happens once a year.
Step 5: Save
* Click the Save icon.
* The message at the bottom should say: "Task list TL-48 saved with group counter 1" .
NEW QUESTION # 16
......
In order to provide the most effective C_S43 exam materials which cover all of the current events for our customers, a group of experts in our company always keep an close eye on the changes of the C_S43 exam even the smallest one, and then will compile all of the new key points as well as the latest types of exam questions into the new version of our C_S43 Practice Test, and you can get the latest version of our C_S43 study materials for free during the whole year. Do not lose the wonderful chance to advance with times.
Study Materials C_S43 Review: https://www.pass4cram.com/C_S43_free-download.html
