91. Frage

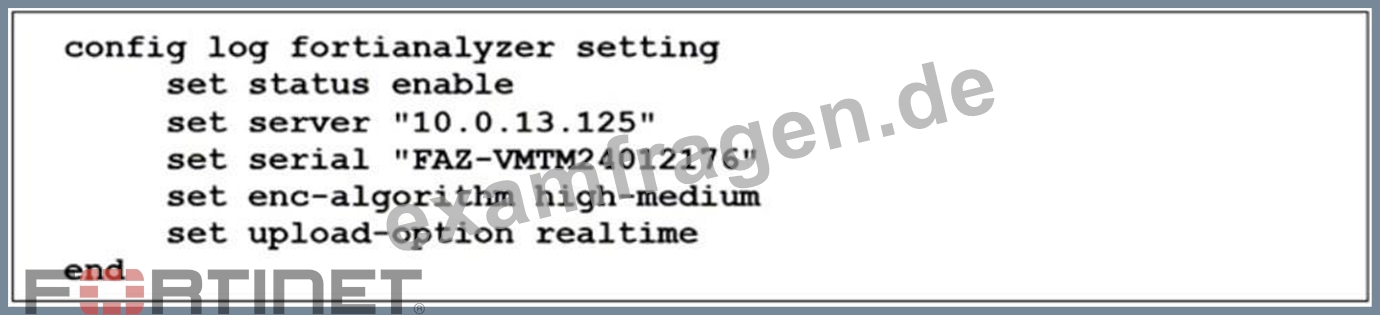

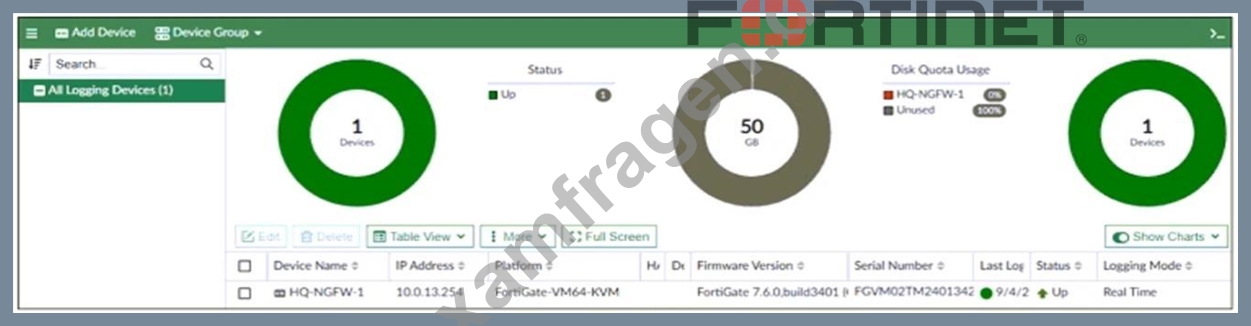

The FortiGate device HQ-NGFW-1 with the IP address 10.0.13.254 sends logs to the FortiAnalyzer device with the IP address 10.0.13.125. The administrator wants to verify that reliable logging is enabled on HQ-NGFW-1. Which exhibit helps with the verification?
Antwort: D
Begründung:

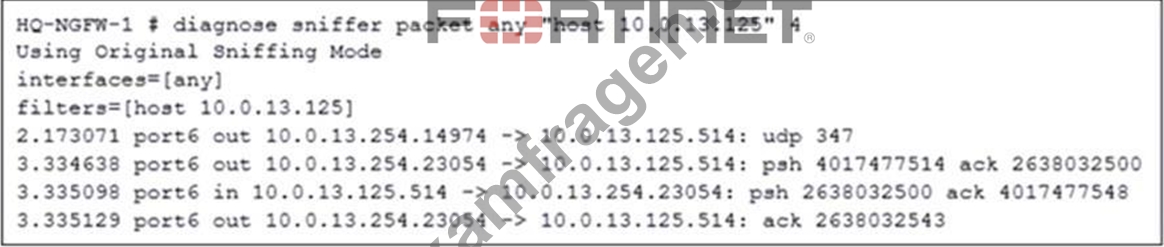

Using the diagnose sniffer packet command with the FortiAnalyzer IP as a filter allows the administrator to see actual log traffic leaving HQ-NGFW-1. This verifies that reliable logging is enabled and logs are being sent to the FortiAnalyzer in real time.
92. Frage

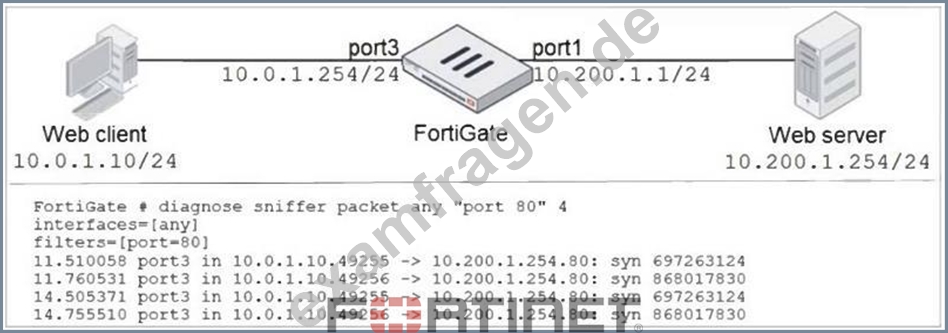

Refer to the exhibit. In the network shown in the exhibit, the web client cannot connect to the HTTP web server. The administrator runs the FortiGate built-in sniffer and gets the output shown in the exhibit.
What should the administrator do next, to troubleshoot the problem?
Antwort: D
Begründung:
The sniffer output shows that packets from the web client are reaching the FortiGate and being forwarded to the web server, but there is no indication that the web server is responding. To troubleshoot this issue, executing a debug flow will help analyze the traffic path and pinpoint where the problem might be occurring, such as a possible issue in firewall policy or route settings that is causing the server not to respond correctly.
93. Frage
Which two statements about equal-cost multi-path (ECMP) configuration on FortiGate are true? (Choose two answers)
Antwort: A,D
Begründung:
"If SD-WAN is disabled, you can change the ECMP load balancing algorithm on the FortiGate CLI using the commands shown on this slide."
"When SD-WAN is enabled, FortiOS hides the v4-ecmp-mode setting and replaces it with the load-balance-mode setting under config system sdwan. That is, when you enable SD-WAN, you control the ECMP algorithm with the load-balance-mode setting."
"There are some differences between the two settings. The main difference is that load-balance-mode supports the volume algorithm, and v4-ecmp-mode does not."
"These routes are called equal cost multipath (ECMP) routes..."
Technical Deep Dive:
The correct answers are A and D.
A is correct because when SD-WAN is enabled, FortiOS no longer uses v4-ecmp-mode; it uses load-balance-mode under config system sdwan. That is the explicit SD-WAN control point for ECMP behavior.
D is correct because when SD-WAN is disabled, ECMP configuration is done in the regular system routing settings, not under SD-WAN. The study guide states that you change the ECMP algorithm on the FortiGate CLI when SD-WAN is disabled, which corresponds to the classic config system settings ECMP controls.
Why the others are wrong:
B is wrong because the guide explicitly says load-balance-mode supports volume, while v4-ecmp-mode does not. So you cannot set v4-ecmp-mode to volume-based.
C is wrong because ECMP requires equal-cost routes. If distance or priority differ, they are no longer ECMP candidates; FortiGate selects the preferred route instead. The concept of ECMP itself requires equal route cost attributes.
From an implementation standpoint, the common CLI patterns are:
config system settings
set v4-ecmp-mode source-ip-based
end
and, with SD-WAN enabled:
config system sdwan
set load-balance-mode source-ip-based
end
On hardware platforms, ECMP still affects session distribution at the routing decision stage before later security services are applied. NP offload can accelerate forwarding after route selection, but the ECMP decision itself is a FortiOS control-plane routing function.
94. Frage
Refer to the exhibits.

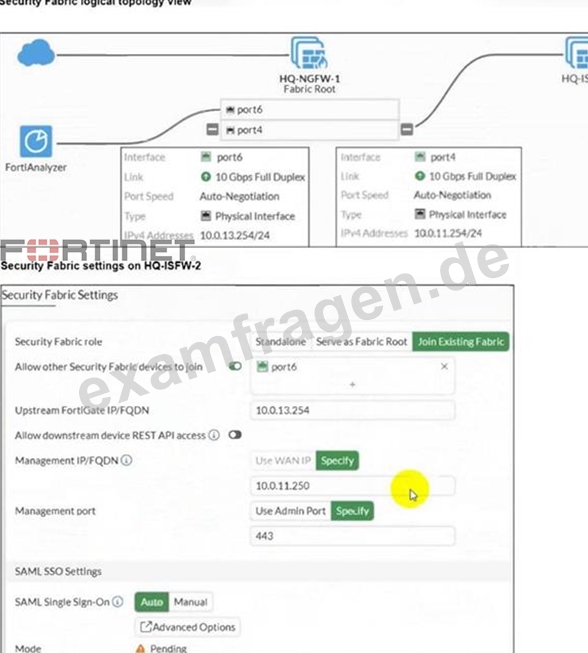

An administrator wants to add HQ-ISFW-2 in the Security Fabric. HQ-ISFW-2 is in the same subnet as HQ-ISFW. After configuring the Security Fabric settings on HQ-ISFW-2, the status stays Pending. What can be the two possible reasons? (Choose two answers)
Antwort: A,C
Begründung:
According to the FortiOS 7.6 Security Fabric documentation and Study Guide, several conditions must be met for a downstream FortiGate to successfully join a Security Fabric.
First, the Upstream FortiGate IP/FQDN configured on the downstream device must point to the IP address of the interface on the upstream device that is listening for fabric connections. In the provided logical topology, the Fabric Root (HQ-NGFW-1) uses port4 with the IP 10.0.11.254 to connect to the internal segmentation firewalls (ISFWs). Since HQ-ISFW-2 is in the same subnet as HQ-ISFW, it is physically and logically connected to the network segment serviced by port4. Therefore, the current configuration of 10.0.13.254 (which is port6, likely the WAN side) is incorrect, and it must be set to 10.0.11.254 (Statement A).
Second, once the downstream device successfully reaches the upstream device, it enters a Pending state. For security purposes, FortiOS does not allow devices to join the fabric automatically; the administrator of the upstream device (in this case, HQ-ISFW or the root) must manually authorize the new device (Statement C) in the Fabric Management console. Until this authorization is granted, the status will remain "Pending" and no fabric data will be synchronized. Statements B and D are incorrect as SAML settings do not block the initial fabric join, and the management IP should be the local device's IP, not the upstream's IP.
95. Frage

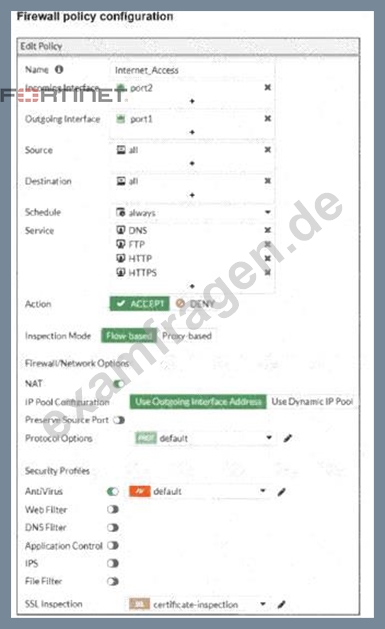

Refer to the exhibit to view the firewall policy.
Why would the firewall policy not block a well-known virus, for example EICAR? (Choose one answer)
Antwort: B
Begründung:
"The only security features you can apply using SSL certificate inspection mode are web filtering and application control... Note that while offering some level of security, certificate inspection does not allow FortiGate to inspect the flow of encrypted data."
"To perform SSL inspection on traffic flowing through the FortiGate device, you must allow the traffic with a firewall policy and apply an SSL inspection profile to the policy... For antivirus or IPS control, you should use a deep-inspection profile."
"When you use deep inspection, FortiGate impersonates the recipient of the originating SSL session, and then decrypts and inspects the content to find threats and block them. It then re-encrypts the content and sends it to the real recipient." Technical Deep Dive:
The exhibit shows that the policy is allowing HTTPS and the SSL/SSH inspection profile is certificate- inspection , not deep-inspection . That is the key issue. With certificate inspection, FortiGate can inspect only SSL metadata such as the certificate and SNI/hostname context; it cannot decrypt the HTTPS payload itself. Because EICAR is detected by antivirus through payload inspection, FortiGate must see the file contents. Without deep SSL inspection, the antivirus engine never gets the decrypted payload, so the file can pass even though the antivirus profile is attached.
Option A is incorrect because FortiGate firewall policies often use ACCEPT + security profile enforcement
; the session can still be blocked by antivirus after policy match. Option B is incorrect because web filter is not required for antivirus detection. Option C is incorrect because the real requirement is deep SSL inspection
, not specifically proxy-based mode; full SSL inspection is the deciding factor here.
In practice, to block EICAR over HTTPS, you would apply a deep-inspection SSL profile to the policy, for example:
config firewall policy
edit < policy-id >
set inspection-mode flow
set av-profile " default "
set ssl-ssh-profile " deep-inspection "
next
end
On real hardware, this also matters for performance design. Simple firewall/NAT sessions are often NP fast- pathed, but once you enable deep SSL inspection and content scanning, traffic is typically handed to CPU
/WAD/content-inspection path for decryption and scanning, so throughput is lower than certificate-inspection or no-inspection.
