| Section | Objectives |
|---|---|
| Tall Mass Timber Building Code Provisions | - Types IV-A, IV-B and IV-C construction - International Building Code requirements for tall mass timber construction - Mass timber materials and construction requirements |
| Code Compliance and Related Requirements | - Energy code requirements applicable to mass timber buildings - Sound transmission requirements - Documentation and verification of compliance |
| Fire Protection and Fire-Resistance | - Fire protection systems and related provisions - Fire-resistance requirements - Noncombustible protection and protection of mass timber elements |
| Construction Fire Safety | - Protection of mass timber during construction - International Fire Code requirements - Construction-phase fire safety requirements |
| Structural Inspection | - Mass timber structural elements - Structural loads and related code requirements - Connections and fastening systems |
| Special Inspection Requirements | - Inspector duties and responsibilities - Inspection of connections and protective materials - Special inspection procedures for tall mass timber buildings |
>> 93-Tall-Mass-Timber-Buildings Latest Exam Materials <<
If you want to pass the shortest time to pass you exam, just find us. Our 93-Tall-Mass-Timber-Buildings Training Materials will have the collective of the questions and answers, it will help you to have a good command of the knowledge point, therefore make it possible for you to pass the exam. Besides money back guarantee if you fail to pass it, or we can change another exam dumps for you for free. All we do is just want to serve you better. Choose us and you will never regret.
NEW QUESTION # 60
Based on the definition of cross-laminated timber (CLT), panels are manufactured as follows:
Answer: B
Explanation:
The 2021 IBC definition of cross-laminated timber describes a prefabricated engineered wood product consisting of not less than three layers of solid-sawn lumber or structural composite lumber. The adjacent layers are cross oriented and bonded with structural adhesive to form a solid wood element. Accordingly, option C is correct.
Cross orientation means that the principal grain direction of one layer is arranged approximately perpendicular to that of the adjoining layer. This configuration distinguishes CLT from products in which all laminations run parallel, such as conventional glued-laminated timber. The cross-oriented layup provides two- way panel behavior, dimensional stability, and structural capacity in both principal directions.
Option A is incorrect because CLT must contain at least three layers. Option B describes a mechanically laminated product rather than structural glued CLT; nail-laminated timber uses mechanical fasteners, whereas code-compliant CLT uses structural adhesives and must conform to the applicable manufacturing standard.
Option D eliminates the defining cross-lamination characteristic and would instead describe a parallel- laminated product.
During inspection, the product label and certification documentation should be checked to confirm the panel was manufactured under the required quality-assurance program.
References/Topics: 2021 IBC Chapter 2 definition of "Cross-Laminated Timber"; Sections 602.4 and
2303.1.4; ANSI/APA PRG 320.
NEW QUESTION # 61

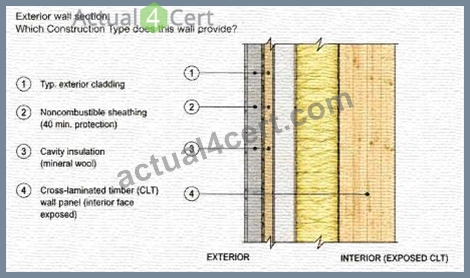

Refer to the figure by clicking on the EXHIBIT button above.
The exterior wall section shown in the Figure provides the prescribed noncombustible protection required by which Construction Type?
Answer: D
Explanation:
The illustrated configuration represents Type IV-C construction , so option C is correct. The distinguishing feature is the combination of noncombustible protection on the exterior face with an exposed CLT surface toward the interior.

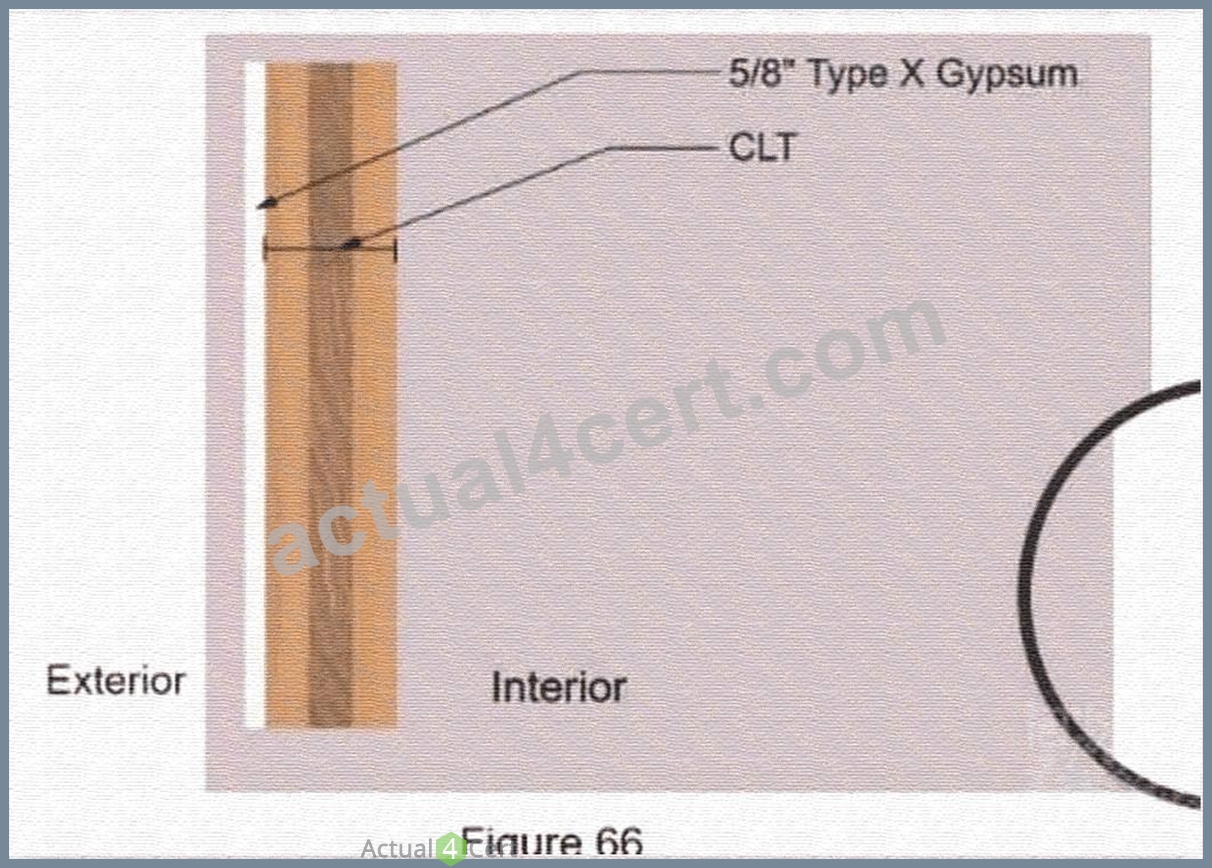

IBC Section 602.4.3.1 requires the exterior side of combustible exterior walls in Type IV-C construction to have noncombustible protection providing a minimum assigned time of 40 minutes . Table 722.7.1(2) assigns exactly 40 minutes to one layer of 5/8-inch Type X gypsum board, matching the protection illustrated in Figure 66.
The decisive distinction is Section 602.4.3.2: mass timber elements in Type IV-C are permitted to be unprotected on the interior . This is fundamentally different from Type IV-A, where essentially all interior mass timber faces must be protected, and Type IV-B, where interior protection is generally required but limited areas may remain exposed under specific area and separation restrictions.
Type IV-HT does not use the Type IV-C protected-exterior/exposed-interior regulatory scheme.
References/Topics: 2021 IBC Sections 602.4.3, 602.4.3.1 and 602.4.3.2; Table 722.7.1(2), 5/8-inch Type X gypsum board = 40 minutes.
NEW QUESTION # 62
Refer to the exhibit by clicking on the EXHIBIT button above.
Given: The connections between the glulam beam and CLT panels all require a fire-resistance rating of 2 hours, and wood cover is designed per AWC Technical Report 10 to provide the entire 2 hours of protection.
The bearing area between the CLT and glulam is the minimum required.
What are the minimum dimensions, in inches, for the wood block shown in red?
Answer: B
Explanation:
Under the illustrated connection detail, the minimum wood-block dimensions are 3 inches by 3 inches.
Therefore, option C is correct.
The block is part of the sacrificial wood-cover system used to protect the connection for the full two-hour fire- resistance period. It must provide sufficient timber beyond the protected connection region to account for calculated charring and the increased exposure that can develop at the interface between abutting wood members. Because the problem states that the CLT-to-glulam bearing area is already the minimum required, the primary members do not provide surplus material that can be credited as additional protection at that edge.
AWC connection-fire-design guidance requires the protective geometry to remain effective after the calculated char front advances. Char contraction can open a gap at abutting edges and expose material deeper in the connection than would occur on an uninterrupted planar surface. The 3-inch-by-3-inch block maintains the required protective envelope for the stated two-hour condition.
This dimension is specific to the illustrated configuration and assumptions; it is not a universal minimum for every mass timber connection. The inspector must verify the approved detail rather than substitute nominal blocking based solely on field availability.
References/Topics: AWC Technical Report 10; AWC Fire Design Specification provisions for wood-cover protection and char contraction at abutting members.
NEW QUESTION # 63
The fire-resistance of a protected mass timber assembly is equivalent to the fire resistance time of the:
Answer: B
Explanation:
IBC Section 722.7 establishes the governing calculation principle for protected mass timber. The required fire resistance consists of the inherent fire resistance of the unprotected mass timber element plus the protection time contributed by the noncombustible protection . Therefore, option D is correct.
This approach recognizes two sequential protective mechanisms. First, the noncombustible covering delays heating and charring of the timber. After the credited protection period, the remaining mass timber cross section provides structural fire resistance through predictable charring behavior and residual section capacity.
Section 722.7.1 further requires the contribution of the covering material to comply with the prescribed protection times or to be established under Section 703.6.
Option A ignores the contribution of the protective membrane. Option B ignores the inherent structural fire resistance of the timber. Option C incorrectly substitutes a finish rating for the code-recognized protection contribution. A finish rating is a separate temperature-based performance concept and is not automatically additive as the protection time used by Section 722.7.
References/Topics: 2021 IBC Sections 602.4, 703.6, 722.7 and 722.7.1; calculation of protected mass timber fire resistance.
NEW QUESTION # 64
Buildings of Types IV-A, IV-B, and IV-C construction designed to be greater than six stories above grade plane shall meet which of the following requirements for fire safety practices during construction?
Answer: B
Explanation:
The 2021 IFC specifically requires standpipes to be provided in accordance with Section 3313 for Type IV-A, IV-B, and IV-C buildings designed to exceed six stories above grade plane. Therefore, option A is correct.
The code also requires a water supply for fire department operations, but it must be approved by the fire code official and fire chief; it is not described as a mandatory "portable water supply." This makes option B inaccurate. Where noncombustible protection is required, at least one layer-not two layers-must be installed on applicable building elements more than four levels below active mass timber construction before additional levels are erected. Option D therefore overstates the number of layers.
Required exterior wall coverings must similarly be installed more than four levels below active mass timber construction. Option C incorrectly substitutes two levels for the prescribed four-level threshold.
These provisions limit the amount of unprotected combustible construction exposed at one time and provide the fire department with usable suppression infrastructure as erection progresses. Inspection coordination should verify standpipe extension, hose-connection accessibility, water availability, the progression of passive protection, and exterior-wall covering installation.
References/Topics: 2021 IFC Section 3308.4 and Section 3313; fire safety during construction of tall mass timber buildings.
