NEW QUESTION # 14
Which of the following best describes circumstances for which a separate inspection by a building official would be required for the fire protection of structural connections in buildings of Type IV-B construction?
Answer: D
Explanation:
A separate inspection by the building official is required where the fire resistance of a structural connection in Type IV-A, IV-B, or IV-C construction is provided by wood cover calculated in accordance with Section
2304.10.1. Therefore, option C is correct.
The required inspection occurs after the calculated wood cover has been installed but before additional coverings or finishes conceal the connection. This sequencing allows the building official to verify the actual cover thickness, geometry, continuity, fit, fastening, and correspondence with the approved fire-resistance design.
The requirement is distinct from routine Chapter 17 special inspection. Although a qualified special inspector may observe connection installation and mass timber erection, Section 110.3.5 expressly identifies a required building-department inspection for this calculated wood-cover condition. The inspection cannot be bypassed merely because the connection was observed during structural installation.
A rated joint system under Section 715 is governed by its tested or listed assembly requirements but is not the circumstance identified by this specific inspection provision. The other options do not state the code trigger.
Inspectors should therefore coordinate notification before the connection is enclosed because subsequent destructive exposure may otherwise be necessary.
References/Topics: 2021 IBC Sections 110.3.5 and 2304.10.1; inspection of calculated wood cover protecting mass timber connections.
NEW QUESTION # 15
Materials acceptable for use in fire-protecting connections in Type IV-A construction includes each of the following except:
Answer: C
Explanation:
Steel plates are not themselves a fire-protective material for the connection; therefore, option A is the exception. Steel plates frequently form part of mass timber structural connections, but because steel is highly thermally conductive, exposed steel can rapidly transmit heat into fasteners and adjacent wood. Consequently, the steel connection components are normally the items that require protection , not the material relied upon to provide that protection.
AWC guidance recognizes wood cover, fire-rated gypsum board, and other approved protection materials as valid means of shielding structural connections. TR10 specifically provides calculation procedures and worked examples using sacrificial wood cover and Type X gypsum wallboard. An approved protective coating can also be used where its documented fire-performance characteristics establish the required endurance under the approved design.
The distinction is important for inspection. A concealed steel plate does not automatically mean a protected connection. The special inspector must verify whether sufficient wood cover, gypsum protection, approved coating, or another engineered protection system surrounds the steel for the required duration. Hardware geometry, exposed edges, gaps, and penetrations can all materially affect thermal performance.
References/Topics: AWC Technical Report No. 10, protection of structural connections; 2021 IBC Section
2304.10.1; AWC guidance that connection protection can be provided by wood cover, gypsum board, or other approved material.
NEW QUESTION # 16
What fire-resistance rating is required for floors in Type IV-A, IV-B and IV-C construction?
Answer: C
Explanation:
IBC Table 601 requires floor construction and associated secondary structural members in Types IV-A, IV-B, and IV-C construction to have a two-hour fire-resistance rating. Therefore, option B is correct.
This requirement applies to the complete floor assembly, not only the timber panel. The required two-hour performance may be established through the calculated fire resistance of the mass timber, the contribution of approved noncombustible protection, or a permitted combination of both. Any topping, protective membrane, connection protection, and edge condition that forms part of the approved rated design must be installed accordingly.
The ratings for other building elements should not be transferred to the floor. A three-hour rating applies to the primary structural frame and bearing walls of Type IV-A, but its floor construction remains two hours.
Type IV-B and Type IV-C floors also require two hours, even though those construction types permit different degrees of exposed mass timber.
The special inspector must verify panel dimensions, approved layup, protection layers, joints, penetrations, connections, topping thickness, and other details that influence the floor's rated performance.
References/Topics: 2021 IBC Sections 601 and 602.4; Table 601, floor construction and associated secondary structural members.
NEW QUESTION # 17
The maximum allowable height for a Group E building of Type IV-A construction with an automatic sprinkler system in accordance with Section 903.3.1.1 is _____ stories.
Answer: B
Explanation:
The controlling provision is 2021 IBC Section 504.4 and Table 504.4, which establish the allowable number of stories above grade plane according to occupancy classification, construction type, and sprinkler protection.
The question identifies three controlling variables: Group E occupancy, Type IV-A construction, and an NFPA 13 automatic sprinkler system installed in accordance with Section 903.3.1.1.
In the Group E row, the sprinklered "S" value for Type IV-A construction is nine stories above grade plane.
Therefore, option D is correct. The three-story value applies to the nonsprinklered Type IV-A condition and must not be used because the question expressly states that the building is sprinklered. The six-story value corresponds to Type IV-B construction under the same sprinklered Group E condition, while the four-story value-although not listed as an answer-would apply to Type IV-C.
The special inspector should distinguish the story limitation in Table 504.4 from the separate building-height- in-feet limitation in Table 504.3. Both requirements apply concurrently; compliance with one does not permit the other to be exceeded.
References/Topics: 2021 IBC Section 504.4; Table 504.4, Group E, sprinklered Type IV-A construction; Section 903.3.1.1.
NEW QUESTION # 18

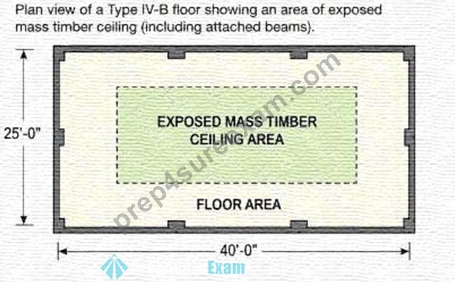

Refer to the figure by clicking on the EXHIBIT button above.
In Type IV-B construction, unprotected portions of mass timber as shown in the Figure is limited to an area equal to not more than what percentage of the base floor area?
Answer: A
Explanation:
The figure depicts an unprotected portion of the mass timber ceiling . For Type IV-B construction, Section
602.4.2.2.2, Exception 1.1, limits unprotected ceiling areas-including attached mass timber beams-to 20 percent of the floor area of the applicable dwelling unit or fire area. Option B is therefore correct.
The percentage is based on floor area rather than total ceiling surface area. For example, where the associated fire area contains 1,000 square feet of floor area, the maximum ceiling exposure permitted under this particular exception would be 200 square feet, subject to the additional separation and mixed-exposure provisions.
The 40-percent value in option D applies to mass timber walls, including attached columns , rather than ceilings. The 15-percent and 30-percent values are not the prescribed Type IV-B ceiling exposure limitations in the 2021 IBC.
The inspector must additionally determine whether another exposed wall or ceiling region exists nearby.
Section 602.4.2.2.4 imposes a 15-foot separation requirement, and Section 602.4.2.2.3 controls situations where both wall and ceiling surfaces are intentionally exposed.
References/Topics: 2021 IBC Sections 602.4.2.2.2 through 602.4.2.2.4; Type IV-B ceiling exposure limitations.
