As you all know that the Implementing and Operating Cisco Wireless Core Technologies (350-101) exam is the most challenging exam, since it's difficult to find preparation material for passing the Cisco 350-101 exam. TestValid provides you with the most complete and comprehensive preparation material for the Cisco 350-101 Exam that will thoroughly prepare you to attempt the 350-101 exam and pass it with 100% success guaranteed.
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
| Topic 5 |
|
| Topic 6 |
|
>> 350-101 Certification Sample Questions <<
Normally IT workers have two purposes to test for certification: one is just for certification as of job demand; two is setting one goal for striving. Why do you try our 350-101 new exam guide materials? Our products are valid tested by more than 6000 candidates and can help you clear exam certainly. Forget your puzzled and distressed mood, choosing our Cisco 350-101 new exam guide materials will help you success without any doubt.
NEW QUESTION # 100
An administrator configures AP load balancing on a busy WLAN. What is the intended purpose of this feature?
Answer: C
NEW QUESTION # 101

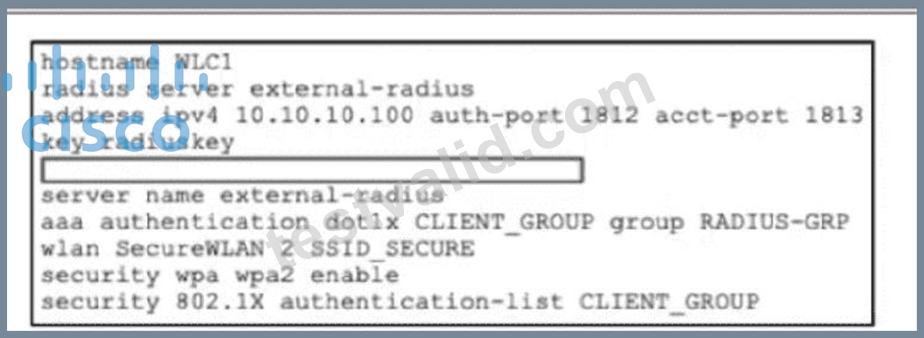

Refer to the exhibit.
A network administrator is working on a WLC to enable user access for contractor desktops using WPA2- Enterprise using EAP-TTLS. The administrator verified the external authentication configuration and now must test network connectivity. Which code snippet must be added to the box in the code to complete the configuration on the WLC that supports authentication with an external server?
Answer: A
Explanation:
The missing command must create the RADIUS server group context before the existingserver name external- radiuscommand can bind the defined RADIUS server into that group. Cisco's Catalyst 9800 802.1X configuration workflow shows the exact CLI sequence: define the RADIUS server, then enteraaa group server radius < radius-grp-name > , then addserver name < radius-server-name > . The Catalyst 9800 configuration guide likewise states that the RADIUS server-group identification is created withaaa group server radius server-group, followed by the server name assignment.
In this exhibit,external-radiusis already declared underradius server, andaaa authentication dot1x CLIENT_GROUP group RADIUS-GRPalready points the 802.1X method list to the server group namedRADIUS-GRP. Therefore, the box must containaaa group server radius RADIUS-GRPso thatserver name external-radiusis syntactically valid and functionally associates the external server with the group. Cisco also identifies dot1x authentication lists as the AAA method type used for 802.1X SSIDs, with "group" directing authentication to an external RADIUS server. Reference topics:Client Connectivity Configuration
- WPA2-Enterprise, 802.1X/EAP, AAA method lists, RADIUS server groups, and Catalyst 9800 WLAN security
NEW QUESTION # 102

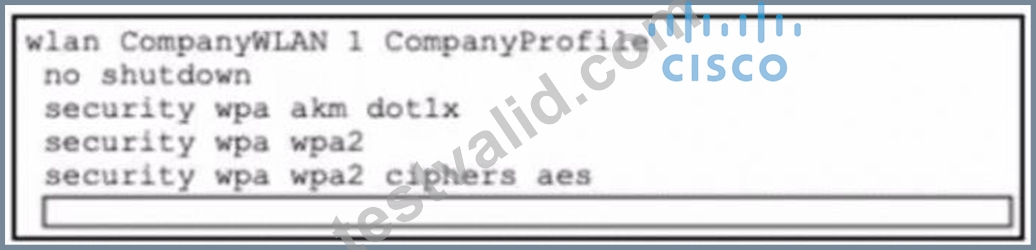

Exhibit:
Refer to the exhibit. A Cisco 9800 WLC is deployed at a branch location to facilitate secure client connectivity. A network engineer configures a WLAN using WPA2 Enterprise authentication and activates the RADIUS server-based method to align with company security policies. Which CLI command must be added to the box in the configuration to enable client authentication for this WLAN?
Answer: B
Explanation:
The correct command issecurity dot1x authentication-list RADIUS_AUTH_LIST. On a Catalyst 9800 WLC, the WLAN configuration must bind the WLAN's 802.1X authentication process to an AAA authentication method list. Cisco's Catalyst 9800 802.1X configuration workflow shows the WLAN entered with wlan < profile-name > < wlan-id > < ssid-name > , followed by the command security dot1x authentication-list < dot1x-list-name > . Cisco configuration guide examples also show the same syntax under WLAN configuration mode as Device(config-wlan)# security dot1x authentication-list auth-list-name.
In the exhibit, security wpa akm dot1x enables 802.1X as the key-management method, while security wpa wpa2 and security wpa wpa2 ciphers aes establish WPA2/AES security. These statements define the WLAN security framework, but they do not identify which AAA method list will be used to reach the RADIUS backend. The missing command must therefore attach the named authentication list RADIUS_AUTH_LIST to dot1x authentication. Options A, B, and C are parser-invalid or incorrectly ordered IOS XE syntax.
Reference topic:Client Connectivity Configuration - WPA2-Enterprise WLAN configuration, 802.1X authentication, AAA method lists, RADIUS-backed client access, and Catalyst 9800 WLAN security commands.
NEW QUESTION # 103

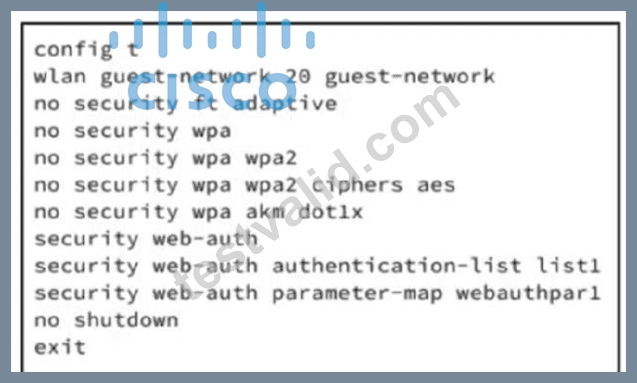

Refer to the exhibit.
An engineer must configure wireless guest networking for a deployment at site A, which requires support for guest VLAN assignment and assignment for wlan guest-network 20. The controller will provide network segregation and restrict access to internal resources. Based on the configuration commands, which action meets the requirements?
Answer: D
Explanation:
The exhibit creates WLAN profileguest-networkwith WLAN ID20and enables web authentication, but it does not yet define the client VLAN or bind the WLAN to a deployable policy. On Catalyst 9800 controllers, the WLAN profile defines SSID and wireless/security characteristics, while thepolicy profiledefines client-facing network policy, including VLAN assignment, AAA, ACLs, and switching behavior. Cisco's web authentication configuration guide states that the policy profile specifies client VLAN, AAA, ACLs, timeout settings, and related policy, and the VLAN is assigned under the policy profile.
The second required object is thepolicy tag, because a policy tag maps the WLAN profile to the policy profile.
Cisco also notes that the default policy tag automatically maps only WLAN IDs1 through 16; WLAN ID17 or highercannot use that default mapping. Since this WLAN is ID 20, a custom policy tag mapping is required.
Mesh bridging, STP, AP group naming, or physical-interface isolation do not complete the Catalyst 9800 WLAN-to-VLAN policy model. Reference topics:Wireless Network Implementation - Catalyst 9800 configuration model, WLAN profiles, policy profiles, policy tags, guest VLAN assignment, and web authentication.
NEW QUESTION # 104
Which wireless connection occurs when there are no physical obstacles between the receiver and transmitter?
Answer: A
Explanation:
The correct answer is line-of-sight. In RF terminology, line-of-sight describes a wireless path where the transmitting antenna and receiving antenna have an unobstructed visual or RF path between them. Cisco's RF power documentation defines this directly: antennas that can see each other without obstacles between them are considered to be in line of sight. This is especially important in outdoor, bridge, mesh, and point-to-point wireless designs, where buildings, terrain, foliage, or other obstructions can degrade or block the RF path.
The other options describe different RF behaviors. Attenuation is signal loss as RF energy travels through free space, cables, walls, or other materials. Reflection occurs when RF energy bounces off a surface such as metal, glass, or concrete, often contributing to multipath. Beamforming is an antenna/transmission technique that focuses RF energy toward a client or receiver to improve signal quality; it is not the condition of having no obstacles. Cisco mesh planning guidance also emphasizes verifying whether a wireless link has clear line of sight before deployment, reinforcing that LOS is a path condition, not a modulation or security feature.
NEW QUESTION # 105
......
