Our NSE7_FSN_AR-7.6 exam questions have been widely acclaimed among our customers, and the good reputation in industry prove that choosing our study materials would be the best way for you, and help you gain the NSE7_FSN_AR-7.6 certification successfully. With about ten years’ research and development we still keep updating our NSE7_FSN_AR-7.6 Prep Guide, in order to grasp knowledge points in accordance with the exam, thus your study process would targeted and efficient.
| Section | Objectives |
|---|---|
| Topic 1: SD-WAN | - Overlay VPN - Deployment and troubleshooting - SD-WAN routing - Application steering - Performance SLA - SD-WAN architecture |
| Topic 2: Enterprise Firewall | - Troubleshooting - Routing and advanced networking - Security Fabric integration - Authentication and identity - Centralized management and analytics - High availability - VPN technologies - Advanced firewall deployment |
>> NSE7_FSN_AR-7.6 Latest Exam Price <<
Working in IT industry, IT people most want to attend Fortinet certification exam. As a widely recognized certification examination, Fortinet certification exams are becoming more and more popular. Among them, Fortinet NSE7_FSN_AR-7.6 certification test is the most important exam. Having NSE7_FSN_AR-7.6 certificate proves you have high skills. Owing to its importance, it is very difficult to pass Fortinet NSE7_FSN_AR-7.6 exam successfully. Although to pass the exam is hard, you also don't need to worry about it. Dumpcollection exam dumps will help you sail through NSE7_FSN_AR-7.6 test.
NEW QUESTION # 103

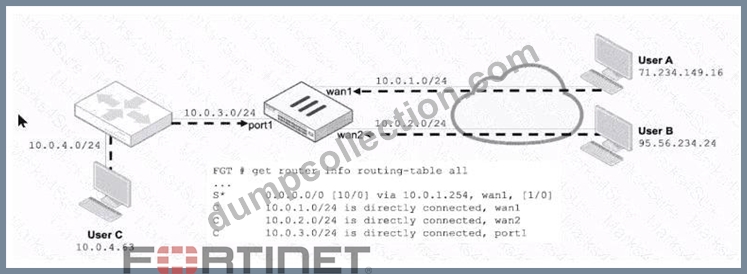

Refer to the exhibit.
Assuming a default configuration, which three statements are true? (Choose three.)
Answer: A,B,D
Explanation:
References:
Fortinet Technical Note: RPF Default Configuration and Routing Table Matching FortiGate Administration Guide: Routing and Asymmetric Routing Controls Community Knowledgebase: Route Lookups and RPF Enforcement on FortiOS
NEW QUESTION # 104

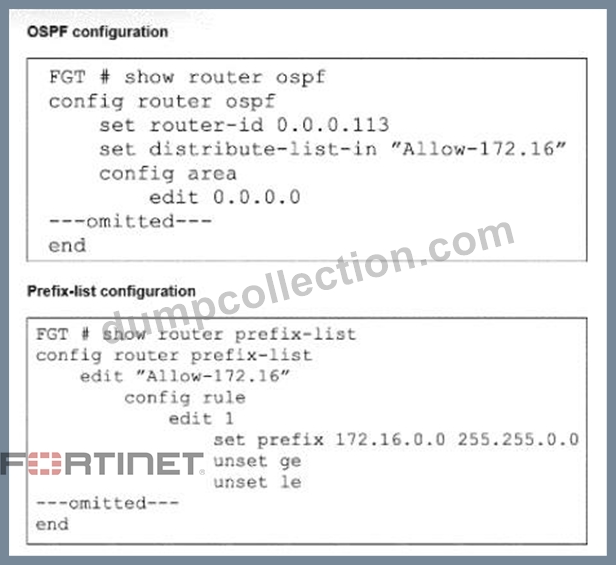

Refer to the exhibits.
An OSPF peer is advertising route 172.16.52.0/24. The local FortiGate is configured with an inbound distribution list that allows the 172.16.0.0/16 network to be injected into its routing table. However, the 1 '
2.16.52.0/24 subnet cannot be seen in the FIB.
Which two stops can the administrator of the local FortiGate take to ensure that the advertised 172.16. 52.0/24 subnet will be injected into the routing table? (Choose two.)
Answer: B,D
Explanation:
The issue is caused by the strict matching logic of the configured Prefix List.
Current State: The rule is edit 1 with set prefix 172.16.0.0 255.255.0.0 and both ge (greater than or equal) and le (less than or equal) are unset.
Behavior: When ge and le are unset, FortiOS requires an exact match of the subnet mask. The current rule only matches the exact network 172.16.0.0/16. It denies 172.16.52.0/24 because the mask (/24) does not match the rule ' s mask (/16).
To fix this and inject 172.16.52.0/24, you must modify the list to match the /24 mask:
A). Add another entry to the prefix list to specifically allow the 172.16.52.0/24 network:
Creating a new rule (e.g., edit 2) with set prefix 172.16.52.0 255.255.255.0 will provide an exact match for the incoming route, allowing it to pass the distribute-list.
B). Change the ge value to 17:
By configuring set ge 17 on the existing rule (conceptually 172.16.0.0/16 ge 17), you change the logic from " exact match " to " range match " .
This configuration tells the router to match any prefix starting with 172.16.x.x that has a subnet mask length of 17 or greater.
Since the incoming route is a /24, and 24 is greater than 17, the route will match the prefix list and be accepted.
Why other options are incorrect:
C: The option text appears to read " Change the ... value to 16 " . If this refers to le 16, it would enforce the mask to be exactly /16 or less, which still excludes /24.
D: Changing the default behavior to implicit allow defeats the purpose of a filter (security control) and is not a standard configuration step for fixing a single missing route.
Reference:
FortiGate Security 7.6 Study Guide (Routing): " In prefix-lists, if ge and le are not used, the subnet mask must match exactly. To match subnets within a range, you must define the prefix length boundaries using ge or le. "
NEW QUESTION # 105

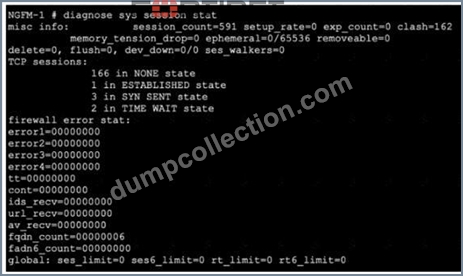

Refer to the exhibit, which shows the output of diagnose sys session stat.
Which statement about the output shown in the exhibit is correct?
Answer: A
Explanation:
The correct answer is D.
The exhibit shows:
session_count=591
clash=162
memory_tension_drop=0
TCP sessions:
166 in NONE state
1 in ESTABLISHED state
3 in SYN_SENT state
2 in TIME_WAIT state
The study guide explains the TCP protocol states and states explicitly:
"When a session is closed by both the sender and receiver, FortiGate keeps that session in the session table for a few seconds, to allow for any out-of-order packets that might arrive after the FIN/ACK packet. This is the state value 5." In diagnose sys session stat, the exhibit shows 2 in TIME_WAIT state. Since TIME_WAIT = state value 5, those are the sessions being kept briefly for possible out-of-order packets. That makes D correct.
Why the other options are wrong:
A is wrong because session_count=591 is the total number of sessions, while the TCP sessions shown add up to only 172 (166 + 1 + 3 + 2). So not all sessions in the table are TCP sessions.
B is wrong because the study guide says the number of sessions deleted because of low free memory is shown by memory_tension_drop, and in the exhibit it is 0, not 162.
C is wrong because the study guide defines ephemeral/open TCP sessions as those not fully established, but the exhibit does not say all 166 in NONE state are specifically "waiting to complete the three-way handshake." The clearest directly supported statement from the displayed states is the 2 TIME_WAIT sessions retained for out-of-order packets.
So the verified answer is: D.
NEW QUESTION # 106

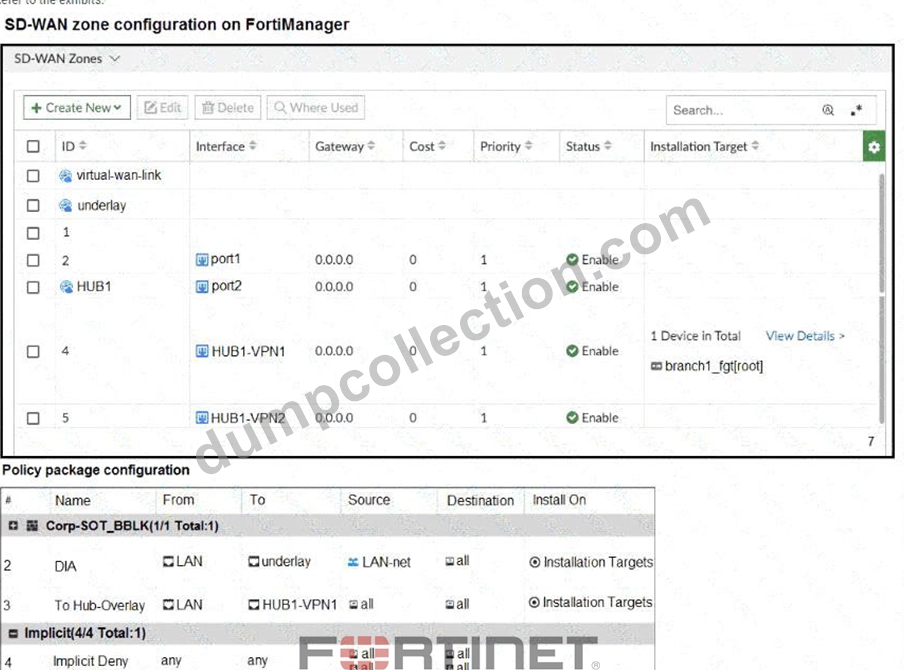

Refer to the exhibits.
The exhibits show the SD-WAN zone configuration of an SD-WAN template prepared on FortiManager and the policy package configuration.
When the administrator tries to install the configuration changes, FortiManager fails to commit.
What should the administrator do to fix the issue?
Answer: C
Explanation:
The SD-WAN 7.6 Enterprise Administrator Study Guide explicitly states: "Firewall policies for SD-WAN traffic must reference SD-WAN zones and not individual members." In the exhibit, HUB1-VPN1 is an individual member of the HUB1 SD-WAN zone. However, policy 3 incorrectly uses HUB1-VPN1 as its outgoing interface. FortiManager cannot compile and commit that policy because an SD-WAN member cannot be referenced directly by an SD-WAN firewall policy. The administrator must change the policy's To interface from HUB1-VPN1 to its parent zone, HUB1.
Option C is incorrect because the guide specifically explains that an IPsec interface does not require normalization when it is used as an SD-WAN member: "SD-WAN members don't use normalized interfaces." The normalized LAN interface shown in the policy is appropriate because it maps the local interface for each managed FortiGate, but the overlay side must reference the HUB1 zone.
Option D remains invalid because it still references individual SD-WAN members. Option A does not correct the invalid outgoing-interface reference; policy 3 already uses the policy package installation targets.
NEW QUESTION # 107

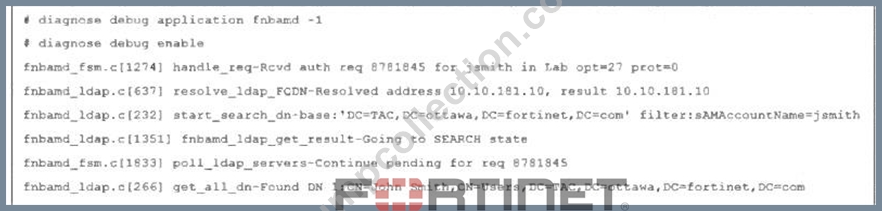

Refer to the exhibit, which shows a partial output of a real-time LDAP debug.
What two conclusions can you draw from the output? (Choose two.)
Answer: A,D
Explanation:
The exhibit includes these key debug lines:
start_search_dn-base: ' DC=TAC,DC=ottawa,DC=fortinet,DC=com ' filter:sAMAccountName=jsmith get_all_dn-Found DN 1:CN=John Smith,CN=Users,DC=TAC,DC=ottawa,DC=fortinet,DC=com The study guide explains that in regular bind, LDAP authentication has four steps, and that during step 2, FortiGate searches the LDAP tree to find the user's DN:
"During the second step, FortiGate does a search query in the LDAP database to find the user's location-in other words, the user's DN. If the user is found, the server replies with the user's DN." It also states for the real-time debug of step 2:
"An fnbamd_ldap_build_dn_search_req-base message indicates that FortiGate is performing step two:
searching for the user in the LDAP tree. This message includes the base branch (distinguished name setting) and the name of the attribute used to locate the user... If the LDAP server finds the user, the output shows the user's full DN." That directly proves:
D is correct because the debug is showing step 2: Search Request
A is correct because the base DN and found DN are under DC=TAC,DC=ottawa,DC=fortinet,DC=com, which corresponds to the LDAP domain/tree root TAC.ottawa.fortinet.com Why the other options are wrong:
B is wrong because binding with the user's credentials is step 3, not the step shown here. The study guide says: "Step 3 - Bind user credentials" and shows that this happens later with fnbamd_ldap_build_userbind_req / __ldap_build_bind_req-Binding to ' CN=John Smith... ' C is wrong because collecting user group information is step 4, not the step shown in the exhibit. The study guide says: "The last step is to get the user group information" and shows step 4 with Attr query / memberOf search
NEW QUESTION # 108
......
The Fortinet NSE 7 - Secure Networking 7.6 Architect certification exam is one of the top-rated career advancement certification exams. The Fortinet NSE7_FSN_AR-7.6 certification exam can play a significant role in career success. With the Fortinet NSE 7 - Secure Networking 7.6 Architect (NSE7_FSN_AR-7.6) certification, you can gain several benefits such as validation of skills, career advancement, competitive advantage, continuing education, and global recognition of your skills and knowledge.
