The Fortinet NSE 7 - Secure Networking 7.6 Architect (NSE7_FSN_AR-7.6) is one of the popular exams of NSE7_FSN_AR-7.6. It is designed for Fortinet aspirants who want to earn the Fortinet NSE 7 - Secure Networking 7.6 Architect (NSE7_FSN_AR-7.6) certification and validate their skills. The NSE7_FSN_AR-7.6 test is not an easy exam to crack. It requires dedication and a lot of hard work. You need to prepare well to clear the NSE7_FSN_AR-7.6 test on the first attempt. One of the best ways to prepare successfully for the NSE7_FSN_AR-7.6 examination in a short time is using real Fortinet NSE7_FSN_AR-7.6 Exam Dumps.
| Section | Objectives |
|---|---|
| Enterprise Firewall | - Advanced firewall deployment - Security Fabric integration - High availability - VPN technologies - Routing and advanced networking - Troubleshooting - Authentication and identity - Centralized management and analytics |
| SD-WAN | - SD-WAN routing - Application steering - Performance SLA - Deployment and troubleshooting - Overlay VPN - SD-WAN architecture |
>> Test NSE7_FSN_AR-7.6 Score Report <<
Our NSE7_FSN_AR-7.6 exam pdf are regularly updated and tested according to the changes in the pattern of exam and latest exam information. There are free NSE7_FSN_AR-7.6 dumps demo in our website for you to check the quality and standard of our braindumps. We believe that our NSE7_FSN_AR-7.6 Pass Guide will be of your best partner in your exam preparation and of the guarantee of high passing score.
NEW QUESTION # 47
Which three conditions are required for two FortiGate devices to form an OSPF adjacency? (Choose three answers)
Answer: A,C,E
Explanation:
The correct answers are C, D, and E .
The study guide lists the exact OSPF adjacency requirements :
* "Interfaces of peers are the same type and in the same OSPF area"
* "Each peer has a unique router ID"
* "OSPF authentication, if enabled, is successful"
These map directly to:
* C. OSPF interface network types match
* D. Authentication settings match
* E. OSPF router IDs are unique
The same study-guide slide also states other requirements such as:
* peers' primary IPs must be in the same subnet with the same mask
* hello and dead intervals must match
* OSPF MTUs must match
Why the other options are wrong:
* A is wrong because link cost matching is not listed as an adjacency requirement . OSPF cost affects path selection, not whether adjacency can form.
* B is wrong because interface priority does not need to be unique . Priority is used for DR/BDR election, where the highest priority wins, and ties are broken by router ID.
So the verified answers are: C, D, E .
NEW QUESTION # 48
Which two observations can you make from the output? (Choose two.)
Answer: A,B
Explanation:
We must analyze the specific CLI output provided in the exhibit to determine the observations.
Analyze the Command and Output:

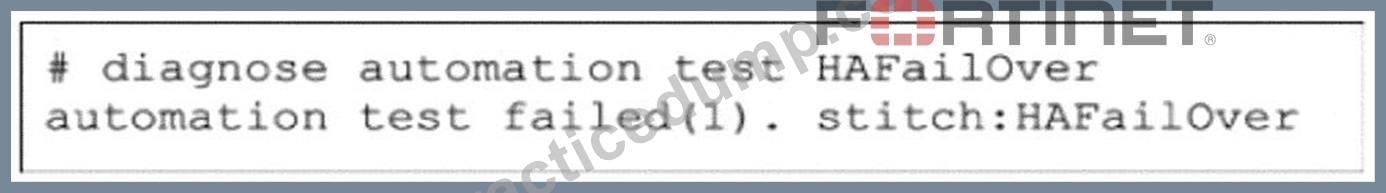

Command: # diagnose automation test HAFailOver
This command is used to manually trigger an automation stitch (named " HAFailOver " ) to verify its configuration and action execution. It simulates the trigger event to run the defined actions.
Output: automation test failed(1). stitch:HAFailOver
The output explicitly states that the test failed. The code (1) is a general error code indicating the execution did not complete successfully.
Evaluate the Options:
A). The configuration was backed up:
Incorrect. Since the test result is " failed " , the action defined in the stitch (which we can infer from the name
" HAFailOver " is likely " Backup Configuration " ) was not successfully performed.
B). A high availability (HA) failover occurred:
Incorrect. The command diagnose automation test is a simulation tool. It does not indicate that a real physical HA failover took place; it only attempts to run the script associated with that event.
C). The test was unsuccessful:
Correct. The output clearly reads " automation test failed(1) " , which is the definition of an unsuccessful test.
D). The automation stitch test is not being logged:
Correct. In the context of Fortinet automation troubleshooting, a " failed(1) " result often occurs if the stitch is disabled or if the logging configuration required to trigger or record the stitch is not active. Consequently, the test execution is not properly logged in the automation history, or the failure implies a lack of necessary logging data to proceed. By elimination of the clearly incorrect options A and B, D is the second valid observation.
Reference:
FortiGate Security 7.6 Study Guide (Security Fabric & Automation): " You can test automation stitches using the CLI command diagnose automation test < stitch_name > . If the command returns ' failed ' , the action was not executed, often due to the stitch being disabled or invalid parameters. "
NEW QUESTION # 49
Which two statements about application-layer test commands are true? (Choose two answers)
Answer: A,C
Explanation:
The correct answers are A and D.
The study guide states:
"Application layer test commands do not display information in real time. They display statistics and configuration information about a feature or process. You can also use some of these commands to restart a process or execute a change in its operation." This directly proves:
A is correct because they can display statistics and configuration information D is correct because some of them can restart a process/application Why the other options are wrong:
B is wrong because the study guide explicitly says application-layer test commands do not display information in real time. Real-time output is done with diagnose debug application ... commands instead.
C is wrong because diagnose debug console enable is related to debug output behavior, not a requirement for application-layer test commands to display output. The study guide does not describe test commands that way.
====
NEW QUESTION # 50
Refer to the exhibit.
If the default settings are m place, what can you conclude about the conserve mode shown in the exhibit?
Answer: D
Explanation:

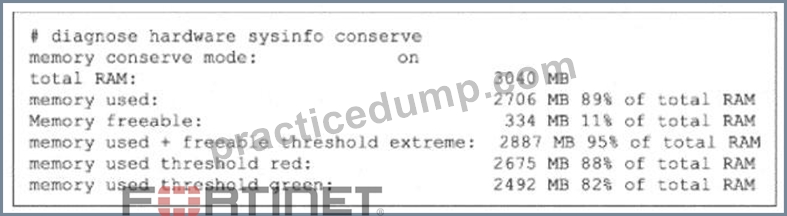

The exhibit shows:
* memory conserve mode: on
* memory used: 2706 MB 89% of total RAM
* memory used threshold red: 2675 MB 88% of total RAM
* memory used + freeable threshold extreme: 2887 MB 95% of total RAM
The study guide states that the default thresholds are:
* Extreme = 95%
* Red = 88%
* Green = 82%
So this FortiGate is in conserve mode because memory usage is 89% , which is above the red threshold (88%) , but it has not yet reached the extreme threshold (95%) .
The study guide then explains exactly what happens during conserve mode:
"For traffic that requires proxy-based inspection (and if memory usage has not exceeded the extreme threshold):
config system global
set av-failopen [off | pass | one-shot]
pass (default): All new sessions pass without inspection"
It also says:
"The av-failopen setting also applies to flow-based antivirus inspection." And the same page adds:
"If memory usage exceeds the extreme threshold, all new sessions that require inspection (flow-based or proxy-based) are blocked." Therefore, with default settings and with memory usage below the extreme threshold , FortiGate is allowing new sessions that require inspection, but bypassing inspection . That matches C .
Why the other options are wrong:
* A is wrong because the default behavior is not to block proxy-based inspected sessions; the default is pass , meaning they pass without inspection
* B is wrong because if memory rises another 6% , it reaches 95% , which is the extreme threshold . At that point, the study guide says all new sessions that require inspection are blocked
* D is wrong because FortiGate blocks all new inspected sessions only when memory usage exceeds the extreme threshold , and the exhibit shows it is currently at 89% , not 95%
NEW QUESTION # 51
Refer to the exhibit.

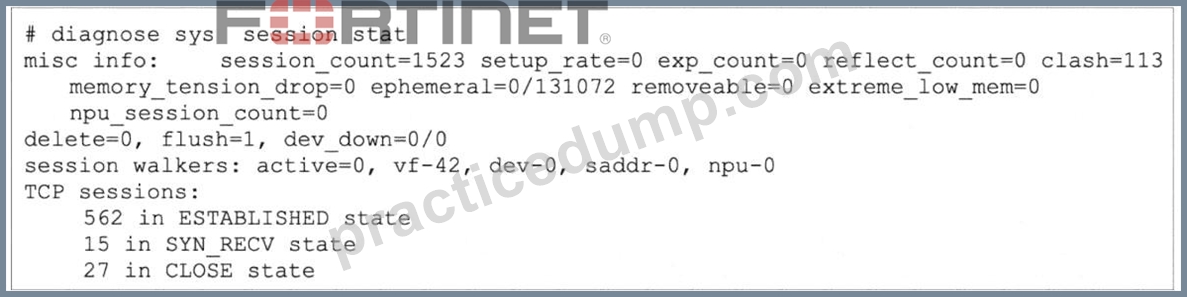

The partial output of diagnose sys session stat command is shown.
Which statement about the output shown in the exhibit is correct?
Answer: D
Explanation:
The correct answer is C .
The exhibit shows:
* 562 in ESTABLISHED state
* 27 in CLOSE state
* memory_tension_drop=0
* ephemeral=0/131072
According to the study guide, for TCP sessions: "The protocol state in the session table is a two-digit number. For TCP, the first number (from left to right) is related to the server-side state and is 0 when the session is not subject to any inspection (flow or proxy)... The second digit is the client-side state." The same page also shows that value 1 = ESTABLISHED So, if a TCP session is in ESTABLISHED state and there is no inspection , its proto_state is 01 :
* first digit 0 = no inspection
* second digit 1 = ESTABLISHED
That makes C correct. This is also consistent with FortiOS examples showing established TCP sessions with proto=6 proto_state=01 Why the other options are wrong:
* A is wrong because the field that indicates sessions dropped due to low free memory is memory_tension_drop, and in the exhibit it is 0 , not 113. The study guide states: "If there is a lack of free memory, the kernel deletes the oldest sessions. The command shown on this slide displays the number of sessions the kernel deleted because of this mechanism." So 113 is the clash value, not memory-tension drops.
* B is wrong because ephemeral=0/131072 does not mean 131072 ephemeral sessions were recorded.
The study guide explains that FortiGate "sets a hard limit on the maximum number of ephemeral sessions that can exist at the same time in the session table." Therefore:
* 0 = current ephemeral sessions
* 131072 = maximum allowed ephemeral sessions for that model/context
* D is wrong because the study guide says the temporary retention for possible out-of-order packets happens in state value 5 (TIME_WAIT) : "When a session is closed by both the sender and receiver, FortiGate keeps that session in the session table for a few seconds, to allow for any out- of-order packets that might arrive after the FIN/ACK packet. This is the state value 5." But the exhibit shows 27 in CLOSE state , and the same table shows CLOSE = 6 , not TIME_WAIT So the verified answer is C .
NEW QUESTION # 52
......
